Details
Description

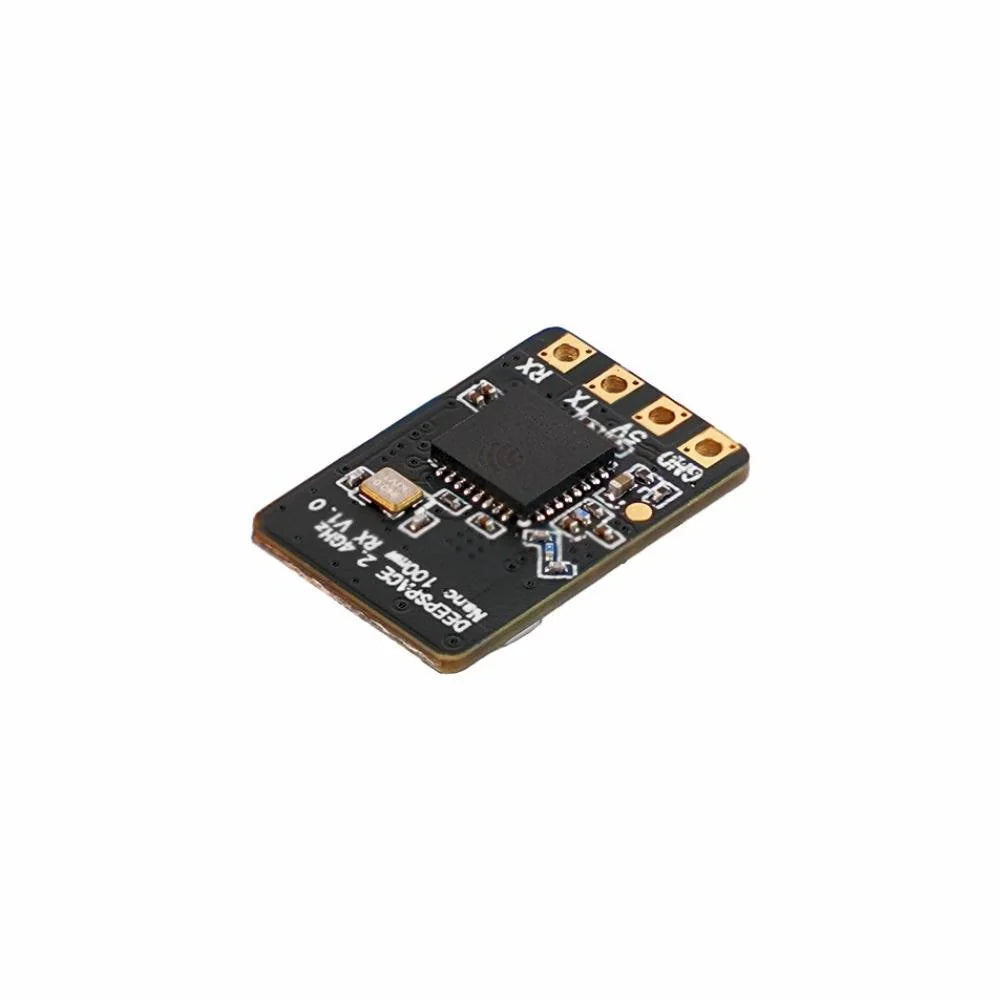

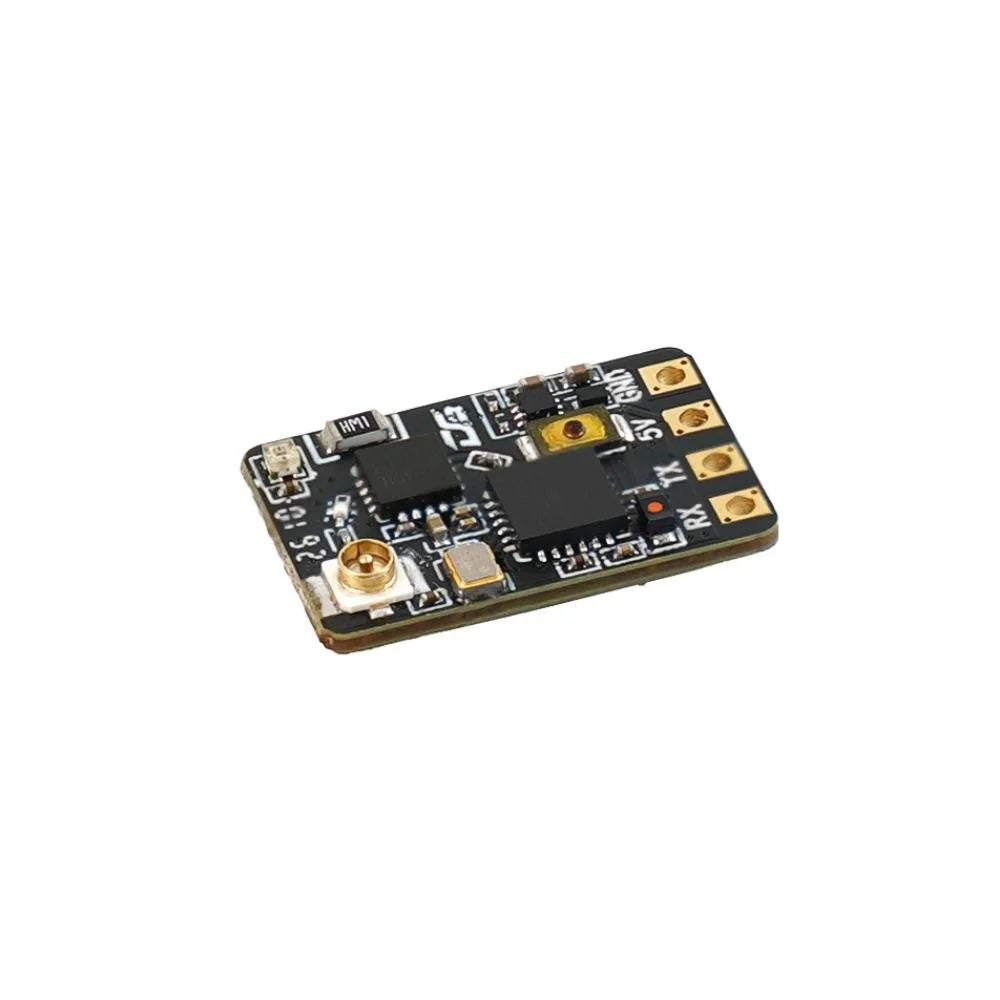

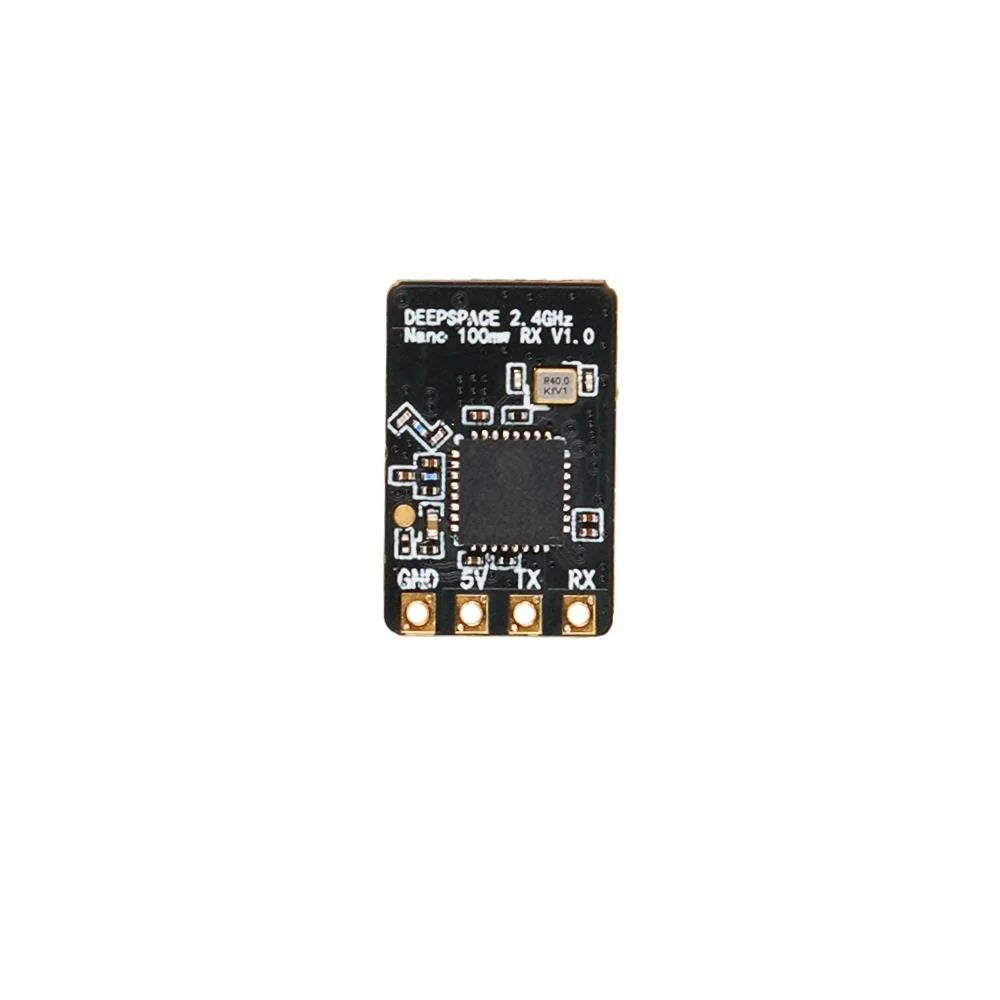

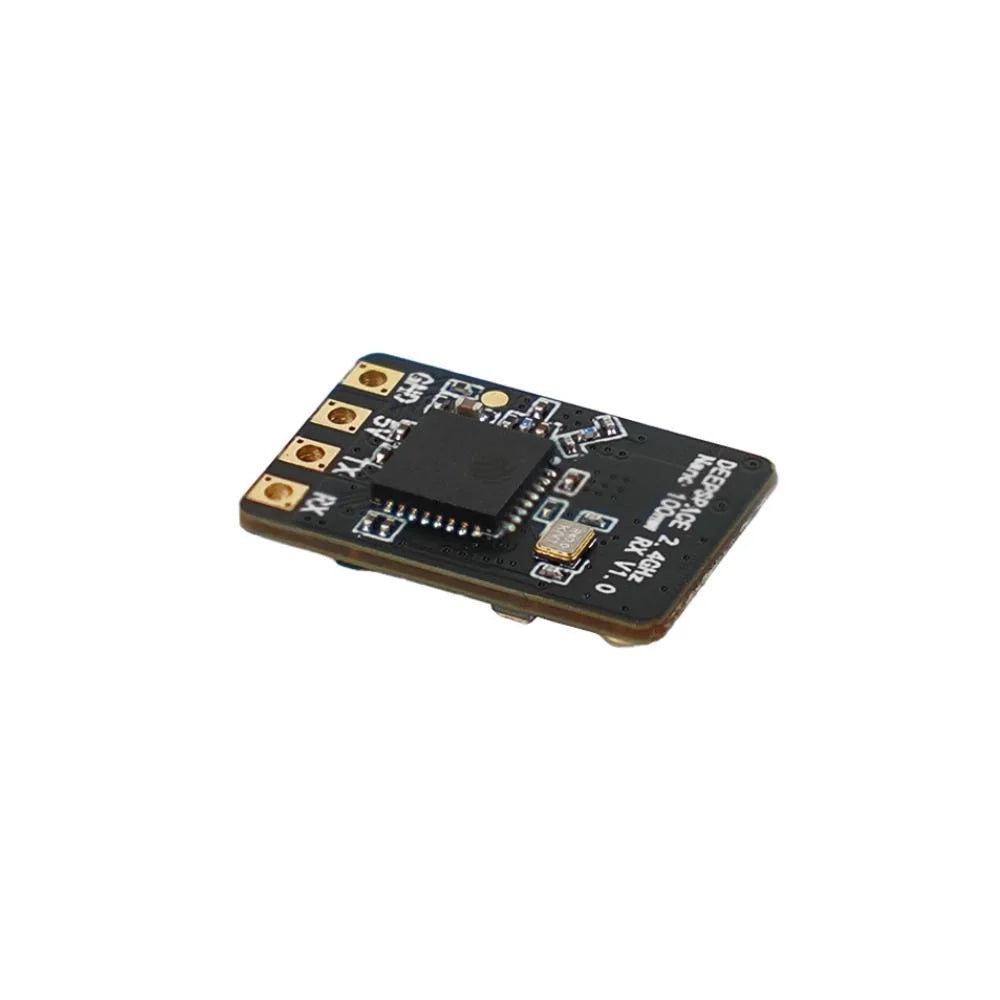

The DeepSpace ELRS Nano 2.4GHz 100mW Receiver is a high-performance receiver built on the ExpressLRS platform, offering long-range control with ultra-low latency for FPV drones. Its integrated Power Amplifier delivers strong, stable signal transmission, while a temperature-compensated oscillator ensures consistent performance across varying conditions. Designed for reliability and responsiveness, this receiver is ideal for freestyle, racing, and long-range FPV applications.
Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories!
Features
- ESP32 chip
- Built-in TCXO
- Compact and lightweight design
- High sensitivity
Specifications
- Model: DeepSpace ELRS Nano 2.4GHz
- RF Frequency: 2.4GHz ISM
- Chipset: ESP32C3, SX1281
- Crystal Oscillator: TCXO
- Telemetry Power: 100mW
- Protocol: CRSF
- Refresh Rate: 50Hz – 1000Hz
- Input Voltage: 5V
- Dimensions: 17mm x 11mm x 3mm
- Weight: 0.8g (without antenna)

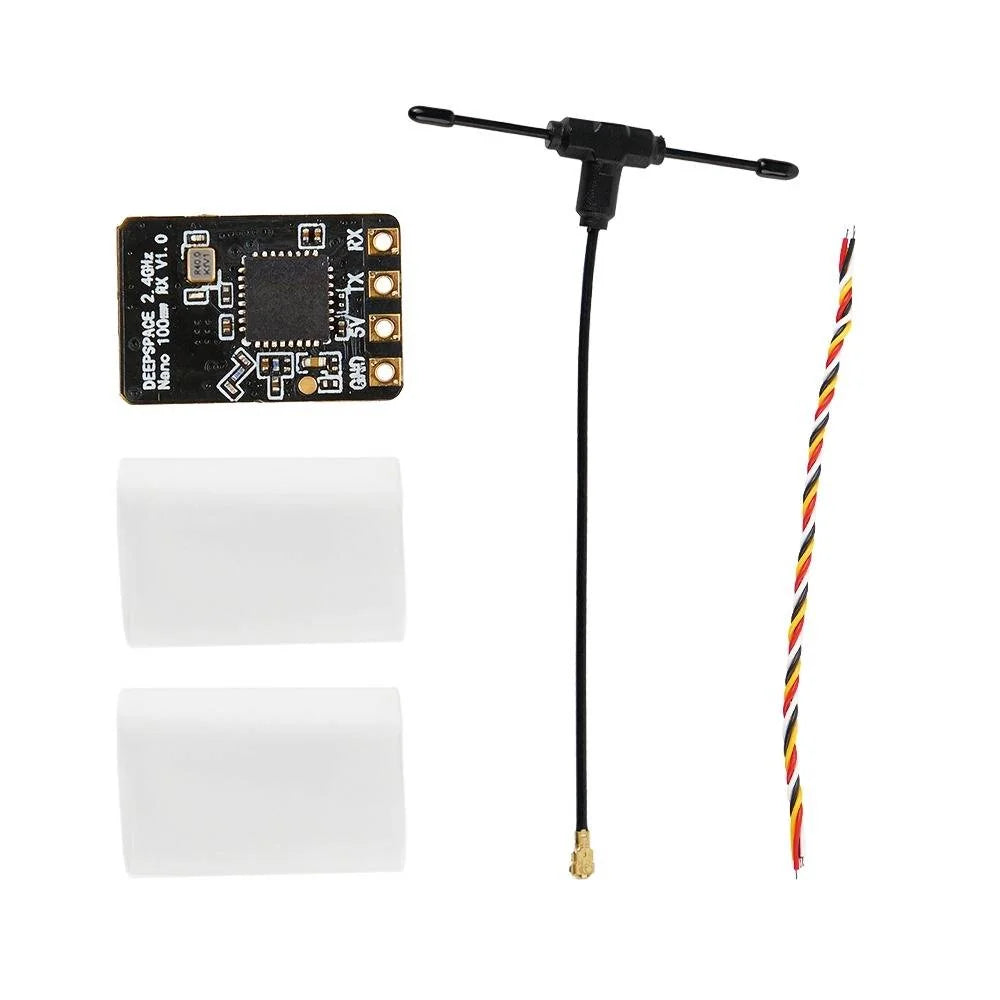

Includes
- 1x DeepSpace Nano ELRS 2.4GHz 100mW Receiver
- 1x Twisted Connector Cable
- 1x 80mm Antenna
- 2x Heat Shrink Tubing
More Info
- SKU: G24122CN1Z
- Barcode: 723326380099
