Description

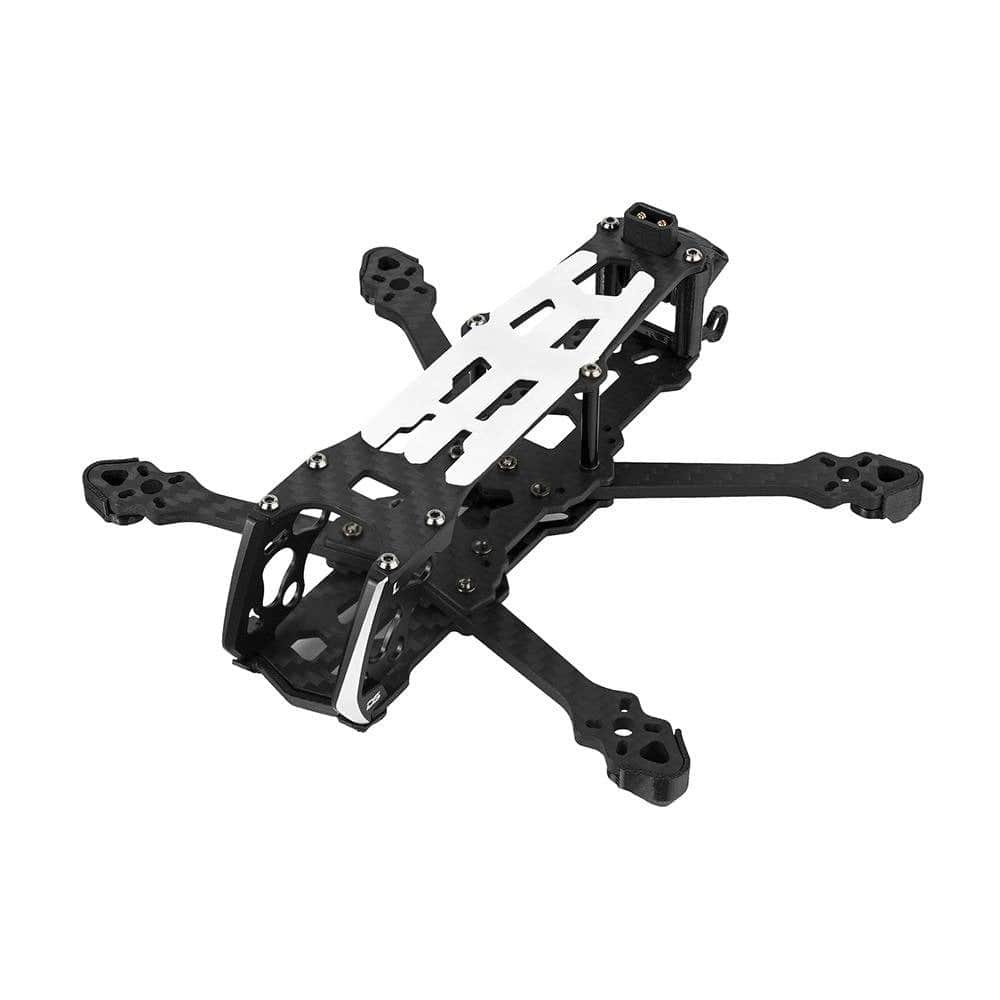

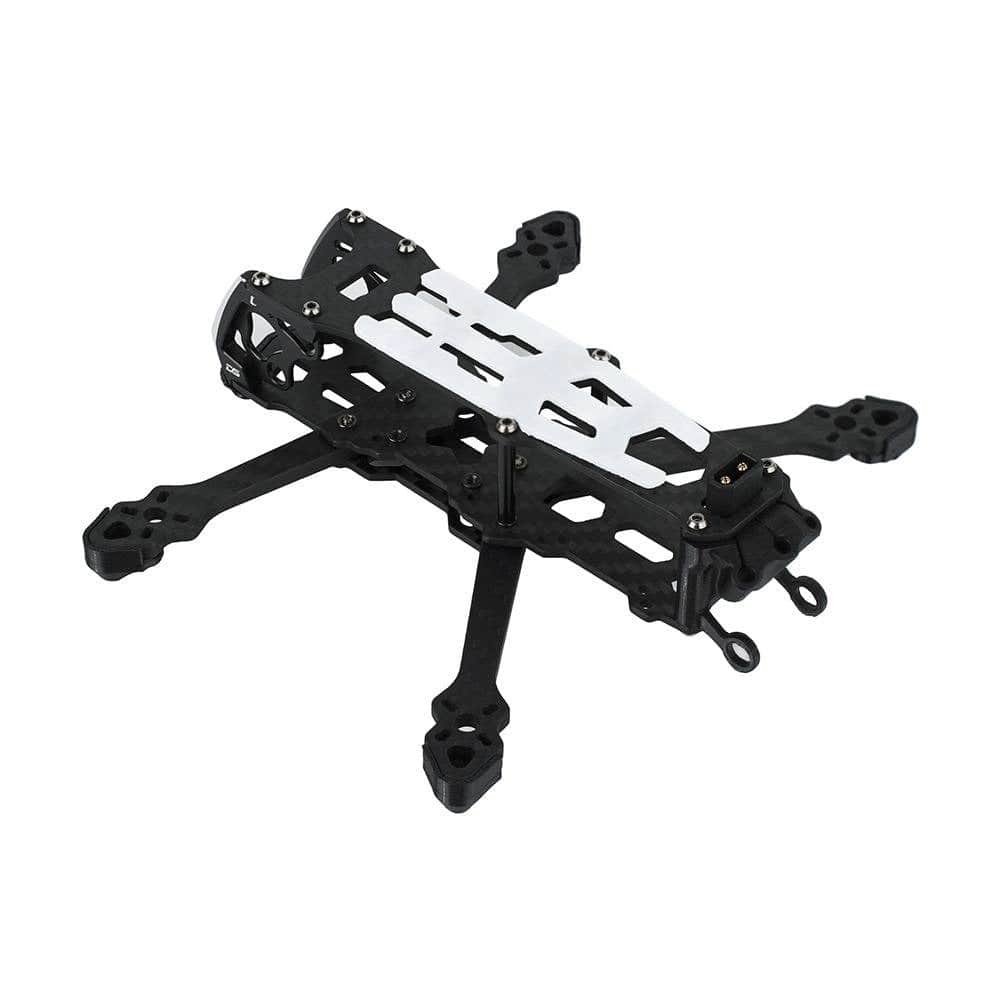

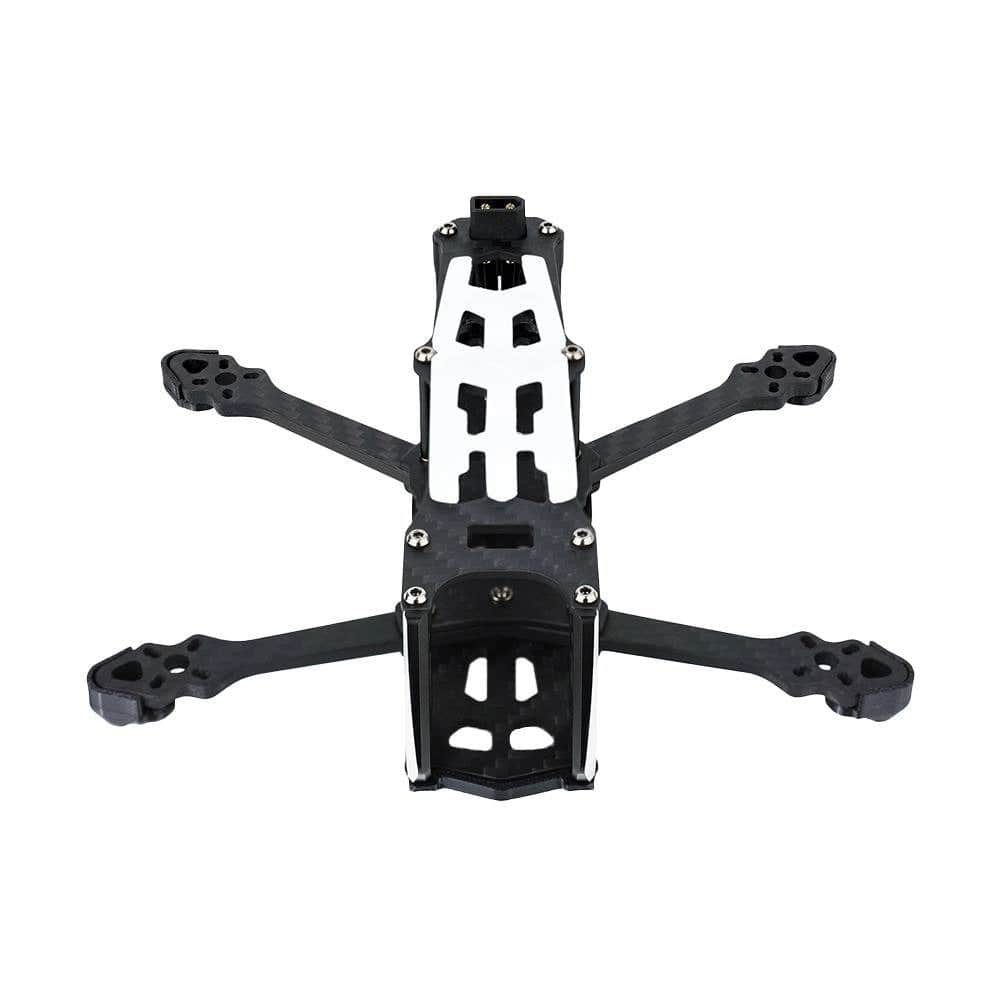

The DeepSpace Seeker 3 Frame Kit is a premium 3-inch FPV freestyle frame engineered for high-performance drone builds. Designed to support both DJI O4 PRO and O3 Air Units, this frame provides ideal mounting options and airflow for modern digital video systems while maintaining a lightweight, freestyle-ready design.

Crafted for balance, durability, and agility, the DeepSpace Seeker 3 Frame Kit features a forward GPS mount, optimized for satellite reception and minimal interference. With a sub-250g target weight (when fully built), it’s perfect for cinematic and freestyle pilots looking to maximize flight time and responsiveness in a compact footprint.

Be sure to browse the rest of our 3" Drone Frames and DJI compatible frames, electronics and accessories.

Features

• Front-mounted GPS for reduced interference
• CNC Aluminum side plates for durable protection
• 155° wide and unobstructed FOV
• Quick assembly/disassembly
• Lightweight design, target takeoff weight of sub-250g

Specifications

• Wheelbase: 139mm
• Arm Thickness: 3.5mm
• Motors: Aether 1505, 4000KV
• Motor Mounting: 9x9/12x12mm
• Battery Connector: XT30
• Recommended Battery: 4S 650-1100mAh
• Prop Size: 3 inch
• VTX: DJI O4 Pro/O3 Air Unit
• Stack Mounting: 22mm
• Camera Space: 19/20mm
• VTX Mounting: 25.5/20mm M2
• Weight: 54.9g (including TPU parts)

Includes

• 1x Top plate
• 1x Middle plate
• 1x Bottom plate
• 2x Front arm
• 2x Rear arm
• 2x CNC camera plate
• 4x M1.6x8mm cup head screw
• 4x M2x5mm dome head screw
• 18x M2x6mm dome head screw
• 12x M2x7mm dome head screw
• 4x M2x8mm dome head screw
• 4x M2x9mm cup head screw
• 2x M2x12mm cup head screw
• 4x M2x20mm dome head screw
• 2x M2x21mm standoff
• 2x M2x22mm standoff
• 8x M2 nylon nut
• 4x Motor cable tube
• 1x Battery anti-slip mat
• 11x TPU parts
• 6x Silicone camera pad
• 1x Battery strap - 16x180mm
• 1x M1.5 phillips screwdriver
• 1x XT30 power plug
• 1x Capacitor
