Description

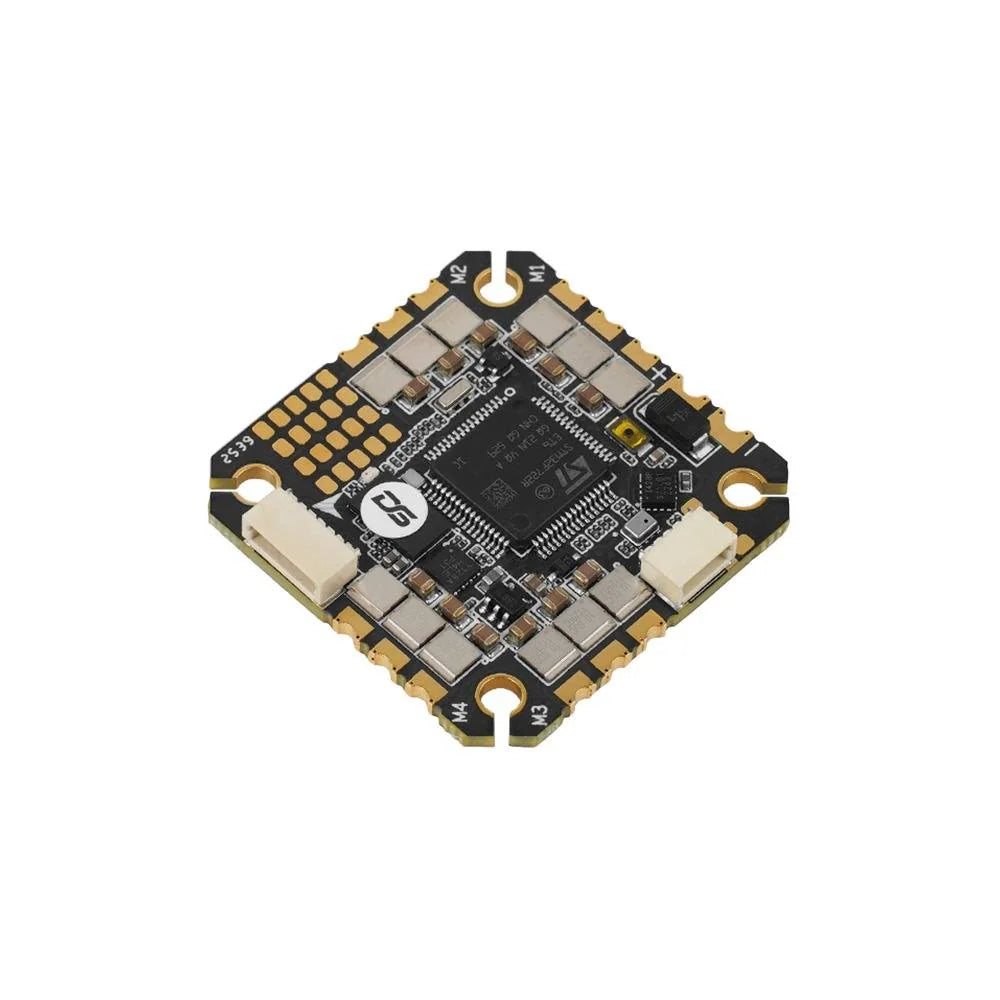

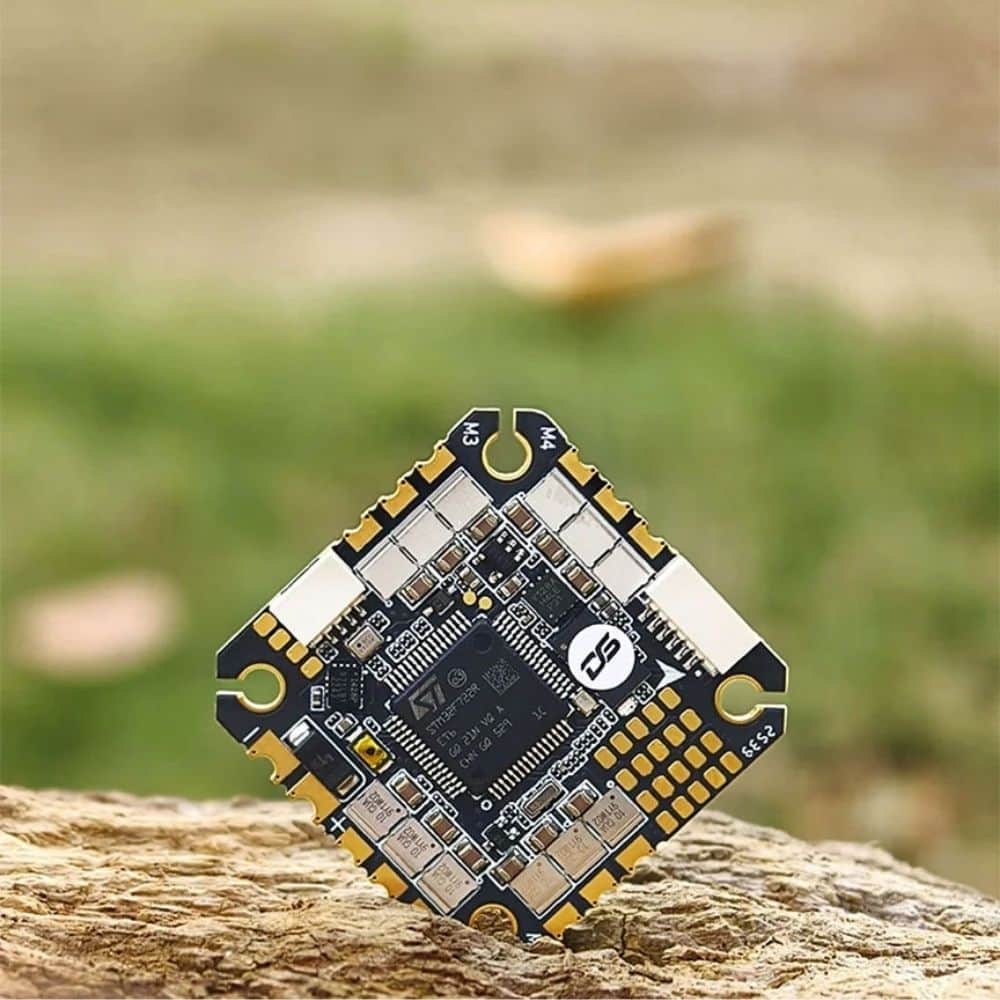

Soar to new heights with the DeepSpace TALOS H7 AIO. This high-performance All-In-One (AIO) board comes equipped with a snappy STM32F722 processor and a robust 40A BLHeli_32 4-in-1 ESC. Designed for pilots who demand precision and power, the TALOS supports up to 6S LiPo voltage, making it perfect for ultralight 5" FPV drones and 3.5" cinewhoops.
Browse the rest of our Whoop AIO boards!
Features

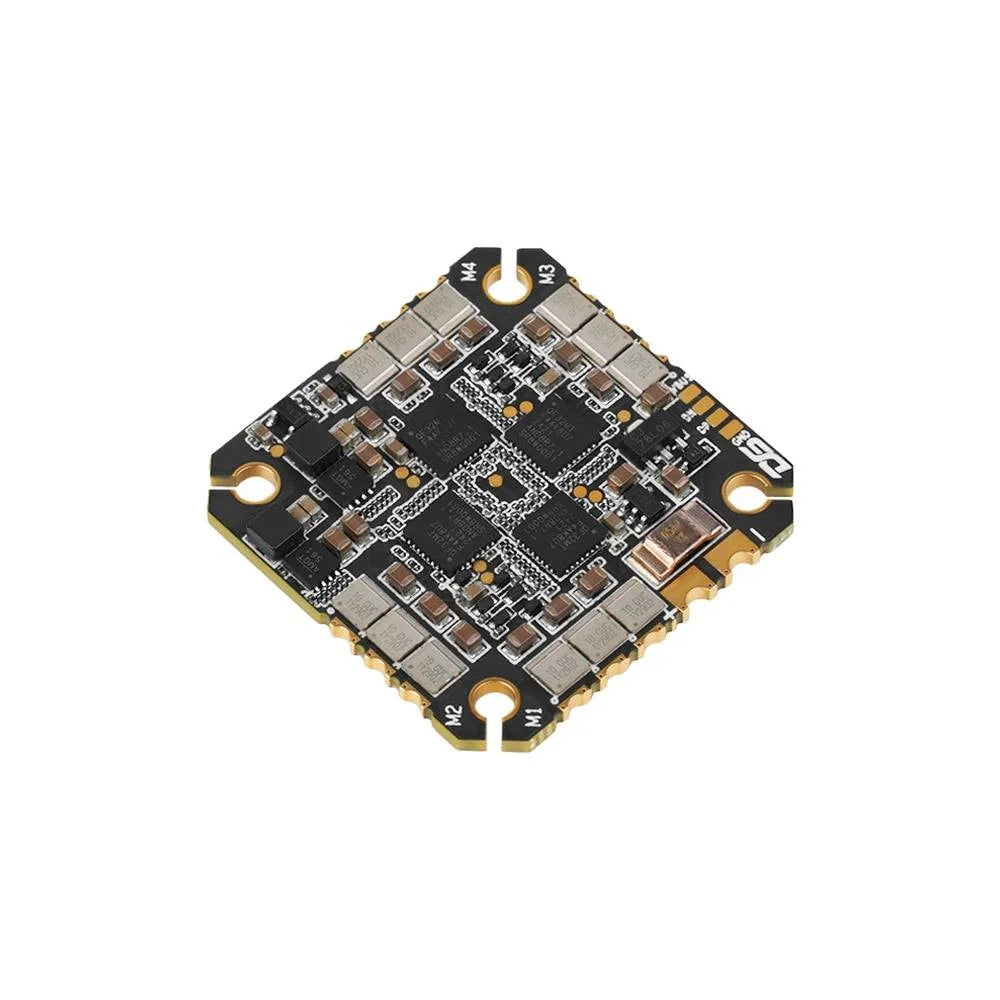

- Low-resistance MOSFETs provide superior heat dissipation and overcurrent capacity
- Pre-installed AM32 firmware
- 16MB flash memory blackbox
- ICM-42688-P gyro provides reliable low-noise flight performance
- Supports DJI O4 Pro with direct plug-and-play access
Specifications
FC
- MCU: H7
- Gyro: ICM-42688-P
- Blackbox Memory: 16MB
- BEC: 5V 2A / 10V 2A
- UART: 4 Groups
- Supported: GPS, LEDs, OSD, Current Meter
- USB Interface: SH1.0-4Pin to USB-C
- Mounting pattern: 25.5mm x 25.5mm
- Weight: 8.7g
ESC
- Power input: 4-6S LiPo
- Current: 40A continuous, 45A peak (20s)
- ESC firmware: BL32_32.10 48k
- ESC protocol: DShot300, DShot600
Includes
- 1x DeepSpace TALOS AIO
- 4x Rubber Rings

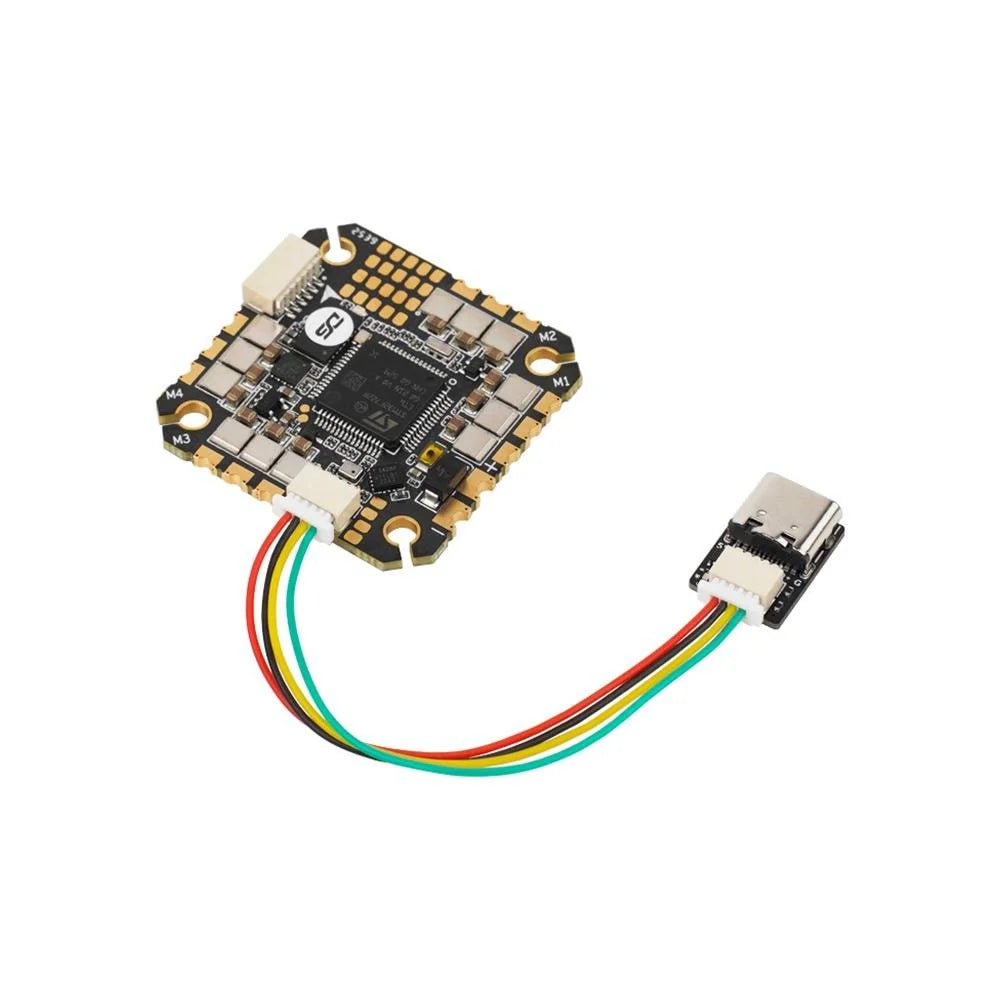

- 1x USB-C Tuning Board
- 1x O4 Air Unit Pro Cable
- 2x 16AWG Power Cable
- 1x Capacitor
