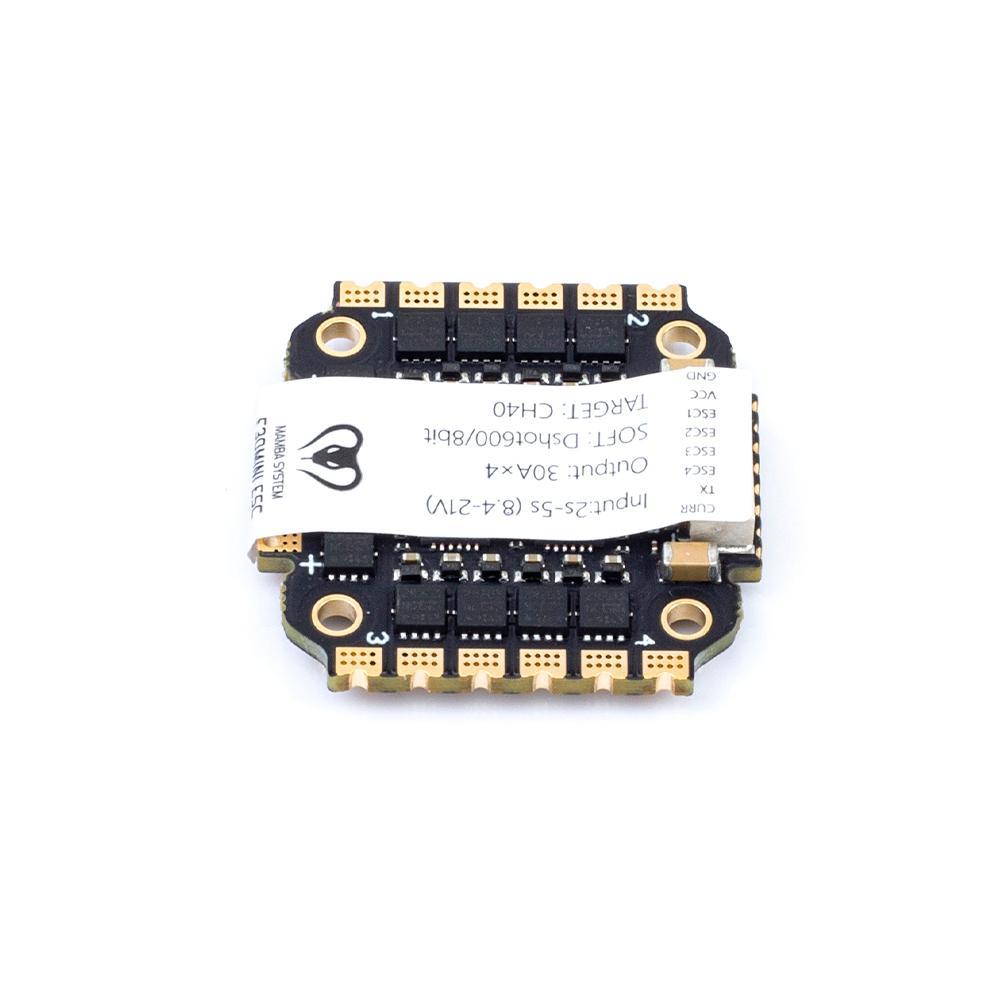

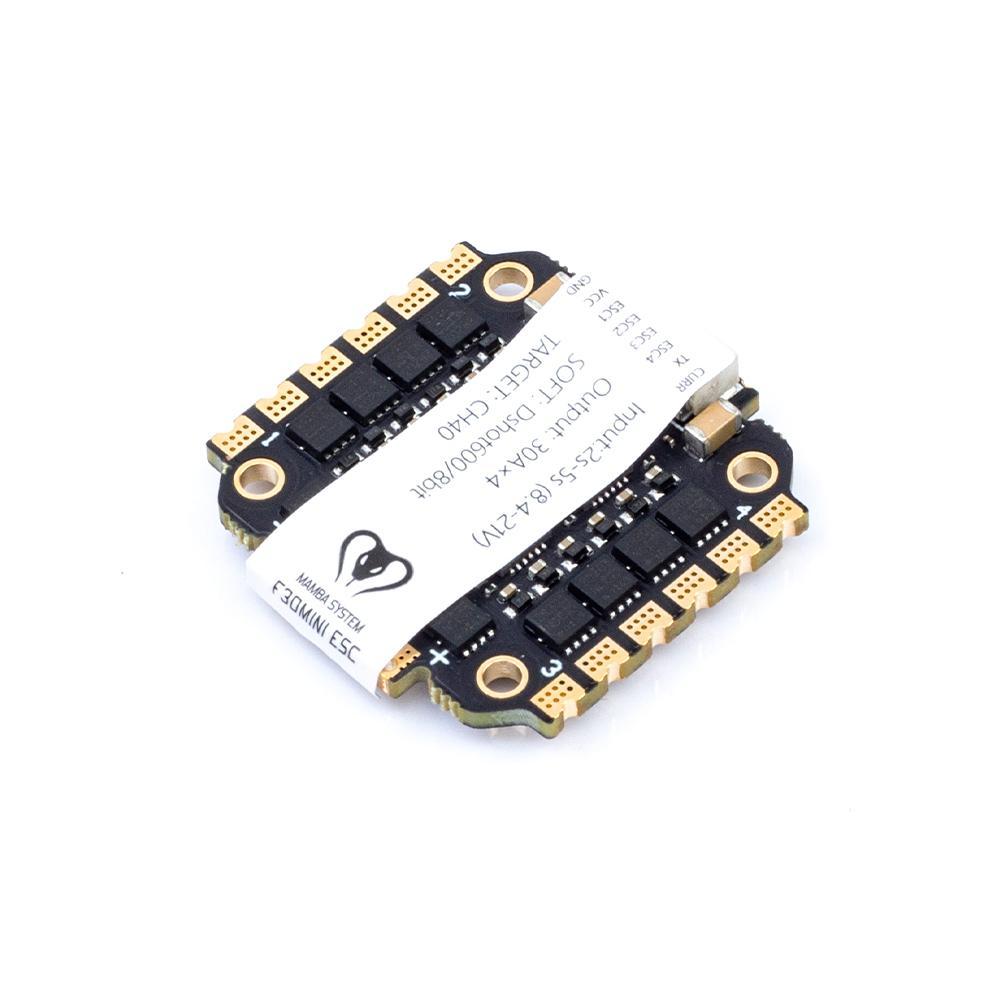

Diatone Mamba F30 Mini 30A 2-5S 20x20 8Bit 4in1 ESC

Diatone Mamba F30 Mini 30A 2-5S 20x20 8Bit 4in1 ESC

$37.99
$37.99
Add To Wishlist
View full details

Details

Description

Spare replacement part for Diatone Mamba F405 Mini Stacks.

Check out the rest of our 4in1 ESCs and Diatone gear!

Specifications

  • Input voltage: 2-5S
  • Continuous Current :30A
  • Peak Current: 40A
  • ESC Firmware: BLHeli_S
  • Agreement: DShot 300/600
  • BEC: NO
  • Size: 29.0×29.0×5.5mm
  • Mounting: 20x20,M2
  • Weight: 6g

Includes

  • 1x Diatone Mamba F30 Mini 30A 20x20 4in1 ESC

More Info

  • SKU: 15653
  • Barcode: 691023509634


Overall rating: 4.53125 / 5 from 32 reviews.

AI Generated Review Summary

The Diatone Mamba F30 Mini 30A 2-5S 20x20 8Bit 4in1 ESC is highly regarded for its quality and affordability. Customers appreciate the excellent value and service provided by Diatone.

Summary topics

  • ESC Quality: 38%
  • Price Value: 21%

Review topics: ["fit","quality","value","works","wires","build","output","price","frame","control","esc","stack","noise","boy","motors","diatone"].

Review highlights

  • "This esc fits my mini mamba f405 perfectly, and you can never beat RDQs prices." — Victor C.
  • "Great esc at a great price." — John S.
  • "Great 3" or 4" Lightweight ESC" — Daniel A.

Reviews

Perfect fit!

"I used this stack on a Tyro79 custom build. Easy install and a high-quality upgrade. Love those Mamba stacks in any format."

— Bob B. (5/5)

Lilttle big Boy

"Confiable y económica"

— Guillermo B. (5/5)

Thank to! Product great, exactly

"Thank to! Product great, exactly as expected."

— Chad Z. (5/5)

Big bang for your buck.

"Great little stack for any smaller 3 inch build! ESC's accept JESC software and runs bi-directional Dshot at 8K beautifully. Cannot go wrong with this stack!"

— John E. (5/5)

Reliable

"This ESC is small enough to put into 2” up to 4” or an ultralight 5”. For the money, I can’t do better then this Mamba ESC."

— Christopher L. (5/5)

Second one I killed

"fits well but things get tight if the cable to FC needs to pass over esc. I have had issues with the wires getting pinched and output of the esc erratic when it happens. I recommend if you don't want to pop off the EMI shield then mount the ESC or FC backward so the wires don't get pinched. Side note. I was quick to connect a battery with a XT30 . It went in enough to weld itself to the connector backwards. Was almost a fire. ESC was ruined."

— Robert W. (4/5)

Mamba Mini 30A

"Enough space for soldering , not that heavy compared to the eachine 10A used before (got burned); seem to be great quality and has a protective metal "shell" that works well for cooling the circuits. Works as intended ."

— Allan P. (5/5)

Great Directions and Support

"I am using this speed control along with the Mamba Flight Controller on a 2.5" and 3" quads. They come with great instructions and umbilical cord to link the flight controller. Heavy duty!"

— Blane H. (5/5)

inferior packaging, the esc tore

"inferior packaging, the esc tore through the envelope and was lost in transit. they did offer to replace it at 50% off, I sorta thought it was theirs till in my hand."

— Earl S. (1/5)

works as designrd

"works as designrd"

— Alan R. (5/5)

Q&A

Are the mounting holes 20x20mm? im not familair with the M3 mounting dimensions
Yea is 20x20
