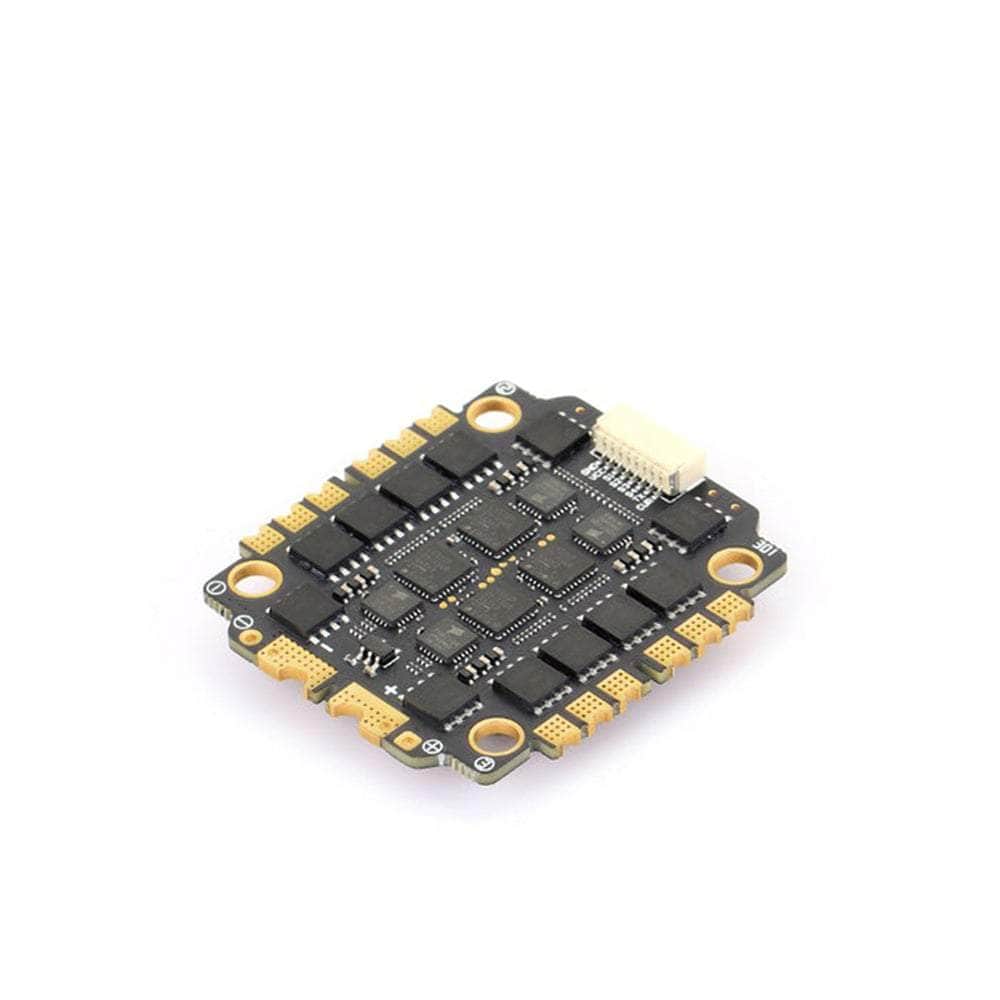

Diatone Mamba F55 128K 32Bit 55A 3-6S 30x30 4in1 ESC

Diatone Mamba F55 128K 32Bit 55A 3-6S 30x30 4in1 ESC

$54.99
$54.99
Add To Wishlist
View full details

Details

Description

Diatone takes a shot at the new trend of ultra smooth 128k ESCs. Diatone's consistent quality and performance make this a great option for those looking to experiment with a 128k ESC build.

Check out the rest of our 4in1 ESCs and Diatone gear!

Specifications

  • Input Voltage: 3~6S Lipo (12.6V~25.2V)
  • Max Continuous Current: 55A
  • Max Burst Current: 65A
  • BEC: No
  • Target：BLHeli_32 MAMBA F55_128K
  • Protocol: Dshot300/600/1200
  • PWM Range: 24~128K
  • TVS Protection: Yes
  • Mounting Pattern: 30x30 M3

Includes

  • 1x Diatone Mamba F55 128K 32Bit 55A 3-6S 30x30 4in1 ESC
  • 2x 8pin sh1.0
  • 1x AMASS XT60
  • 1x High-Frequency 470uF/35V Capacitor

More Info

  • SKU: 17623
  • Barcode: 691023510210


Overall rating: 4.870968 / 5 from 31 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["issues","works","esc","price","pads"].

Review highlights

Reviews

great addition to my quad

"great"

— William L. (4/5)

It’s got it all

"Packed with just about everything I needed at a reasonable price"

— Christopher A. (5/5)

Great ESC, all you need..

"This esc is a beast. I put it through the test on a 5” cinewhoop style cinelifter and it handles it like a champ. Wanting for newbies! If for some reason you keep testing your new build and only one light is coming on led or not getting last 3 startup beeps…check for shorts! It’s not the esc/fc, well in my case it wasn’t, just a short of the led strip I added 🤦‍:male_sign: Anyways mamba stacks for the win! They are my go to"

— Chad R. (5/5)

Good ESC

"Great ESC for a 5" quad, just be advised this does not come with any wire for the battery lead which is a little strange because you do get a xt60 connector and capacitor."

— Luke (5/5)

So much value

"You can't get more for the money."

— Josh T. (5/5)

Good ESC

"Nice esc. Accidentally burned out my old og one when making my quad and had to get a replacement. This is a good esc."

— Joshua W. (5/5)

Esc

"Great product."

— salman d. (5/5)

Great product

"Nice"

— Jonathan C. (5/5)

Excellent F4 esc for the price.

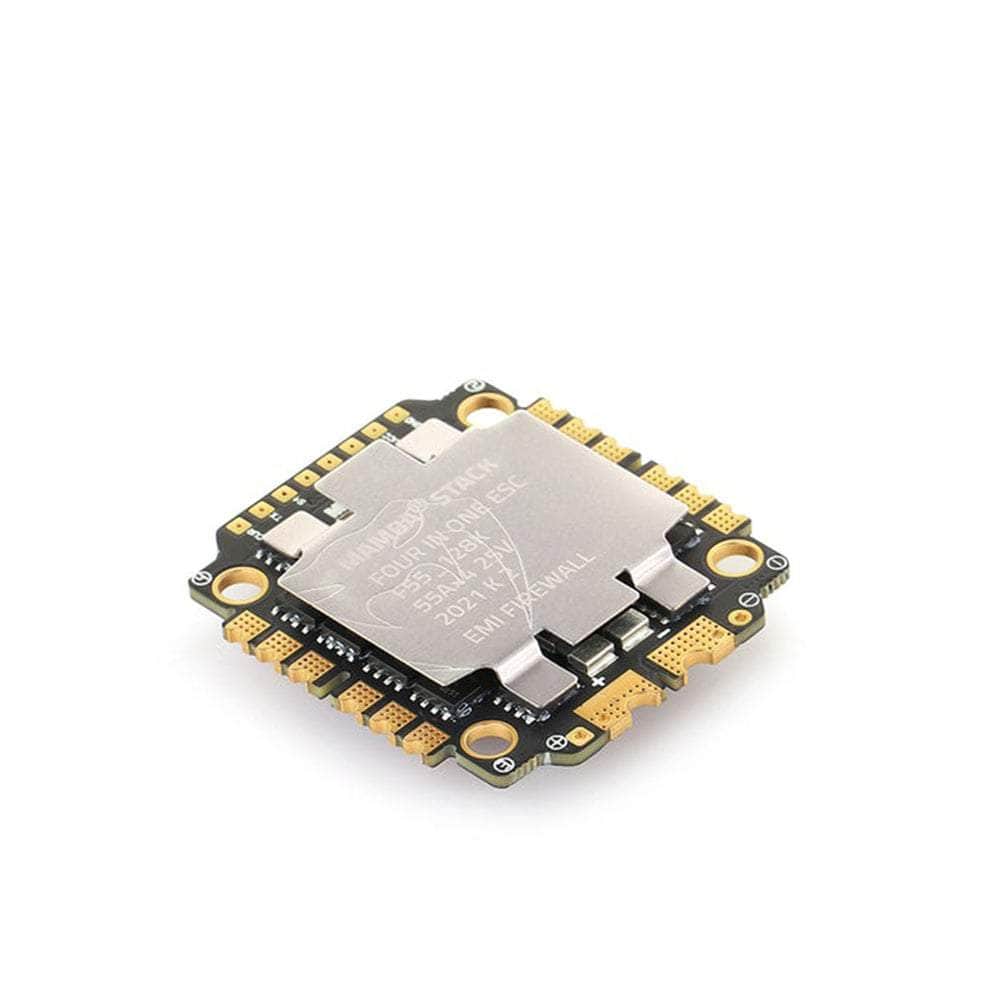

"I'm very pleased with this esc. First thing I do is remove that emi shield. I'm running it with talon 2207+ 1880kv on 6s. Havent tried it on 128k or 96khz. I'm running it on 48, demag high, timing 23. I take the EMI cover off, it usesless. Its not grounded, plus all the electronics, and chips are on the underside of the board. Making it a heat trap, also makes fitting a FC on top without hitting the shield."

— Brandon W. (4/5)

Mamba 4in1 esc

"Great product, large soldering pads. Quality components. Very nice upgrade from original mamba 40amp"

— Joshua K. (5/5)

Q&A

Will this esc work will the jb f7 v2 fc.
I don't see any reason why it would not.
