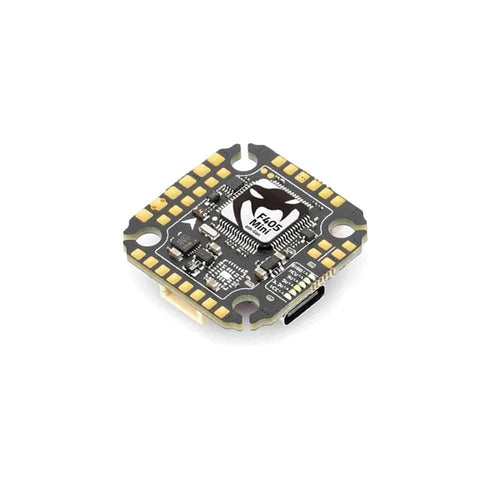

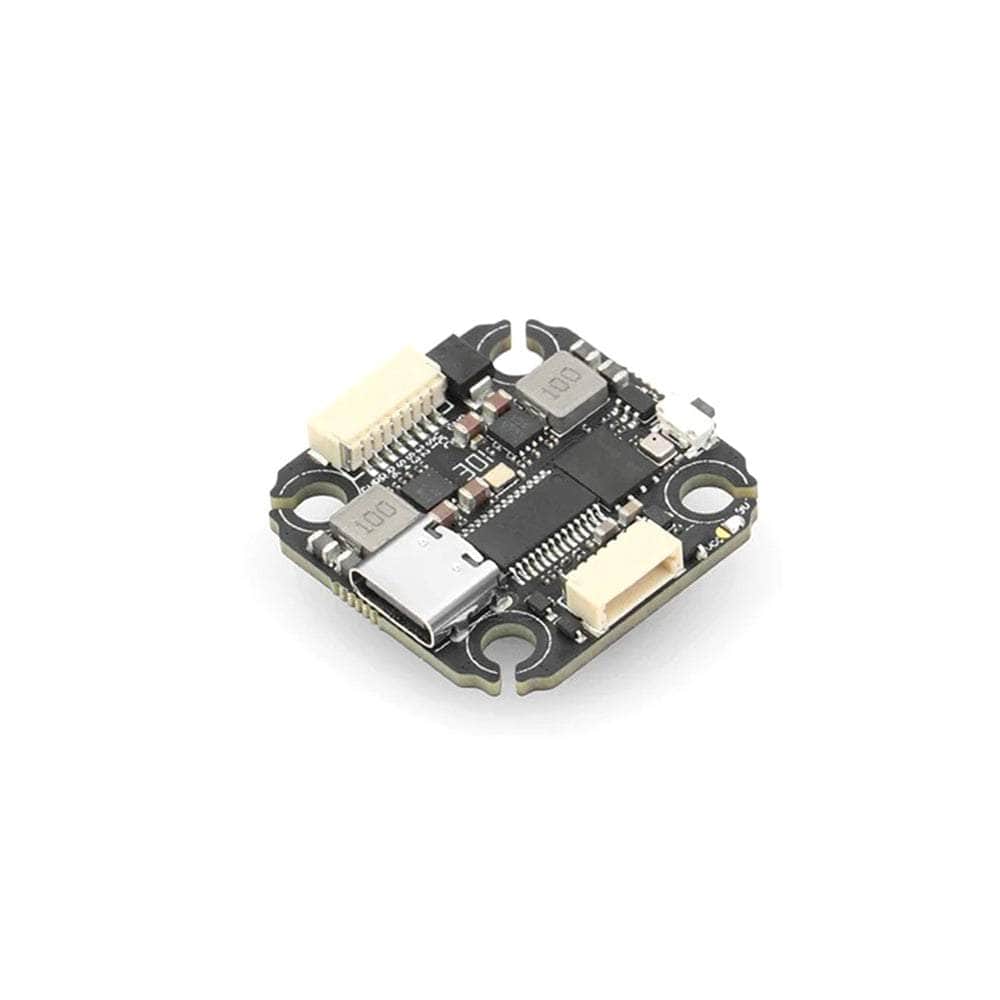

Diatone Mamba MK4 F405 Mini 20x20 Flight Controller

Diatone Mamba MK4 F405 Mini 20x20 Flight Controller

$46.99
$46.99
Add To Wishlist
View full details

Details

Description

The Mamba F405 Mini flight controller is tried and true. This has plenty of features to suit the needs of most quads and pilots. The small for factor and overall reliability make this an excellent choice for almost any build!

Check out all of our 20x20 FCs and all our Diatone Gear!

Specifications

  • Input Voltage: 3-6S
  • MCU: 480MHz STM32F405
  • Gyro: ICM42688P
  • OSD: AT7456E
  • Blackbox: 16M Flash Memory
  • Uarts: 6Set
  • ESC Signal: 6Set
  • LED Controller: BF LED
  • I2C: Yes
  • F.Port: Yes
  • Buzz: Yes
  • TVS Protection: Yes
  • BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
  • Mounting Pattern: 20x20 M3/M2
  • Dimensions: 29x29.5x6.5
  • Weight: 6g

Includes

  • 1x Diatone Mamba MK4 F405 Mini 20x20 Flight Controller

Wiring Diagram

More Info

  • SKU: 19099
  • Barcode: 691023531481


Overall rating: 4.5 / 5 from 18 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["setup","works","pads","set"].

Review highlights

Reviews

My Go-To

"so good"

— William L. (5/5)

Good FC

"Works fine, easy to put in the gummies"

— Magnus T. (4/5)

So far so good

"I've been using this fc on my 3" and 4" builds. It has the larger solder pads so pretty easy to solder up even if you're not a master. Enough ports for the basics (rx, vtx, gps, lightbar and buzz). None have failed in a year so I'm happy with it."

— doug o. (5/5)

Mamba F405 mini FC

"The FC works well. pads are very well distributed and are big enough to solder with confidence ."

— Allan P. (5/5)

Great Little Board

"I used this board in a 3" . flys smooth easy setup. I will get more."

— Joseph D. (5/5)

This fc was a mess

"This fc was a mess when it showed up. For some reason it was flipped around in betaflight and needed a reflash to get the gyro to read."

— Joe P. (3/5)

No issues

"Cheap and just works. Plenty of features too, almost feels like there isn’t a point in getting the f7 version."

— Wesley H. (5/5)

Does not work correctly.

"Everything seems to function great except Walksnail OSD and FRSKY SmartPort/FBUS... those things do not work."

— Charleton W. (3/5)

Diatone Mamba MK4 F405 Mini 20x20

"Love this fc works great with my mamba race esc"

— Benjamin M. (5/5)

Nice

"With a built in elrs or tbs woulda been perfect."

— Johnson H. (4/5)

Q&A

I know it has DJI support, but does it have analogue pads for a vtx also ?
Yes it does
