Diatone Mamba MK4 F722 APP F55_128k 3-6S 30x30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC)

Diatone Mamba MK4 F722 APP F55_128k 3-6S 30x30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC)

$136.99
$136.99
Add To Wishlist
View full details

Details

Description

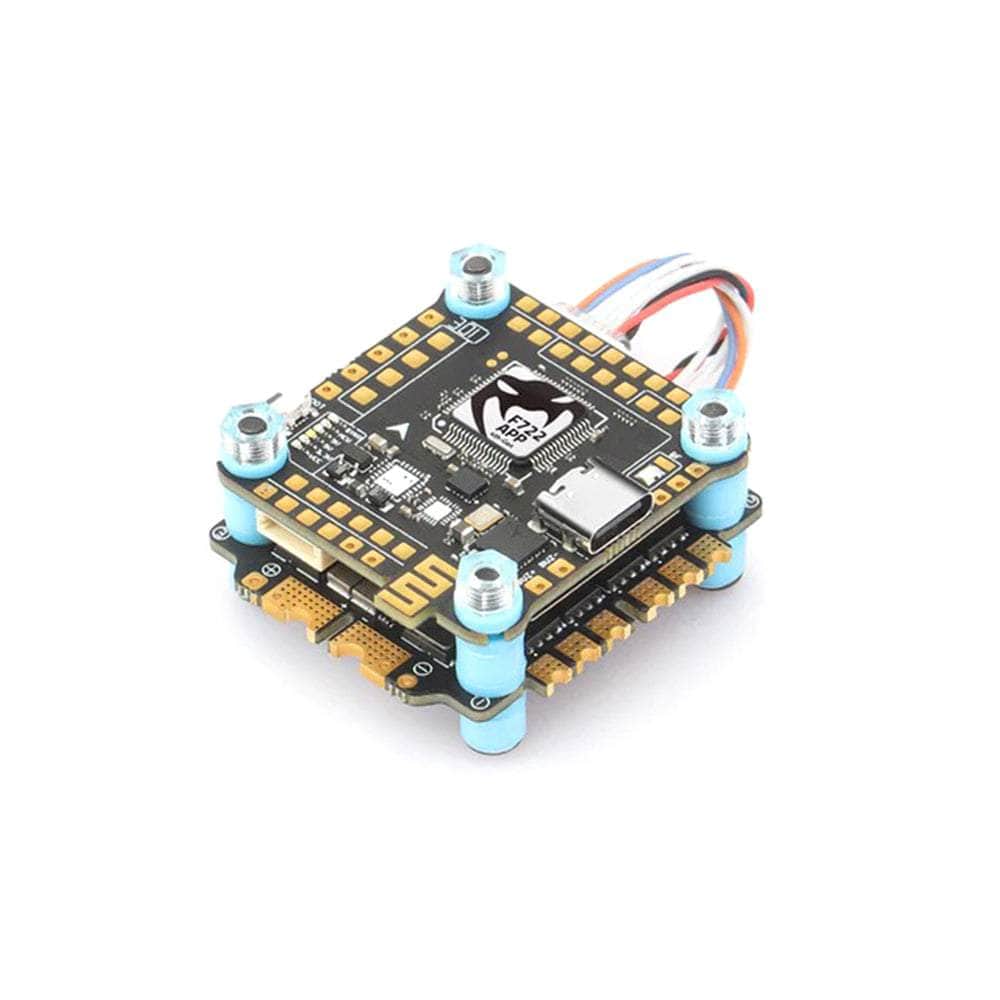

This stack pairs the Mamba MK4 F722 APP FC and the Mamba F55_128k 55A 4in1 ESC. With multiple UARTS and BECS, this stack can run all the peripherals you could ever want with ease.

Browse our Stacks & Combos and our Diatone Gear!

Specifications

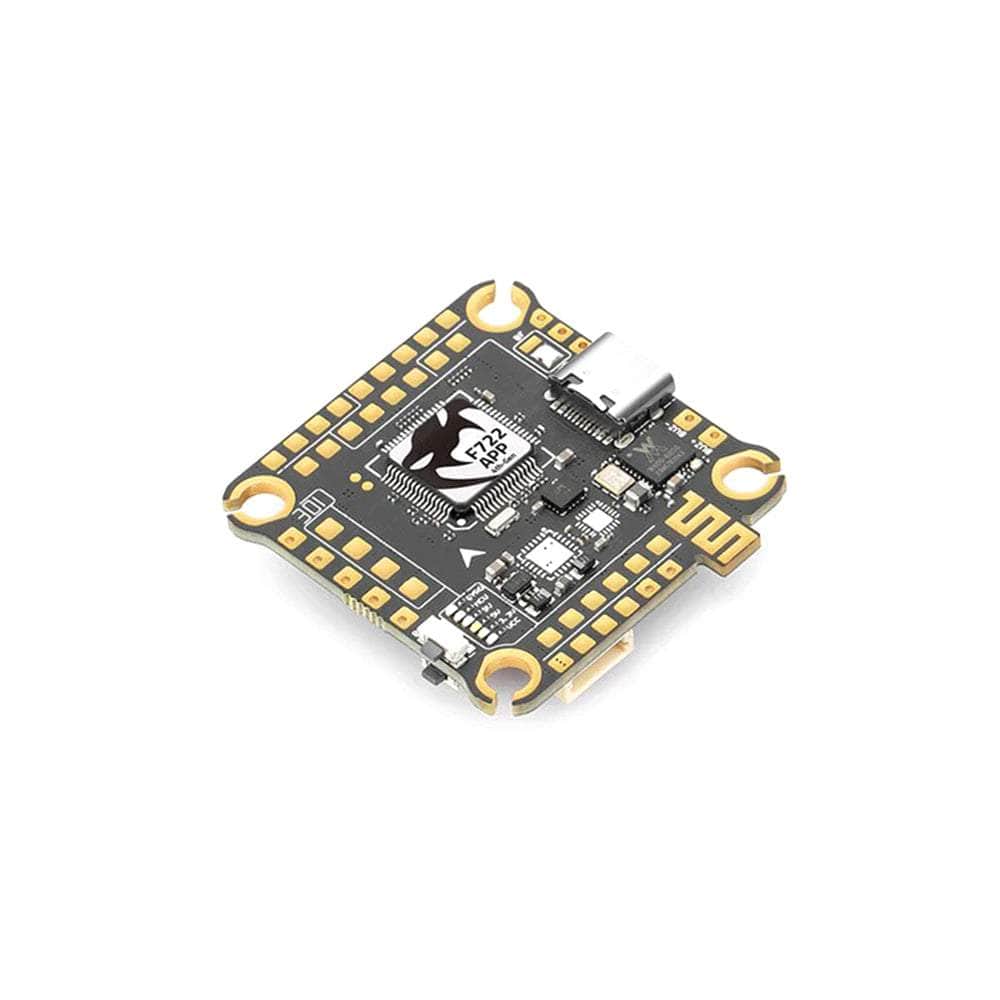

Mamba MK4 F722 APP

  • Voltage Input: 3-6S
  • MCU: STM32F722
  • Gyro: ICM42688P
  • OSD: AT7456E
  • Blackbox: 16M Flash Memory
  • Uarts: 6Set
  • ESC Signal: 8Set
  • LED Controller: BF LED/MB LED
  • I2C: Yes
  • F.Port: Yes
  • Buzz: Yes
  • WiFi: Yes
  • TVS Protection: Yes
  • BEC: 3.3V 0.5A & 5V 3A & 9V 3A
  • Mounting Pattern: 30x30 M3

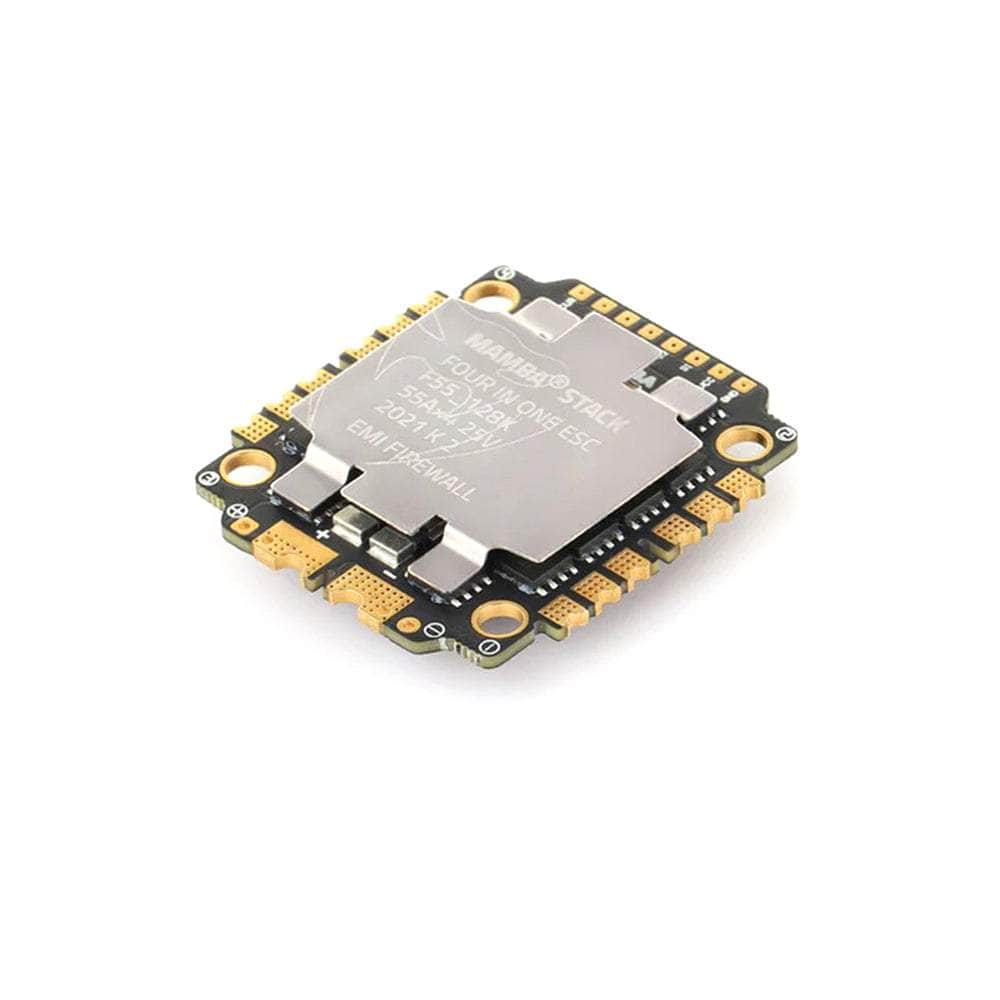

Mamba F55 128k

  • Input Voltage: 3~6S Lipo (12.6V~25.2V)
  • Max Continuous Current: 55A
  • Max Burst Current: 65A
  • BEC: No
  • Target：BLHeli_32 MAMBA F55_128K
  • Protocol: Dshot300/600/1200
  • PWM Range: 24~128K
  • TVS Protection: Yes
  • Mounting Pattern: 30x30 M3

Includes

  • 1x Diatone Mamba MK4 F722 APP F55_128k 3-6S 30x30 Stack/Combo (F722 FC / 55A 128k 32bit 4in1 ESC)

Wiring Diagram

More Info

  • SKU: 19101
  • Barcode: 691023532951


Overall rating: 4.7619047 / 5 from 42 reviews.

AI Generated Review Summary

The Diatone Mamba MK4 F722 APP F55_128k 3-0S 30x30 Stack/Combo is praised for its large solder pads, solid stack, and great performance. Customers also highlight its high quality and value for the price. However, opinions on the ESC's fragility vary.

Summary topics

  • Solder Pads: 9%
  • Stack Solidity: 42%
  • Stack Performance: 25%
  • Product Quality: 23%

Review topics: ["quality","performance","components","stack","pads","esc","buy"].

Review highlights

  • "Good quality and performance from this little stack." — Nicholas D.
  • "No issues easy breezy and great performance" — Bryan W.
  • "The stack has great performance and great quality." — Adam H.

Reviews

Solid

"Has everything and more to get you in the air. Solid stack that takes a beating. I will be purchasing again."

— Beau A. (5/5)

Diatone Mamba Stack

"Solid stack"

— David T. (5/5)

Great

"Grate perfomence"

— Jose L. (5/5)

Just works

"Does exactly what is described."

— John F. (5/5)

Everything about this stack is

"Everything about this stack is premium. Run nothing else when this is an option."

— Terry G. (5/5)

Rdq always ships fast an

"Rdq always ships fast an I love getting my fpv needs from them. now if I could just get my walksnail goggles x that are on pre order life will be complete But for real quality’s always good professional anytime website’s easy to navigate an there the closest fpv store to where I live rdq for the win -k3n10"

— Kenton T. (5/5)

Great stack

"Good quality and performance from this little stack. No issues so far with it. Good buy"

— Nicholas D. (4/5)

Works as expected

"Pretty simple to solder. Everything you need is included in the package."

— Aditya P. (5/5)

Good stack

"Mamba stacks are some of my favorite."

— Seth C. (5/5)

Awesome solder pads

"ESC's still going strong with a new FC from TMotor after some heavy crashes the Mamba FC MCU and gyro went out. Probably my fault being a new flyer and should have gotten an F4 stack to learn with. Love the extras like the practice soldering pad and the awesome pads to solder to. Plan on getting another in the future once I smooth out my skills"

— Will W. (4/5)

Q&A

Why am I locked to 3.2 pid loop frequency with this board?
BMI270 gyros are locked to 3.2
