Diatone Mamba MK4 F740 3-6S AIO Whoop/Toothpick Flight Controller w/ 40A 32Bit 4in1 ESC - WIFI

Original price $104.99 - Original price $104.99
Original price
$104.99
$104.99 - $104.99
Current price $104.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

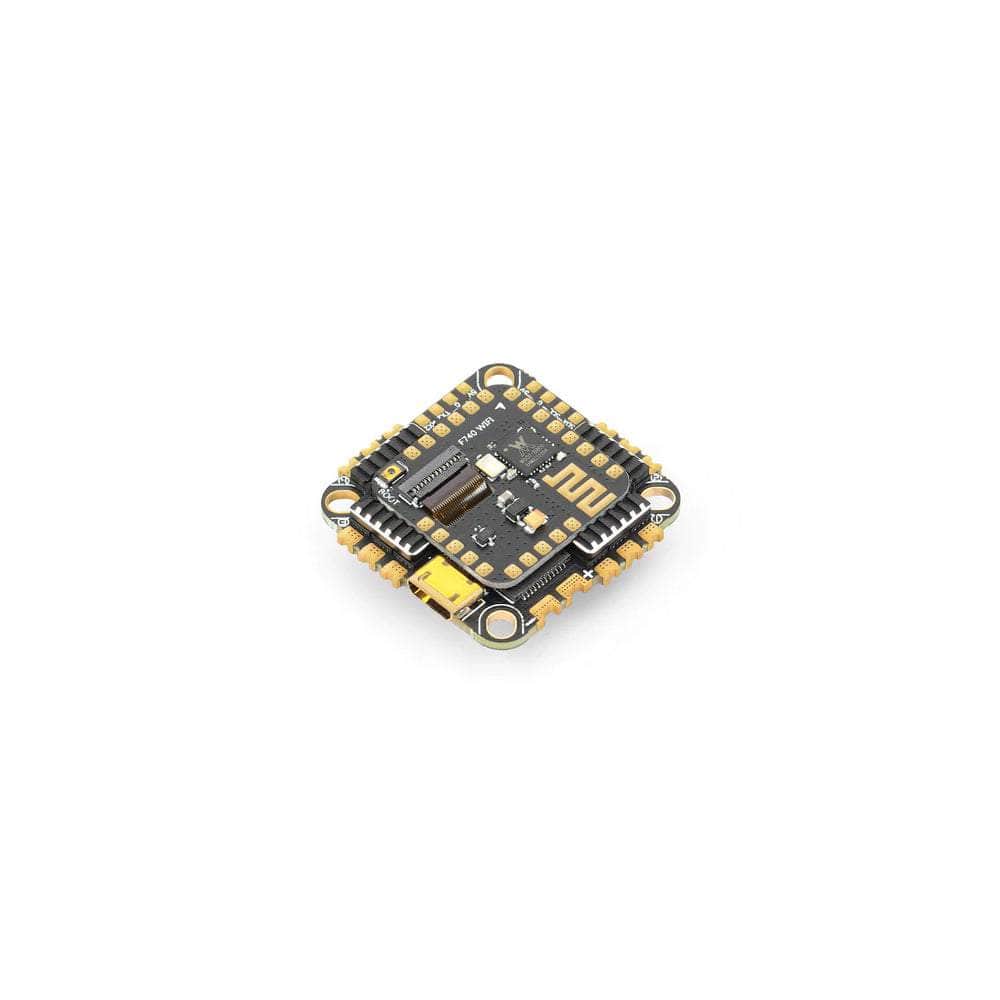

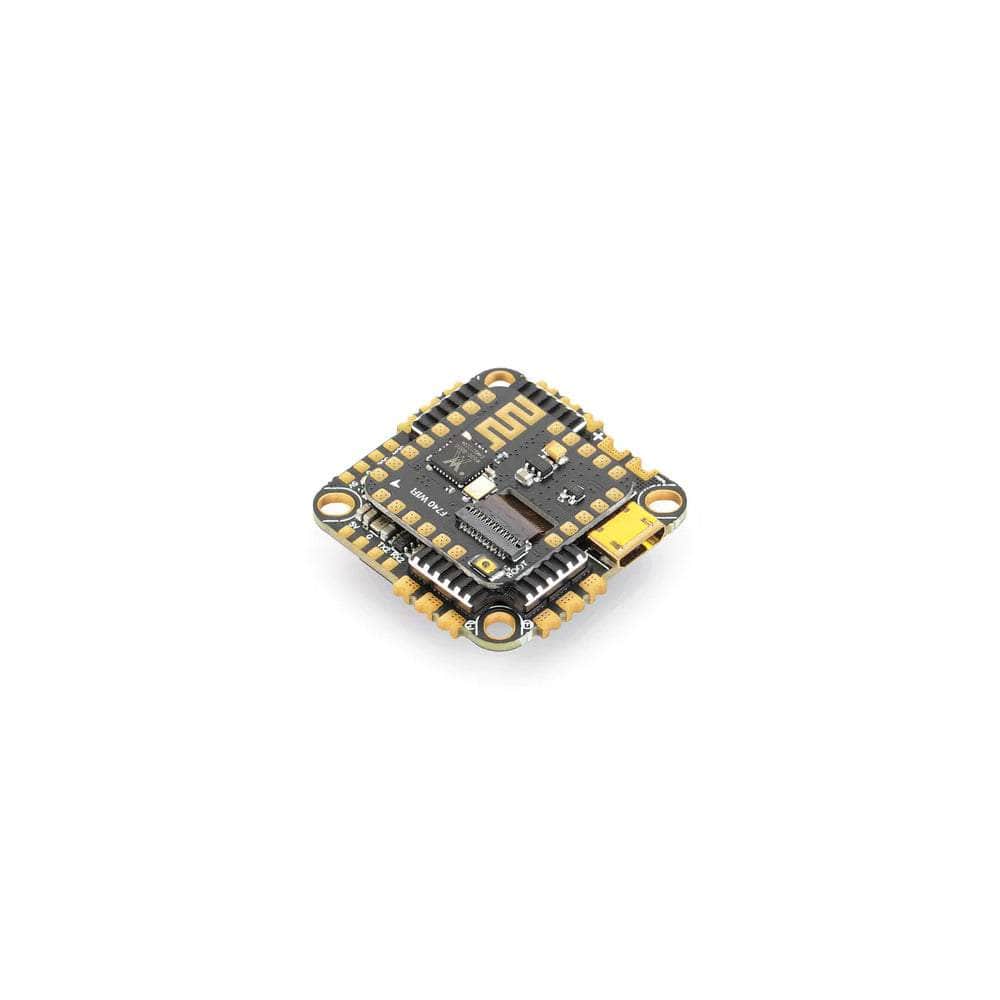

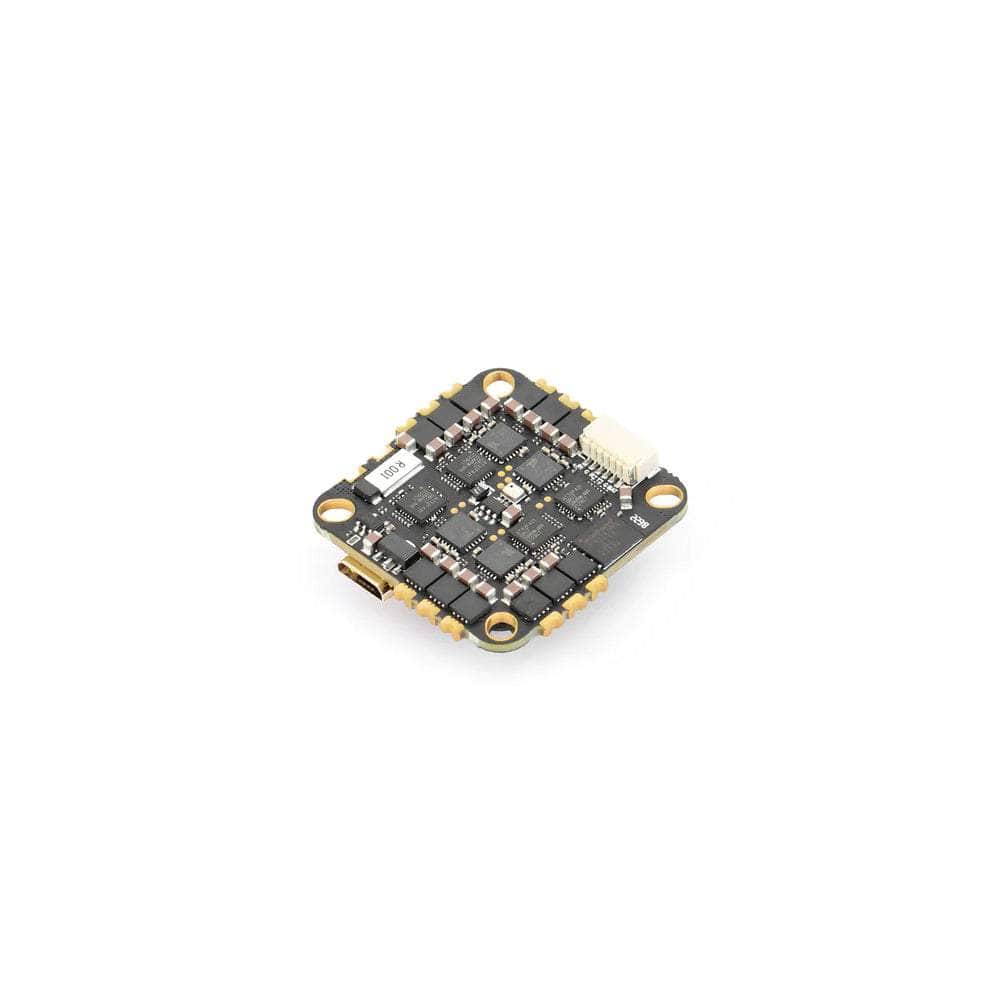

Now this is something truly special for its size and capability - Introducing the Diatone Mamba MK4 F740 AIO. The Diatone Mamba MK4 F740 AIO is a powerful, all-in-one flight controller and ESC for sub 250g 3, 4, and 5 inch quads. It is equipped with an F7 processor, a 32bit 4in1 ESC of up to 40A, a barometer and OSD chip, and 16M of Blackbox memory. Connecting a video transmitter is easy and efficient, giving you a reliable and versatile system.

Check out all our Whoop/AIO Flight Controllers and our full Diatone collection!.

FC Specifications

  • Target: MAMBA F722_2022B
  • MCU: 216MHz STM32F722
  • GYRO: ICM-42688-P
  • Barometer: Yes
  • OSD: Yes
  • Blacbox: 16MB Flash
  • Uarts: 6 Set
  • Motor Signal: 4 Set
  • ESC Soft: Dshot300/600
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller: BF LED
  • AIR UNIT Port: Yes
  • WIFI: No
  • F.Port: Yes
  • RSSI: No
  • Buzz: Yes
  • Input: 3~6S Lipo (12.6~25.2V)
  • BEC Protection: Yes
  • Receiver Protection: Yes
  • TVS Protection: Yes
  • BEC: 3.3V 0.5A & 5V 2A
  • Mounting size: 25.5 x 25.5mm/M2

ESC Specifications

  • Input: 3~6S Lipo (12.6~25.2V)
  • Continue Current: 40Ax4
  • Burst current: 45A (10 Seconds)
  • Target:BLHeli_32 MAMBA F40_128K
  • SOFT: Dshot300/600
  • PWM:24~128K

Include

  • 1x Diatone Mamba MK4 F740 3-6S AIO Whoop/Toothpick Flight Controller w/ 40A 32bit 4in1 ESC - WIFI
  • 1x High Frequency 470uF/35V
  • 1x AIR UNIT sh1.0
  • 1x 16AWG 60mm
  • 1x AMASS Original XT60

>
