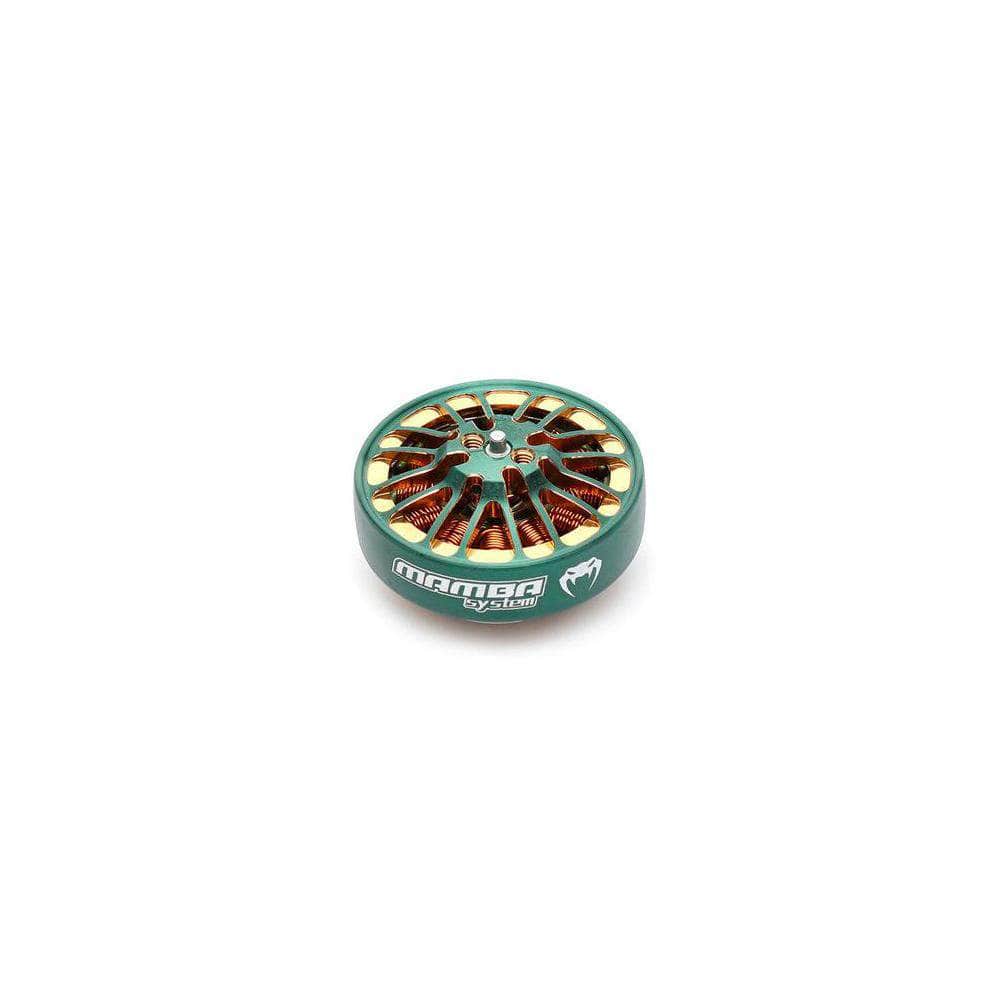

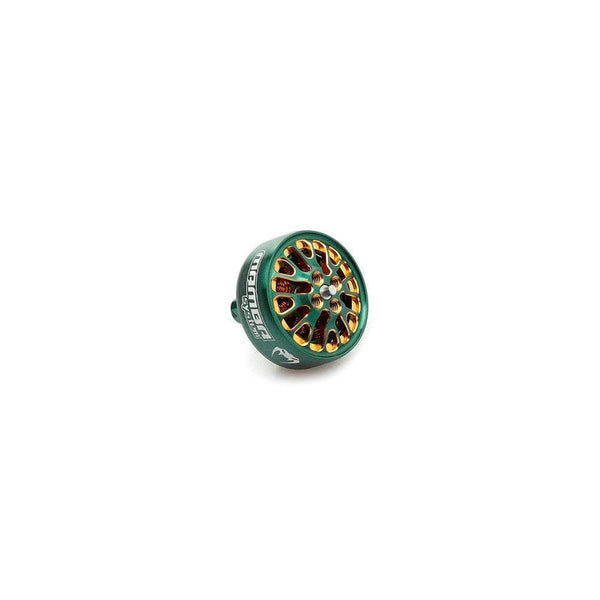

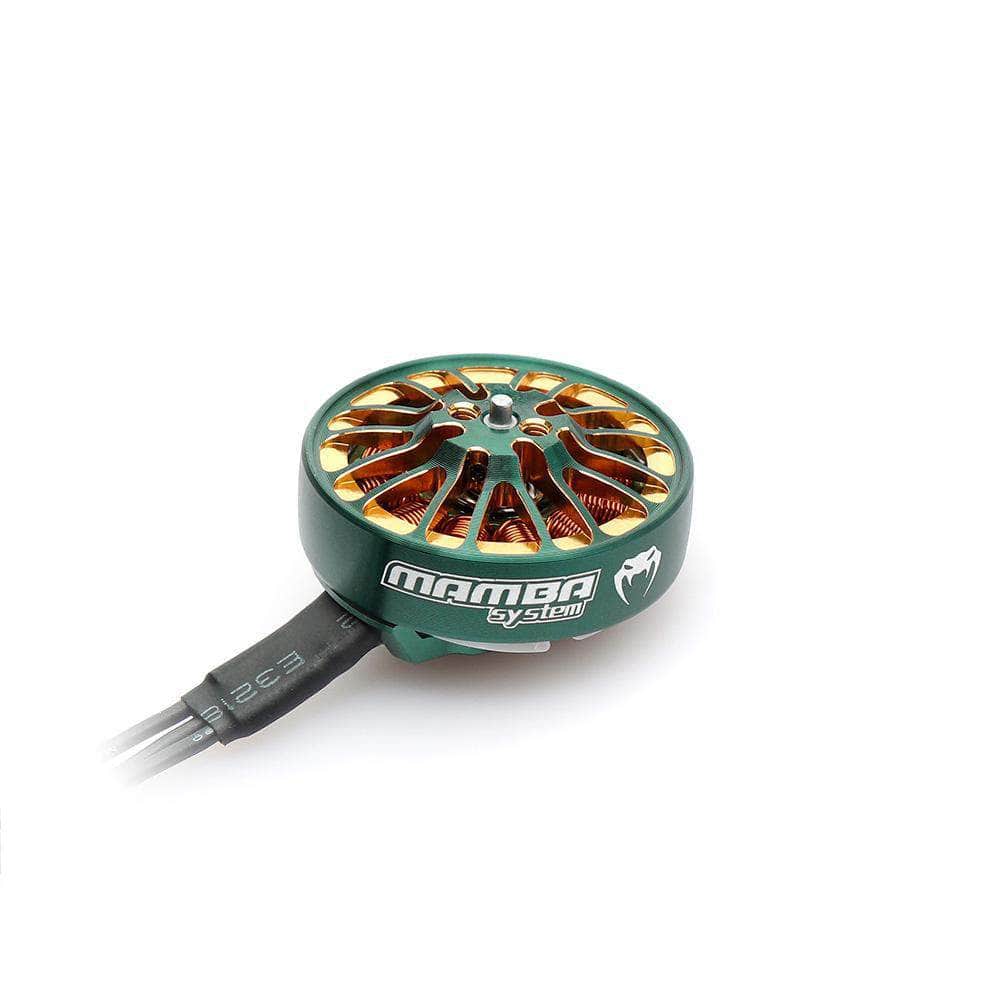

Diatone Mamba Toka 2004 1700Kv Motor

Original price $16.99 - Original price $16.99
Original price
$16.99
$16.99 - $16.99
Current price $16.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

A powerful motor, great for smaller micro builds and also toothpick 5" builds.

Available in multiple Kv options.

Browse our micro motorand the rest of our Diatone products!

Specifications

  • Overall Dimension: Φ26.2×15.3mm
  • prop mounting shaft diameter: 1.5mm
  • Installation hole position: 12×12mm,M2
  • Prop: 3.5inch~5inch
  • Bearing:7x3x3
  • Shaft Diameter: 3.0mm
  • Lead Wire Size:24AWG×150mm
  • slots/poles: 12N14P
  • Magnet Wire: 240℃ Enameled Wire
  • Stator Diamter:20mm
  • Stator Height: 4mm
  • Rated Voltage: 4~6S (16.8V~25.2V)
  • Peak Current: 17.52A
  • ldle Current:10V/0.3~0.8A
  • Maximum Power: 418.1W
  • Internal Resistance:210Ω
  • Weight: 16.3g

Includes

  • 1x Diatone Mamba Toka 2004 1700Kv Micro Motor
>
