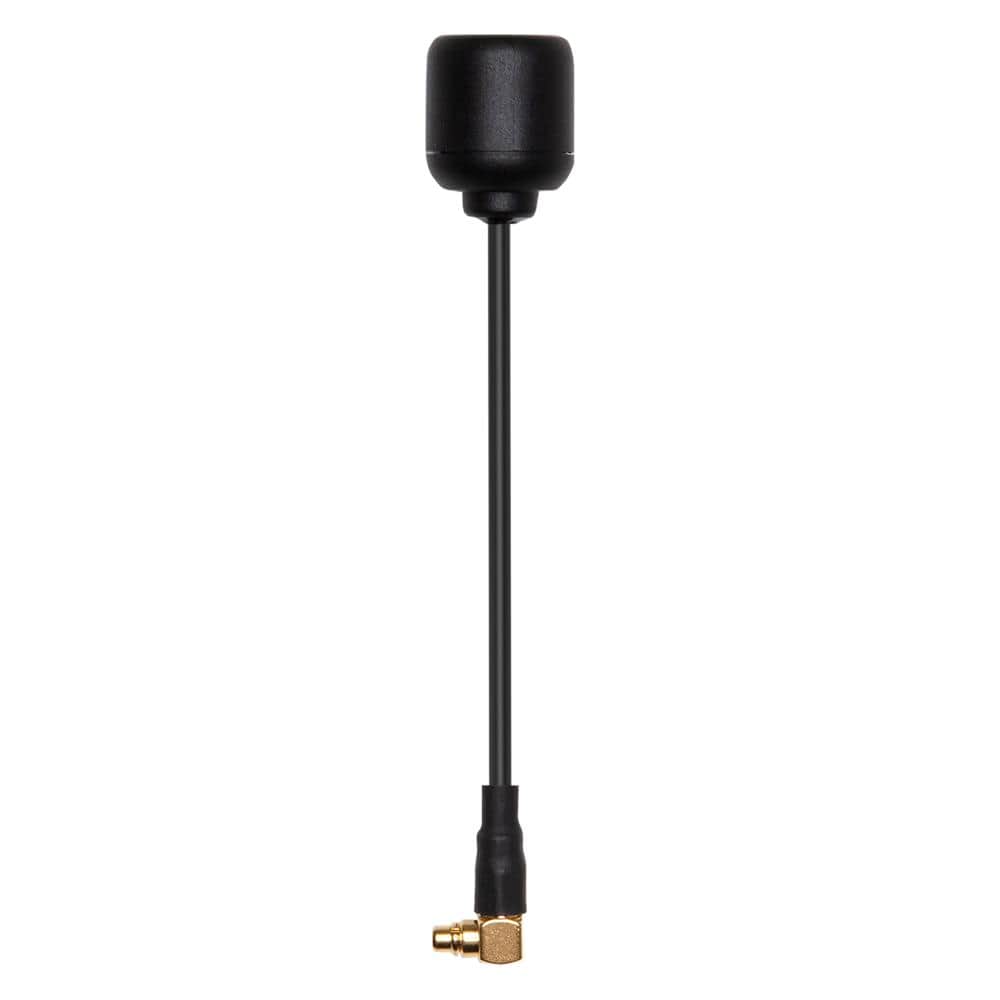

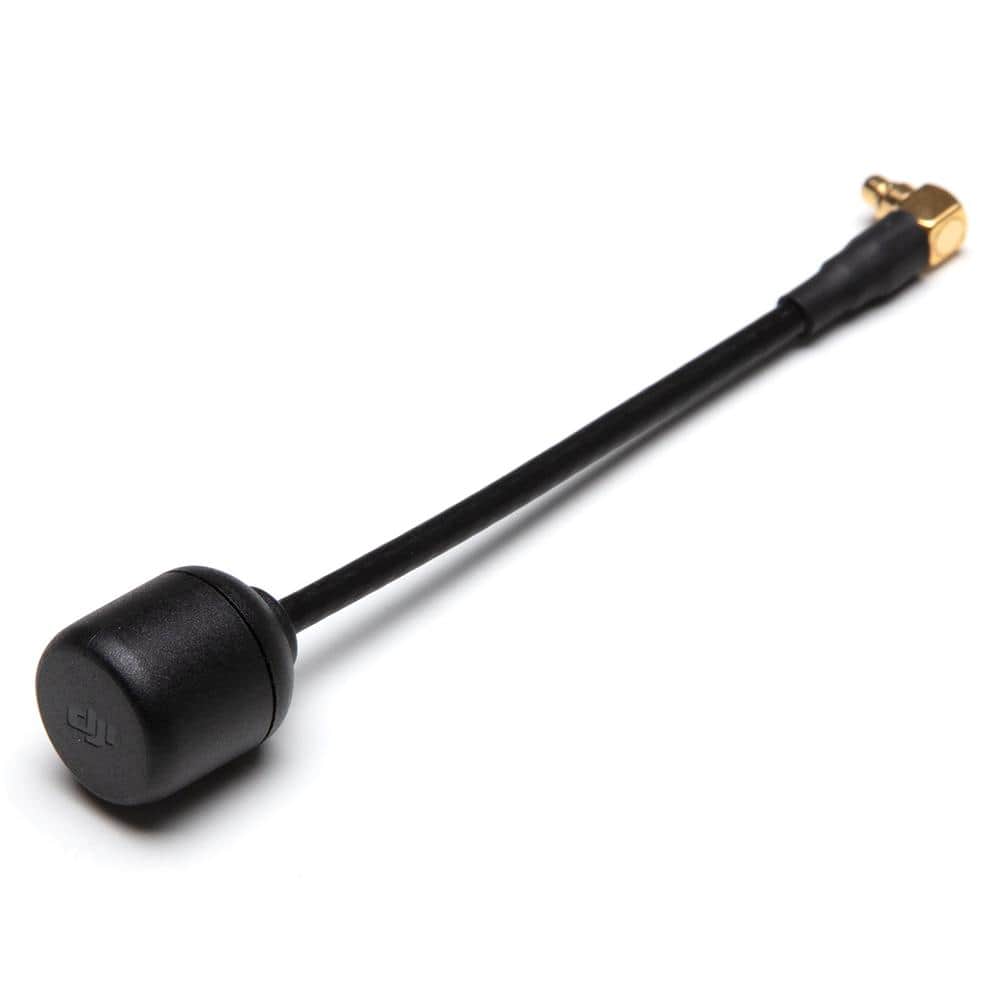

DJI Digital FPV Air Unit Elbow MMCX Antenna 2 Pack

$15.00
In Stock
Pre Order
Coming Soon
Add to Wishlist

Set of spare replacement 90 Degree Elbow MMCX Antennas for the DJI Digital FPV Air Unit. LHCP antenna with MMCX joint, which is small and lightweight and ensures a long-distance transmission range and strong anti-interference. Long-distance transmission, small size, lightweight, and durable.

See all our DJI FPV System Parts & Accessories!

Specifications

  • VSWR<2 frequency range: 5.4GHz-6GHz, 2.75dB gain and 3dB axial ratio beamwidth at 5.8GHz

  • Size: 12.7 × 12.7 × 80 mm
  • Weight: 3.9 g

Tips

  • Keep the antennas of the air unit at least 40 mm apart.
  • Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.
  • The DJI FPV Air Unit is equipped with MMCX antenna ports. Since the port (the inner pin) is small, when pulling out the antenna, please hold the air unit with one hand, press the two ends of the antenna with the other hand, and remove it horizontally.
  • Please note that dragging the antenna directly may cause the inner pin and the collar to fall off or get damaged.

Includes

  • 2x DJI FPV Air Unit Antenna - Elbow MMCX
