Description

*Please note that the DJI package is labelled SMA but the antenna has an RP-SMA connector.

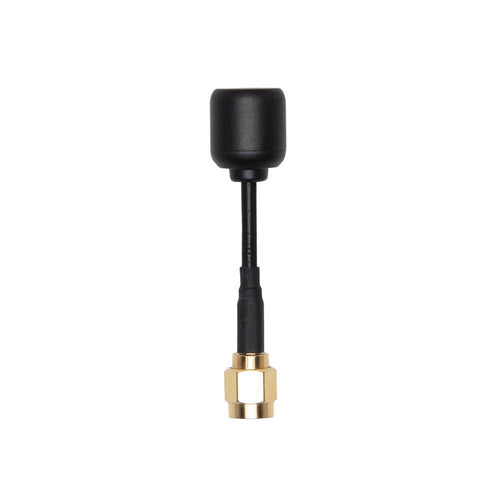

Set of spare replacement RP-SMA antennas for the DJI Digital FPV Air Unit. LHCP antenna, long-distance transmission, strong anti-interference ability, SMA joint, small size, and light weight. Long-distance transmission, small size, lightweight, and durable.

These require RP-SMA to MMCX (Straight or Elbow) adapters to connector to the Air Unit.

See all our DJI FPV System Parts & Accessories!

Specifications

• VSWR<2 frequency range: 5.4GHz-6GHz, 2 dB gain and 3dB axial ratio beamwidth at 5.8GHz
• Connector: RP-SMA
• Size: 12.7 × 12.7 × 55 mm
• Weight: 6 g

Tips

• Keep the antennas of the air unit at least 40 mm apart.
• Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.

Includes

• 2x DJI FPV Air Unit Antenna - RP-SMA
