Description

All products with batteries must be shipped by a ground shipping method.

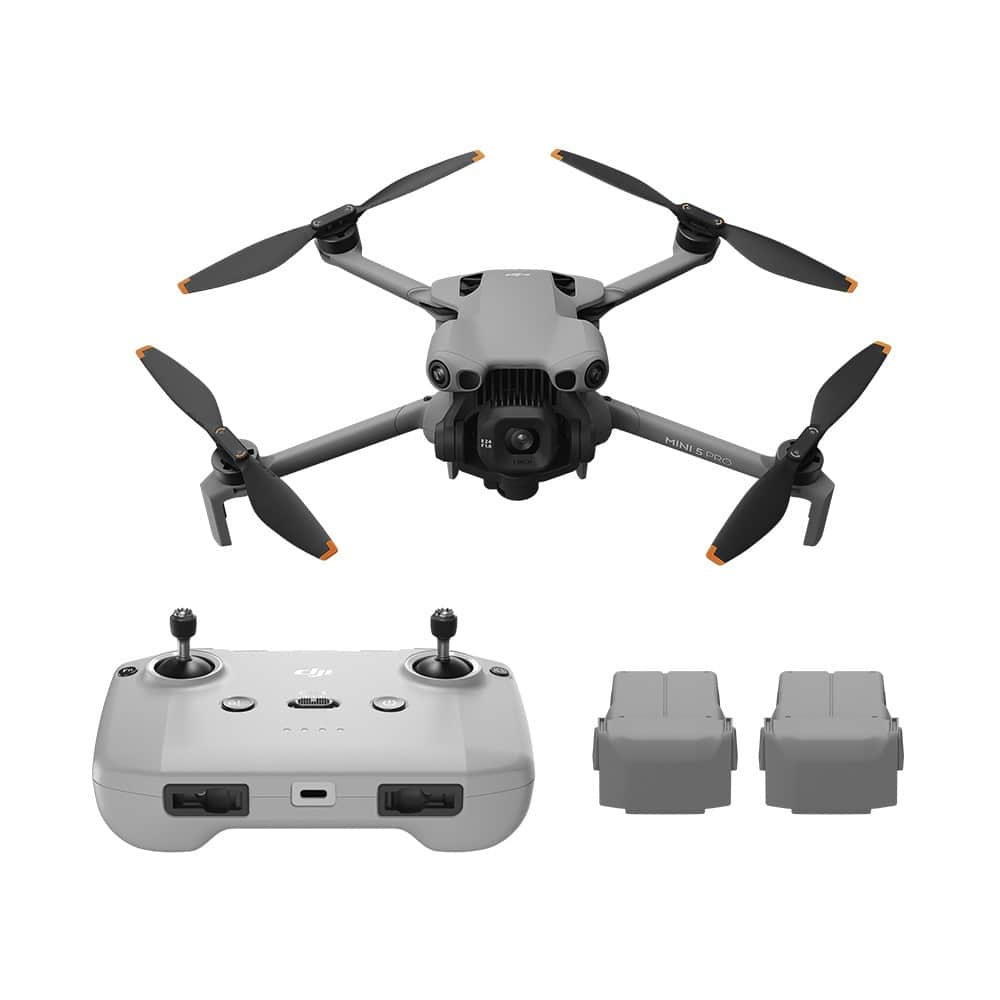

The DJI Mini 5 Pro features a 1-inch CMOS camera, nightscape omnidirectional obstacle sensing, a gimbal with 225° of flexible rotation, and upgraded ActiveTrack 360°, all packed into its signature lightweight body. With performance on par with flagship drones, it captures life’s beautiful moments and preserves your treasured memories in stunning detail.

Check out our other RTF combos, all our pre-built quads and all of our DJI products!

Features

• 1-Inch CMOS Sensor, Capture Like a Pro
• Nightscape Omnidirectional Obstacle Sensing
• True Vertical Shooting and 225° Flexible Gimbal Rotation
• Extended Battery Life, Up to 36 minutes of flight time
• Upgraded ActiveTrack 360°
• Lightweight and Portable

Specifications

AIRCRAFT

• Takeoff Weight: Approx. 455 g
• Dimensions: 246×199×55.5 mm (L×W×H)
• Max Ascent Speed:

  • 2 m/s (Cine mode)
  • 6 m/s (Normal mode)
  • 10 m/s (Sport mode)
• Max Descent Speed:

  • 1.5 m/s (Cine mode)
  • 6 m/s (Normal mode)
  • 10 m/s (Sport mode)
• Max Horizontal Speed:

  • 6 m/s (Cine mode)
  • 16 m/s (Normal mode)
  • 18 m/s (Sport mode)
• Max Takeoff Altitude: 4500 m
• Max Flight Time: Approx. 23 mins
• Max Hovering Time: Approx. 22 mins
• Max Flight Distance: 13.5 km
• Max Wind Speed Resistance: 10.7 m/s (Level 5)
• Operating Temperature: -10° to 40° C (14° to 104° F)
• Global Navigation Satellite System: GPS + Galileo + BeiDou
• Internal Storage: 42 GB
• Class: C1 (EU)

CAMERA

• Image Sensor: Two 1/1.1-Inch Square CMOS Sensors
• Effective Pixels per Sensor: 64MP
• Lens:

  • FOV: 200°

  • Format Equivalent: 7.8 mm

  • Focal Length: 2.5 mm

  • Aperture: f/1.9

  • Focus mode: FF

  • Focus: 1.5 m to ∞
• Max Image Size: 360° Photo: 15520×7760
• Photo Format: JPEG/DNG (RAW)
• Video Resolution:

  • 360° Mode:

    • 8K (2:1): 7680×3840@60/50/48/30/25/24fps

    • 6K (2:1): 6000×3000@60/50/48/30/25/24fps
  • Single Lens Mode:

    • 4K (4:3)*: 3840×2880@60/50/48/30/25/24fps

    • 4K (16:9): 3840×2160@60/50/48/30/25/24fps

    • 2.7K (4:3)*: 2688×2016@120/100/60/50/48/30/25/24fps

    • 2.7K (16:9): 2688×1512@120/100/60/50/48/30/25/24fps

    • * Only supported when using DJI Goggles 3/N3 paired with DJI RC Motion 3 or DJI FPV Remote Controller 3.
• Video Format: OSV/MP4 (H.265)
• Max Video Bitrate: 180 Mbps
• Color Mode: Normal, D-Log M
• EIS

  • Single Lens Mode:

  • With RC 2/RC-N2/RC-N3: Supports only RockSteady 3.0

  • With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3: Supports a switch between RockSteady 3.0 and HorizonBalancing
• Camera FOV

  • Single Lens Mode:

  • With RC 2/RC-N2/RC-N3: Natural Wide

  • With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3: Standard (Dewarp)/Wide/Natural Wide
• Supported File System: exFAT

GIMBAL

• Stabilization: Single-Axis Mechanical Gimbal (tilt), 360° Virtual Gimbal
• Mechanical Range: Tilt: -95° to 173°
• Controllable Range

  • Single-Axis Mechanical Gimbal:

    • Tilt (With RC 2/RC-N2/RC-N3): -30° to 60°

    • Tilt (With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3): -60° to 60°
  • 360° Virtual Gimbal:

    • Tilt: -180° to 180°

    • Roll: -180° to 180°
• Max Control Speed: 100°/s
• Angular Vibration Range: Single-Axis Mechanical Gimbal: ±0.01°

VIDEO TRANSMISSION

• Video Transmission System: O4+
• Live View Quality:
  • Single Lens Mode: 1080p@100*/60/50/48/30/25/24fps

  • 360° Mode: 1080p@60/50/48/30/25/24fps

  • * In Single Lens Mode, 1080p/100fps is supported only when the aircraft is used with Goggles 3/N3 and RC Motion 3.
• Operating Frequency:

  • 2.400-2.4835 GHz

  • 5.170-5.250 GHz*

  • 5.725-5.850 GHz

  • * 5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.
• Transmitter Power (EIRP):
  • 2.400-2.4835 GHz:

    • < 33 dBm (FCC)

    • < 20 dBm (CE/SRRC/MIC)
  • 5.170-5.250 GHz:

    • < 23 dBm (CE)
  • 5.725-5.850 GHz:

    • < 33 dBm (FCC)

    • < 30 dBm (SRRC)

    • < 14 dBm (CE)
• Communication Bandwidth: Max 40 MHz
• Max Transmission Distance (unobstructed, free of interference):

  • FCC: 20 km

  • CE: 10 km

  • SRRC: 10 km

  • MIC: 10 km
• Max Transmission Distance (unobstructed, with interference):

• Strong Interference: Urban landscape, approx. 1.5-4 km

• Medium Interference: Suburban landscape, approx. 4-10 km

• Low Interference: Suburb/seaside, approx. 10-20 km
• Max Transmission Distance (obstructed, with interference):

  • Low Interference and Obstructed by Buildings: Approx. 0-0.7 km

  • Low Interference and Obstructed by Trees: Approx. 0.7-4.5 km
• Max Video Bitrate: 60 Mbps
• Max Download Speed:

  • O4+: 10 MB/s

  • Wi-Fi 6: 100 MB/s*

  • * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, and when internal storage or a high-speed microSD card is used. Download speeds may vary depending on the actual conditions.
• Antennas: 4 antennas, 2T4R

INTELLIGENT FLIGHT BATTERY

• Capacity:≥ 2700 mAh
• Weight: Approx. 149 g
• Nominal Voltage: 14.32 V
• Max Charging Voltage: 17.2 V
• Battery Type: Li-ion
• Energy: ≥ 38.67 Wh
• Discharge Rate: 7C (typical)
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Charging Time:

  • With Charging Hub (100W max charging power):

    • One Battery, From 0% to 100%: Approx. 47 min

    • One Battery, From 10% to 90%: Approx. 31 min

    • Three Batteries, From 0% to 100%: Approx. 100 min

    • Three Batteries, From 10% to 90%: Approx. 70 min
  • Directly Charging the Drone (65W max charging power):

    • One Battery, From 0% to 100%: Approx. 73 min

    • One Battery, From 10% to 90%: Approx. 51 min
• Recommended Charger: Supports DJI 65W Portable Charger and DJI 100W USB-C Power Adapter

BATTERY CHARGING HUB

• Input: 5-20 V, max 5 A
• Output (power accumulation): Max 60 W
• Output (charging): Max 17.2 V
• Compatibility: DJI Avata 360 Intelligent Flight Battery

WI-FI

• Protocol: 802.11 a/b/g/n/ac/ax
• Operating Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz
• Transmitter Power (EIRP):

  • 2.400-2.4835 GHz:

    • < 20 dBm (FCC/CE/SRRC/MIC)
  • 5.725-5.850 GHz:

    • < 26 dBm (FCC/SRRC)

    • < 14 dBm (CE)

BLUETOOTH

• Protocol: Bluetooth 5.4
• Operating Frequency: 2.400-2.4835 GHz
• Transmitter Power (EIRP): < 10 dBm

Links

• Quick Start Guide
• Safety Guidelines
• User Manual

Includes

• 1x DJI Avata 360
• 1x DJI RC 2
• 3x DJI Avata 360 Intelligent Flight Battery
• 1x DJI Avata 360 Charging Hub
• 1x DJI Avata 360 Sling Bag
• 1x DJI Avata 360 Gimbal Protector
• 2x DJI Avata 360 Spare Propellers (Pair)
• 1x Screwdriver
• 1x DJI Avata 360 Foldable Landing Pad
• 1x DJI Avata 360 Lens Cleaning Cloth
• 1x USB-C to USB-C Data Cable
