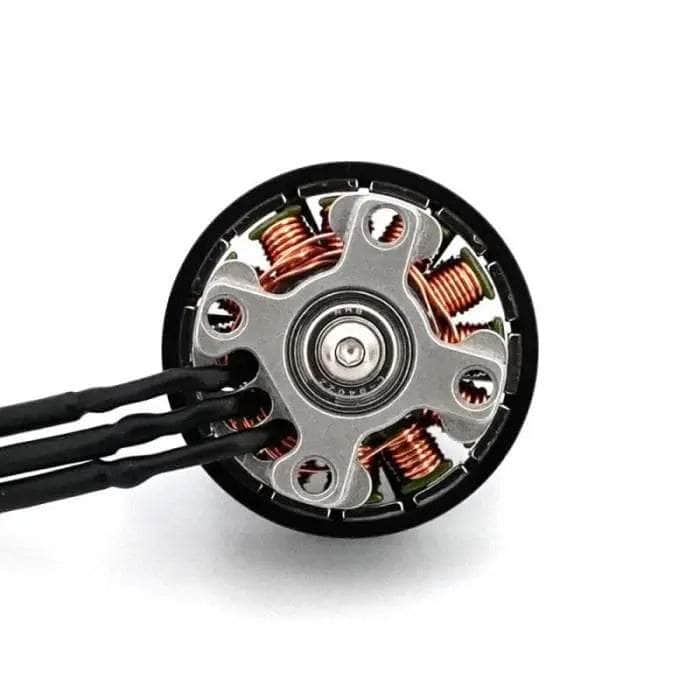

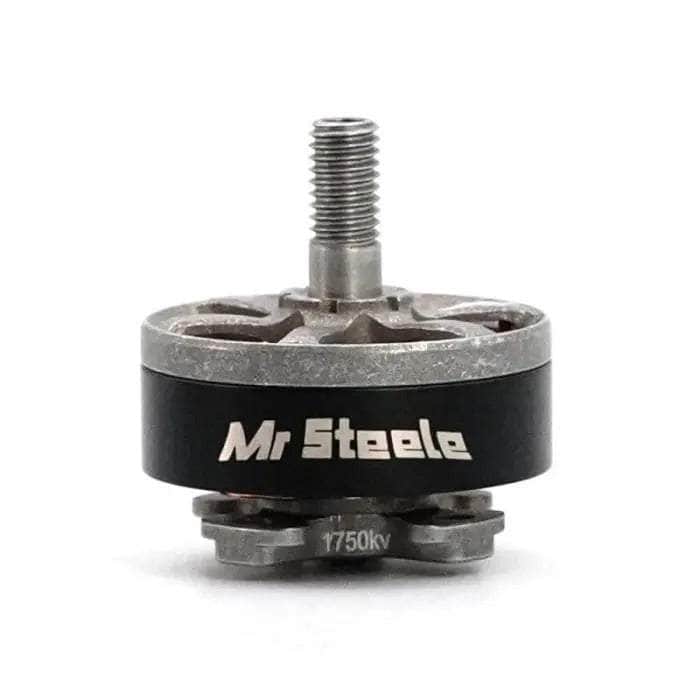

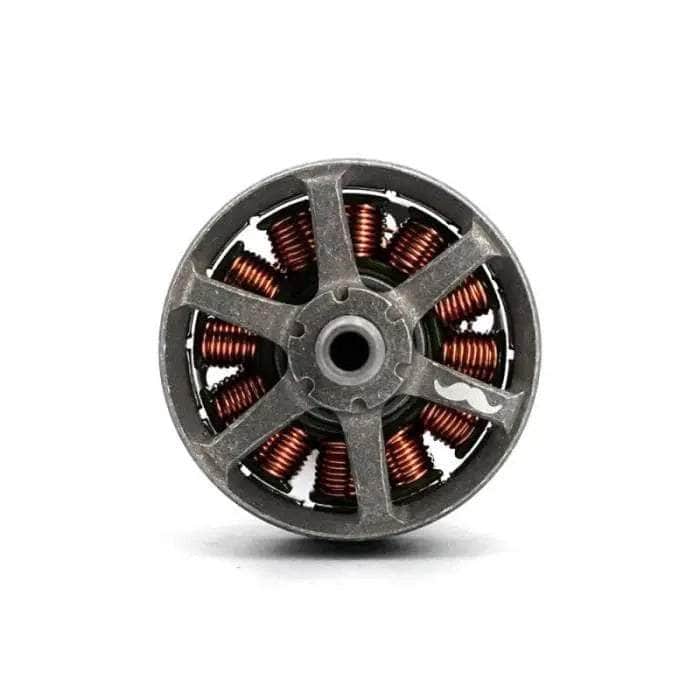

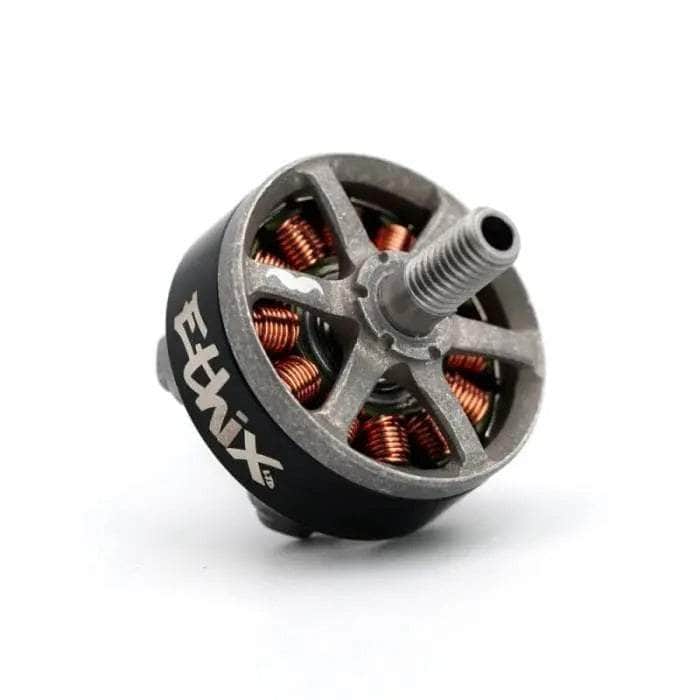

Ethix Mr Steele Stout V3 2306 1750Kv Legacy Motor

Original price $24.99 - Original price $24.99
Original price
$24.99
$24.99 - $24.99
Current price $24.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

The Legacy Stout V3 has changed the colorway to an all-new raw tumbled aluminum finish. The V3 Legacy motors offer maximum performance and compatibility without breaking the bank. V3 legacy motors share completely reverse compatibility with Mr Steele V3 motors.

Check out our other motors, or the rest of out TBS Products!

Features

Since the Mr Steele V3 was released it was one of the most popular freestyle motors in the world. We decided to offer the same tried and true formula at a fraction of the price. Now featuring thicker single strand copper windings for increased efficiency and resilience to high amp loads. We also changed the colorway to an all-new raw tumbled aluminum finish. The V3 Legacy motors offer maximum performance and compatibility without breaking the bank. V3 legacy motors share completely reverse compatibility with Mr Steele V3 motors. Now with sustainable packaging, the V3 legacy can live on with less impact on the planet.

Specifications

  • Stator Size (Diameter): 23mm x 6mm
  • Kv: 1750kv
  • Magnets N52SH: Curved
  • Windings: 15turn DLRK
  • Shaft Length (mm): 11.5mm
  • Shaft Diameter (mm): 4mm
  • Shaft material: Steel
  • Bearing: NMB684
  • Weight (With Wires) (g): 30.4g
  • Cells (Lipo): 6S
  • Max Current (A): 45A
  • Max Burst Current (A): 50A
  • Internal Resistance (Rm): 98mΩ
  • Wire Spec (AWG): 20#-135mm
  • Base Mounting Pattern: 19x19mm
  • Base Mounting Thread: M3 Thread
  • Motor Overall Dimensions: φ27.5mm x 17.2mm

Includes

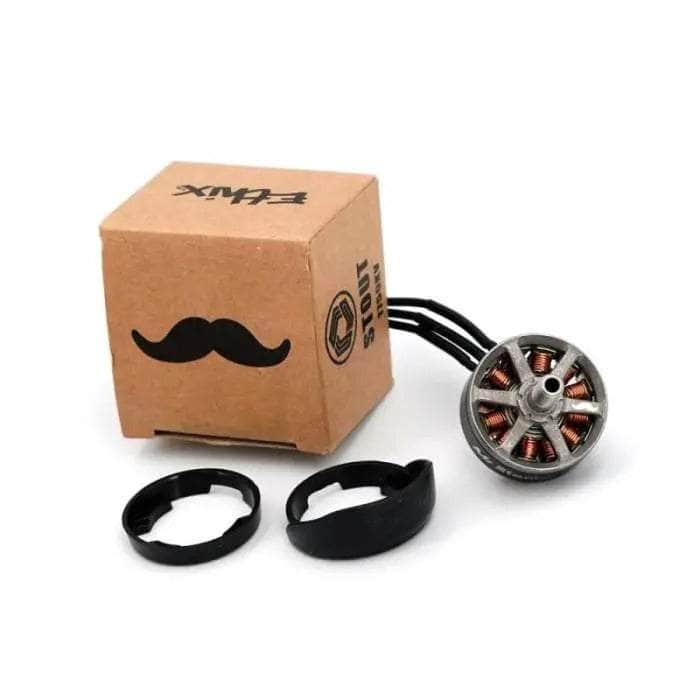

  • 1x Ethix Mr Steele Stout V3 2306 1750Kv Legacy Motor
