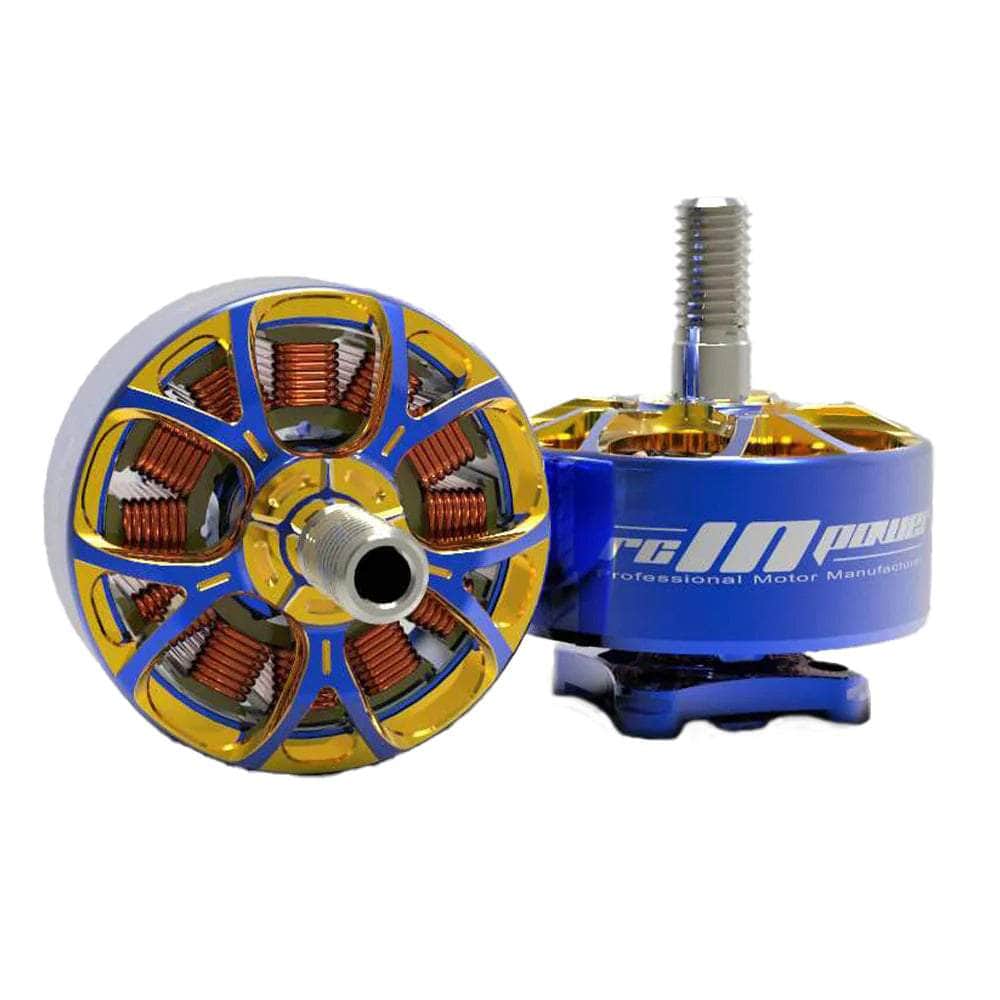

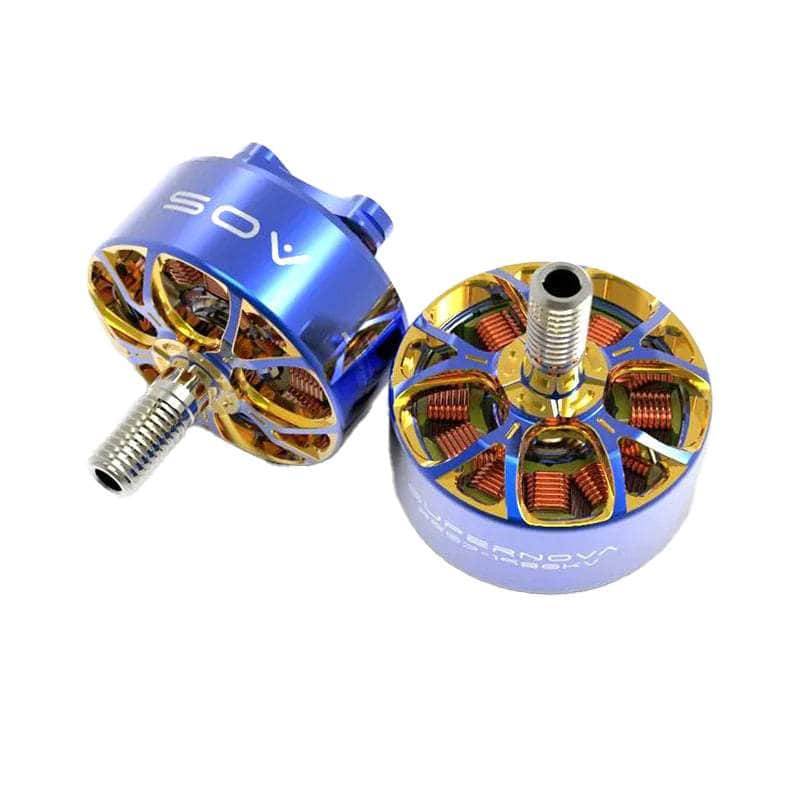

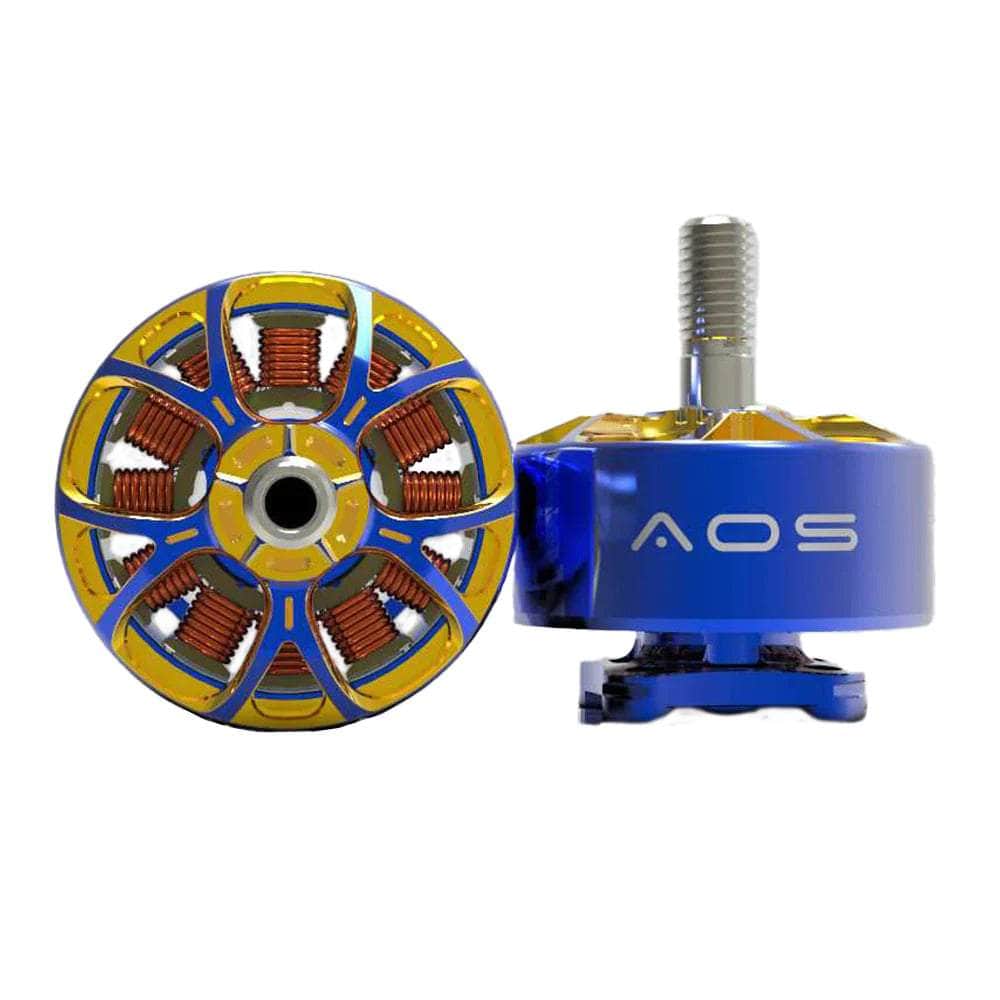

RCinPOWER AOS SUPERNOVA 2807 1400Kv Motor
The AOS Supernova 2807 redefines performance. An unrivaled thrust to weight ratio is combined with excellent efficiency and world-leading responsiveness to create the ultimate power unit for 7" FPV.
Check out our vast brushless motors selection, and all our Rcinpower products!
Features
Designed using the same groundbreaking simulation and testing approach as the AOS Supernova 2207, this motor scales up that design philosophy to provide exhilarating control, power, and efficiency for 7” props. See what a difference over 20,000 finite element simulations can make!
A great design is nothing without great manufacturing and quality control, RCinPower consistently manufactures the best performing motors in FPV and are flown by the world's fastest drone racer Min Chin Kim.
To enjoy precise low throttle control along with mind blowing top end power AOS recommends using throttle expo in Betaflight with these motors to get the best flight feel and performance. Try Throttle MID = 0 and Throttle EXPO = 0.20 to start. Increase EXPO for more precision at low throttle, decrease expo for a sharper throttle response.
Specifications
- Idle Current (10 Seconds)@10V: 1.4A
- Max Continuous Power (W) 5S: 960
- Max Efficiency Current: (2-6A)>87%
- Motor Dimensions: 32.9x35.3mm
- Shaft Diameter: 4mm (Hollow)
- Weight: 47 grams (3cm Wires)
- Internal Resistance: 58mΩ
- Stator Diameter: 28mm
- No. of Cells (LiPo): 4-6S
- Configuration: 12N14P
- Max Current (5S): 40A
- Stator Length: 7mm
- KV: 1400
- Motor Bolt Pattern: 19x19mm
Includes
- 1x RCinPOWER AOS SUPERNOVA 2807 1400Kv Motor
- 1x Hardware Set
