Description

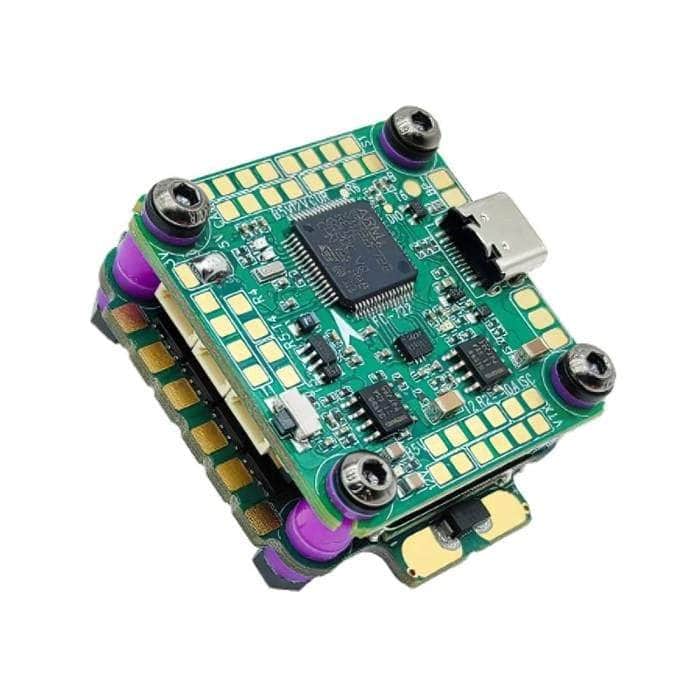

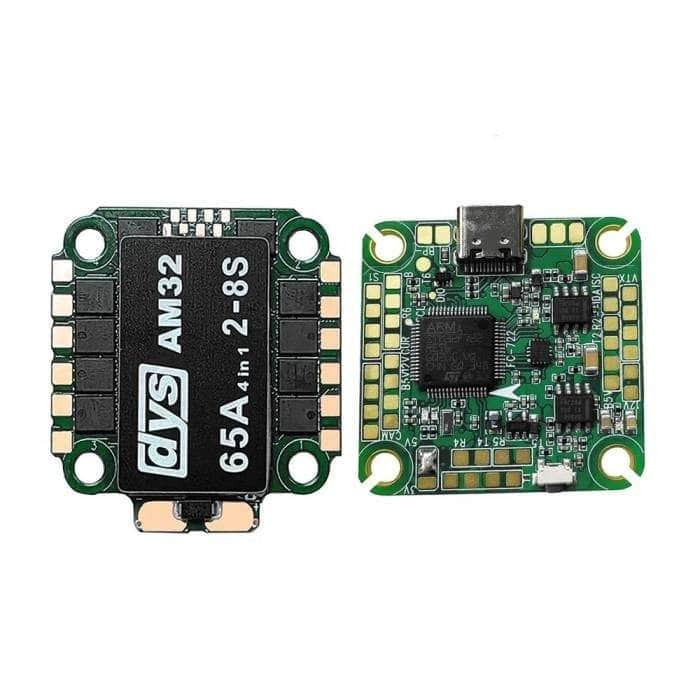

The DYS F7 Stack combines the advanced DYS F722 Flight Controller with the high-performance 65A AM32 4-in-1 ESC. The Flight Controller features an STM32F722 MCU, an ICM42688P gyroscope, and a compact 30x30mm form factor, ensuring precise flight control and reliability. The 65A ESC supports a 2-8S Lipo input and delivers robust performance with a continuous current of 65A and a burst current of 80A. Together, this stack offers a powerful and efficient solution for demanding drone setups.

Check out all our 30x30 stacks & combos and the rest of our DYS Products!

Features

• Upgradable Firmware

• Reliable Performance

• Precise Flight Control

• Lightweight

• Versatile

• Efficient

Specifications

FLIGHT CONTROLLER

• Mounting Hole: 30.5mm x 30.5mm/M3

• BEC Output: 3.3V/1A; 5V/3A; 12V/3A

• Gyroscope: ICM42688P

• Barometer: BMP280

• ESC Signal: 8 Motors

• Size: 38mm x 38mm

• MCU: STM32F722

• Air Unit Port: Yes

• Black Box: 16MB

• VTX Switch: Yes

• OSD: AT7456E

• UART: 6 Ports

• Input: 6S Lipo

• Weight: 10g

ESC

• Mounting Hole: 30.5mm x 30.5mm/M3

• Firmware: AM32 with F4 MCU

• Continuous Current: 65A

• Input Voltage: 2-8S Lipo

• Burst Current: 80A

• Current Rate: 200

• Weight: 15.3g

Includes

• 1x DYS F7 2-8S 30x30 Stack/Combo (F722 FC / 65A AM32 4in1 ESC)

Wiring Diagram
