Description

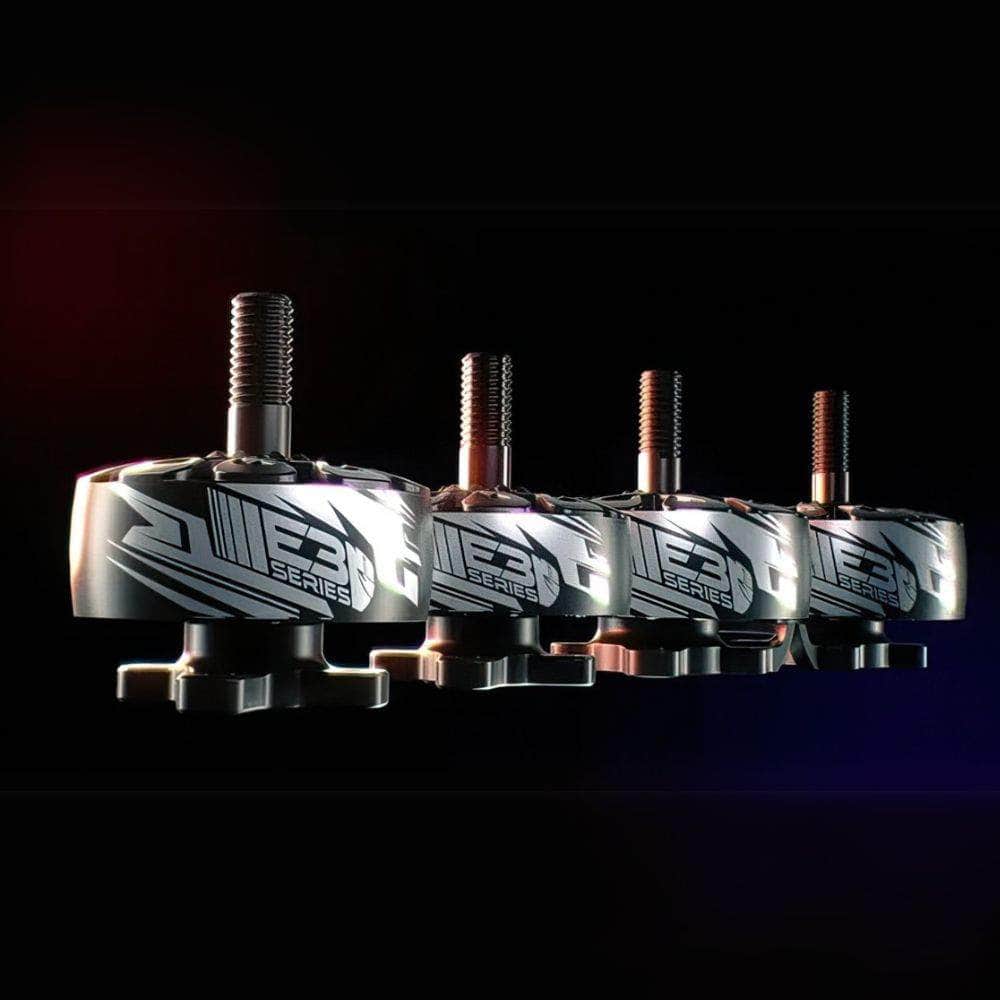

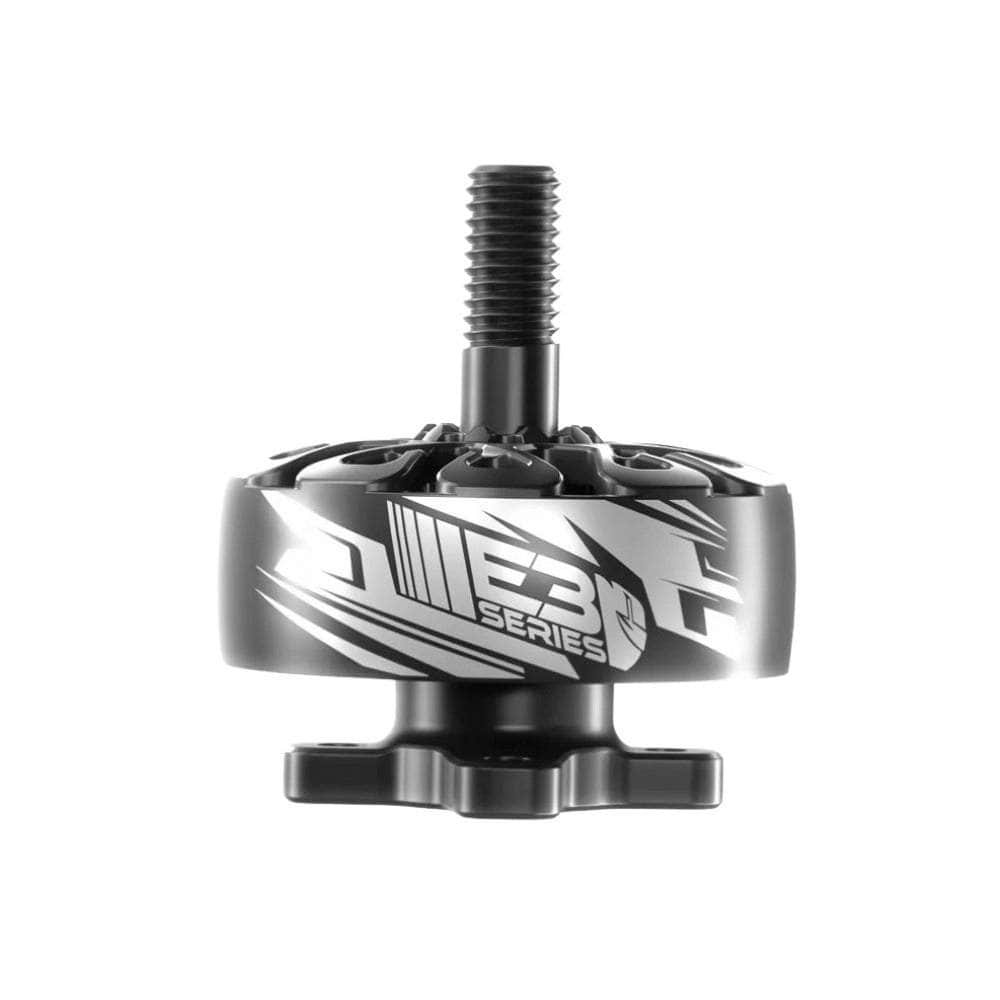

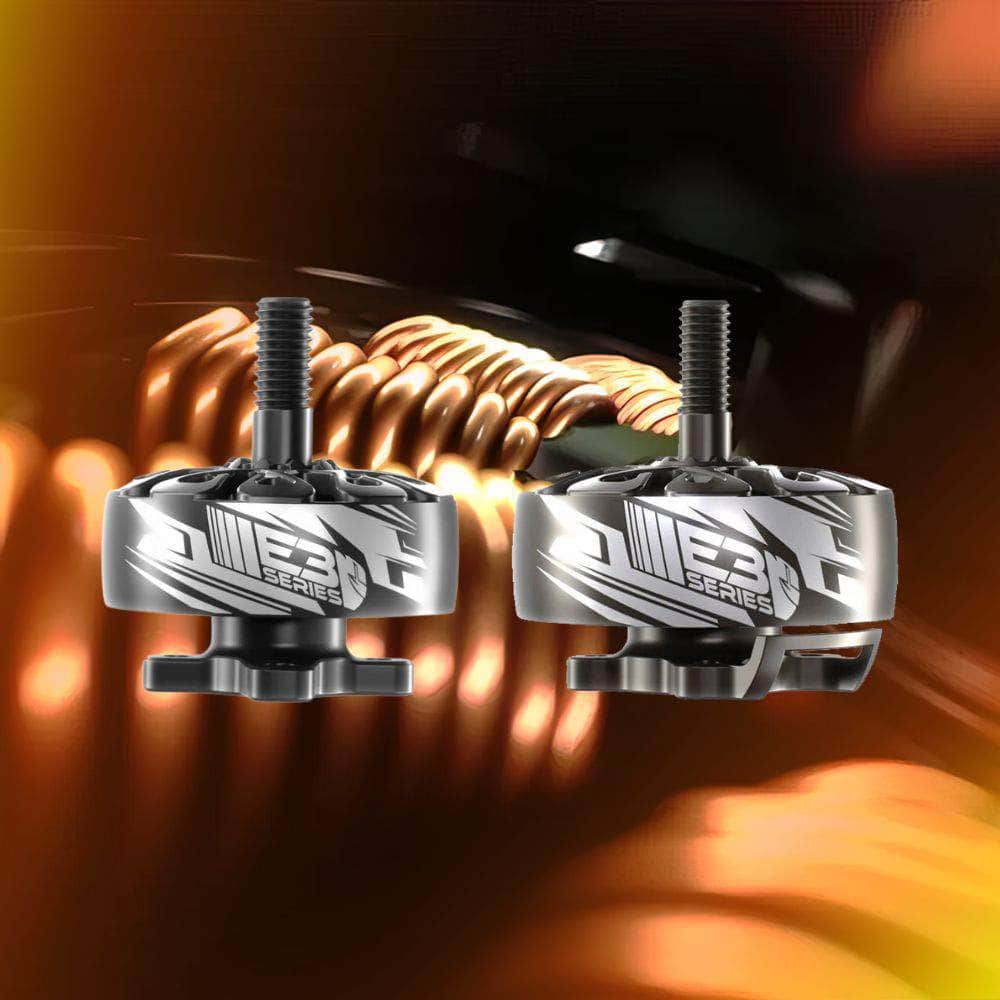

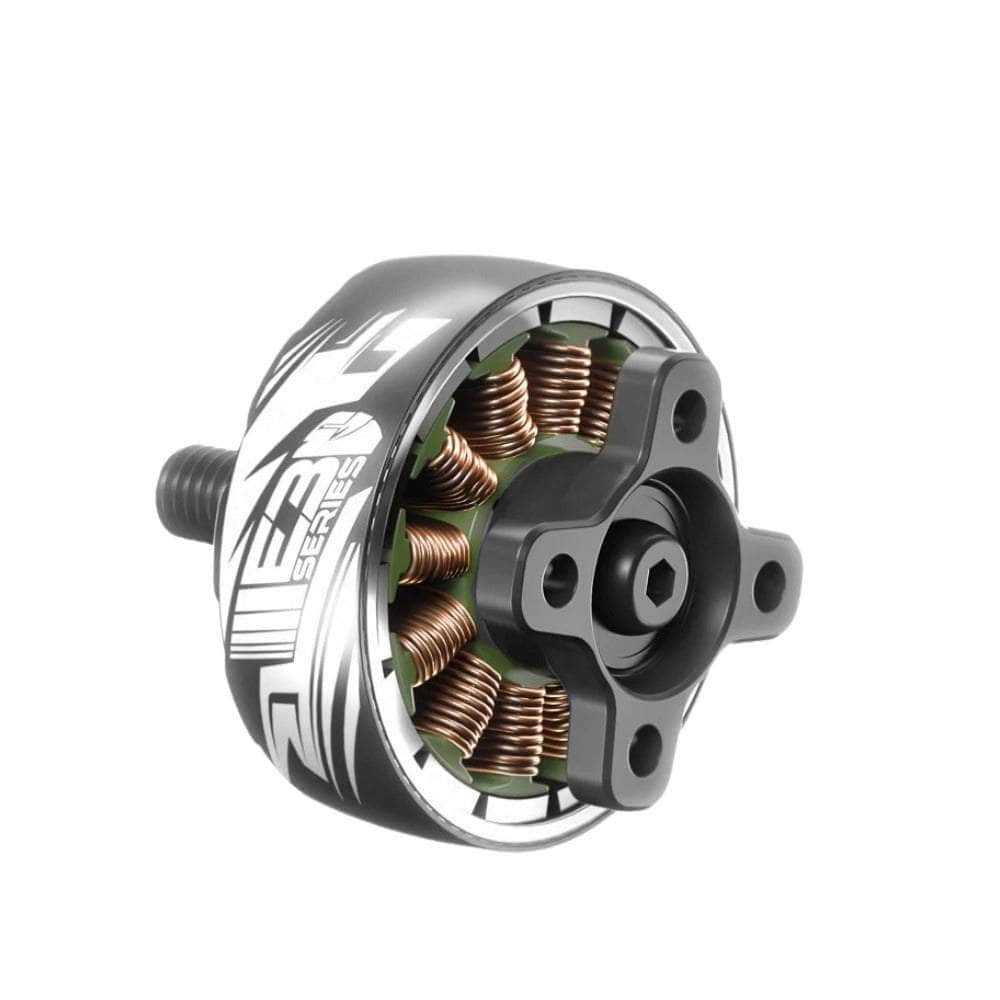

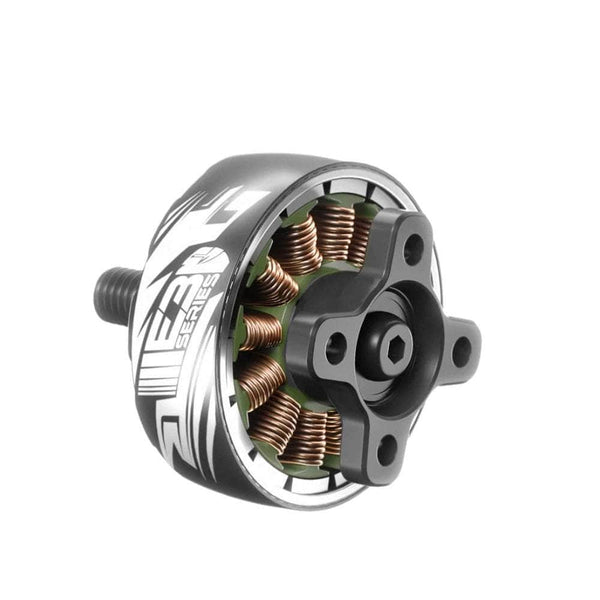

EMAX E3 is bringing your drone thrust from another dimension! Series 2306 Motor available in 1700KV, 1900KV, and 2400KV — deliver power with uncompromised efficiency. Designed for 3-6S setups, these motors offer the perfect balance of thrust and control. Whether you're chasing maximum power or fine-tuning your build for smooth, responsive flights, check out the EMAX E3 Motors!

Check out our vast motor selection and our EMAX selection!

Features

• Available in 1700KV, 1900KV, and 2400KV options
• Robust 12N14P Framework
• High-Performance Power
• Precision-Engineered
• 4mm Bearing Shaft
• Responsive Flights

Specifications

KV1700

• Weight: 29.4g (W/O Silicone Wire)
• Motor Dimensions: 28.9 x 31.8 mm
• Mounting Pattern: 19x19mm
• Internal Resistance: 79mΩ
• Idle Current (10V): 1.1A
• Lead: 20#AWG 120mm
• Peak Current (65): 36A
• Max Power (65): 970W
• Framework: 12N14P
• Bearing Shaft: 4mm
• No. of Cells: 3-6S
• Propeller: 5"-5.5"

KV1900

• Weight: 29.4g (W/O Silicone Wire)
• Motor Dimensions: 28.9 x 31.8 mm
• Mounting Pattern: 19x19mm
• Internal Resistance: 66mΩ
• Max Power (65): 1160W
• Idle Current (10V): 1.3A
• Lead: 20#AWG 120mm
• Peak Current (65): 46A
• Framework: 12N14P
• Bearing Shaft: 4mm
• No. of Cells: 3-6S
• Propeller: 5"

KV2400

• Weight: 29.5g (W/O Silicone Wire)
• Motor Dimensions: 28.9 x 31.8 mm
• Mounting Pattern: 19x19mm
• Internal Resistance: 47mΩ
• Idle Current (10V): 1.7A
• Lead: 20#AWG 120mm
• Max Power (4S): 720W
• Peak Current (45): 43A
• Lead: 20#AWG 120mm
• Framework: 12N14P
• Bearing Shaft: 4mm
• No. of Cells: 3-4S
• Propeller: 5"-5.5"

Includes

• 1x EMAX E3 Series 2306 Motor (Choose Your KV)
• 1x Hardware Kit
