Description

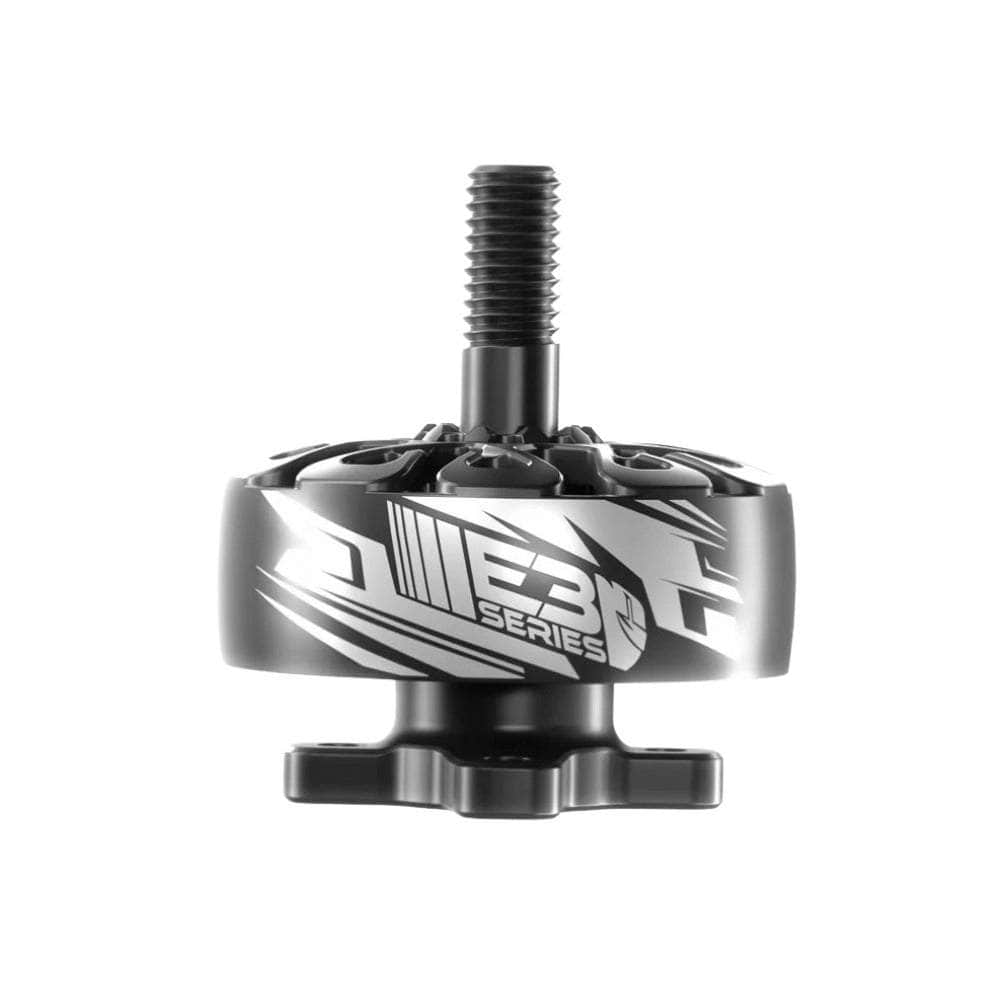

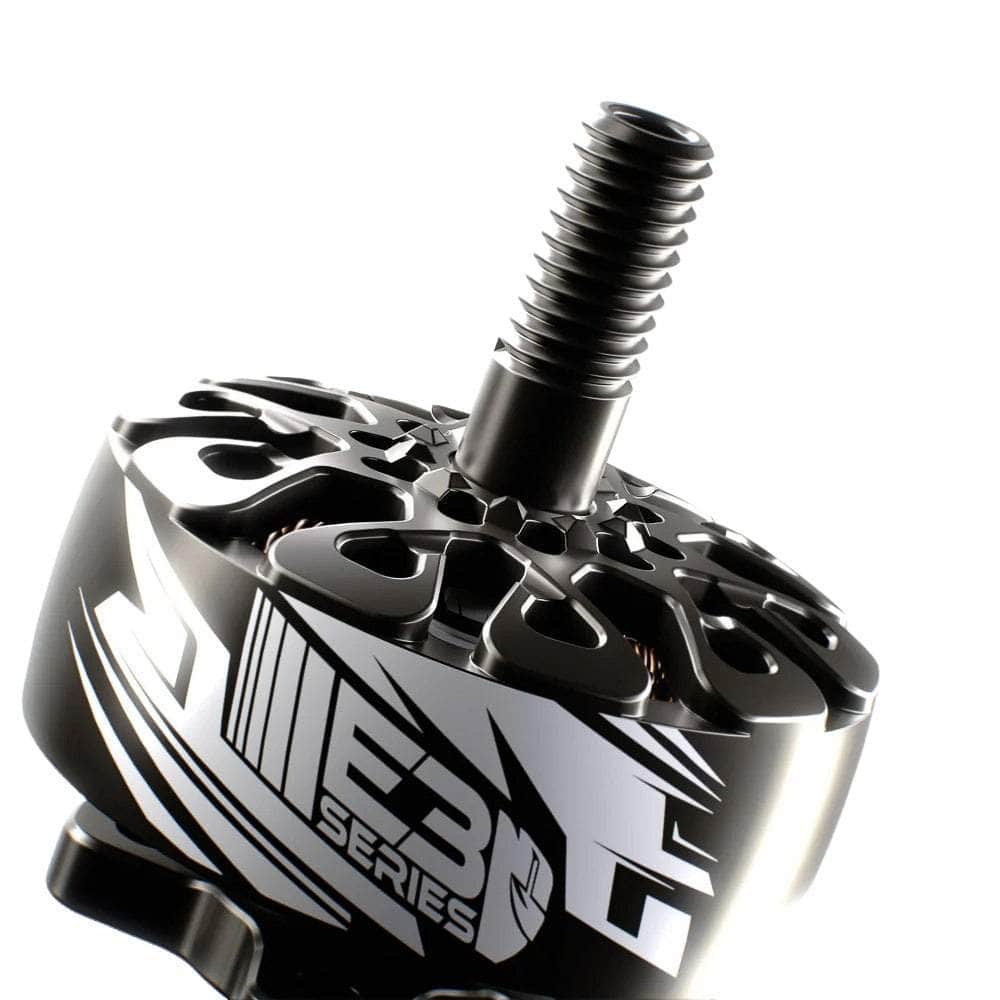

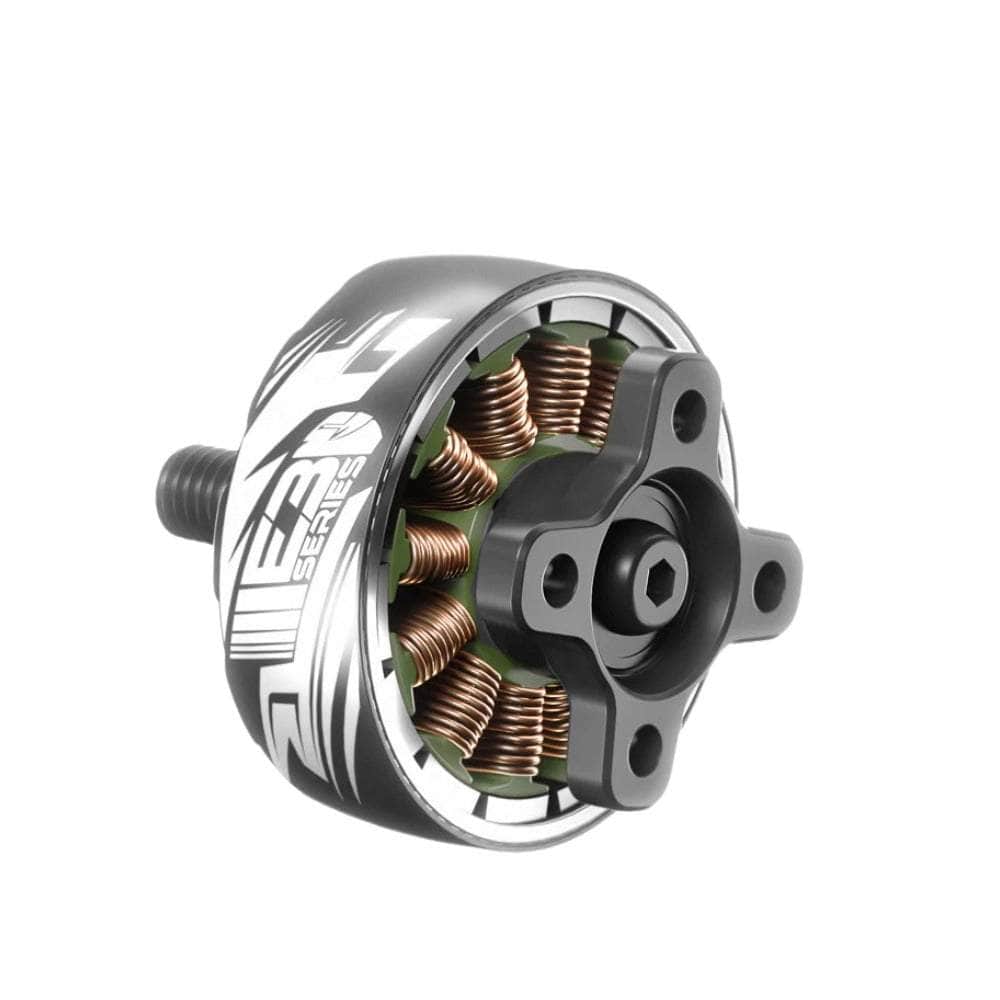

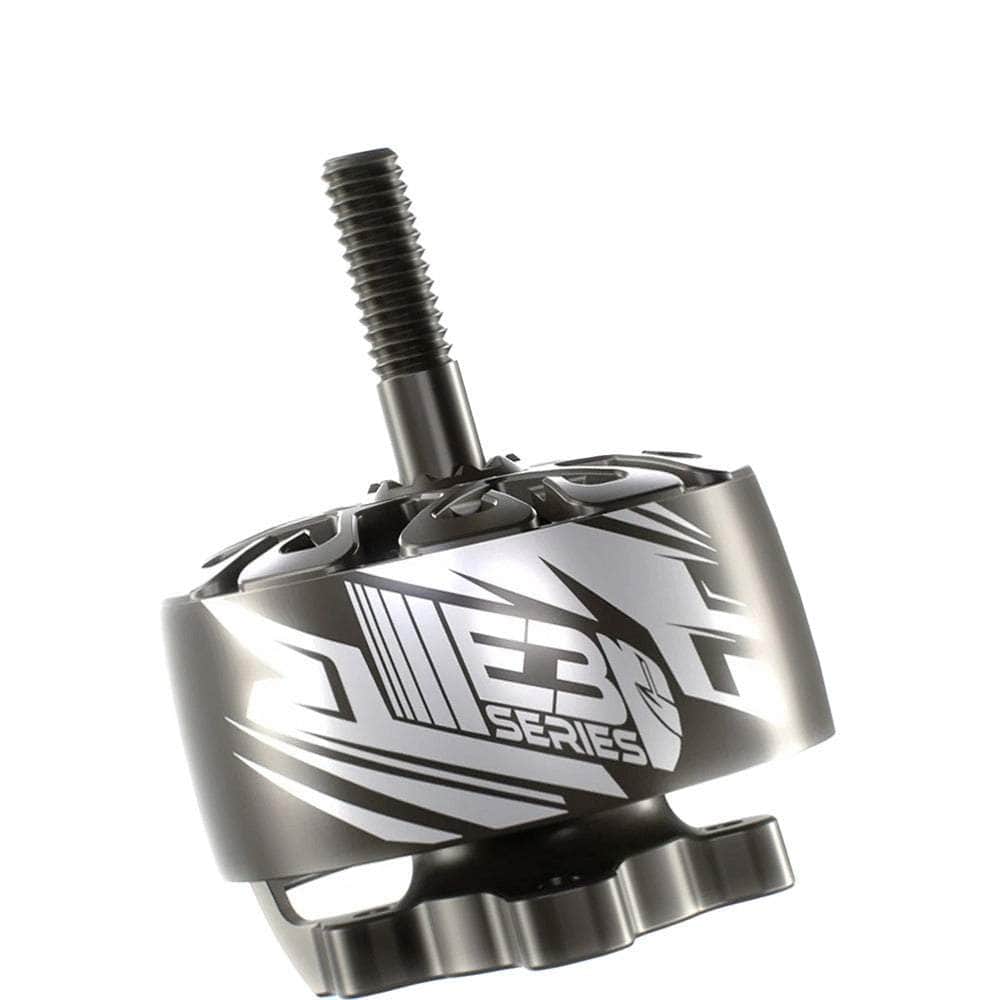

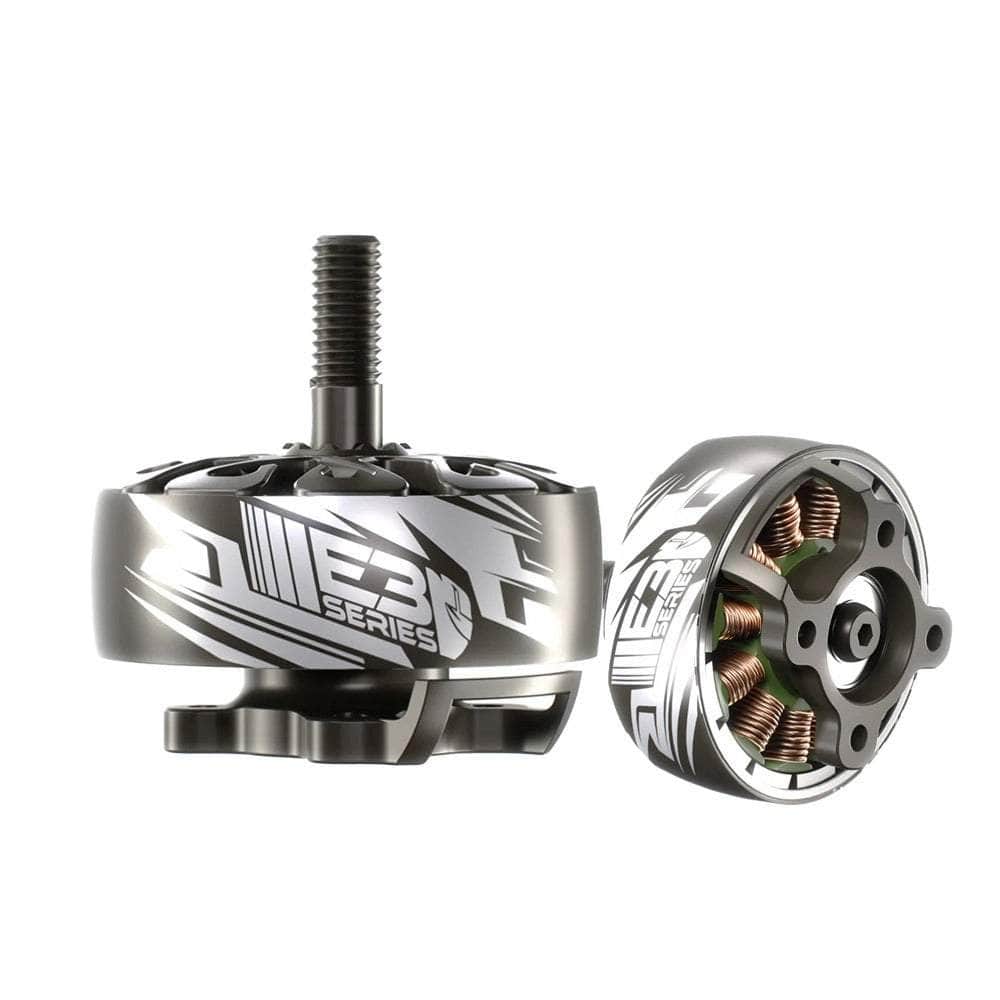

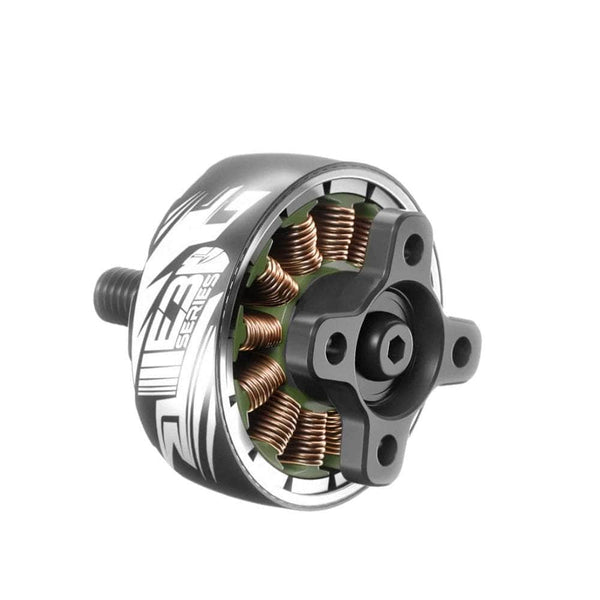

EMAX E3 is bringing your drone thrust from another dimension! Series 2808 Motor is available in 1300KV and 1500KV and is designed for long-range and cinematic FPV drones. With a larger stator for increased torque and efficiency, these motors provide smooth power delivery, precise control, and reliable performance. Perfect for 7" prop setups! Whether you're chasing maximum power or fine-tuning your build for smooth, responsive flights, check out the EMAX E3 Motors!

Check out our vast motor selection and our EMAX selection!

Features

• Optimized for Long-Range and Cinematic Flights
• Smooth Power Delivery
• Durable Construction
• Multiple KV Options

• Large 2808 Stator

Specifications

KV1300

• Weight: 53.6g (without silicone wire)
• Motor Dimensions: 34.8 x 37 mm
• Propeller Compatibility: 6"-7"
• Mounting Pattern: 19x19mm
• Internal Resistance: 56mΩ
• Max Power (65): 1410W
• Idle Current (10V): 1.5A
• Lead: 18# AWG 250mm
• Peak Current (65): 56A
• Framework: 12N14P
• Bearing Shaft: 5mm
• No. of Cells: 3-6S

KV1500

• Weight: 53.8g (without silicone wire)
• Motor Dimensions: 34.8 x 37 mm
• Propeller Compatibility: 6"-7"
• Mounting Pattern: 19x19mm
• Internal Resistance: 47mΩ
• Max Power (65): 1640W
• Idle Current (10V): 1.8A
• Lead: 18# AWG 250mm
• Peak Current (65): 65A
• Framework: 12N14P
• Bearing Shaft: 5mm
• No. of Cells: 3-6S

Includes

• 1x EMAX E3 Series 2808 Motor - (Choose Your KV)
• 1x Hardware Kit
