EMAX ES3054 17g Metal Gear Digital Servo

EMAX ES3054 17g Metal Gear Digital Servo

$11.99
$11.99
Add To Wishlist
View full details

Details

Description

EMAX produces some of the most reliable, best value servos around. We carry several varieties for different sized aircraft.

The ES 3054 is powerful and fast for it's size. Get this quality servo from E-MAX to build your next FPV project!

Check out all our Servos & Accessories and all our EMAX gear!

Features

  • Metal Gears for ultimate reliability
  • Digital for the smoothest operation

Specifications

  • Operations Voltage: 4.8-6.0C
  • Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
  • Stall Torque at 4.8V: 3kg/cm max
  • Stall Torque at 6.0V: 3.5kg/cm max
  • Speed at 4.8V: 0.15 sec/60* (zero load)
  • Speed at 6.0V: 0.13 sec/60* (zero load)
  • Size: ~28.5x13x31mm
  • Weight: 17g class, 20.1g actual
  • Plug: JR
  • Cable Length: ~240mm
  • Head Splines: 23T
  • Maximum Travel: ~145*
  • Gears: Metal
  • Operation: Digital

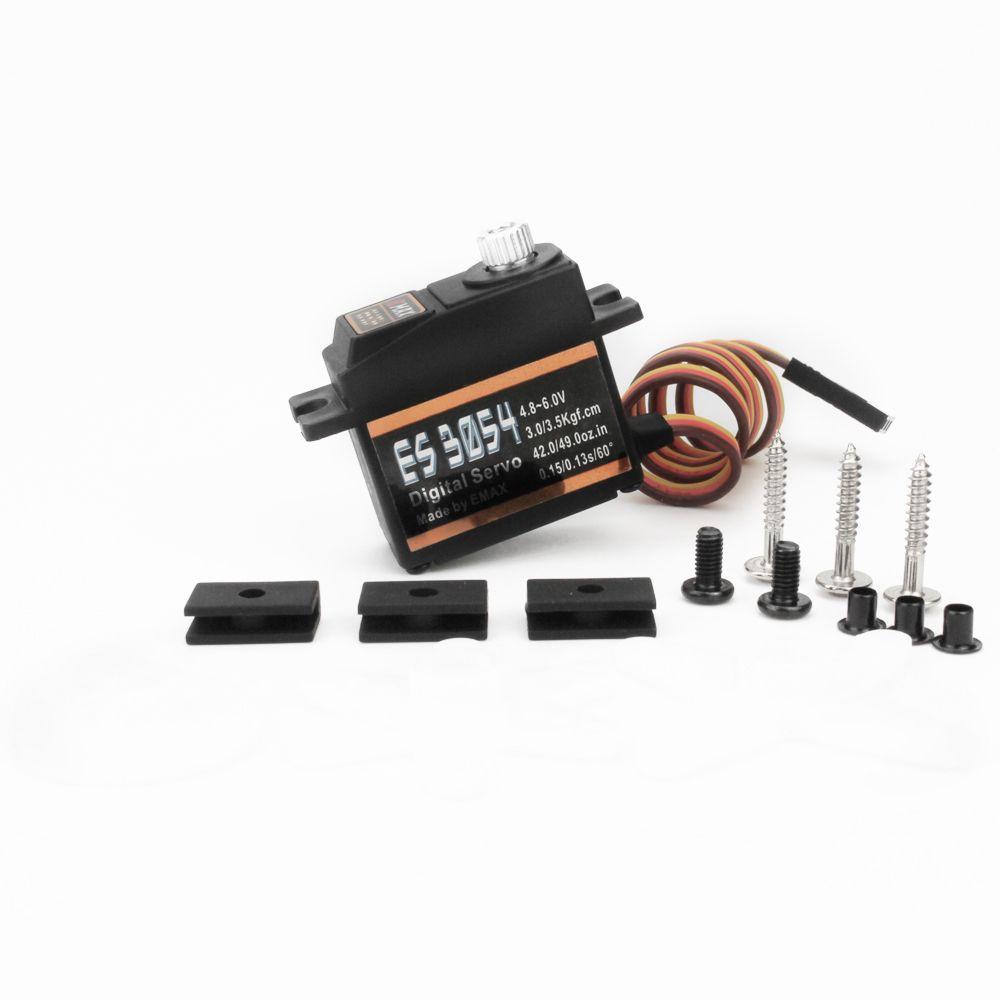

Includes

  • 1x EMAX ES3054 Servo
  • 3x Plastic Servo Horns
  • 1x Mounting Hardware Set

    More Info

    • SKU: EMAX-EMX-SV-0280
    • Barcode: 691023500549


    Overall rating: 4.8235292 / 5 from 17 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: ["power","shipping","price","servos","center"].

    Review highlights

    Reviews

    Great servos! Great Price!

    "Great little servos. Quick powerful and center very well.."

    — James R. (5/5)

    Great little servos

    "I just installed 2 ES3054 servos side by side in place of a single aileron servo. Only had to make the opening 1/8 inch wider. I now have a lot more power and the ability to use my full length ailerons as flaperons. I'm very pleased."

    — Terry E. (5/5)

    The Emax servos are small

    "The Emax servos are small and powerful for their size and the price for digital is very reasonable."

    — John W. (5/5)

    Great product

    "Great product, quality"

    — Roger V. (5/5)

    Great product

    "Solid build, super fast shipping."

    — Craig H. (5/5)

    Great Servos at a great price.

    "Seems to be a perfect replacement for the servos that came with my spec wing!"

    — Yamaha I. (5/5)

    Half and half

    "I ordered two servos. One works good. The other one is totally frozen. Took it apart and the motor would not turn. I like emax products they have always worked good in the past. This one just made it through quality control. I will continue to buy emax products."

    — Patrick W. (3/5)

    Strong, smooth and accurate!

    "E max servos never disappoint. Strong, fast and accurate with a great price. Can’t beat it."

    — Brian B. (5/5)

    I love the feel of

    "I love the feel of this servo"

    — Clemeth P. (5/5)

    Servo

    "I am currently using the es3054 on a upgraded wltoys a969 speed is decent could use a little more torque but should be fine in planes and helicopters"

    — William G. (4/5)
