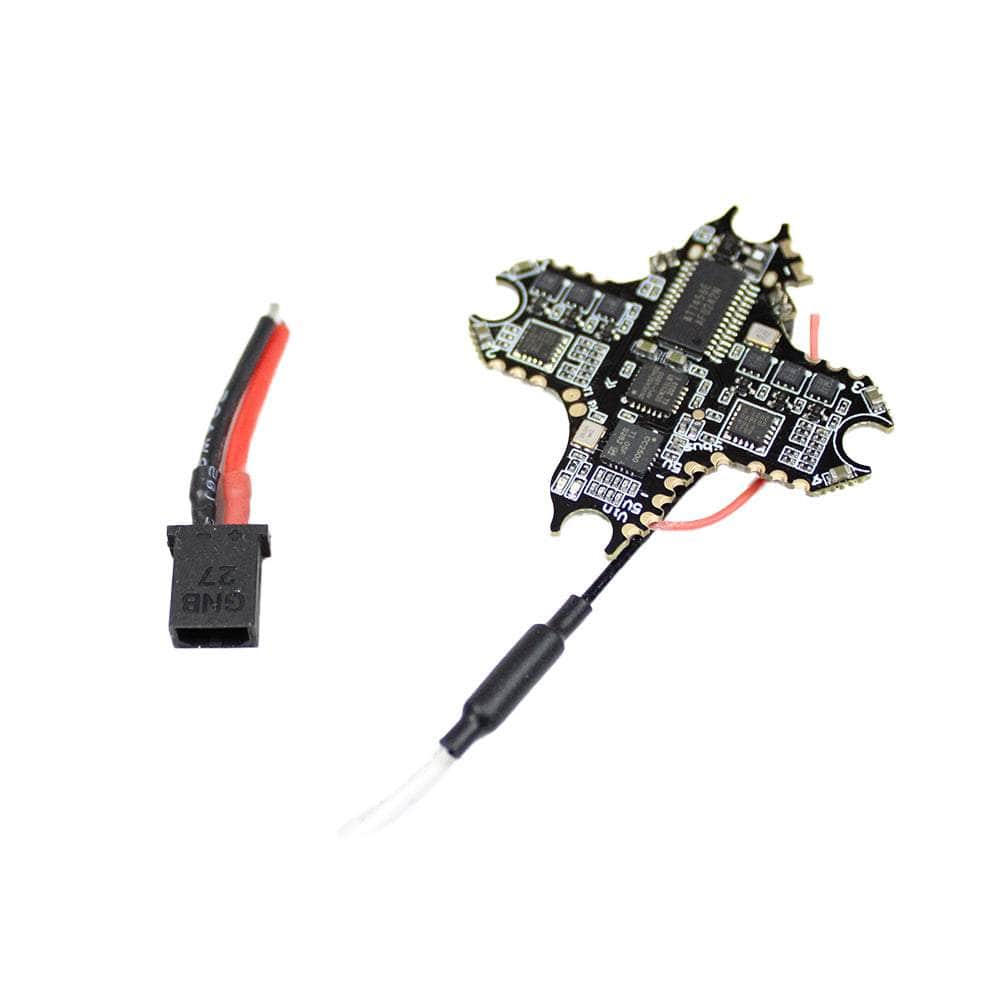

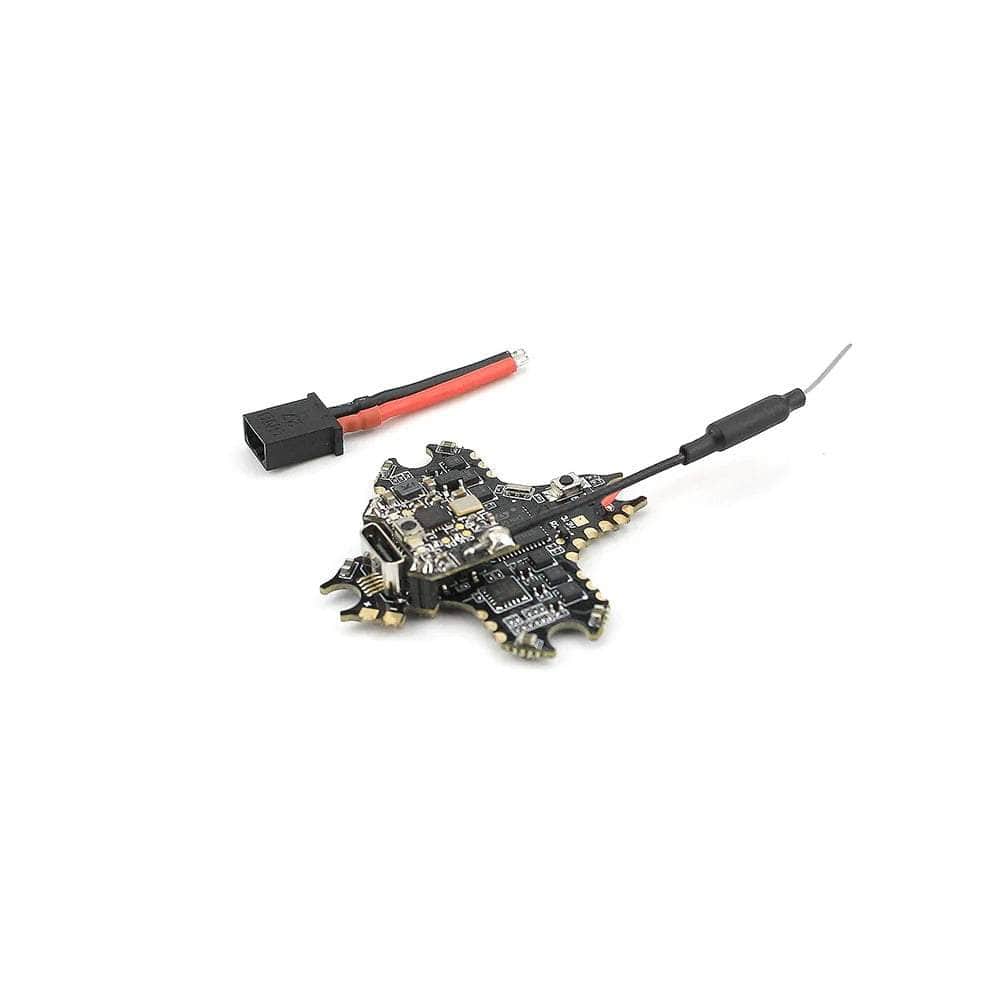

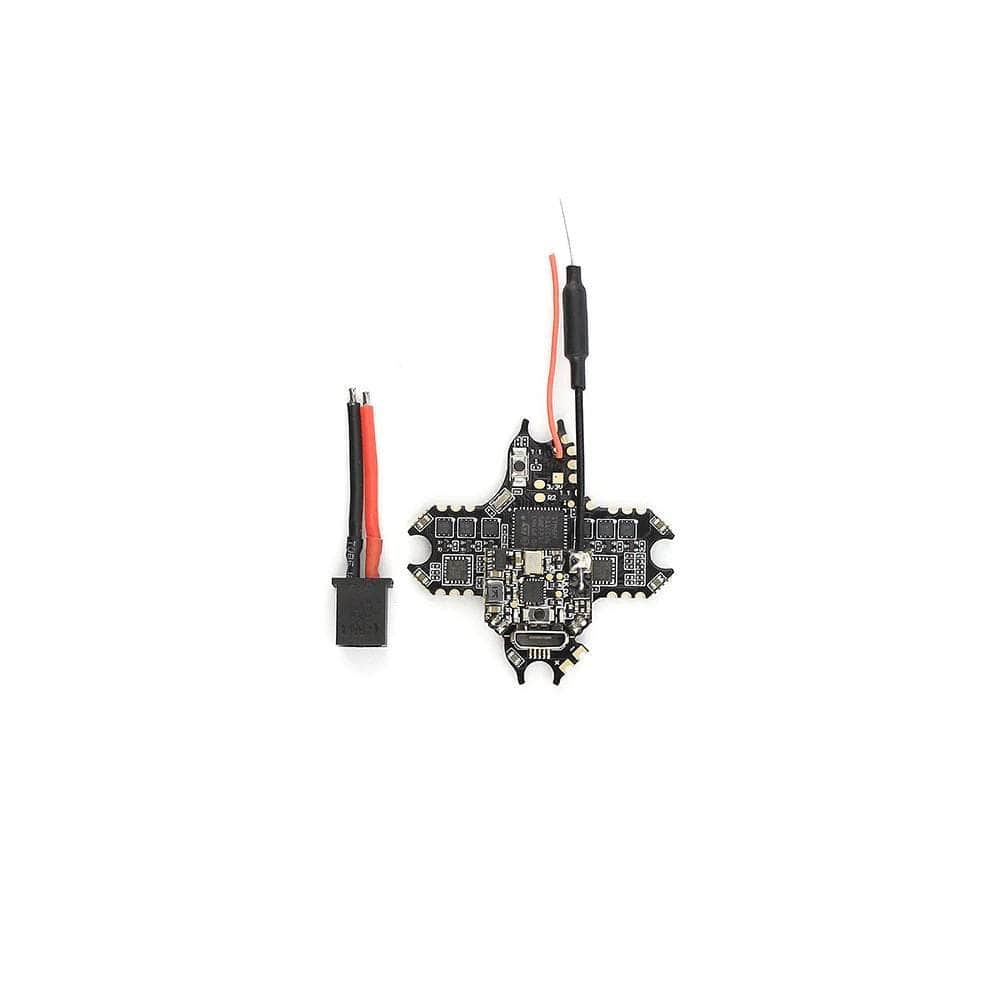

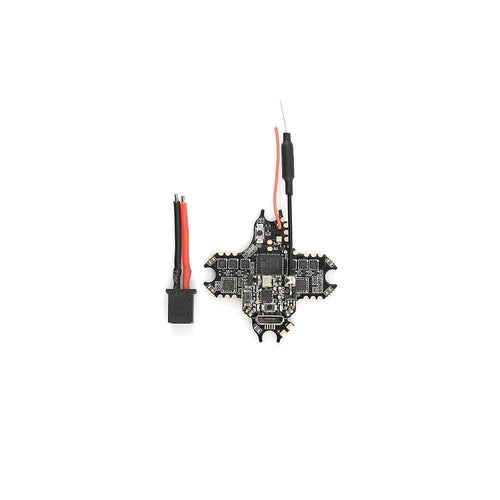

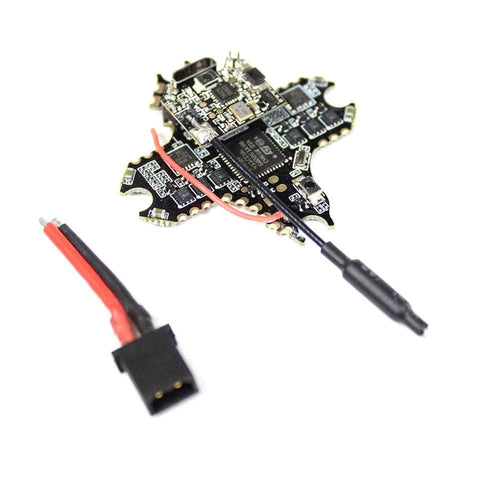

Emax Nanohawk 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC & 25mW VTX - MPU6000

Emax Nanohawk 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC & 25mW VTX - MPU6000

$49.99
$49.99
Add To Wishlist
View full details

Details

Description

This is a spare replacement part for the EMAX BNF Nanohawk 1S Brushless Analog Whoop! Also a great choice for building your own whoops!

Check out all our whoop flight controllers and the rest of our EMAX selection!

Specifications

  • MCU: F4
  • Input: 1S only
  • Continuous current: 5A
  • Gyro: MPU6000
  • USB: Micro USB
  • ESC: BlHeli S
  • VTX: 25mW

Includes

  • 1x Emax Nanohawk 1S F4 AIO Flight Controller w/ 5A 8Bit 4in1 ESC & 25mW VTX - MPU6000
  • 1x GNB27 Female power lead

More Info

  • SKU: 15138
  • Barcode: 708111881807


Overall rating: 4.5 / 5 from 2 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Emax Nanohawk 1S F4 AIO

"I like the all in one feature for a short stack build."

— Benjamin M. (5/5)

Low output vtx but enough

"Low output vtx but enough for racing. The weight is pretty good. This FC/VTX and the Runcam Nano 3 used on the Nanohawk has a similar weight to the Tinywhoop Pinch Camera/VTX on a Betafpv 1s F4 board, which many top pilots were running last year. The pinch gets you smart audio (as well as options for a higher vtx output) though and I don't believe this does but I haven't tested yet. The new Happymodel Diamond F4 seems to be be the new winner when it comes to weight but this is a close contender."

— Isaac P. (4/5)

Q&A

How much does this board weigh?
about 8 grams.
I assume this is frsky d8? And can I use a bt.20 connector on this??
You can add whatever receiver you wish. And yes you can use BT2.0
Would this work fine as a replacement FC and ESC for the tinyhawk 2? The motors and camera, frame are all fine i just need to replace the boards however i cant find the exact replacement
No. The Tinyhawk line uses a special board. The Tinyhawk 2, uses a more rectangular board with a unique mounting pattern. Regular flight controllers like the Nanohawk one will not fit the Tinyhawk 2 frame. Unfortunately, only one of the Tinyhawk line flight controllers will fit. It shouldn't matter if it is a Tinyhawk 1, Tinyhawk S, Tinyhawk 2, Tinyhawk Freestyle, or Tinyhawk 2 Freestyle. All of those boards should fit. However, the Tinyhawk 2/Freestyle board would probably be best as I think it comes with a better vtx but I don't remember.
