Description

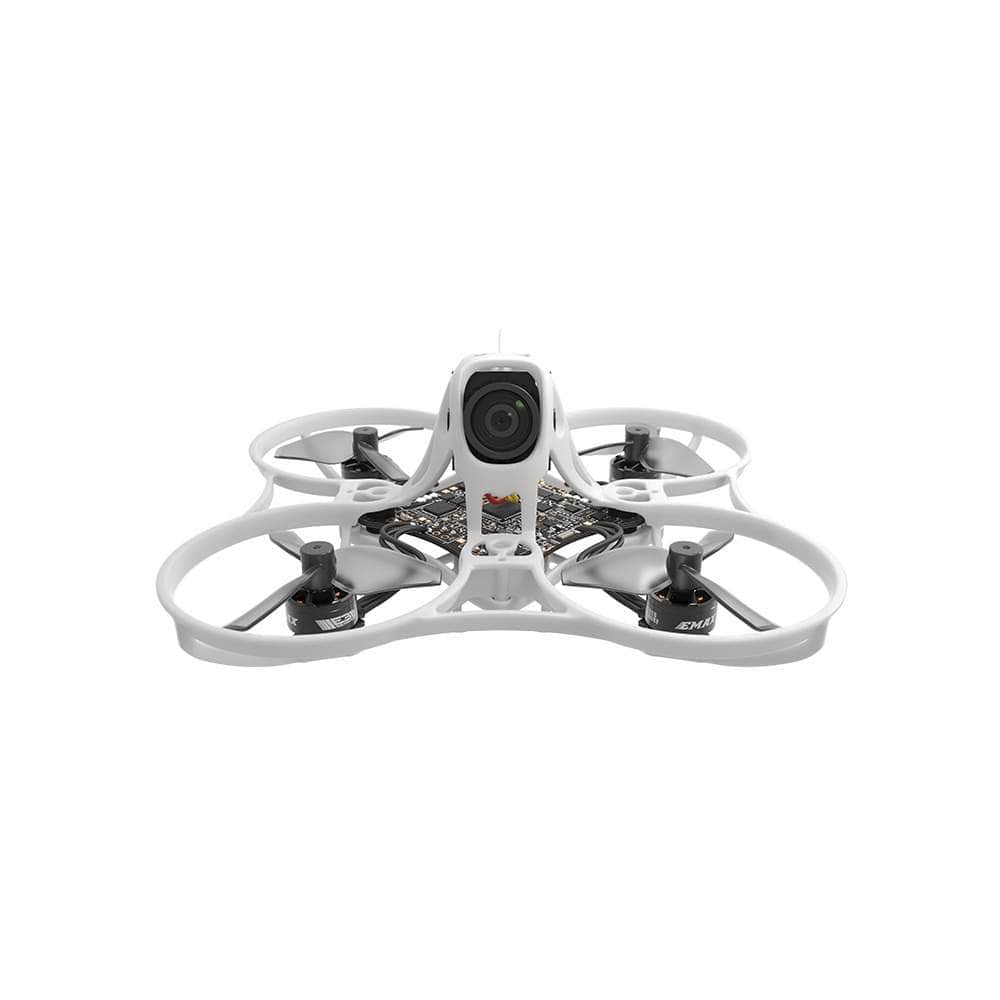

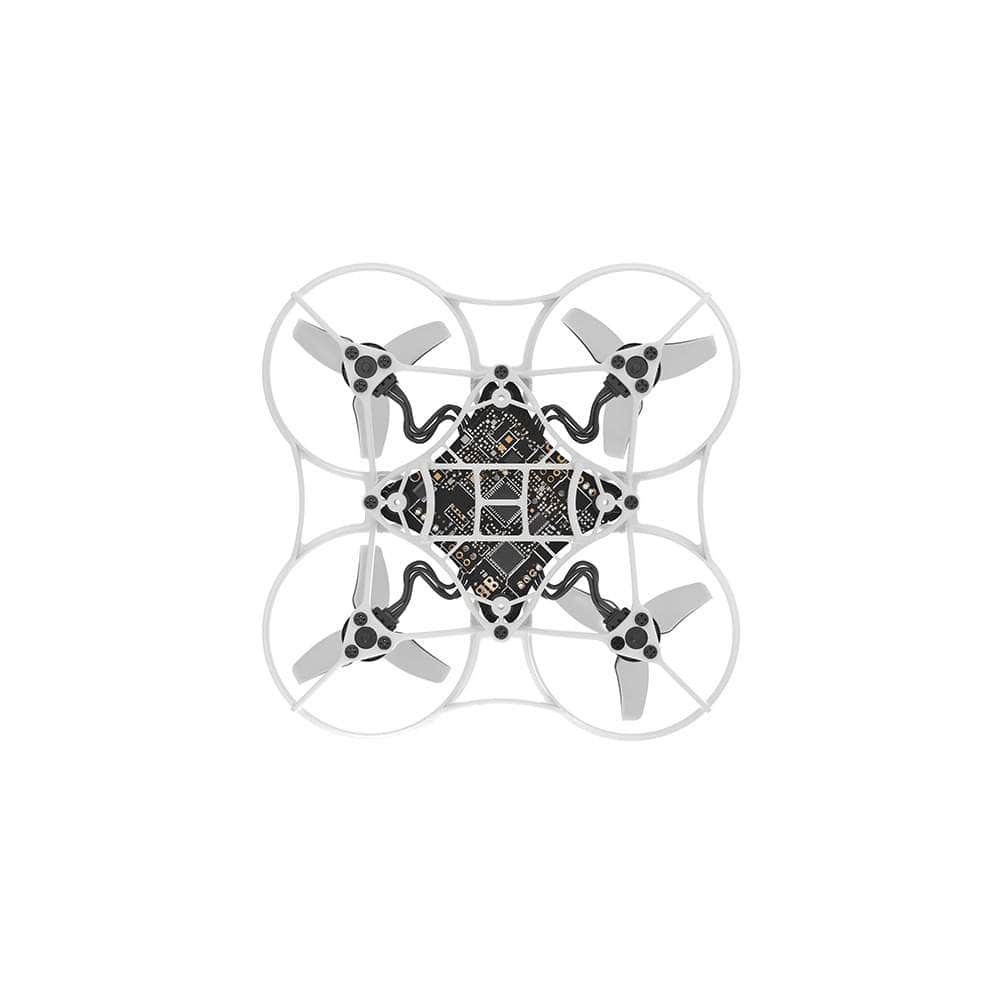

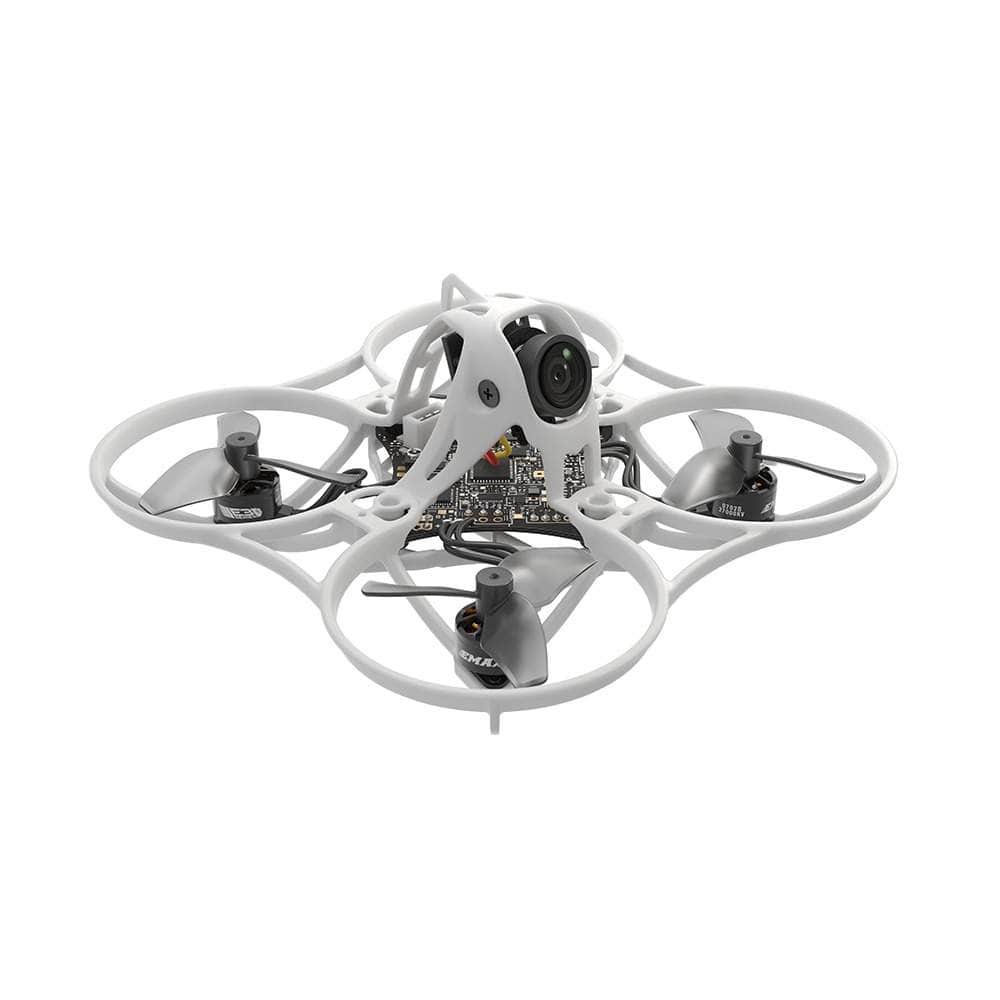

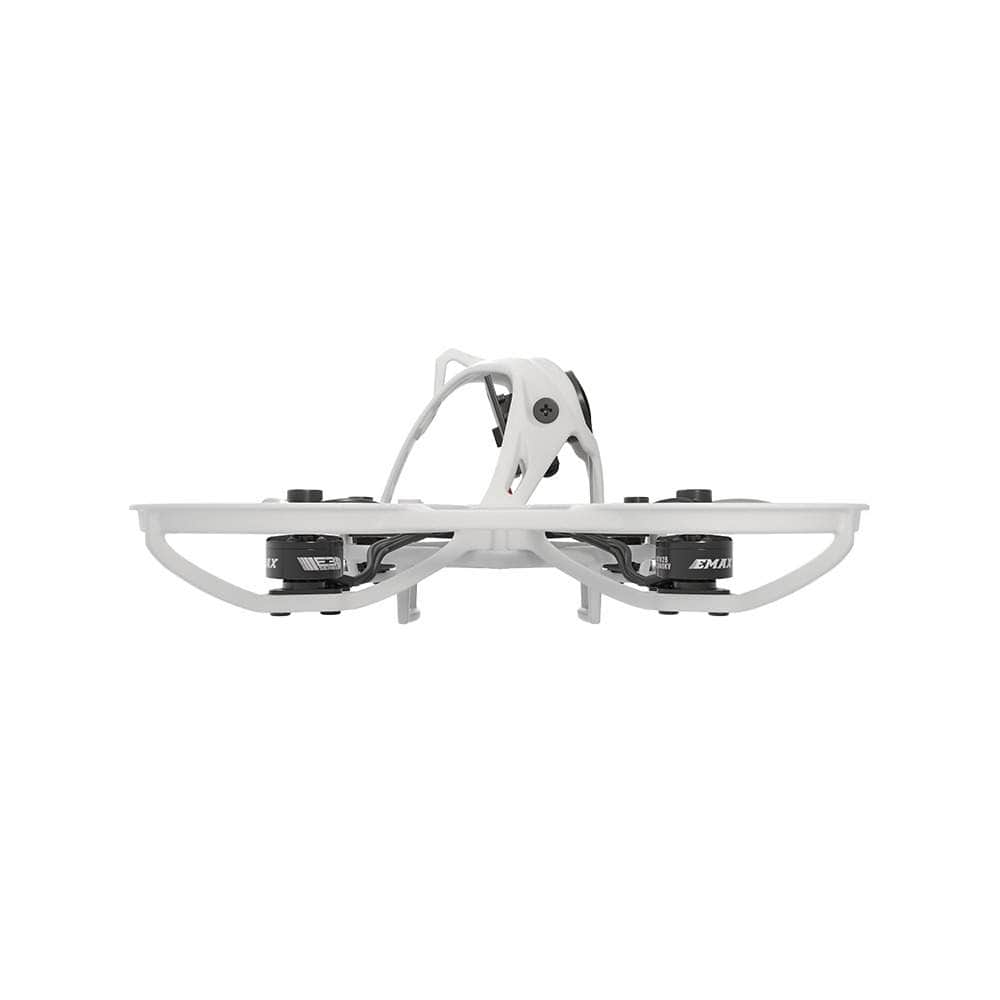

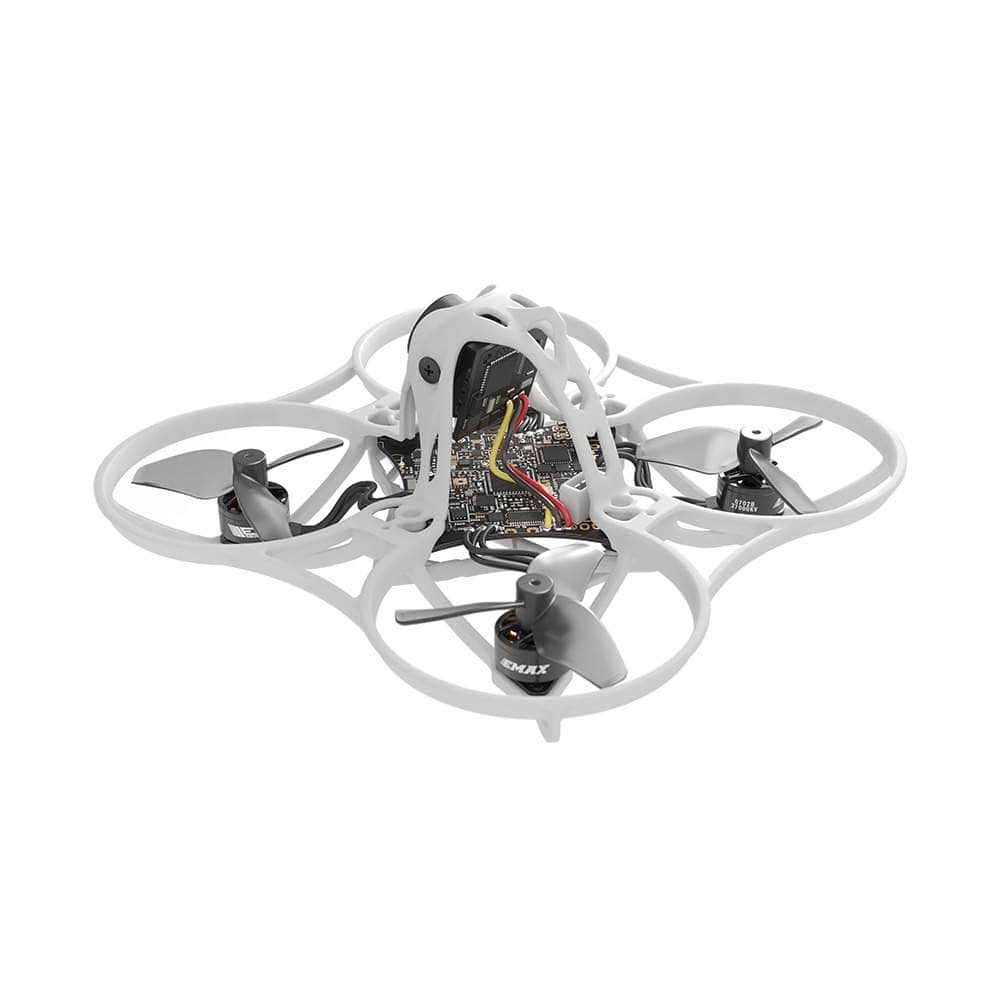

The Tinyhawk Aero is EMAX’s high-performance 65mm racing whoop, engineered for pilots who want serious speed, power, and responsiveness in an ultra-lightweight platform. Weighing approximately 16.3g without a battery, the Aero pairs 0702 35,000KV brushless motors with HQ 31mm tri-blade propellers. Its compact 65mm wheelbase and durable frame make it a strong choice for competitive indoor racing and high-energy micro-drone flying.

Check out all our pre-built quads, and all our EMAX gear!

Features

• Ultra-light 16.9g dry weight (analog)
• 65mm racing-whoop platform
• 0702 35000 brushless motors
• HQ 31mm tri-blade propellers
• Integrated ELRS 2.4GHz receiver
• Analog 5.8GHz video transmitter, adjustable from 25mW to 400mW
• EM2.0 battery connector, supporting up to 20A burst current
• Compatible with EM2.0 batteries from 270mAh to 320mAh

Specifications

• Color: White
• Wheelbase: 65mm
• Overall dimensions: 85 × 85 × 40mm
• Weight without battery: Approx. 16.9g
• Weight with battery: Approx. 26g
• Motors: 0702 35,000KV brushless motors with self-lubricating brass bushings
• Propellers: HQ 31mm tri-blade propellers
• Maximum propeller size: 1.22in
• Flight controller: G473
• ESC: Integrated 4-in-1, 6A, 8-channel
• Receiver: Integrated serial ELRS 2.4GHz
• Video transmitter: EMAX 32-bit open-source analog 5.8GHz VTX, 40 channels, adjustable 25/100/200/400mW output

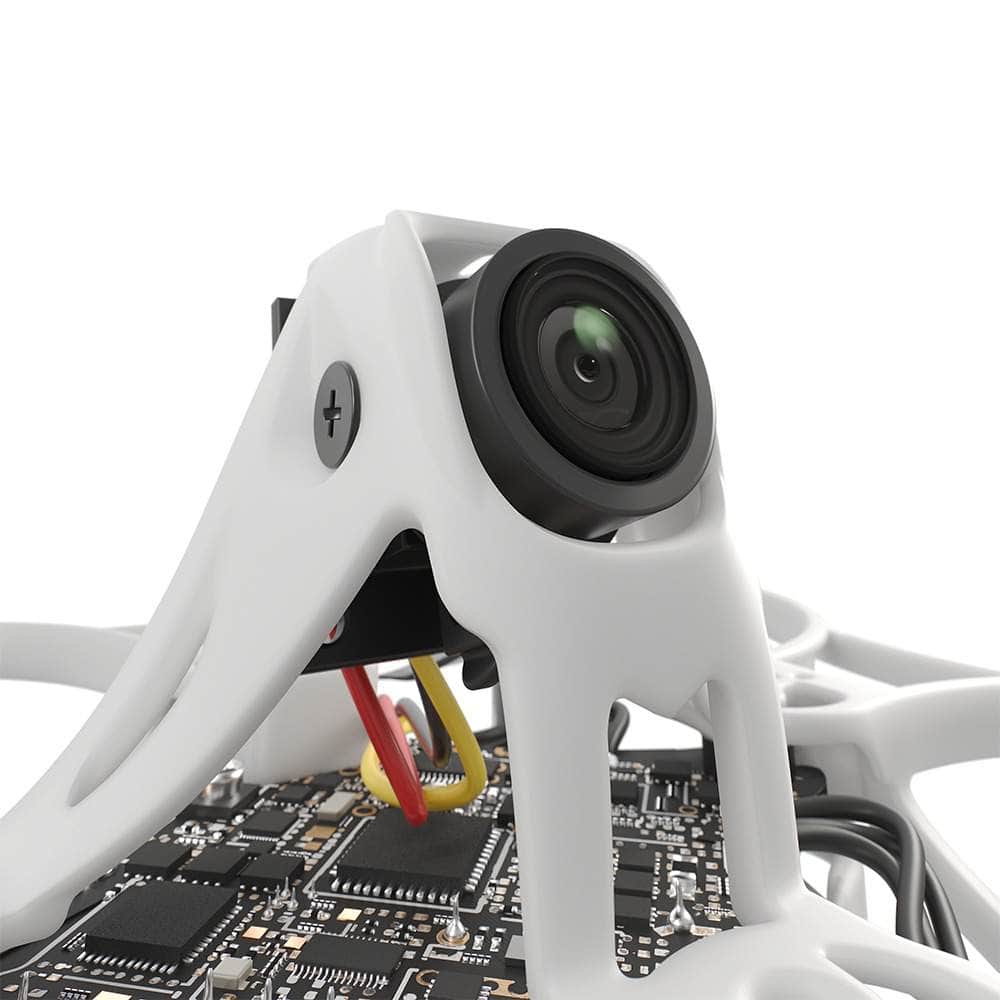

• Camera: E03, 1.6g
• Recommended Battery: 1S 300mAh LiPo
• Battery connector: EM2.0
• Frame weight: 3.7g total, including frame, battery tray, camera mount, and screws

Links

• User Manual

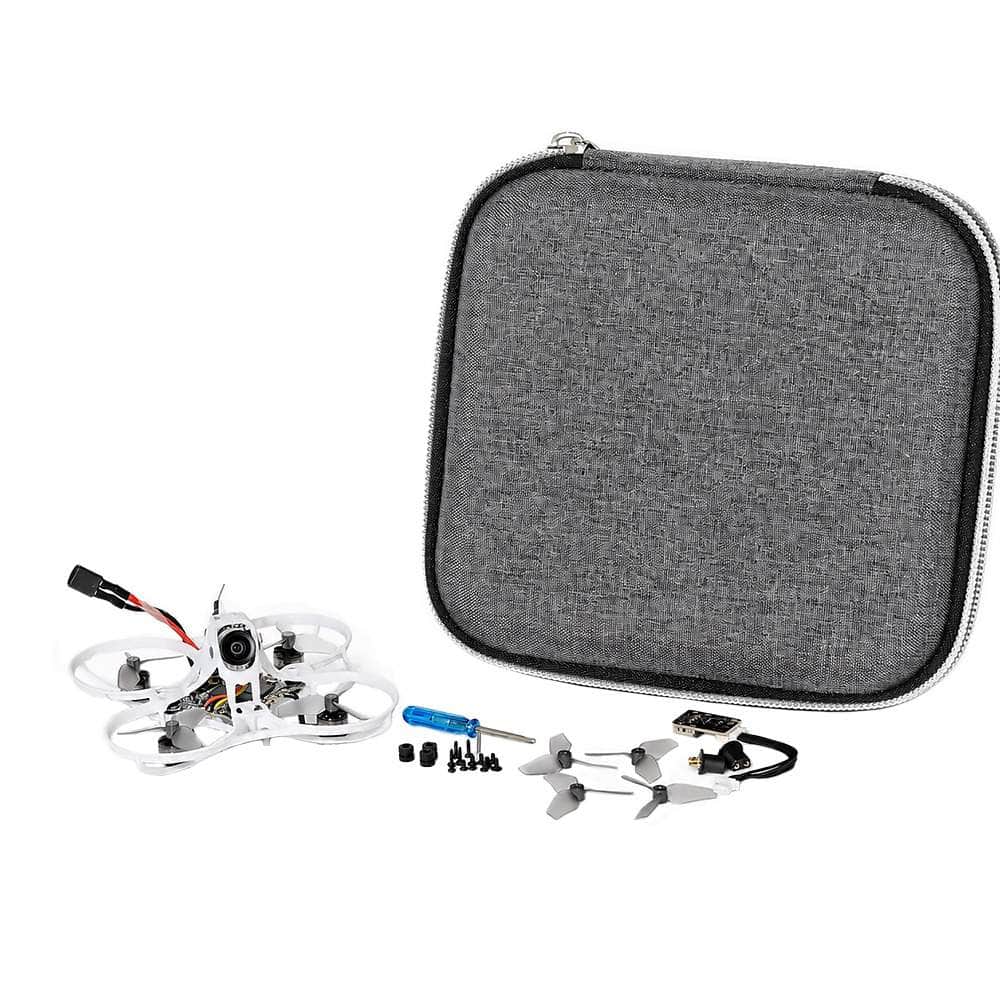

Includes

• 1x Tinyhawk Aero Analog Performance aircraft
• 1x Screw accessory pack
• 1x Configuration adapter board and EM2.0 accessory pack
• 2x CW Propeller accessory pack
• 2x CCW Propeller accessory pack
• 1x Printed cards, etc.
