Description

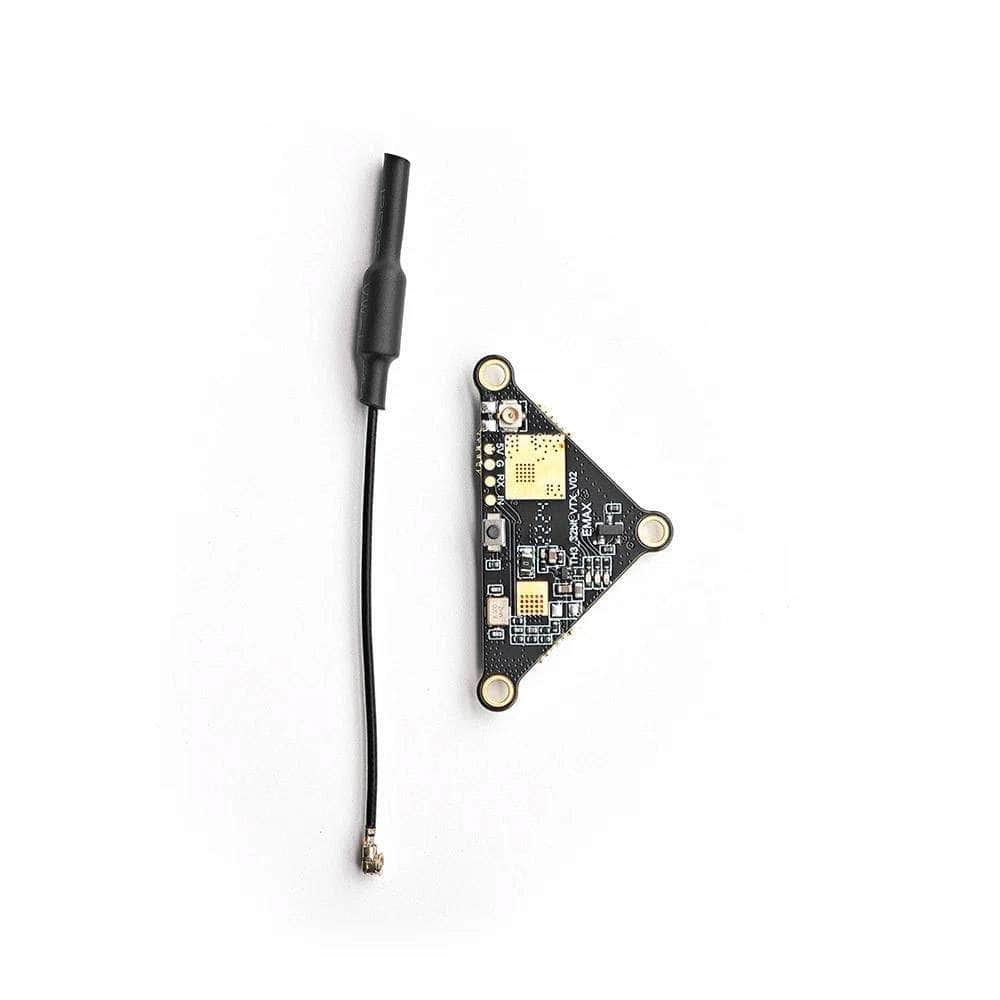

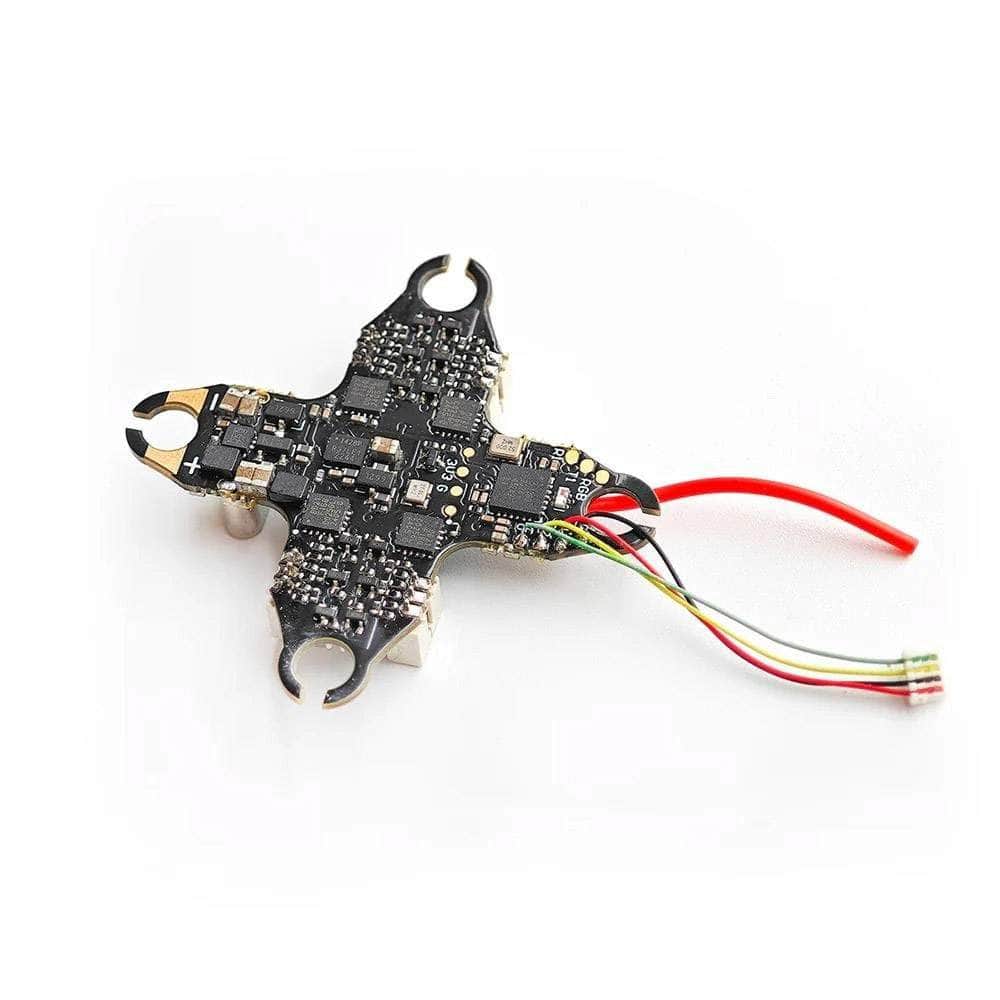

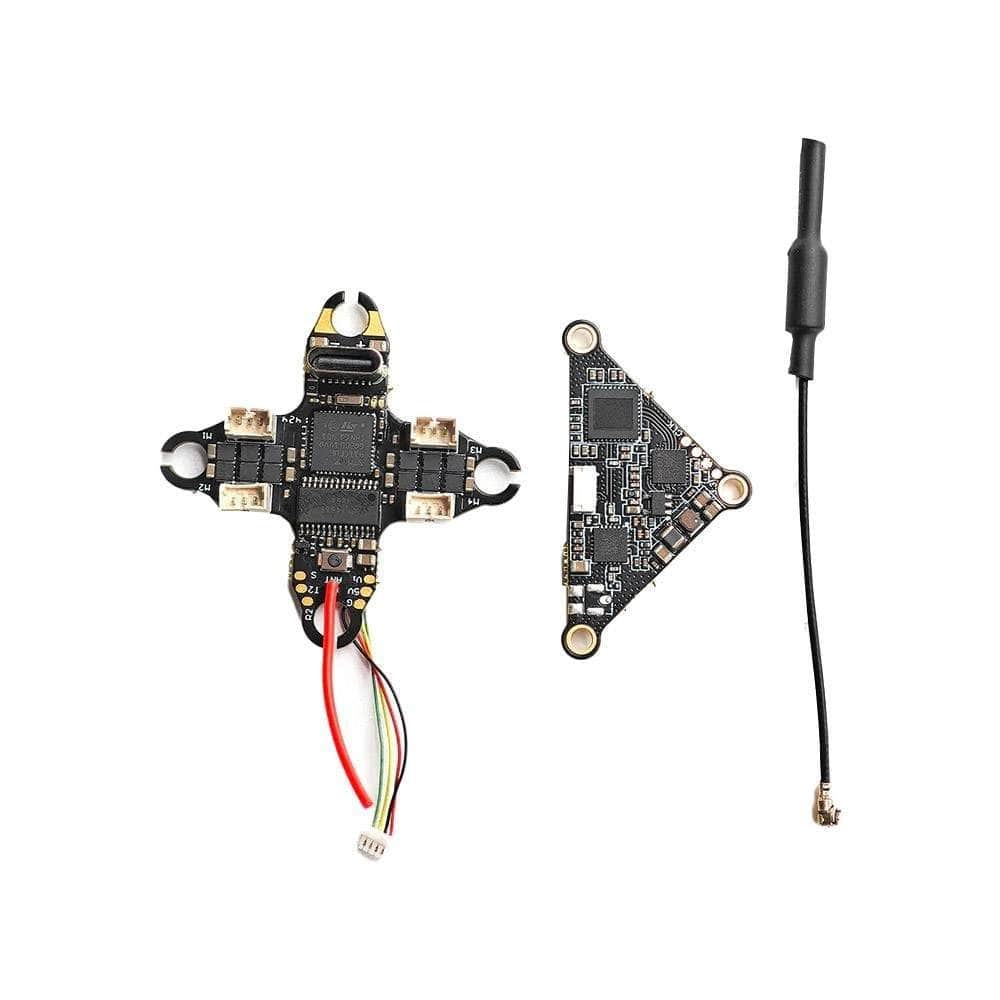

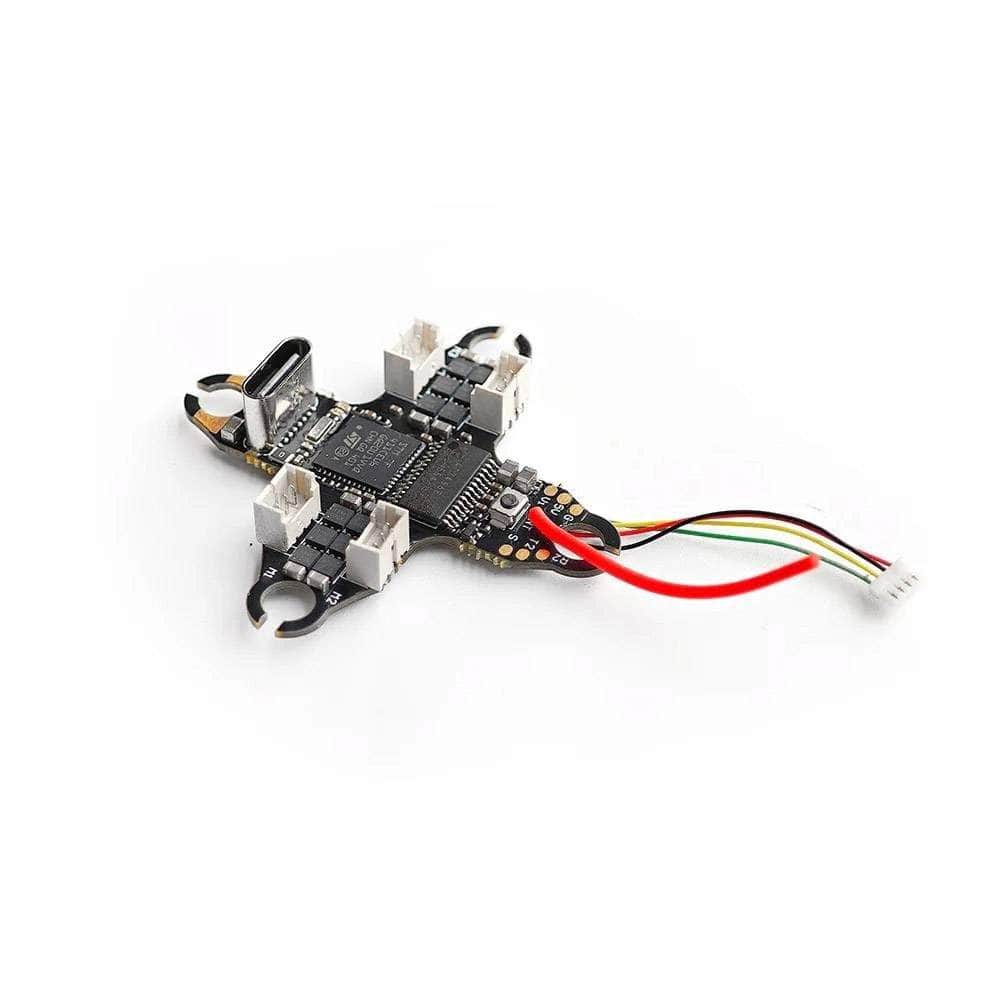

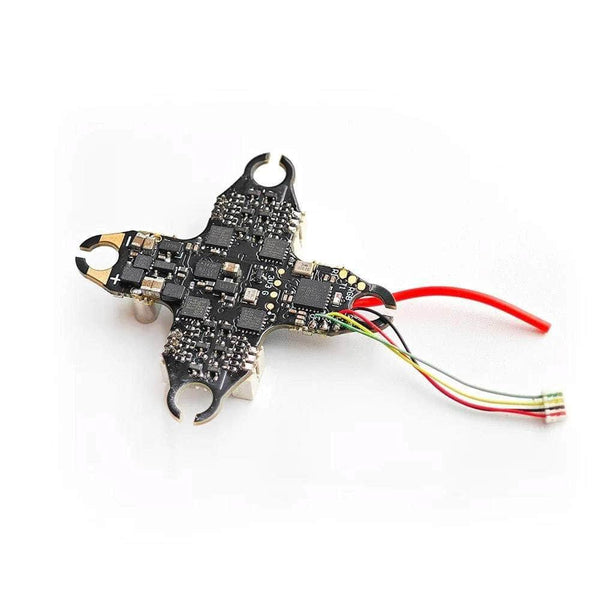

The EMAX Tinyhawk Nanoscout AIO combines an F4 FC, 6A 1S ESC, 400mW VTX, and ELRS RX for precise control, efficient power, clear video, and long-range connectivity. Designed for the Tinyhawk Nanoscout, but ready for any whoop.

Check out all our whoop flight controllers and the rest of our EMAX selection!

Features

• Compact and Lightweight
• Perfect for Micro Drones
• Built-In ELRS Receiver
• F4 Flight Controller
• All-in-One Design
• 400mW VTX
• 6A 1S ESC

Specifications

• VTX Power Options: Adjustable output at 25mW, 100mW, 200mW, or 400mW
• Onboard Receiver: Built-in ELRS (2.4G) receiver with SPI communication
• 4-in-1 ESC: Integrated 6A 8-bit ESC with 1S input voltage
• Main Control: STM32F411 (100MHz)
• Firmware: EMAX 32-bit
• Mounting Pattern: 25x25

Includes

• 1x EMAX Tinyhawk Nanoscout AIO - F4 FC + 6A 1S ESC + 400mW VTX + ELRS RX
