Description

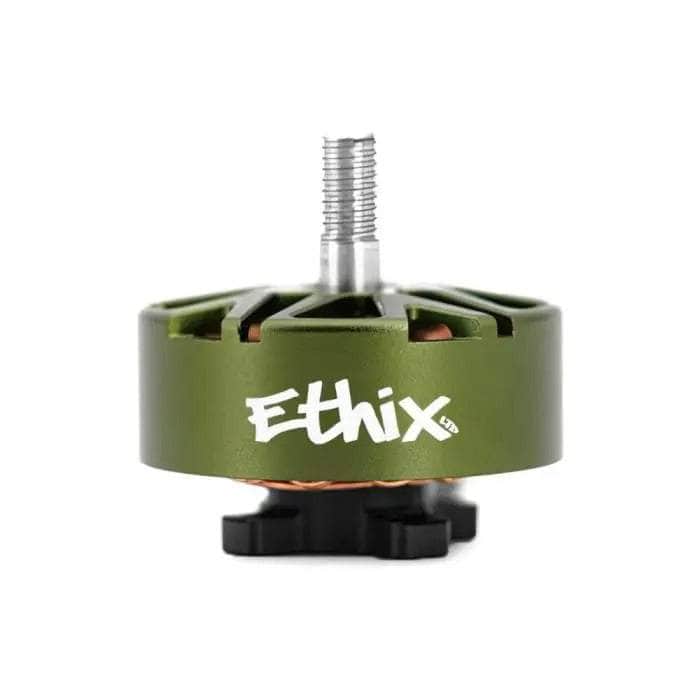

The Ethix Konasty Moon Boot 2507 V2 Motor features an increased stator size for more possibilities. This motor is perfect for everything from long-range to cinematic flights.

Check out our other motors, or the rest of out TBS Products!

V5 UPDATES

• Increased stator size 2507

Features

• Army Green Bell

• High Efficiency

• 2507 Stator

Specifications

• Motor Overall Dimensions: φ31.8mm x 19.3mm

• Stator Size (Diameter): 25mm x 7mm

• Base Mounting Thread: M3 Thread

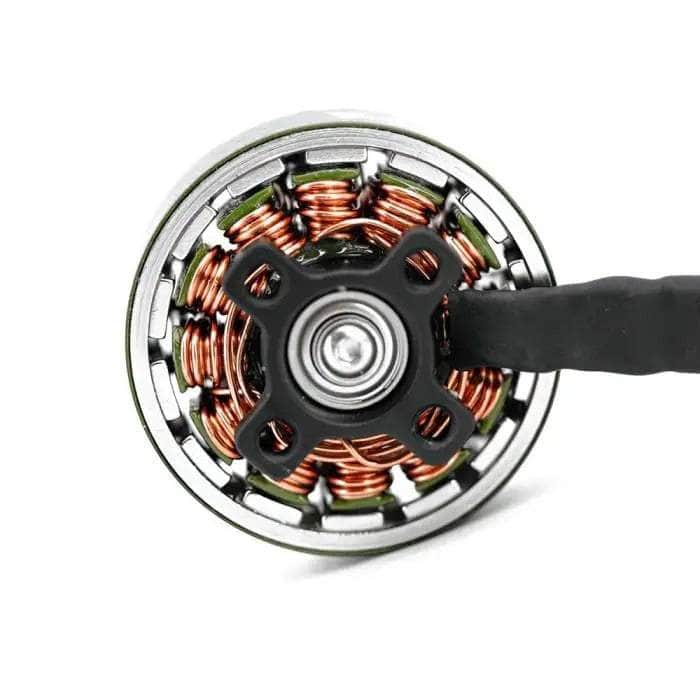

• Base Mounting Pattern: 16x16mm

• Internal Resistance (Rm): 64mΩ

• Weight (With Wires) (g): 41.7g

• Max Burst Current (A): 60A

• Shaft Length (mm): 11.5mm

• Shaft Diameter (mm): 4mm

• Magnets: N52SH Curved

• Windings: 10turn DLRK

• Wire Spec (AWG): 20#

• Max Current (A): 45A

• Shaft material: Steel

• Bearing: NSK684

• Cells (LiPo): 6S

• KV: 1750kv

Includes

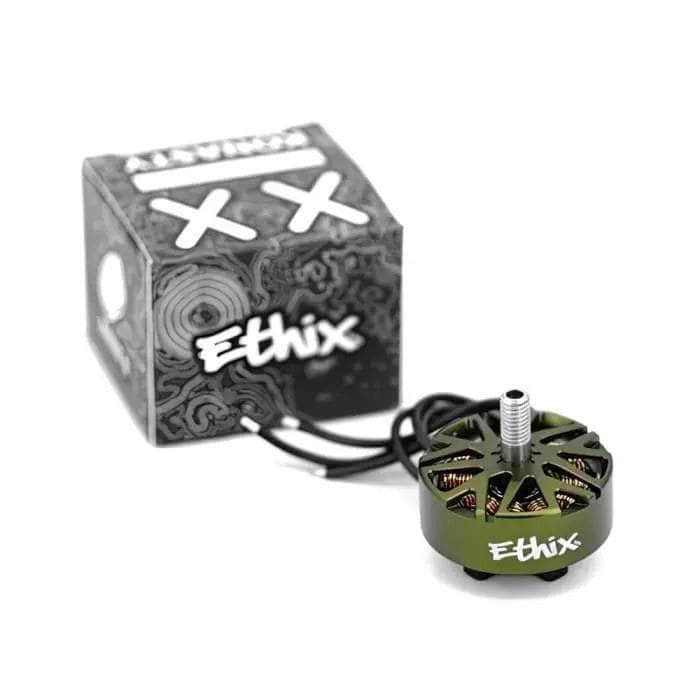

• 1x Ethix Konasty Moon Boot V2 2507 1750Kv Motor - Army Green
