Details
Description

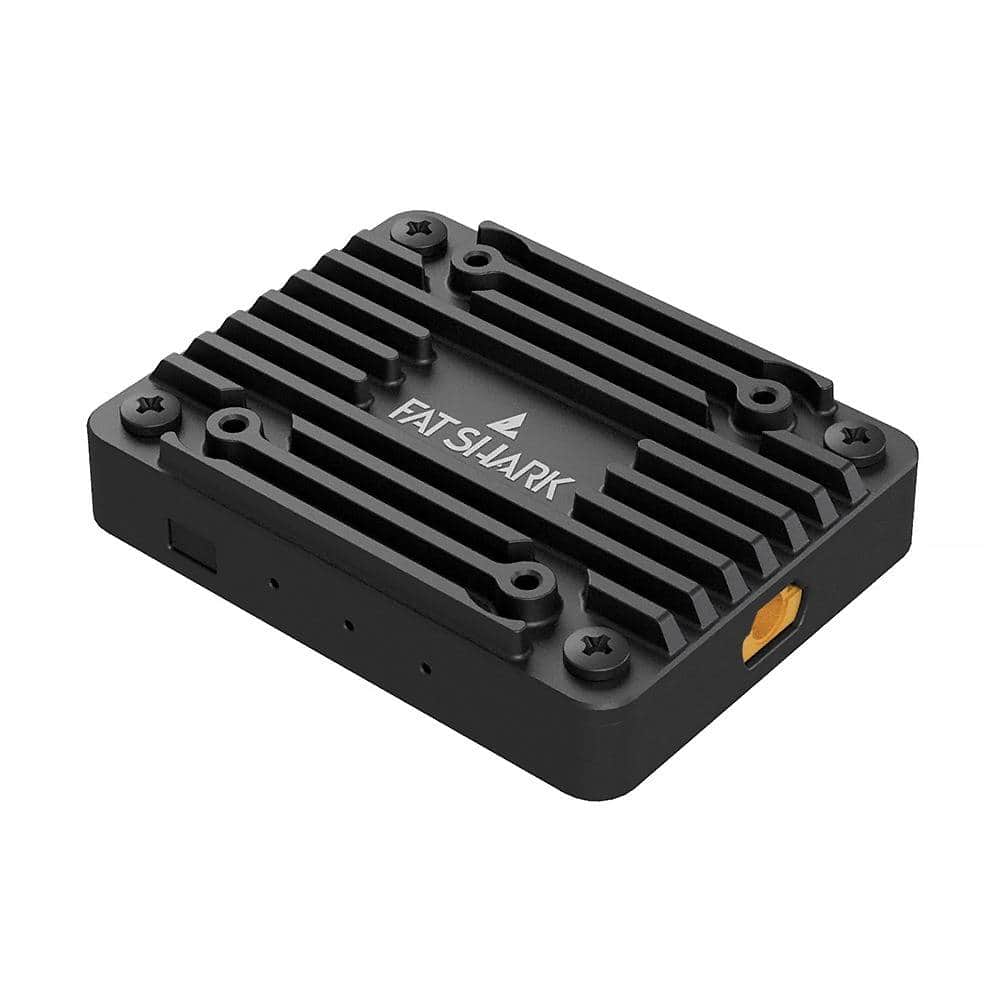

The Fat Shark Aura VTX is a compact, high-performance analog video transmitter built for both professional and hobby use. This VTX is NDAA-compliant and Blue UAS approved, making it a valuable component for government and industry partners. Designed for reliable operation, it delivers crisp analog video with adjustable output power up to 1 watt.
Check out all our VTXs and the FatShark selection!
Features
- NDAA-compliant and Blue UAS approved
- Power output up to 1W
Specifications
- Input Voltage: 7~36V
- Output Voltage: 5V
- Channels: RaceBand Channels 1-8
- Control Protocol: Tramp
- Power Consumption: 1.2A @ 9V
- Power Output: Pit/25mW/100mW/200mW/500mW/1W
- Antenna Connector: MMCX
- Mounting Pattern: M2 20x20mm
- Dimensions: 37x29x9mm
- Weight: 13g
Links
Includes
- 1x Fat Shark Aura VTX - NDAA
- 1x MMCX to SMA Pigtail - 100mm
- 1x VTX to Brave FC Cable - 100mm
- 1x VTX to Unpinned Cable - 100mm
- 1x VTX to Camera Cable - 130mm
More Info
- SKU: G24792US1Z
- Barcode: 723326380877
