Description

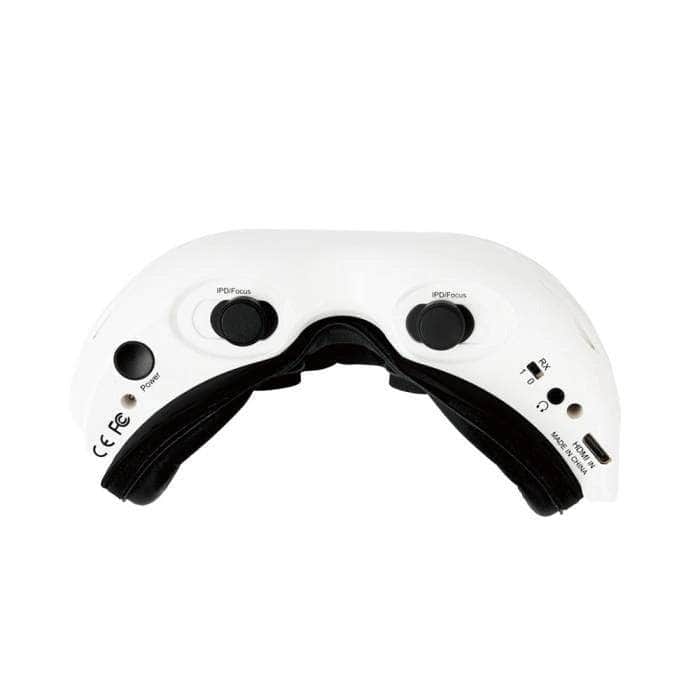

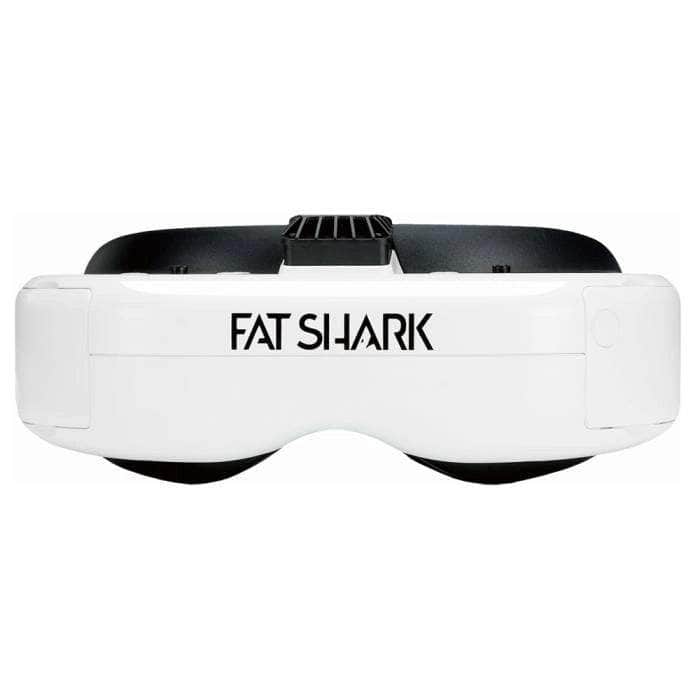

The Fat Shark Dominator HDO+ FPV Goggles. This FPV Goggle is designed with a plethora of customizable features, ensuring an unparalleled flight experience tailored to each individual pilot. The HDO+ boasts a larger field of view and a higher resolution OLED panel, providing stunning visual clarity. Additionally, it features a fully updated optical engine that allows for precise focus and interpupillary distance (IPD) adjustments.

Check out all our FPV Goggles, and our FatShark gear selection!

Features

• Brightness/Contrast Control

• Coarse Focus Adjustment

• Head Strap and Face Fit

• AV Connector Pin-Out
• Low-Battery Warning

• RX Power Switch

• DVR Operation

• Channel Select

• Compatibility

• Versatility

• Playback

Specifications

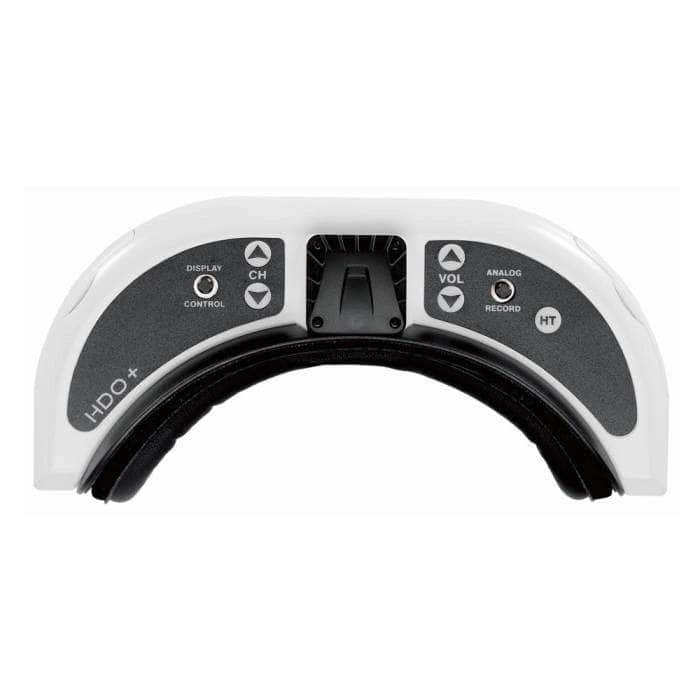

• User Controls

  • Display Control (Brightness and Contrast)

  • Power Button / Fan Control

  • Channel Selection

  • Volume Control

  • Mode Selection

  • DVR Control

• Interface

  • 3.5mm 3p earphone port

  • 3.5mm AV in/out port

  • Power input port

  • RF Module Bay

  • Power Button


MicroSD

• Audio: Stereo

ELECTRICAL

• Analog DVR: MicroSD support to 32 GB, Upgradeable via SD card

• Record Rate: 6 Mbps (MJPG compression, 30 fps, AVI)

• Power Supply: 7 – 25V input voltage (2S – 6S Supply)

• File playback: Native recording, no codec support

MECHANICAL

• Headset: Ergonomic molded headset with adjustable headband

• Dimensions: 169.2 x 80 x 45.5 mm

• Weight: 235.8 g

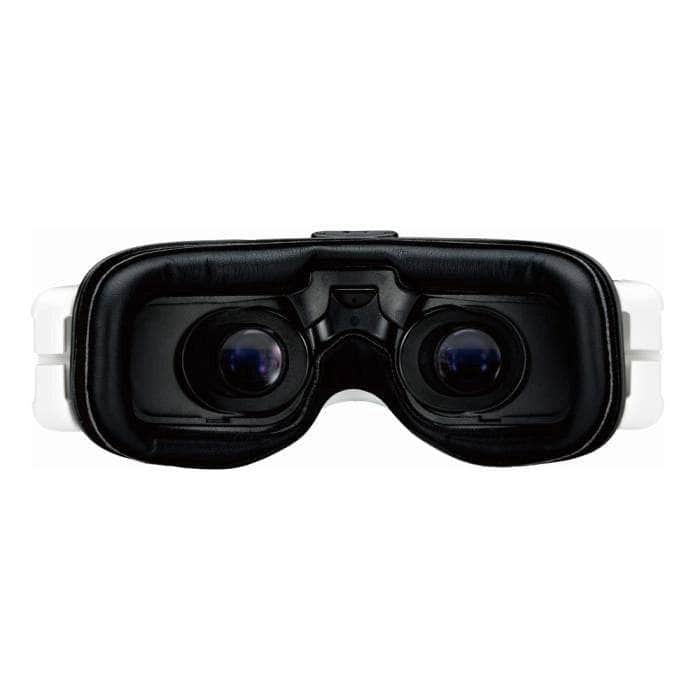

OPTICS

• IPD (interpupillary distance): 57 to 70 mm (adjustable)

• FOV (Field of View): 50 degrees diagonal

• Focus: +2 to -6 diopters (adjustable)

DISPLAY

• OLED Displays: Two seeya 0.49”

• DIGITAL VIDEO IN Mode: 16:9

• Auto-Selecting: NTSC/PAL

• Resolution: 1920 x 1080

• AV Mode: 16:9

• AV Mode: 4:3

Includes

• 1x Fat Shark Dominator HDO+ FPV Goggles

• 1x Lens Cleaning Cloth

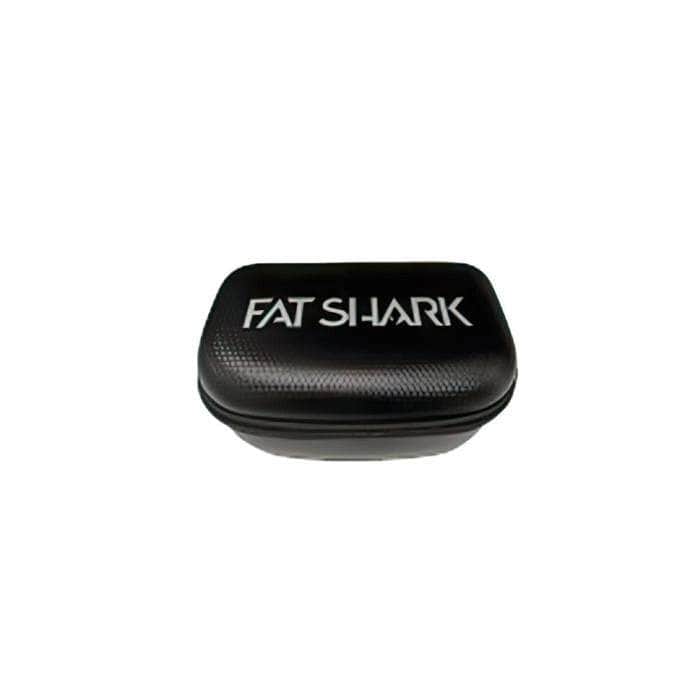

• 1x Carrying Case
