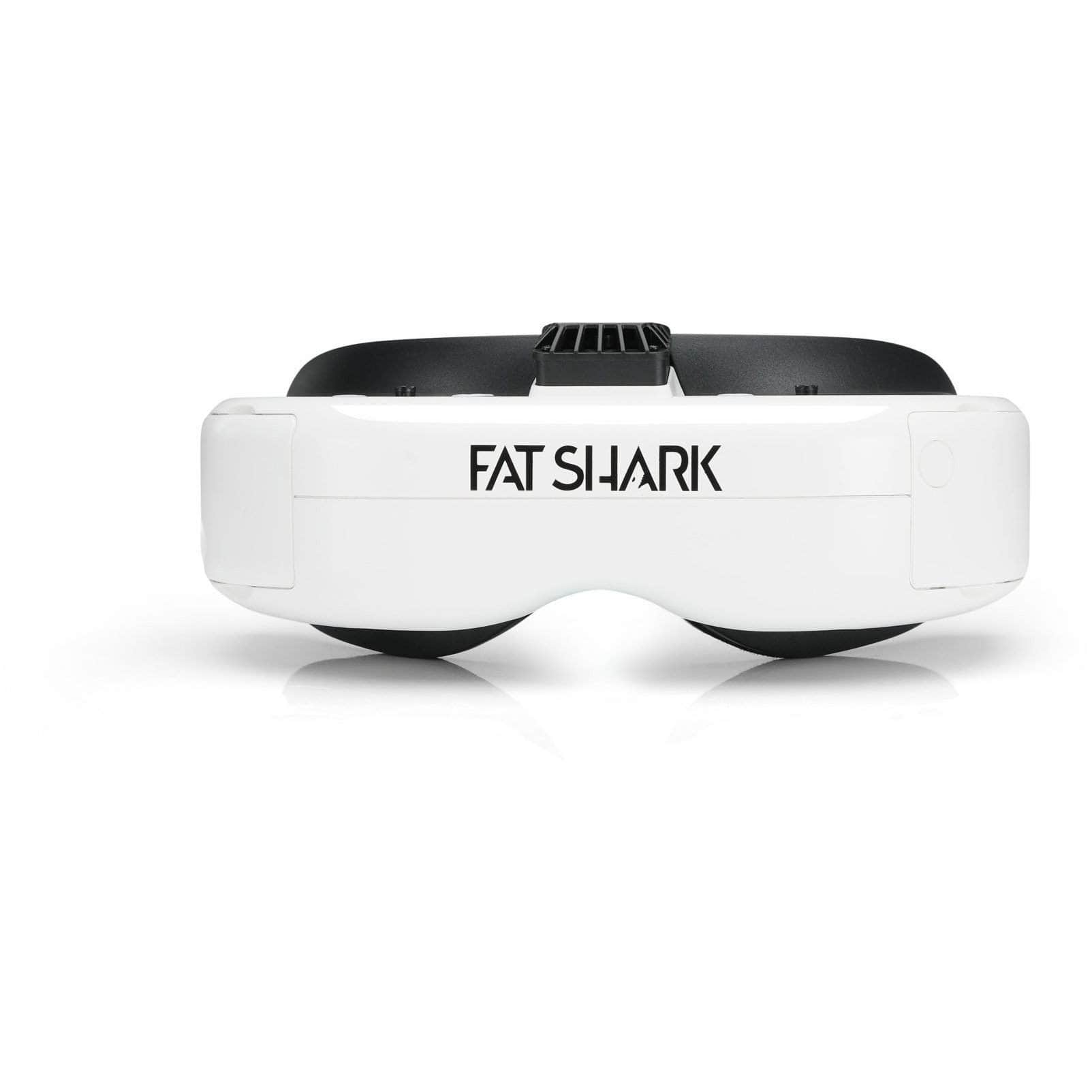

(PRE-ORDER) Fat Shark Dominator HDO2 OLED FPV Goggles

$499.00
Pre Order
In Stock
Coming Soon
Add to Wishlist

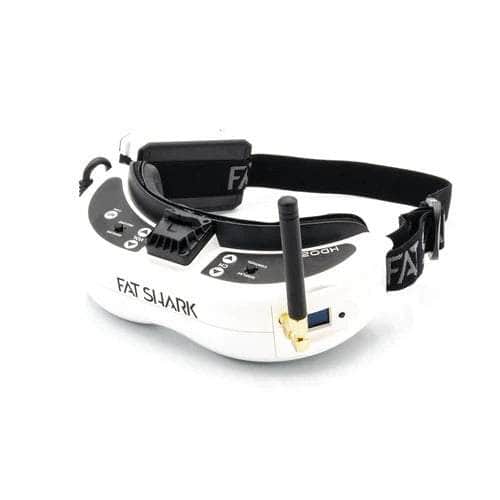

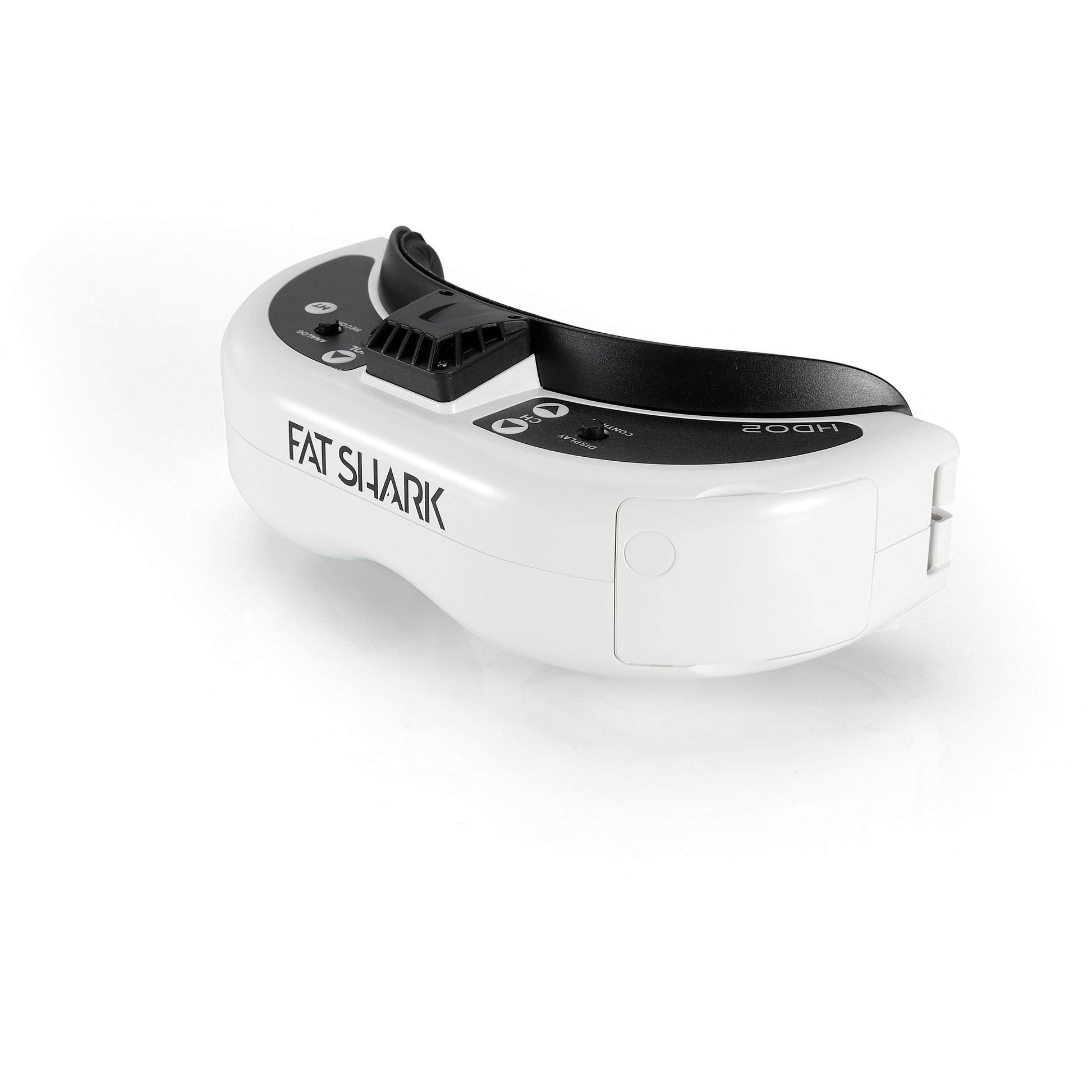

The Dominator HDO2 headset launches as the successor to the much-loved Dominator HDO. The HDO2 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.

Check out all our FPV Goggles, and our FatShark gear selection!

Specifications

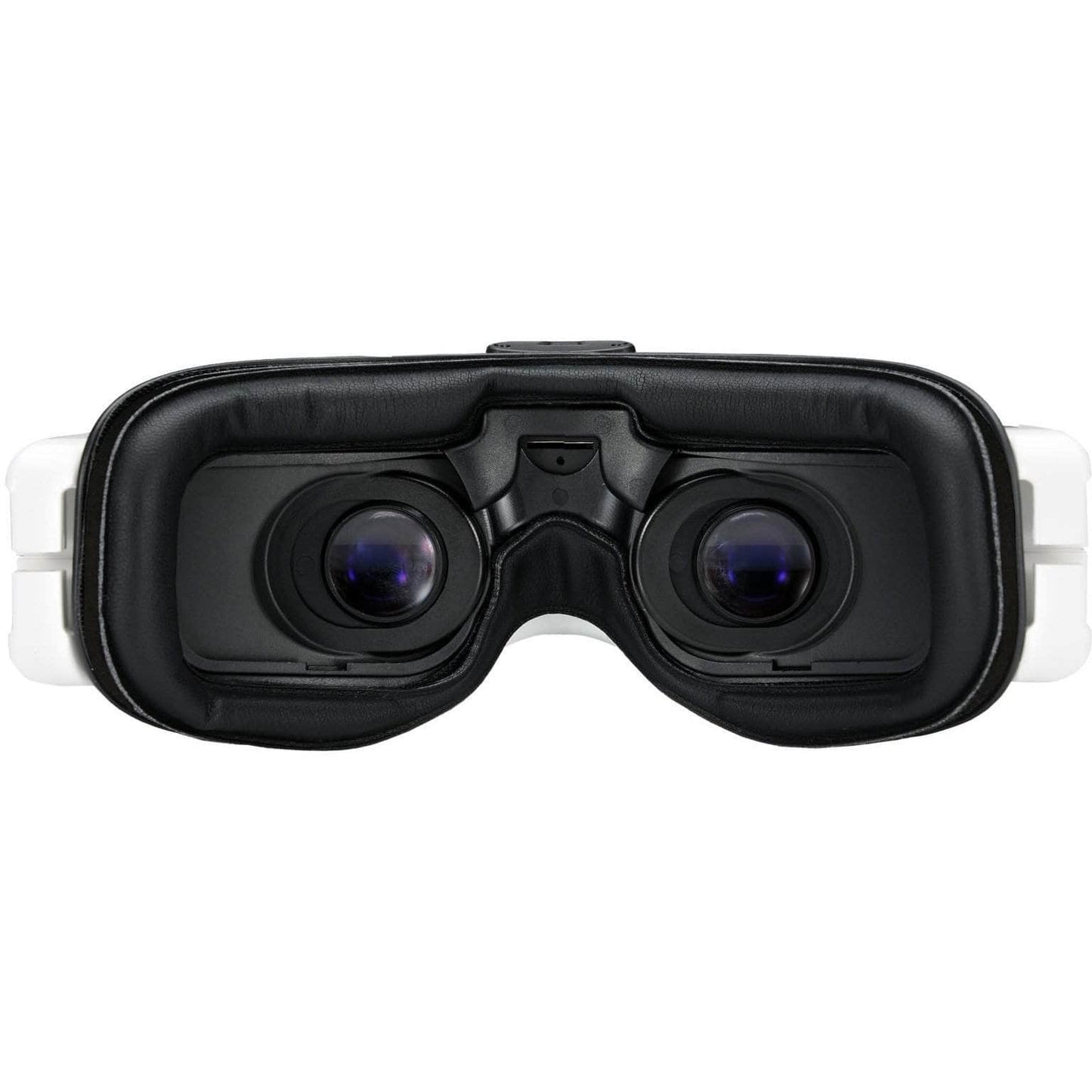

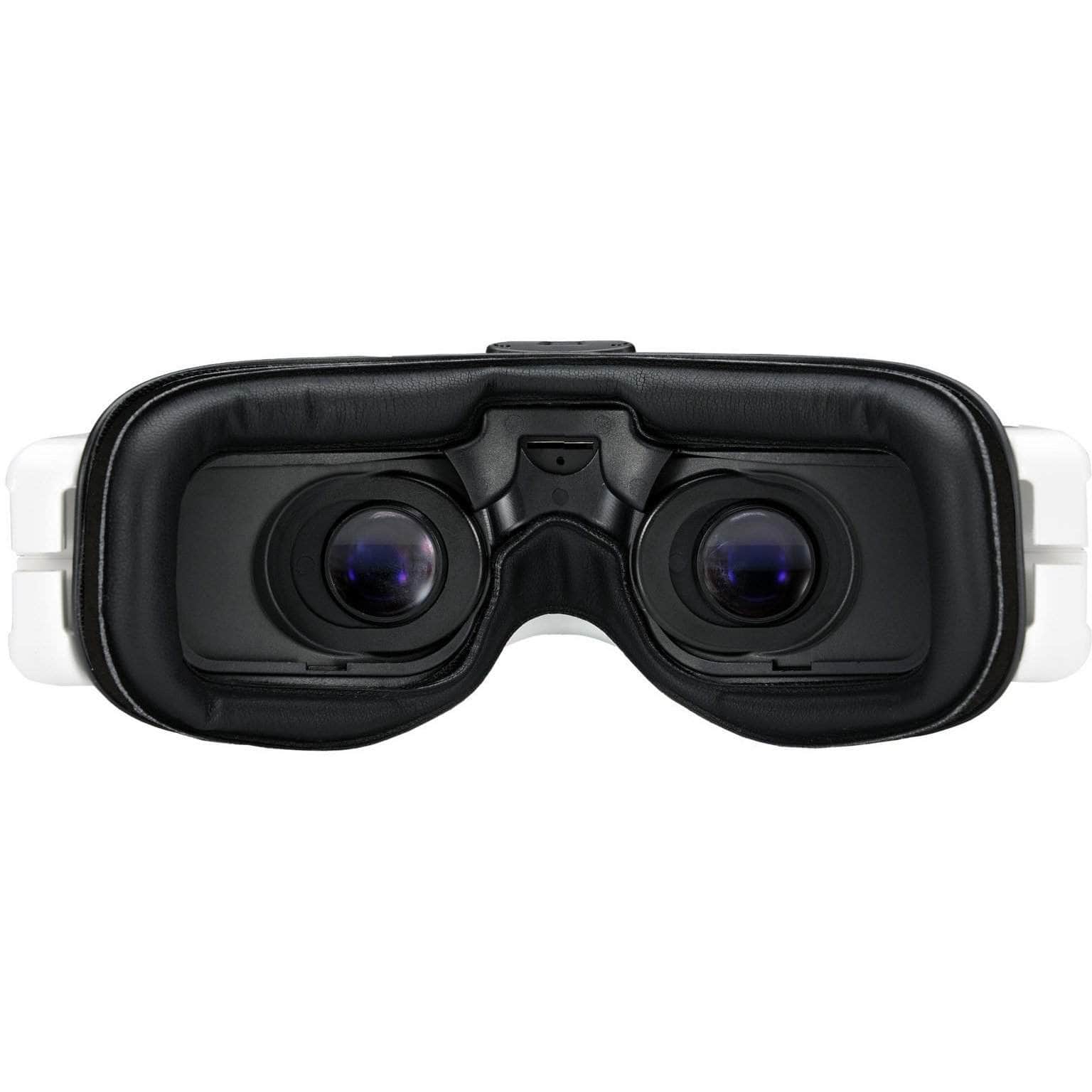

Optics:

  • FOV (field of view): 46 degrees diagonal
  • IPD (interpupillary distance): 54 to 74 mm (adjustable)
  • Focus: +2 to -6 diopters (adjustable)

Display:

  • Two Sony 0.5” OLED displays
  • Resolution 1280 x 960
  • NTCS/PAL auto selecting
  • AV Mode 4:3
  • AV Mode 16:9
  • HDMI Mode 16:9

Audio:

  • Stereo

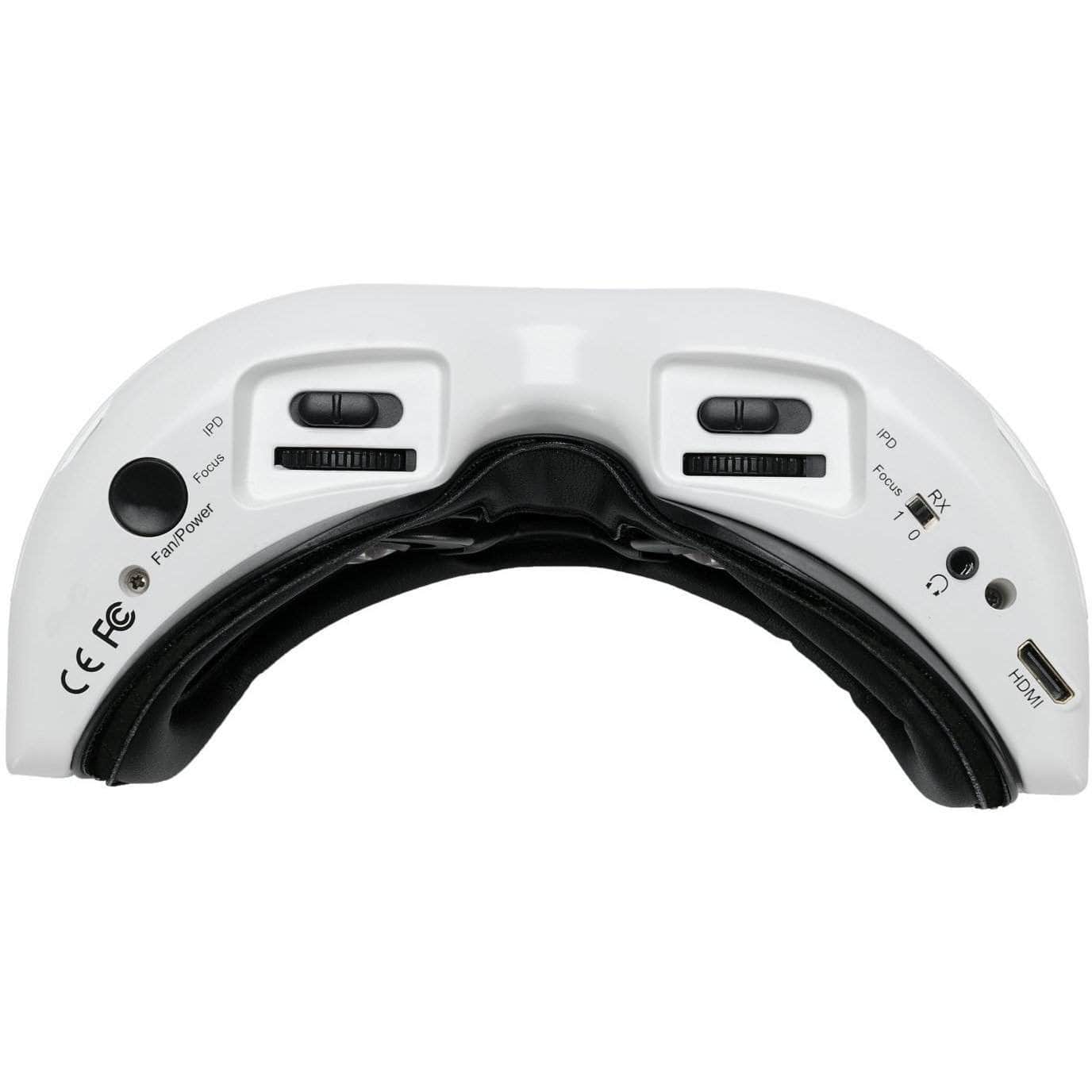

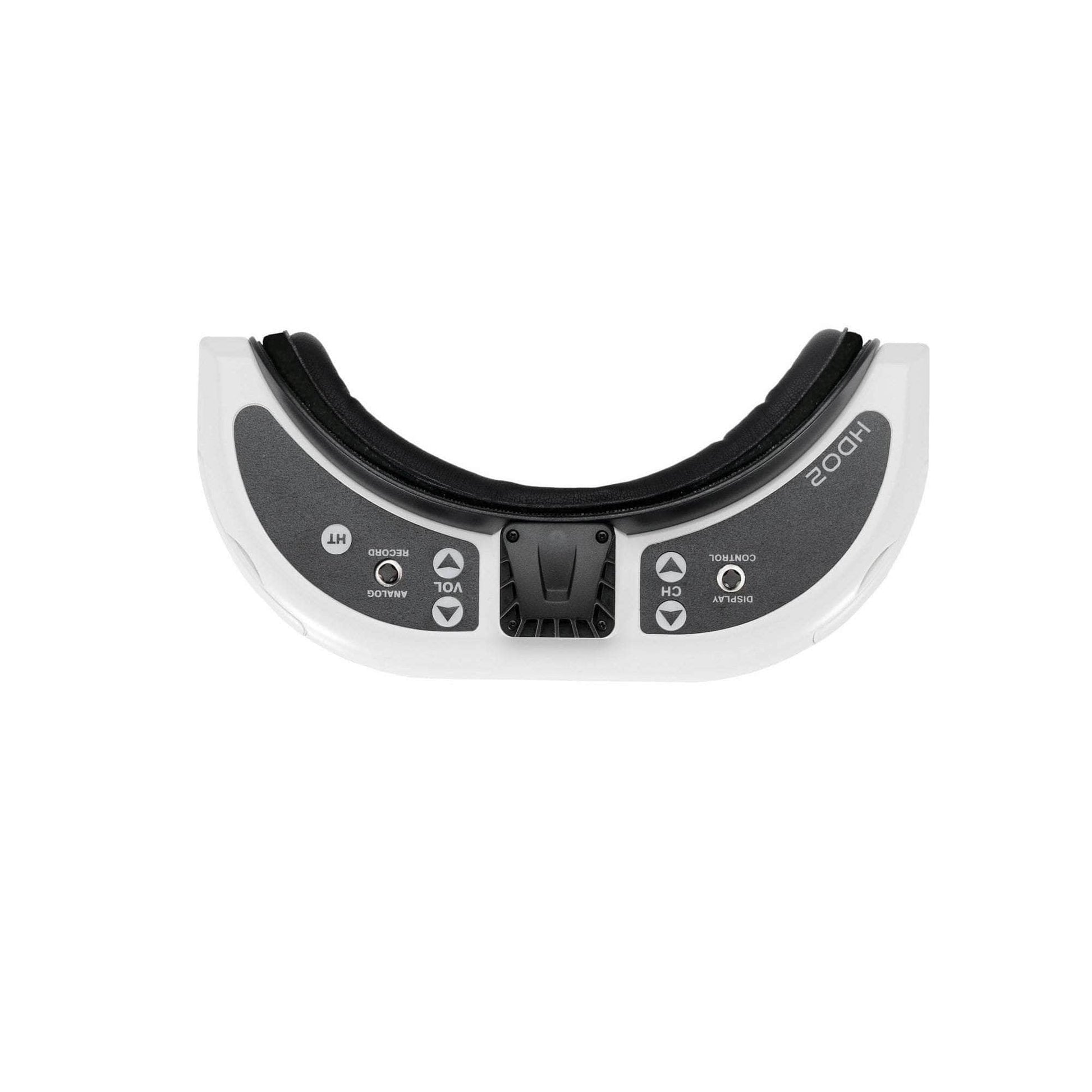

User Controls:

  • Channel Selection
  • Volume Control
  • Mode Selection
  • Display Control (Brightness and Contrast)
  • DVR Control
  • Power Button / Fan Control

Electrical:

  • Power Supply: 7 – 13V input voltage (2S – 3S Supply)
  • Power Consumption: TBD
  • Analog DVR: MicroSD support to 32 GB
  • Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
  • File playback (native recording, no codec support)
  • Upgradeable via SD card

Battery:

  • 7.4V, 1.8A 18650 Battery Case (optional))

Interface:

  • 3.5mm AV in/out port
  • Power input port
  • 3.5mm 3p earphone port
  • MicroSD

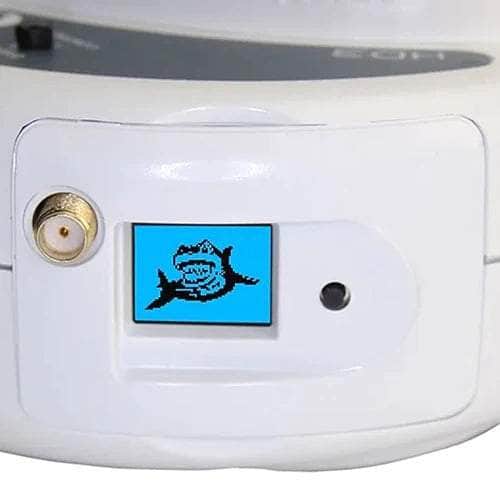

  • RF Module Bay
  • HT connector 3 pin internal connection
  • Power Button

Mechanical:

  • Ergonomic molded headset w/ adjustable headband
  • Dimensions: 169.2 x 80 x 45.5 mm
  • Weight: 206.8 g

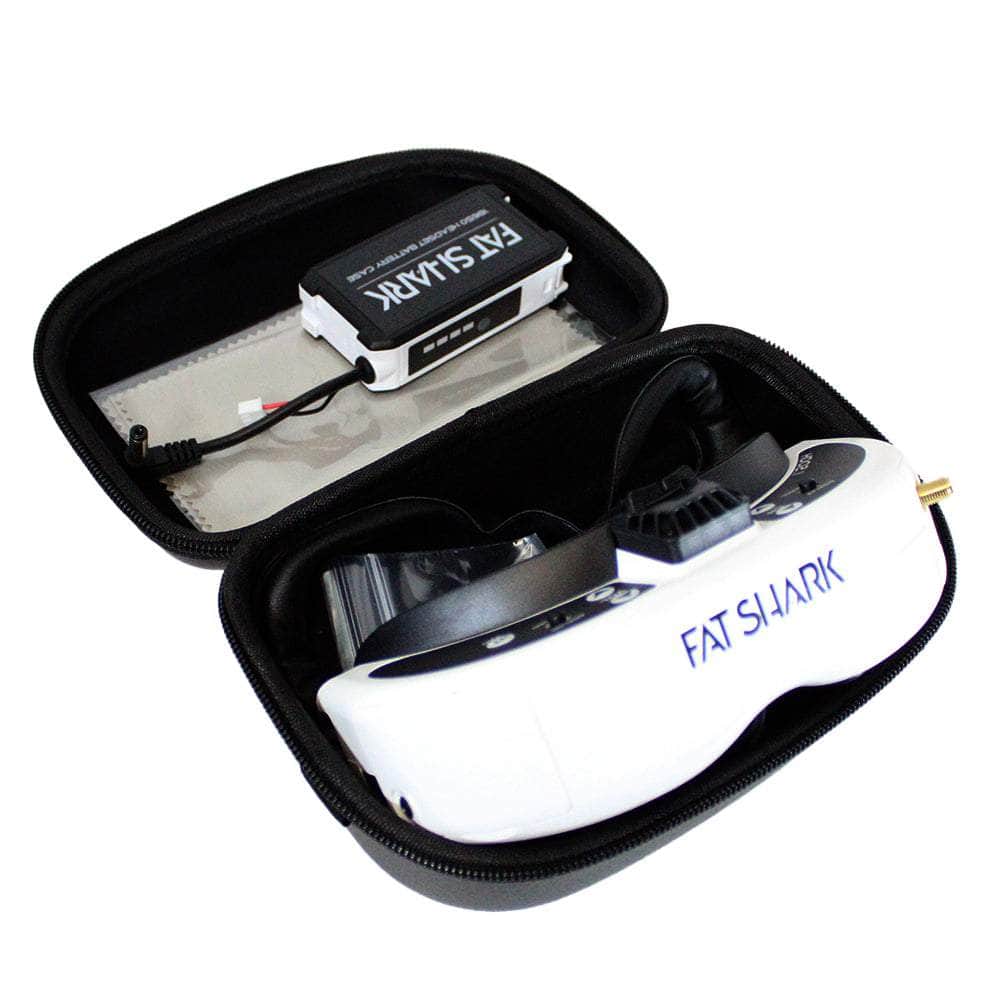

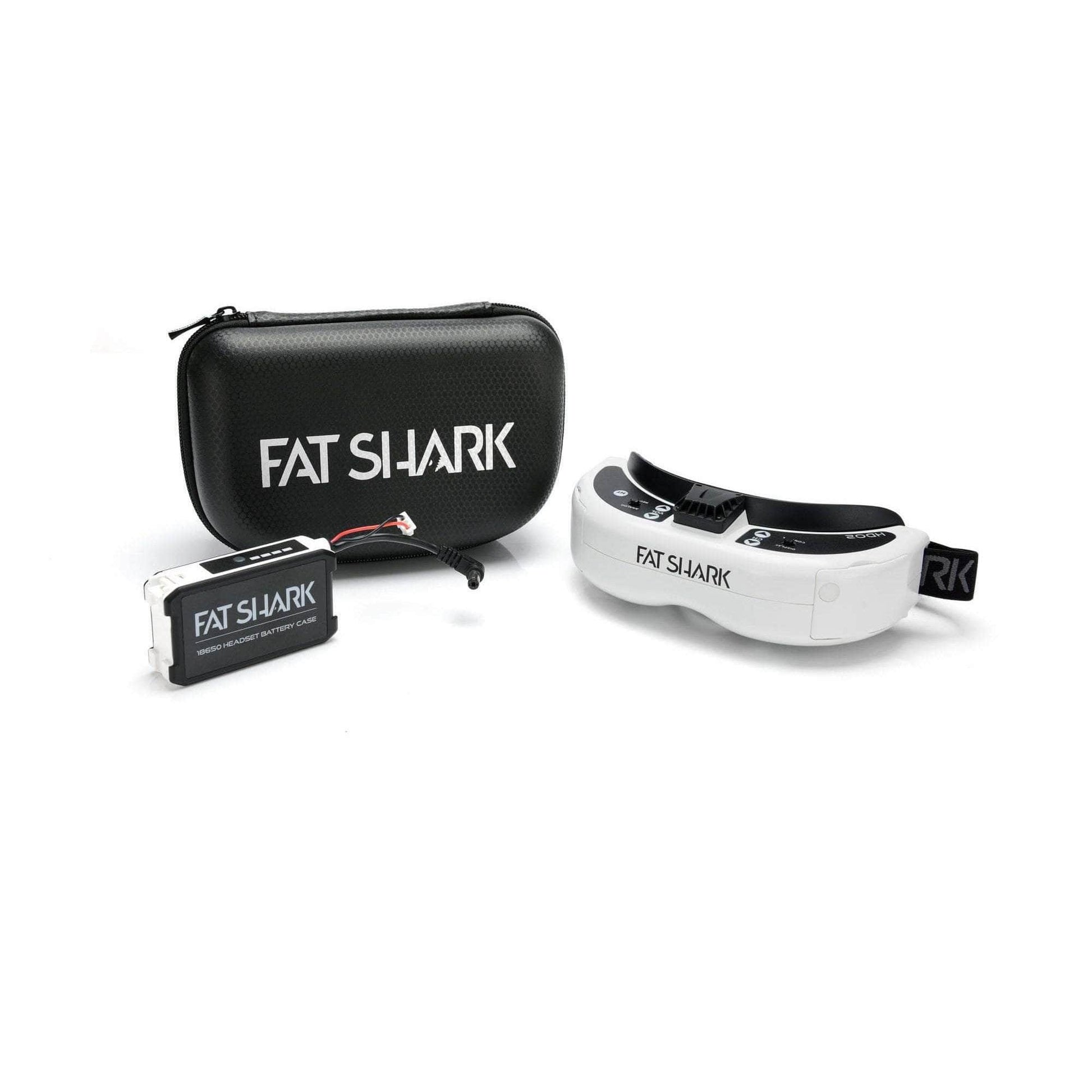

Includes

  • 1x Fat Shark HDO2 Goggles
  • 1x Fat Shark 18650 Battery Case
  • 1x Zippered Carry Case
