Description

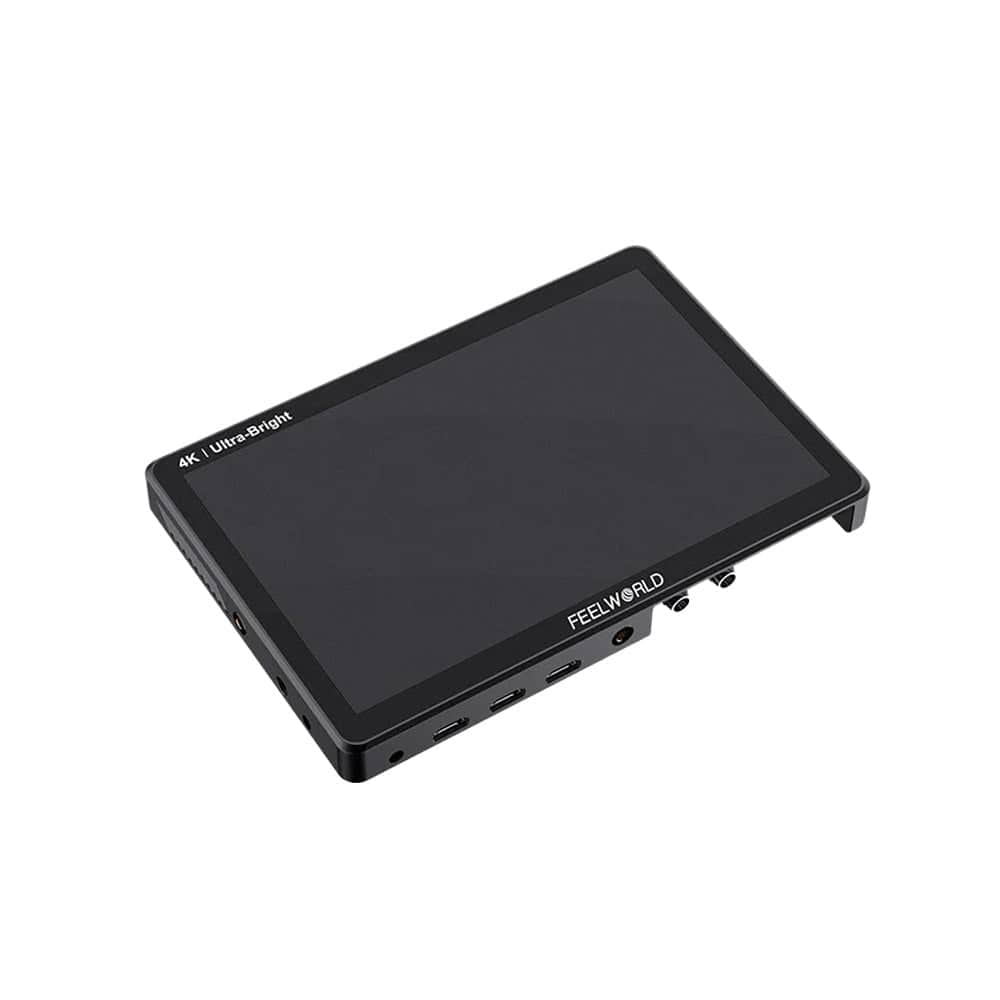

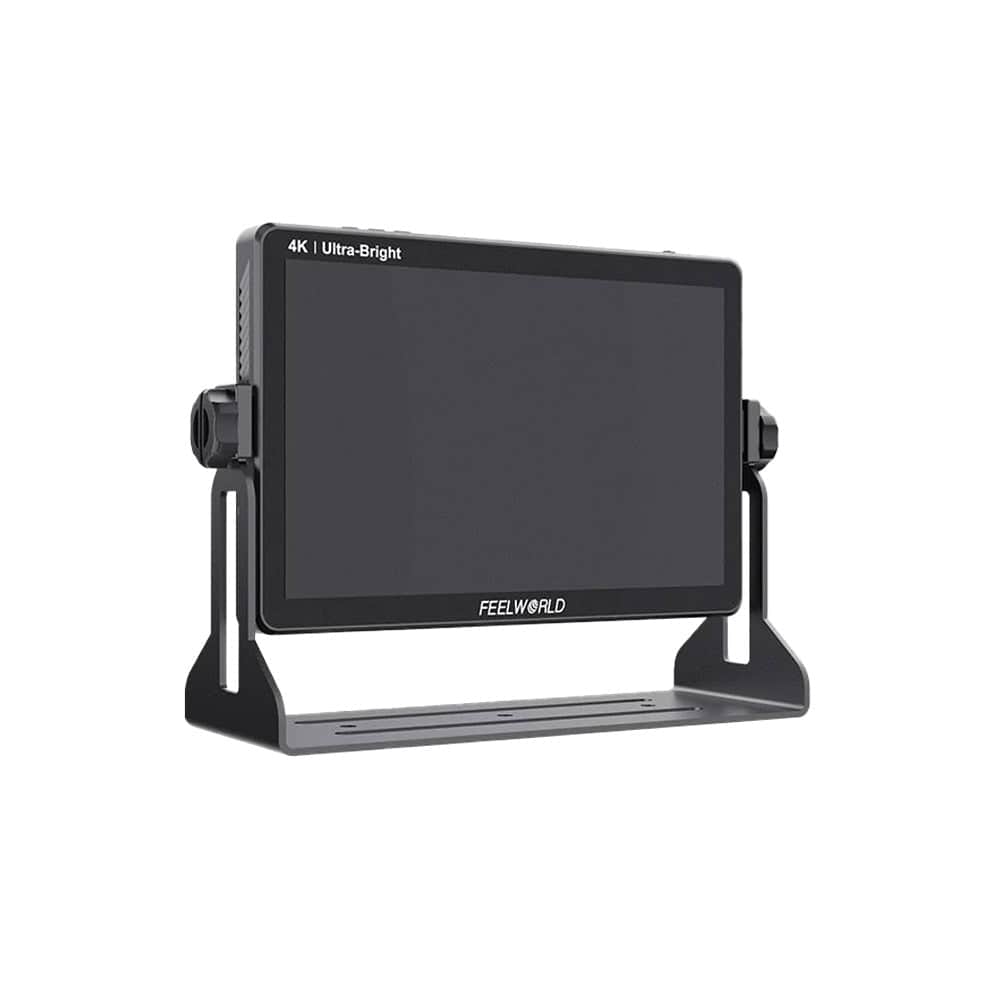

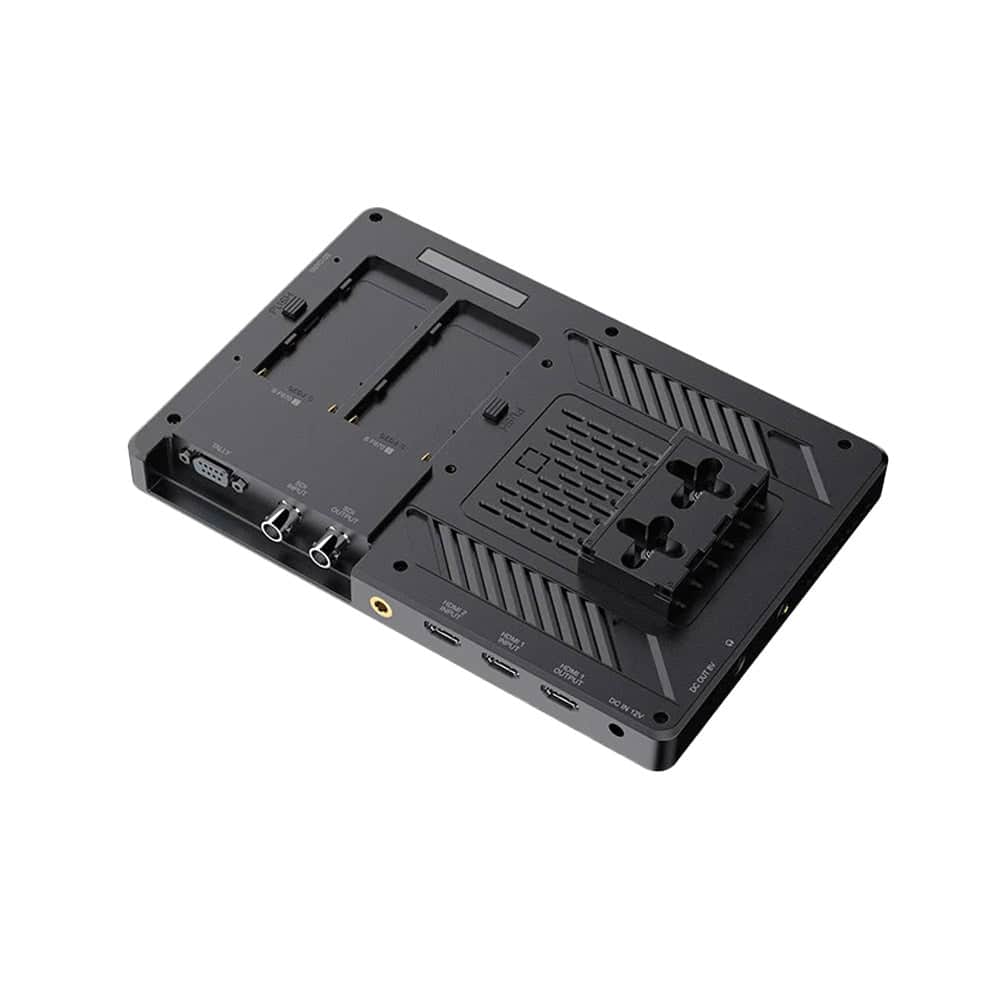

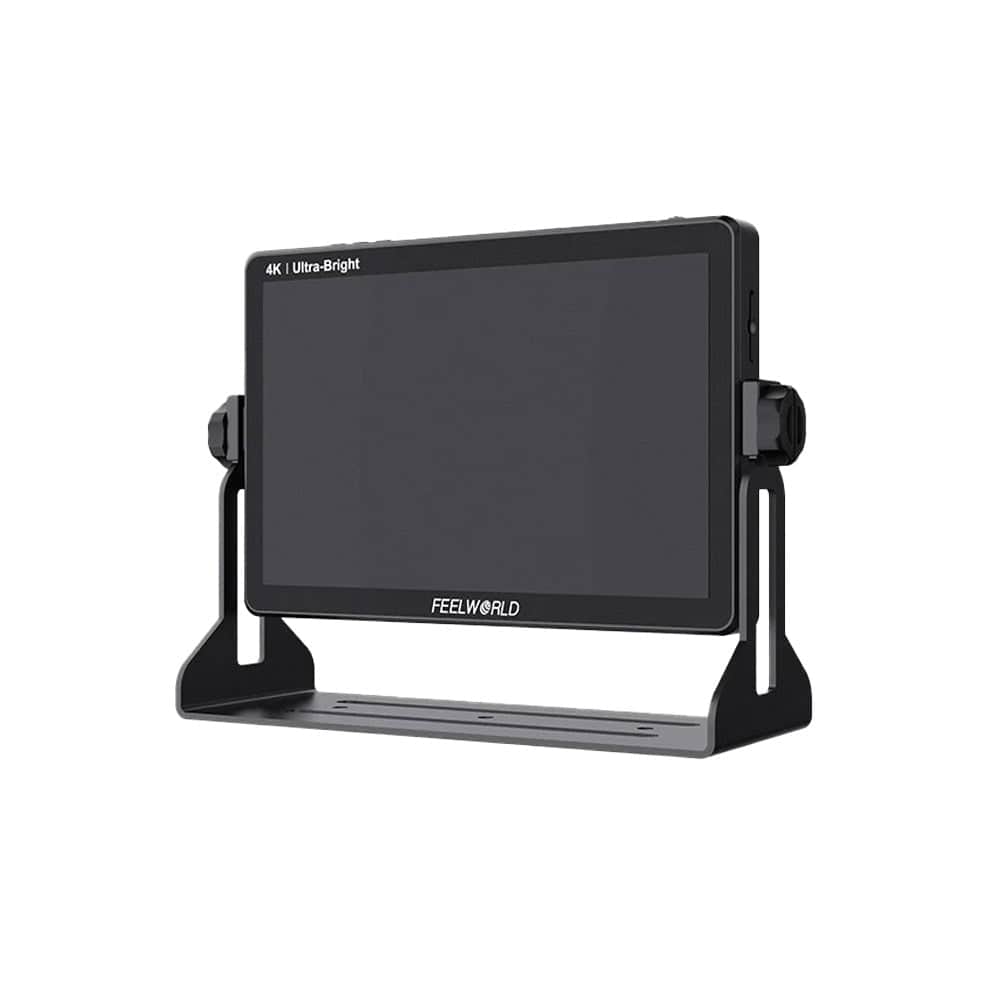

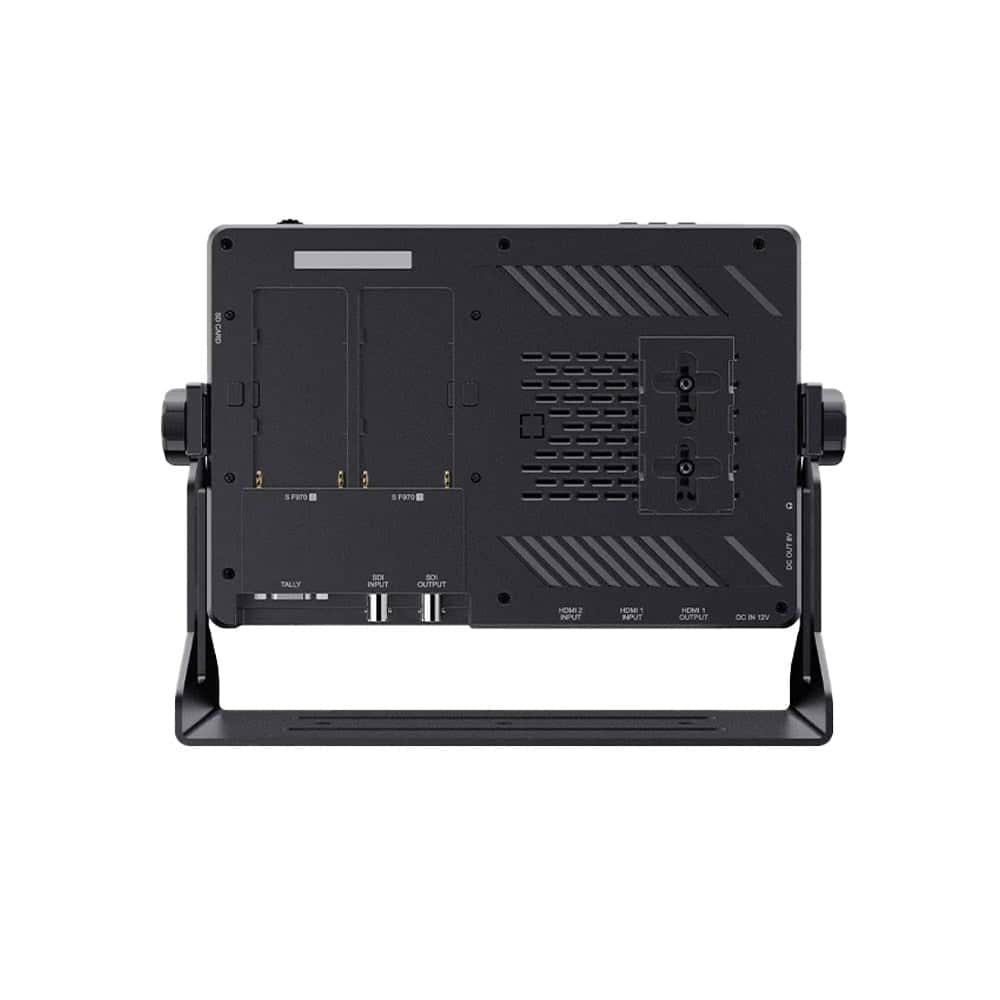

FeelWorld LUT11S 4K HD Monitor is a 10.1-inch with full touch screen, ultra-bright 2000nit professional camera monitor. Supports 3G-SDI and up to 4K@60Hz HDMI signal input and output. This display provides a series monitoring and framing tools with new menu layout, various numerical parameters are clear at a glance, making the operation easier. There is an F970 external power kit on the rear of LUT11S, which can handle wireless transmission, LED light, etc. It combines the monitor with wireless transmission to eliminate unnecessary cables, which is perfect for director monitoring and 1st AC to focus pulling in the film crew. The dual battery plates design can install two F970 batteries at the same time for extended power supply even outdoors. Ideal for crew field shooting, monitoring and post-production.
Check out the rest of our FPV monitors!
Features
- 10.1-inch 1920x1200 full HD IPS screen
- Touch screen menu operation, improve shooting efficiency
- Ultra-bright 2000nit, clearly visible in the sun
- Light sensor auto dimming
- Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
- Supports HDR monitoring, what you see is what you get
- Dual HDMI inputs support up to 4K@60Hz
- Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplifying your photography equipment

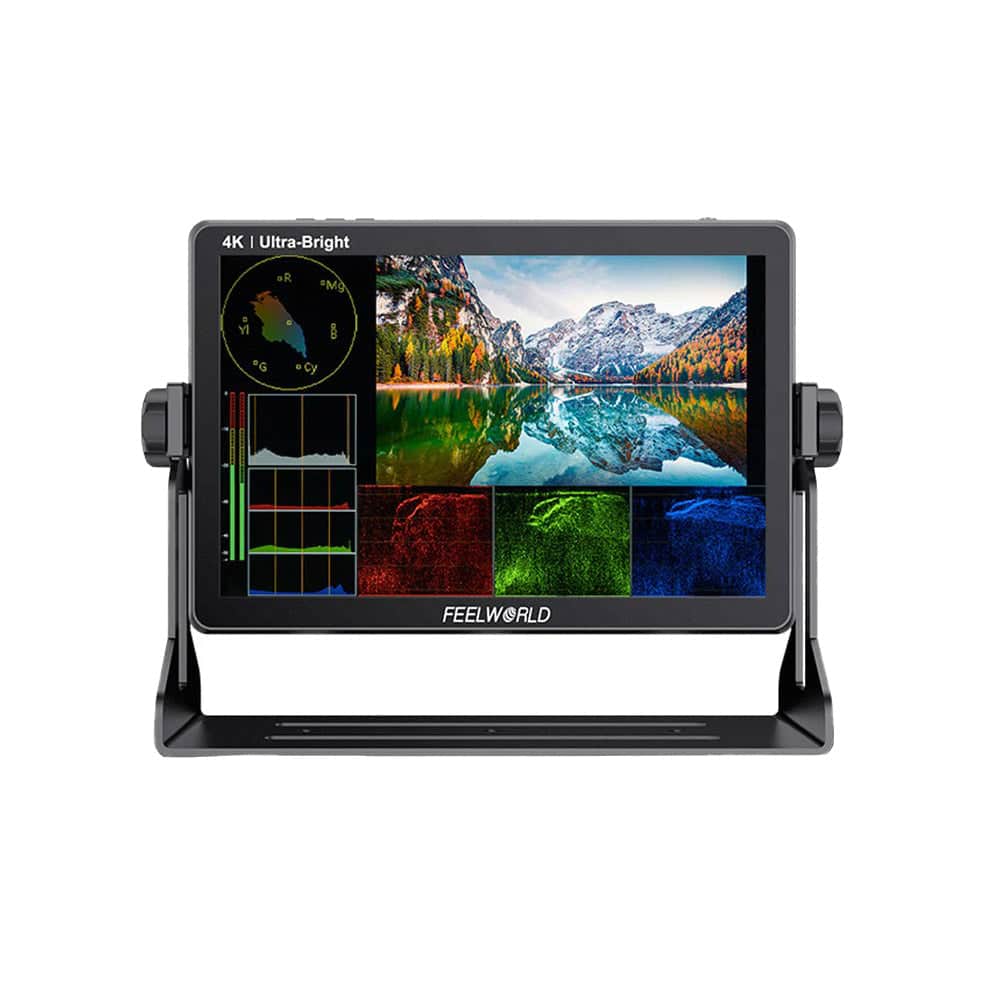

- With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
- Built-in Tally Indicators (Red, Green, Yellow)
- Stereo Earphone output
- DC 8V power out to power your DSLR camera or mirrorless camera
10.1" LCD Full HD Resolution
The LUT11S comes with a 10.1-inch 1920x1200 full HD panel, multiple color gamut such as DCIP3 display your stills and monitoring content at superior color fidelity, provide more space for post color correction. The wide 170º viewing angle makes it easy for multiple members of the crew to watch it at the same time.
Multiple Color Gamut, Meets the Different Needs of Photographers
The monitor supports REC709, DCIP3, BT2020 multiple color gamut, presenting rich color, meet the different needs of photographers for color gamut.
2000nit Daylight Viewable - Ideal for Outdoor Shooting
With the support of 2000 nits of ultra-high brightness, LUT11S is not afraid of strong light. And the outdoor shooting screen display is clearly visible, you can shoot without a sunshade.
Light Sensor For Auto Dimming
The LUT11S has an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.
Custom Shortcut Keys

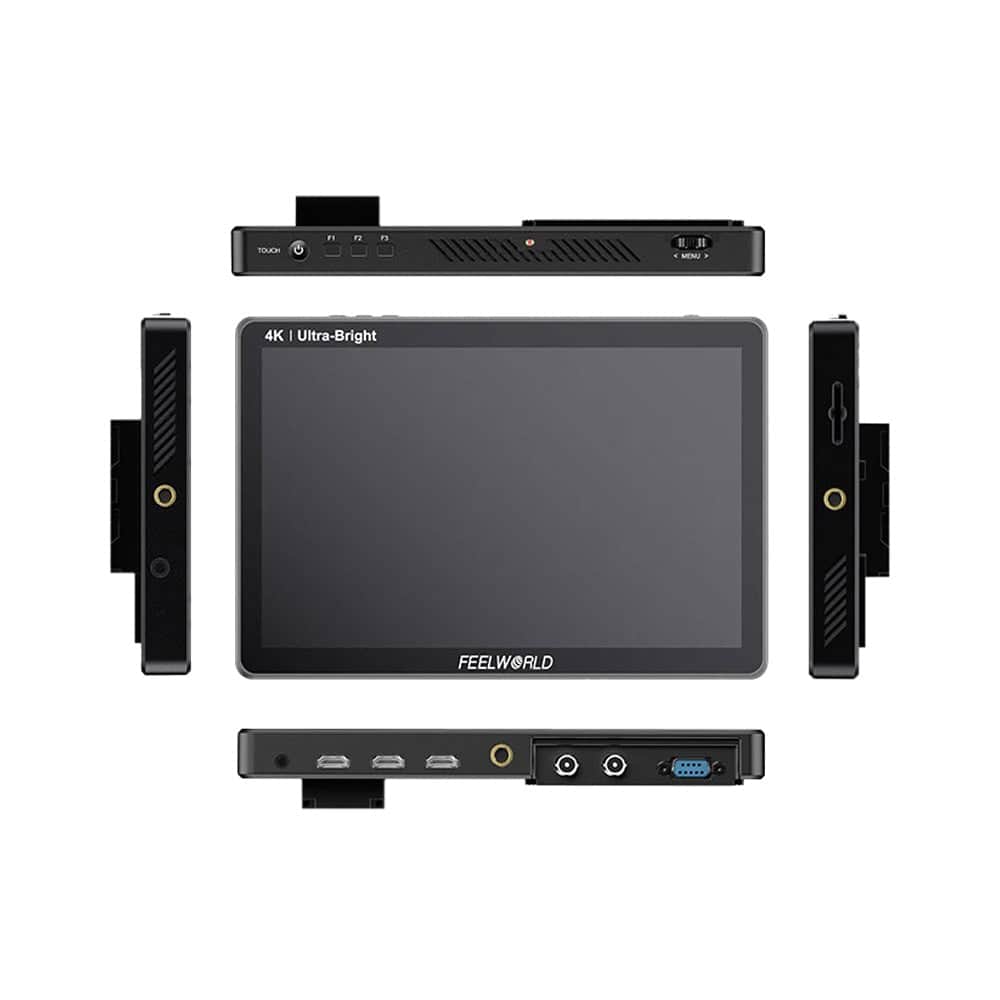

On the top of LUT11S comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
Full Touch Screen Design
Easy and sensitive operation, make your filming more efficiency
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
Specifications
Display Specifications
- Model: LUT11S
- Screen Size: 10.1" IPS
- Resolution: 1920x1200 pixels
- Pixel Pitch: 0.113(W) x 0.113(H) (mm)
- Aspect Ratio: 16:10
- Brightness: 2000cd/m²
- Contrast Ratio: 800:1
- Backlight: LED
- Viewing Angle: 85°/85°(L/R) 85°/85°(U/D)
Input
- 2 X HDMI: HDMI
- 1 X SDI: 3G-SDI
- 1 X Tally: 9 Pin Connect
Output
- 1 X HDMI: HDMI
- 1 X SDI: 3G-SDI
- 1 X DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.
Audio
- 3.5mm Stereo Headphone
SDI Input Support Format
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 2048x1080i (60/59.94/50)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
SDI Output Support Format
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Input / Output Support Format
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 3840x2160p (60/50/30/29.97/25/24/23.98)
- 4096×2160p (60/50/30/29.97/25/24/23.98)
General
- Input Voltage: DC7～24V
- Power Consumption: ≤28W
- Working Temperature: -10°C~50°C
- Storage Temperature: -20°C~60°C
- Install Way: 1/4"-20 Thread Socket ( Left, Right, Bottom)
- Unit Size: 242Lx156Hx23D(mm)
- Unit Weight: 810g
- Color Box Size: 265L*110W*212H(mm)
- Outer Carton Qty: 10
- Outer Carton Size: 590*270*480 (mm)
Advanced Features
- Support 3D LUT Log to Rec.709, user 3D LUT Upload
- Support Touch Menu
- Parade (RGB, YUV, Y)
- All Waves
- Vector
- RGB Histogram
- Brightness Histogram
- Embedded Audio
- Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
- False Colors
- Zebra Exposure (1%~100% adjustable)
- Check Field (Red, Green, Blue, Gray)
- Scan Mode (Under Scan, Over Scan)
- Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag)
- Image Flip (H, V, H/V)
- Image Freeze
- Center Marker
- Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1)
- Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
- Marker Color (red, green, blue, white, black, yellow)
- Color Temperature Adjustment (5600K, 6500K, 9300K, user)
- Nine Grid
- Zoom (100%~500%)
- Aspect Ratio
- Pixel to Pixel
Includes
- 1x FeelWorld LUT11S 4K HD Monitor
