FETtec V1.1 35A 3-6S 20x20 4in1 ESC

Original price $73.99 - Original price $73.99
Original price
$73.99 - $73.99
Current price $73.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

The FETtec 35 amp 4in1 ESCs is a great board on its own, now the magic comes from KISS FC Passthrough and other KISS Features. For example Dshot2400, 128kHz motor PWM, Dshot 300-2400, and 128kHz motor PWM. As being version 1.1 they fixed issues like not having to install a capacitor close to the mounting holes.  You will see  an increased area around the battery soldering pads for safer use. Also adding a new protection circuit for the signal IOs to the board. One blue LED for each ESC onboard, grab this 20x20 board for those quads that need them!

The perfect compliment to your FETtec Kiss FC

Check out all our KISS compatible gear, and everything FETtec


  • More space around battery pads
  • One blue LED for each ESC onboard
  • New protection circuit for the signal IOs
  • No more capacitors close to the mounting holes


  • Active current limiting @ 35A
  • Input voltage: 3S-6S
  • High quality 40V MOSFETs
  • STM32G071 @ 64MHz
  • 128 kHz motor PWM
  • Weight: 6.4g(board only)
  • Full sine wave control
  • Solder points for up to 5 additional capacitors
  • KISS FC Passthrough
  • Betaflight pass-through (available from 4.1)
  • Automatic input signal detection:
    • Dshot 300-2400
    • PWM
    • OneShot42 / 125
    • OneWire BUS with up to 8kHz looptime (one cable for all motor signals and telemetry)
  • New FETtec Firmware
  • FETtec Configurator for updated, configuration and telemetry. Standalone for MacOS, Windows 32 & 64 bit and Chrome Plugin
  • Dimensions: 30mm x 35mm
  • Mounting hole: 20mm x 20mm, M2 breakable for M3

Manual Download
FETtec Configurator

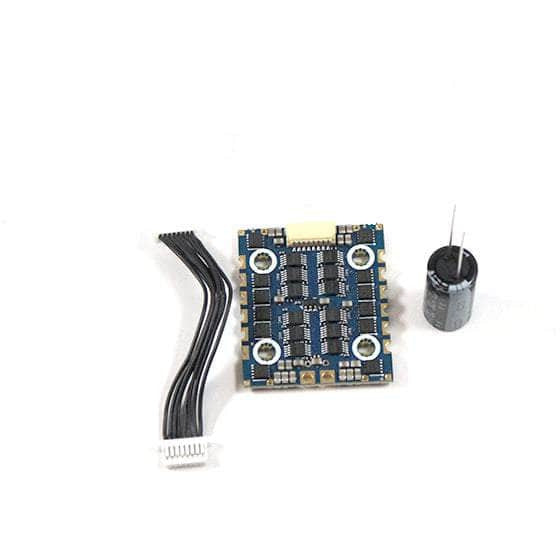

  • 1x FETtec 35A V1.1 3-6S 20x20 4in1 ESC
  • 1x Capacitor 50V, ESR < 1ohm (477CKE050M)
  • 1x JST-SH 8 Pin Cable
