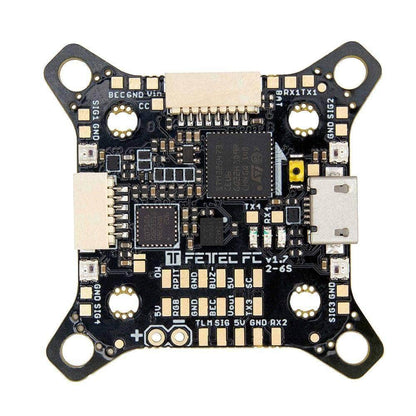

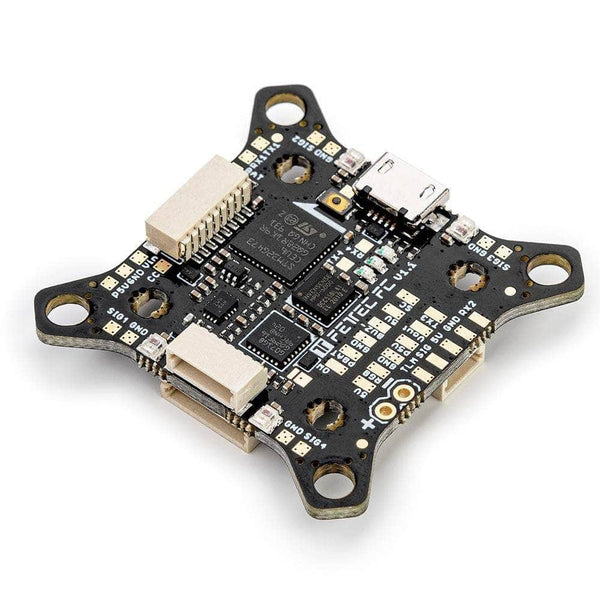

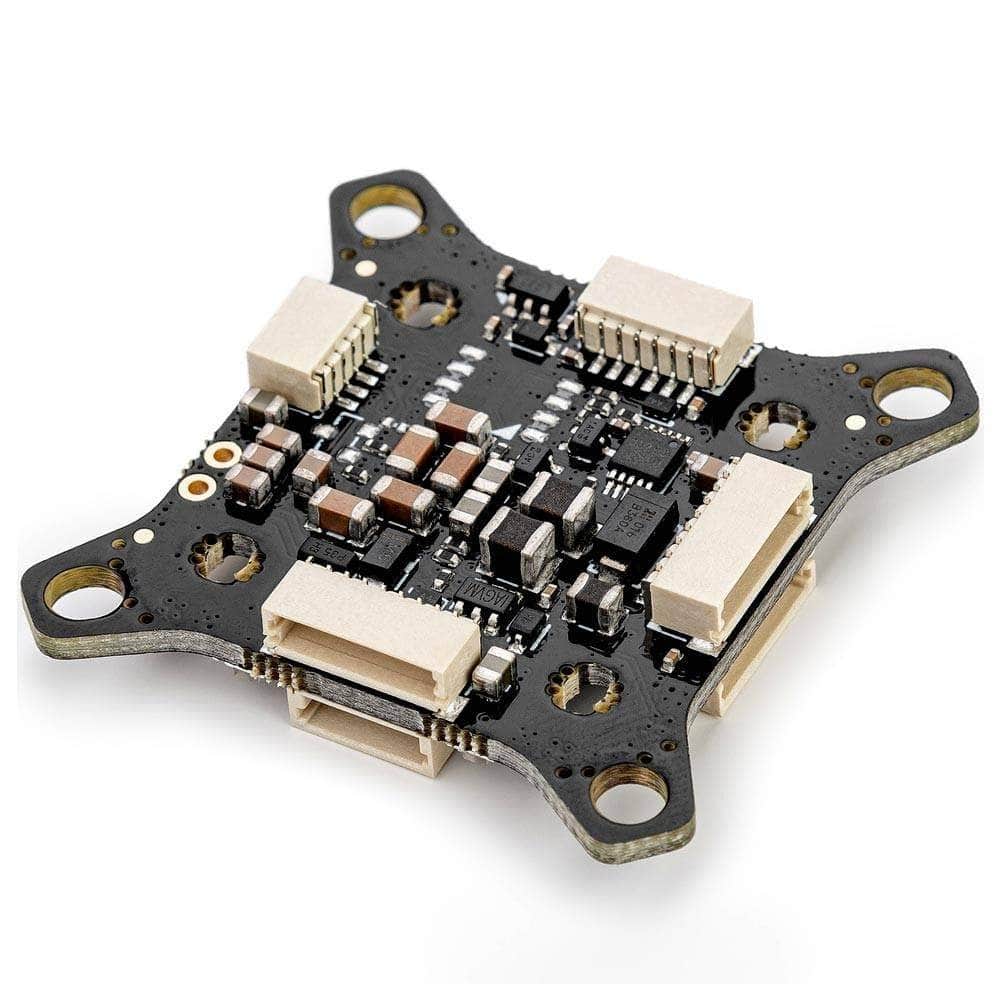

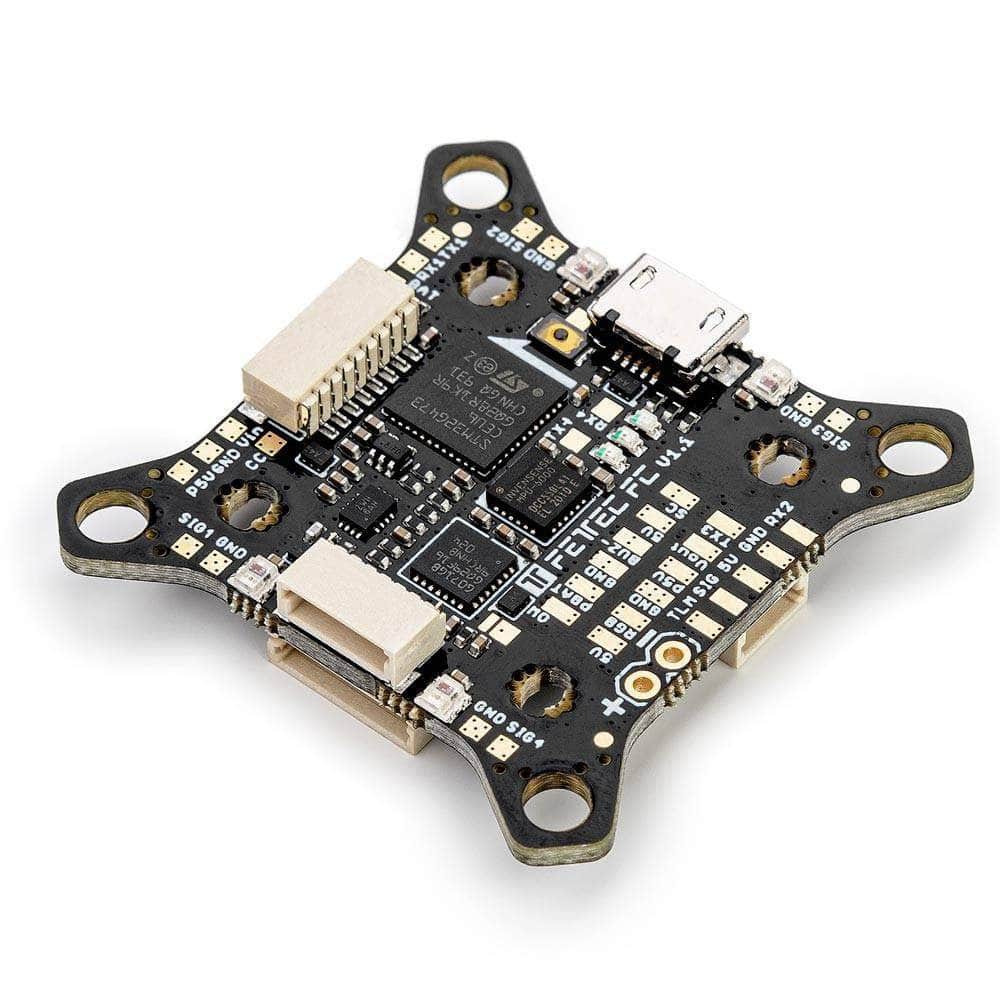

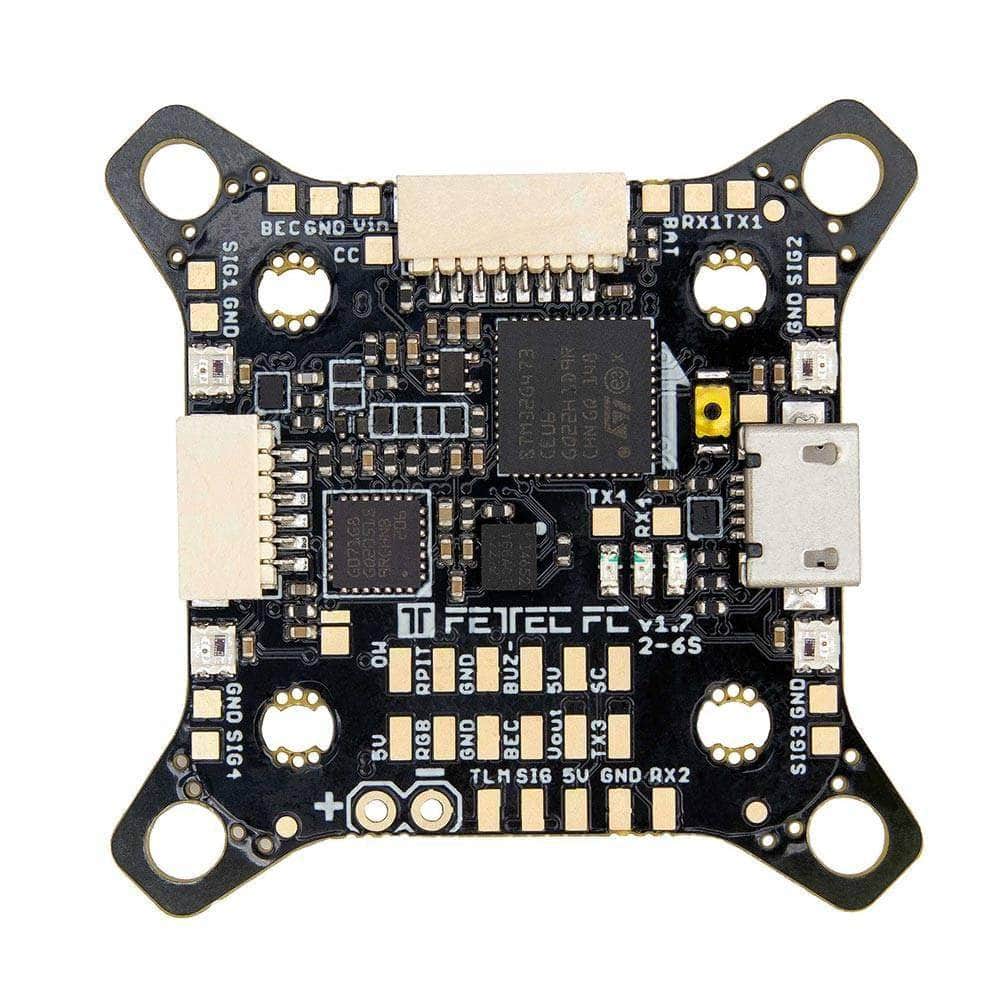

Fettec FC G4 V1.7 2-6S 30x30 / 20x20 Flight Controller

Fettec FC G4 V1.7 2-6S 30x30 / 20x20 Flight Controller

$101.99
$101.99 $84.99
Add To Wishlist
View full details

Details

Description

The FETtec FC G4 V1.7 features the latest STM32G4 processor. Providing unparalleled processing power to your aircraft. Along with an IIM-42652 SPI gyro, two 5v BECs, 6-27V (2-6S) power handling, and a host of other features, the G4 from FETtec is on the cutting edge of Flight Controller technology.

Check out our other flight controllers, as well as the rest of our FETtec selection!

Dimensions:

dimensionsO2BNL0T723GCJ

  • Maximum outside dimensions: 37,2 x 37,2mm, without outside tips 30 x 30mm

  • Mounting hole arrangement:

    • 20 x 20mm with M2 mounting hole (expandable to M3)
    • 30 x 30mm with M3 mounting hole
    • 30 x 30mm mounting hole tips are removable to reduce overall FC size

Specifications

  • Input Voltage: 2-6S LiPo
  • MCU: Latest STM32G473 Processor (w/ 180Mhz + Math accelerator)
  • Gyro: IIM-42652 SPI
  • OSD: YES
  • UARTs: 5 Sets
  • ESC Connections: Yes
  • Firmware: KISS firmware
  • BEC: 5V, 16V
  • Current Sensor: Yes
  • Buzzer: Yes
  • Barometer: No
  • Black Box: No
  • DJI Compatible: Yes
  • Mounting Pattern: 30x30 / 20x20
  • Dimensions: 37.2x37.2mm
  • Weight: 5.37g

Available downloads:

Includes

  • 1x Fettec FC G4 V1.7 2-6S 30x30 / 20x20 Flight Controller
  • 1x 8 pin cable (open on one side)
  • 1x 6 pin cable (open on one side)
  • 1x 4 pin calbe (open on one side)

More Info

  • SKU: 17236
  • Barcode: 4260740040032


Overall rating: 5.0 / 5 from 4 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

good

"good"

— Shuhan G. (5/5)

Love the G4

"Fettec > BF Flew BF for 5 years before trying Fettec. Love it for freestyle"

— jason w. (5/5)

Easy Install

"I was able to easily connect this FC to the 45A Fettec 4in1 ESC with the provided cables. Very convenient design."

— Jaime P. (5/5)

Not minor…Huge upgrade

"Coming from the F7, the G4 is a solid upgrade especially with DJI air units as the voltage supply is more reliable. Plus every time I look at the second esc jst my wallet starts to sweat :-)"

— Christopher K. (5/5)
