Description

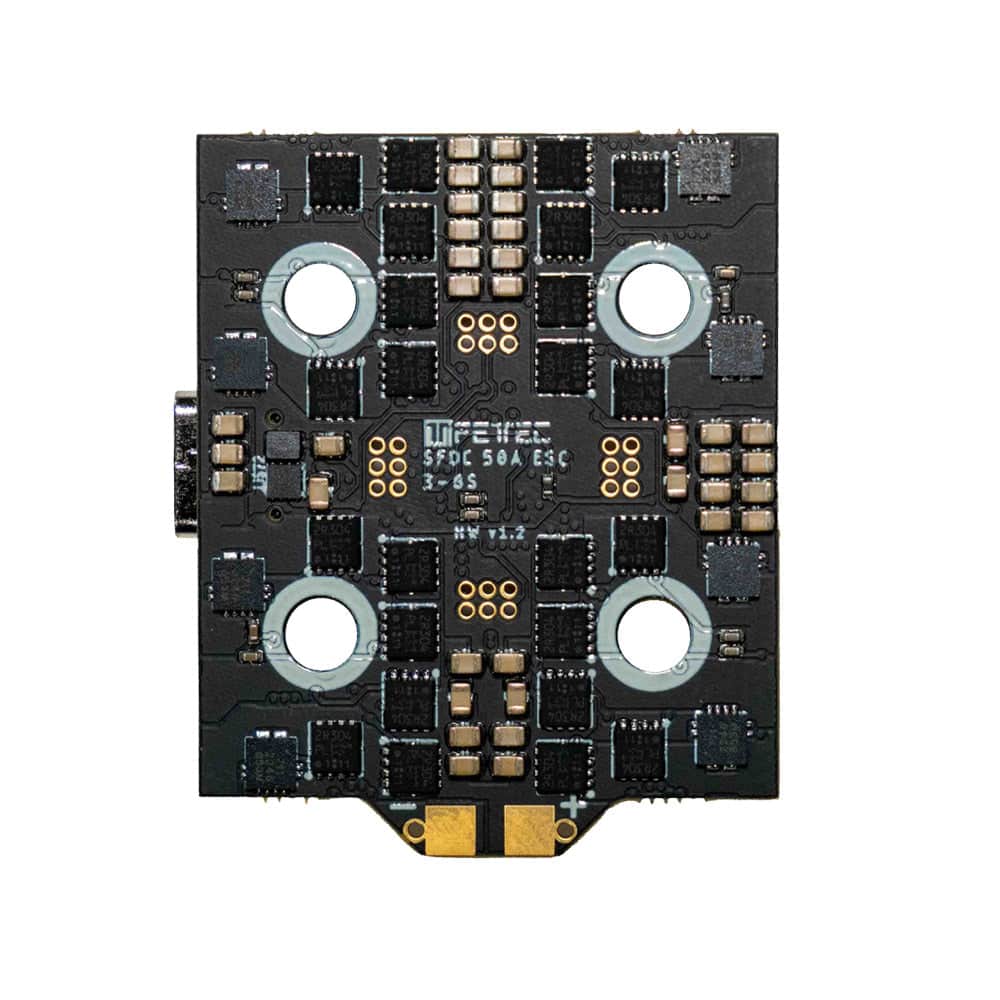

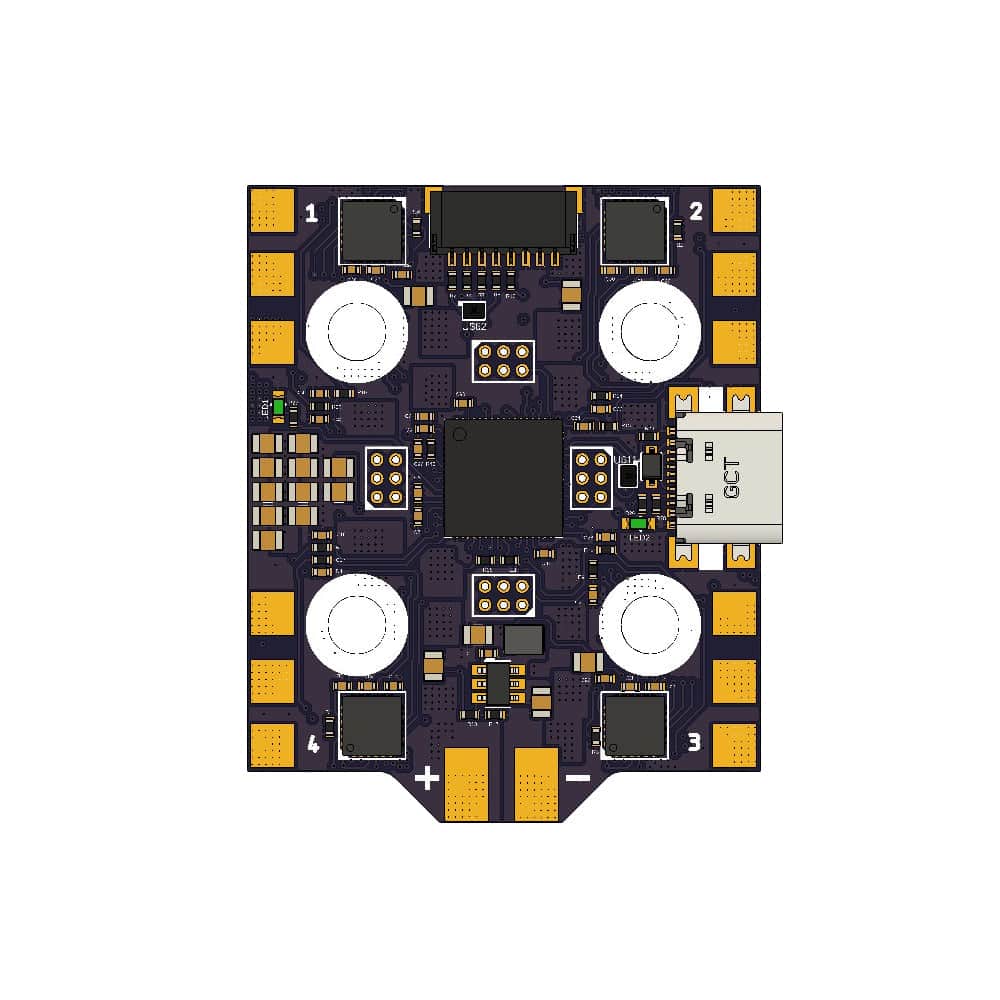

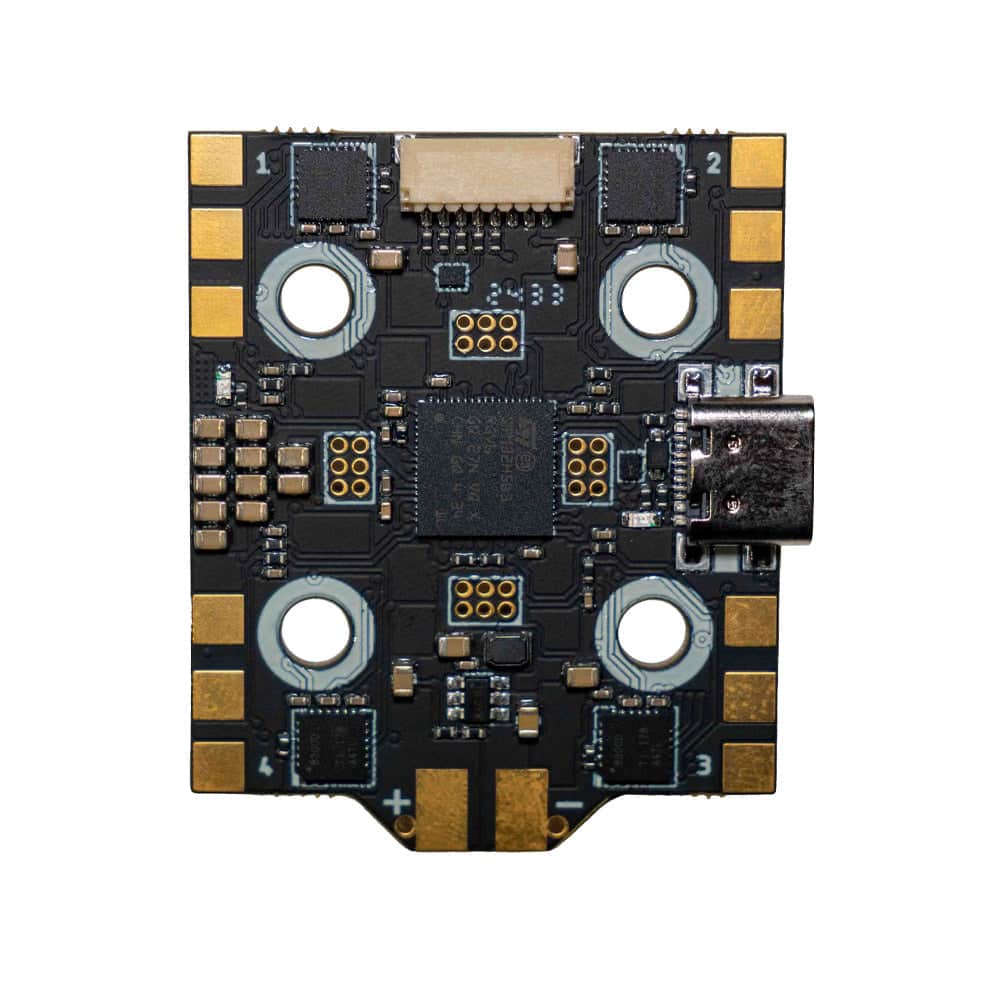

The FETtec SFOC 50A 4-in-1 ESC (Simplified Field Oriented Control) is an innovative approach to control brushless three-phase motors. While enhancing efficiency, lowering current and torque ripple, and improving response times this board is packed with features. With FETtec SFOC, users can experience up to a 13% increase in efficiency and up to a 30% boost in acceleration, alongside other benefits such as stronger sensorless motor startups, reduced noise, and smoother motor operation.
Check out the rest of our 20x20 ESCs and everything FETtec!
Features
- Up to 50A per channel with good airflow
- Controls 4 BLDC/PMSM motors using a single microcontroller
- USB-C
- FETtec SFOC motor control method
Specifications
- MCU: STM32H56 ARM Cortex M33 @ 250 MHz
- Voltage: 2-8S (6-34V) 40V MOSFETs
- Protocol: Dshot 300 2400, OneWire, S2M
- Bidirectional Dshot: Supported (with extended Dshot telemetry)
- Motor PWM: 64kHz and 128kHz
- RPM per channel: Up to 450k
- Outer Dimensions: 35 x 43.5mm
- Mounting Holes: 20 x 20mm, M4
- Weight: 10g
IMPORTANT NOTES
- As of 18.12.2024: Betaflight passthrough is supported up to version 4.5.0. Compatibility with later versions will be made available through future firmware updates.
- Generally, we recommend using the provided capacitor and a FETtec Spike Absorber (when used with up to 6S).
- When using an 8S setup, an appropriate flight controller or FC must be used, and an additional BEC may be required.
Includes
- 1x FETtec SFOC 50A 4-in-1 ESC
More Info
- SKU: G23993DE1Z
- Barcode: 4260740040117
