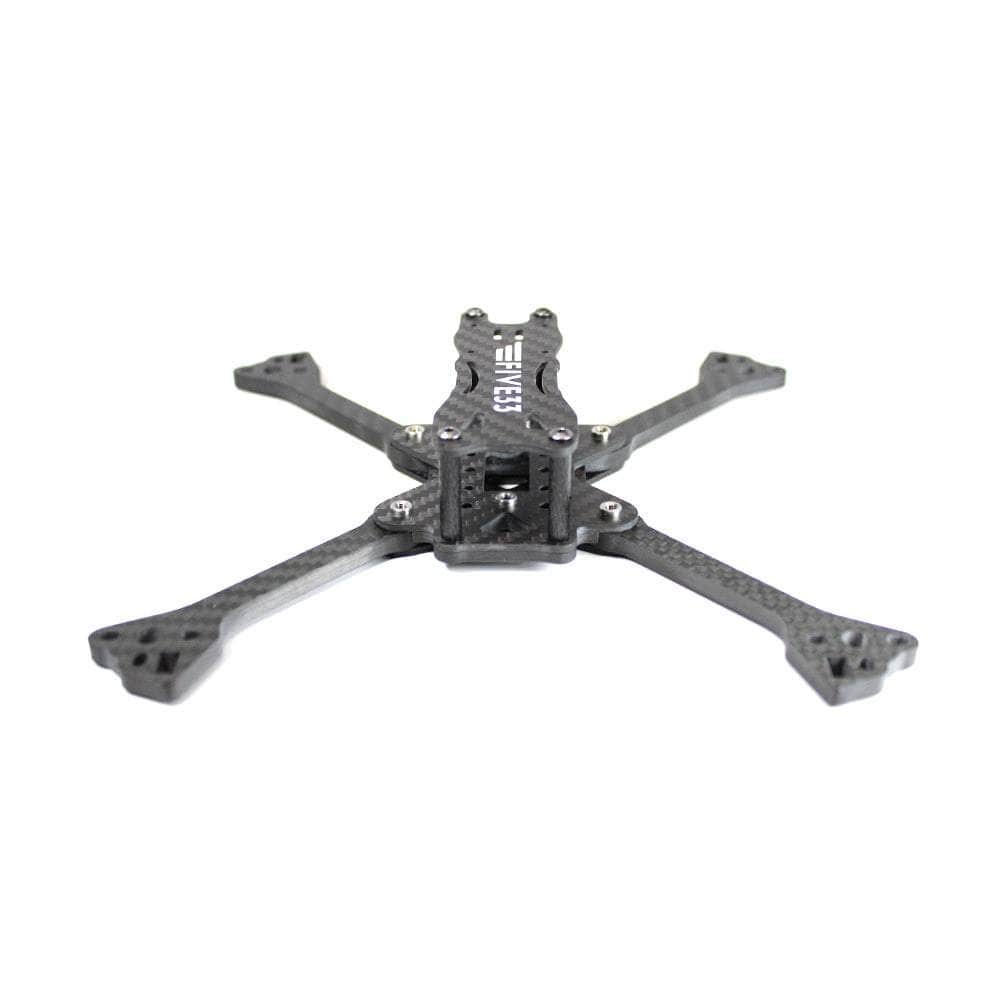

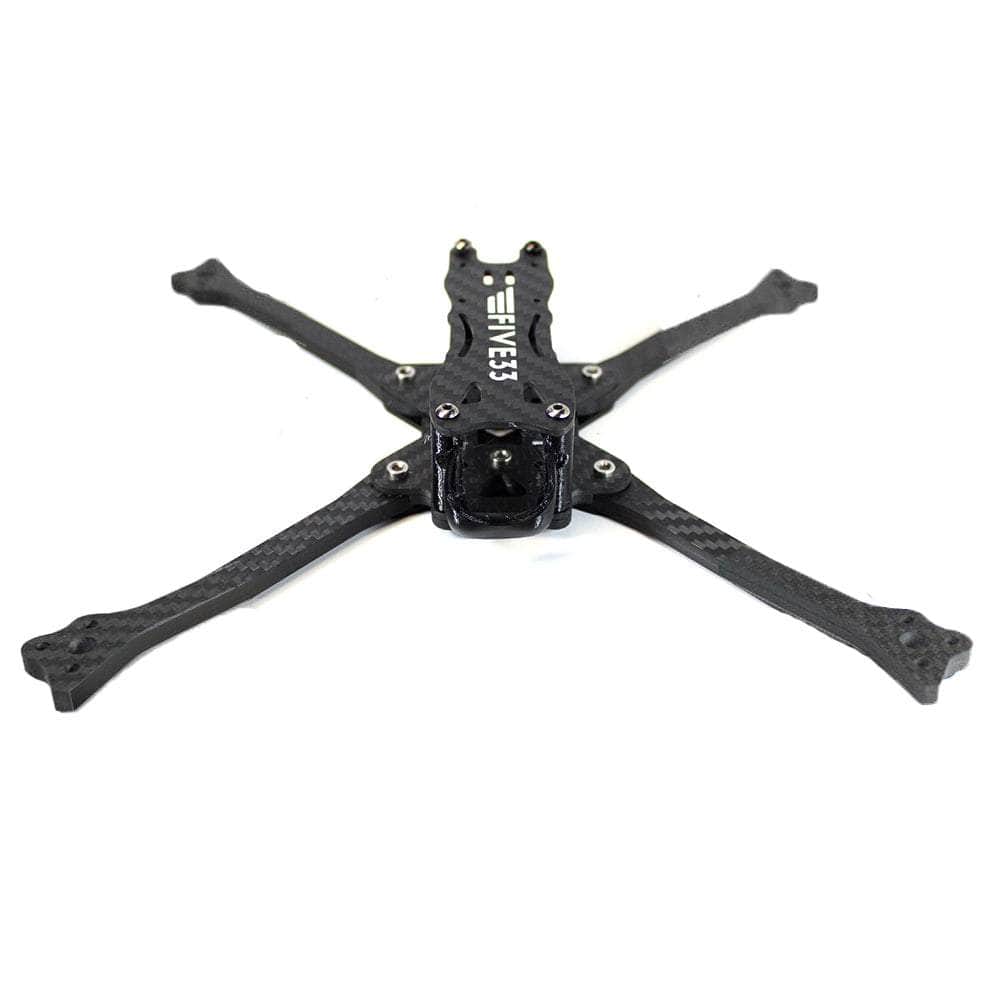

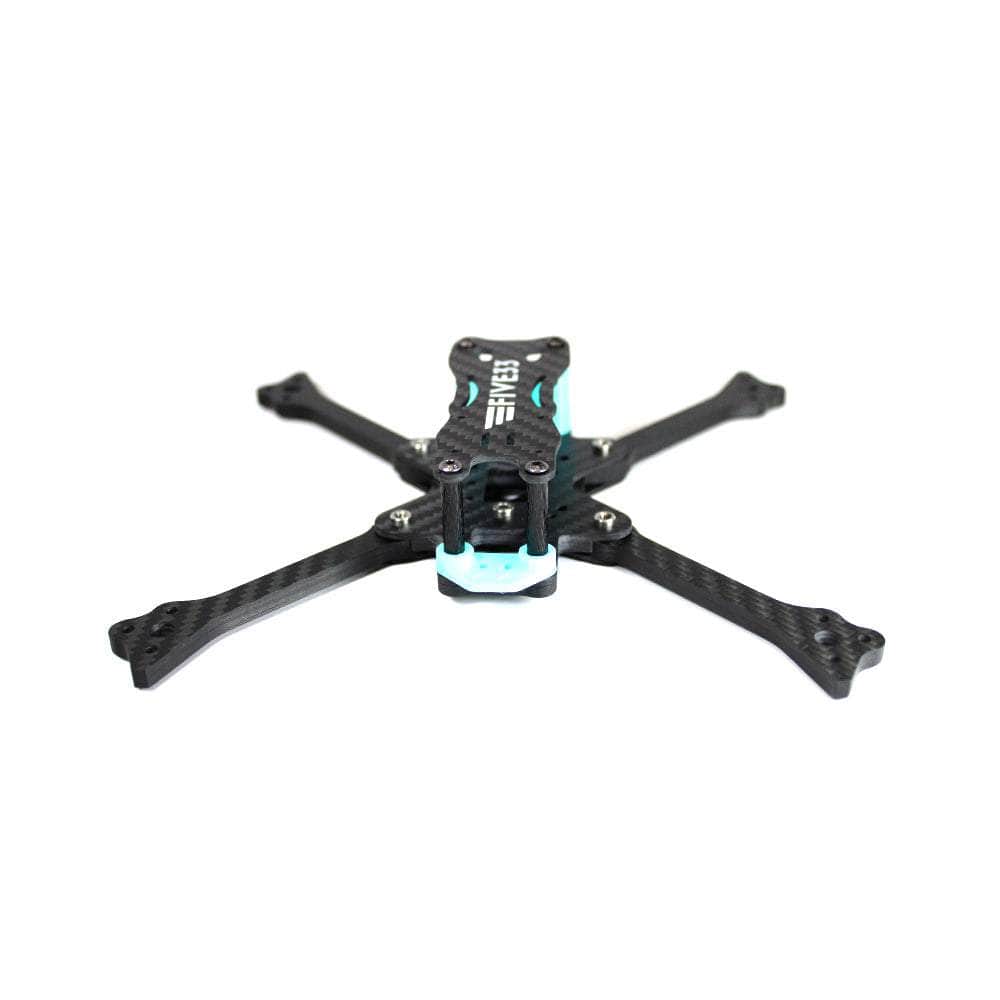

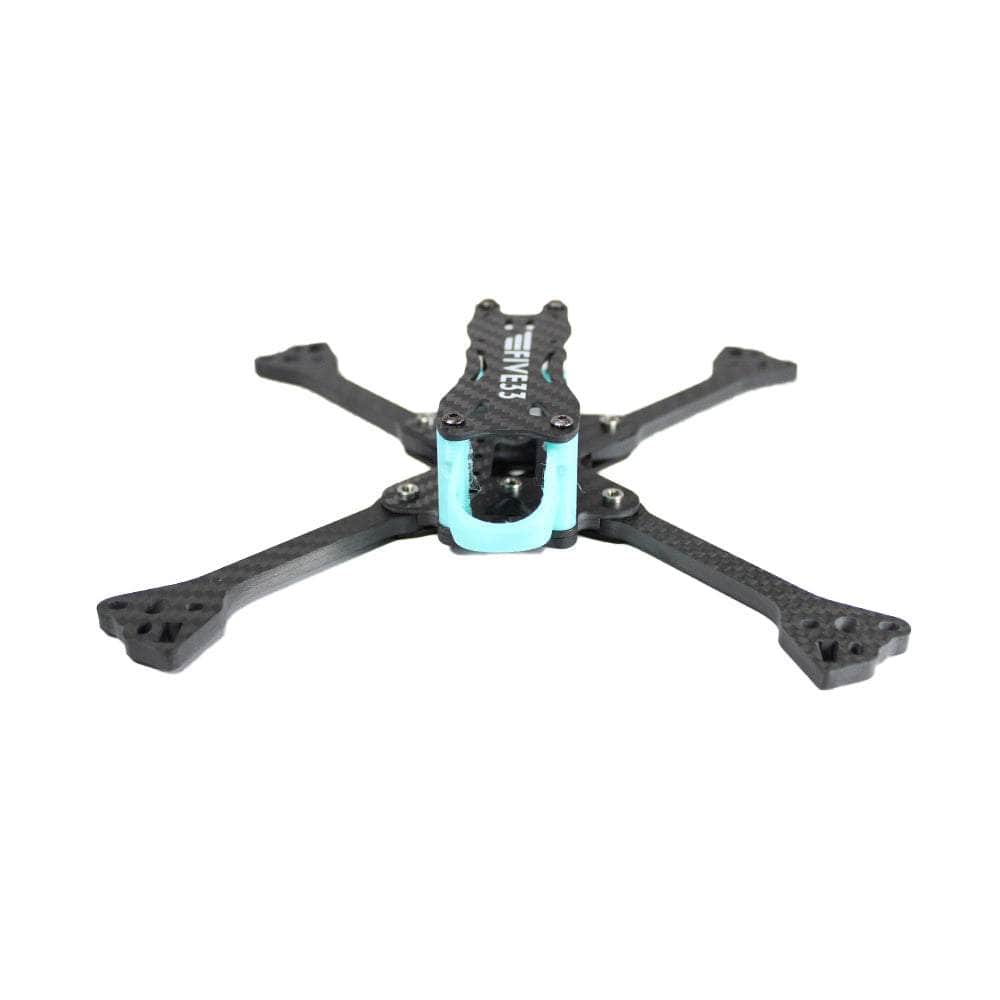

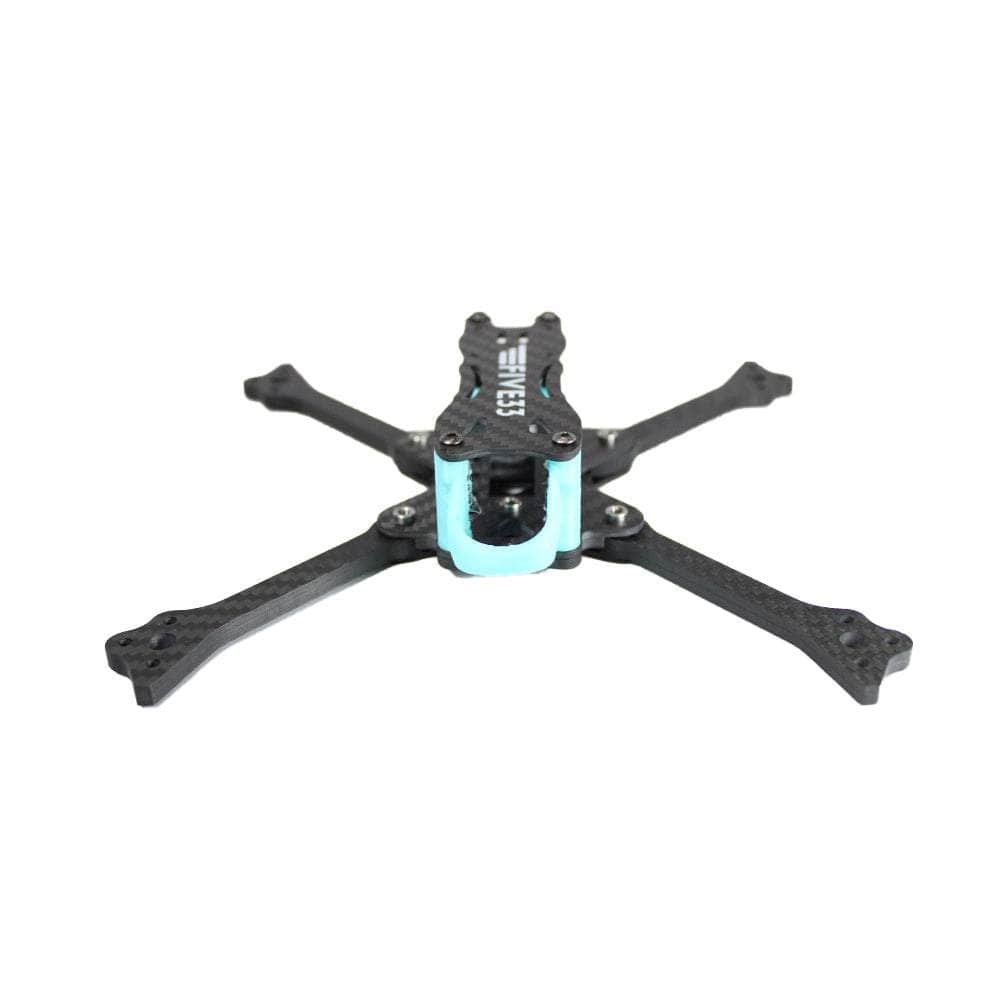

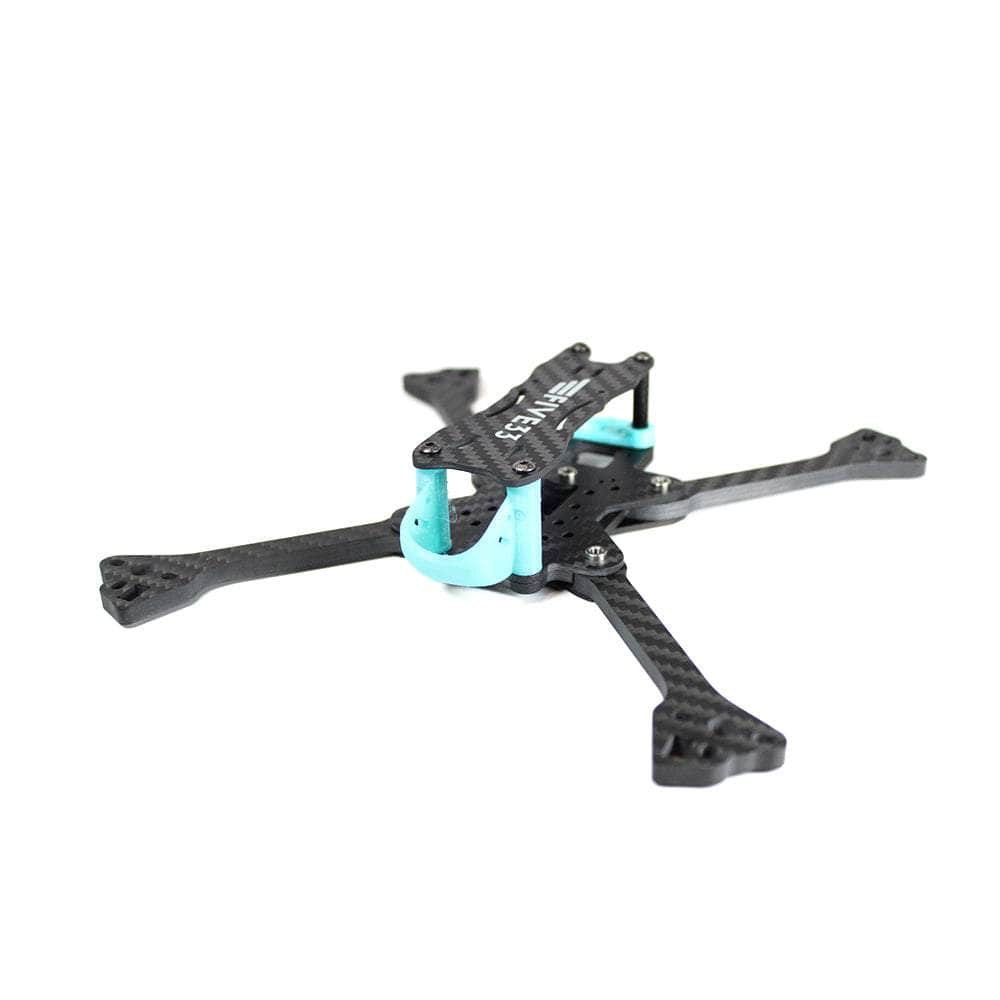

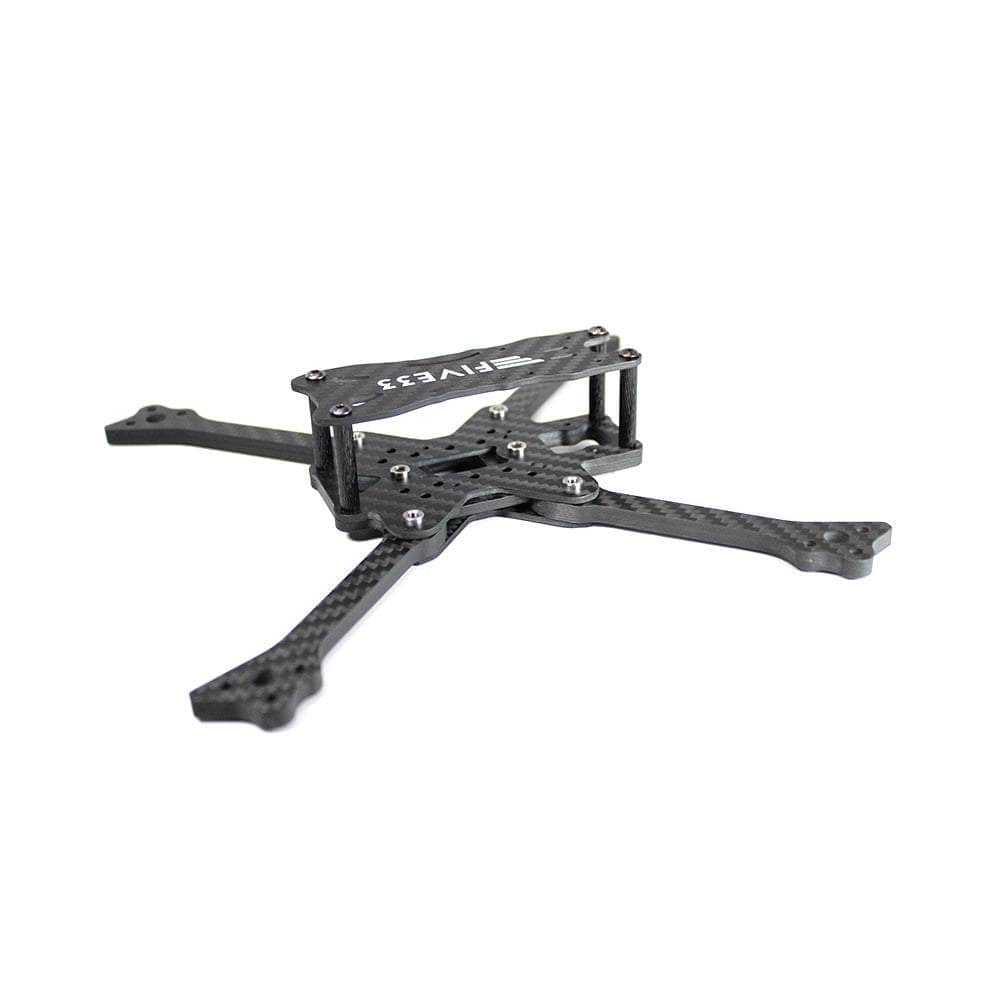

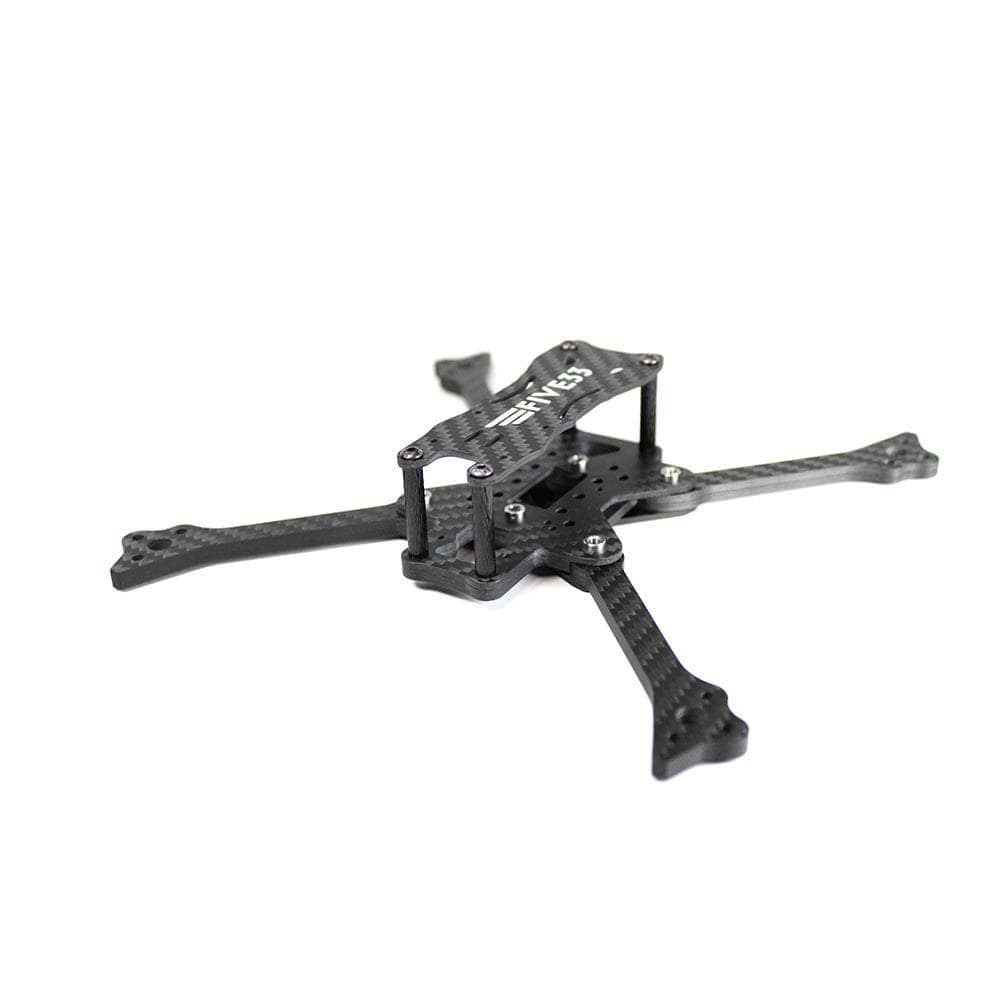

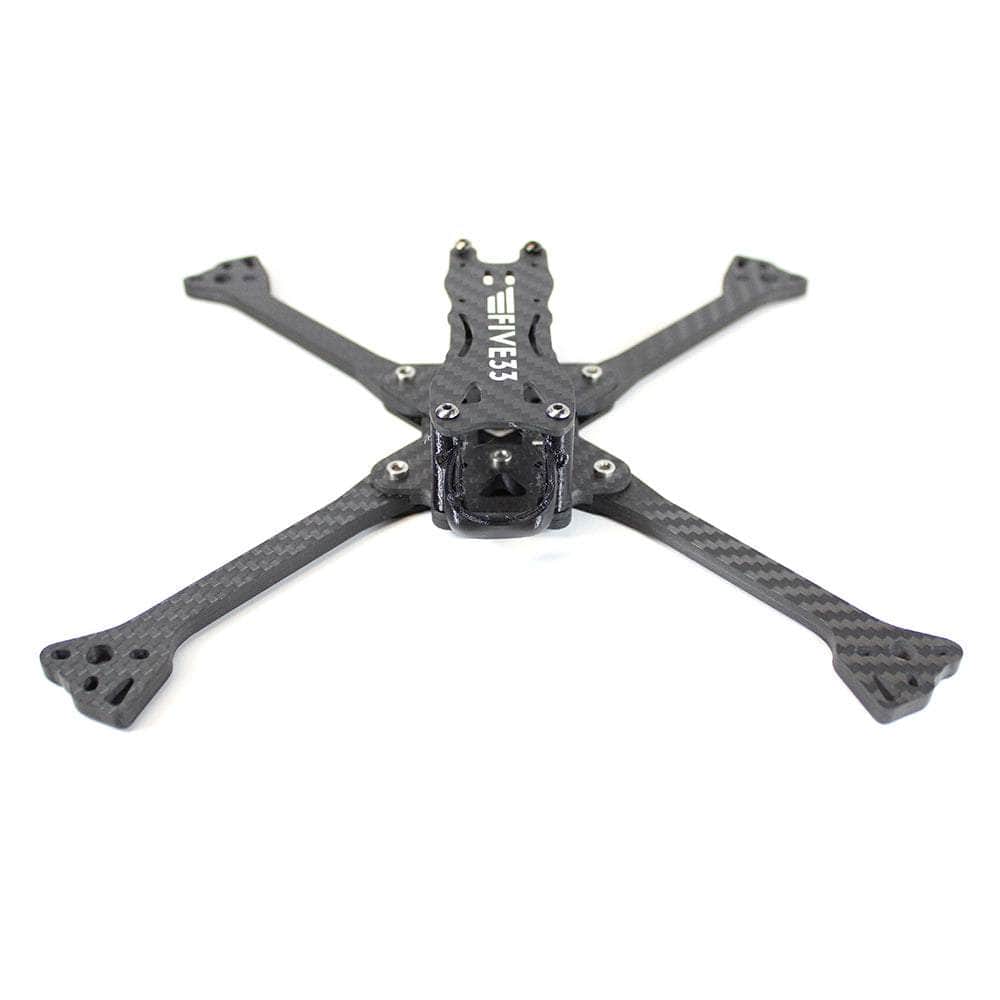

FIVE33 Switchback HD 5" Racing Frame Kit - Choose Your Version
This FIVE33 Switchback HD 5" Racing Frame Kit offers an ultra-durable experience yet while keeping the frame lightweight for that racing performance. Get ready to take your racing to the next level by building your dream drone with top-notch performance. This frame has 20×20, 30×30, and 25.5×25.5 mounting options. The Switchback HD was designed to be compatible with all existing HD systems and allow for maximum flexibility in the build space. With this frame kit, your race experience will never be the same.
Note: To fit a vista you will need a 20×20 stack mounted in the forward offset stack location or taller standoffs. To fit an air unit, you will need a 30×30 AIO ESC/FC.
Note: Choose your arms type and if you want prints with your frame kit.
Thingiverse Listing: https://www.thingiverse.com/thing:4933552
Check out all our DJI-compatible frames, electronics, and accessories and all our FIVE33 Flying Gear!
- Arms for this frame are interchangeable
- The Switchback HD was designed to be compatible with all existing HD systems and allow for maximum flexibility in the build space.
- Lite arms = 33g SFG arms = 35g
- SFG: The SFG arms are compatible with all Switchback V1 braces, SFGs, & BFGs
- Lite(SPLT): Smallest possible arm length that can fit 5.1″ props
- Weight: 90.1g (Prints Included)
- Dimensions: 6 x 12.70 x 0.25 cm
- Arm Option: SFG Arms or SPLT
- TPU Color: Championship Teal (Optional)
- Motor Bolt Mounting: 16x16 & 19x19
- Stack Mounting: 20x20, 30x30, and 25.5x25.
- Arms Thickness: 5mm
- Top Plate: 2mm
- Bottom Plate: 2mm
- Lock Plate: 3mm
- Mid Plate: 2mm
- 1x FIVE33 Switchback HD 5" Racing Frame Kit - Choose Your Version
