Description

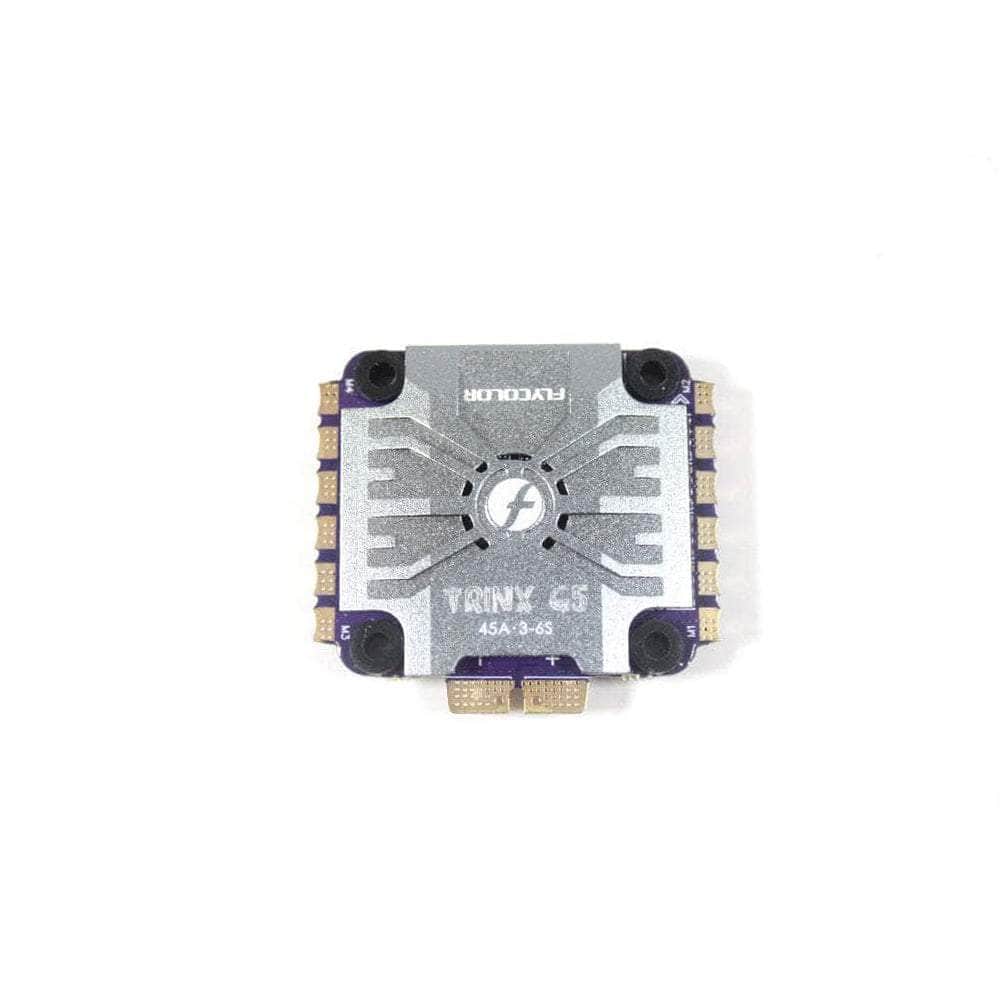

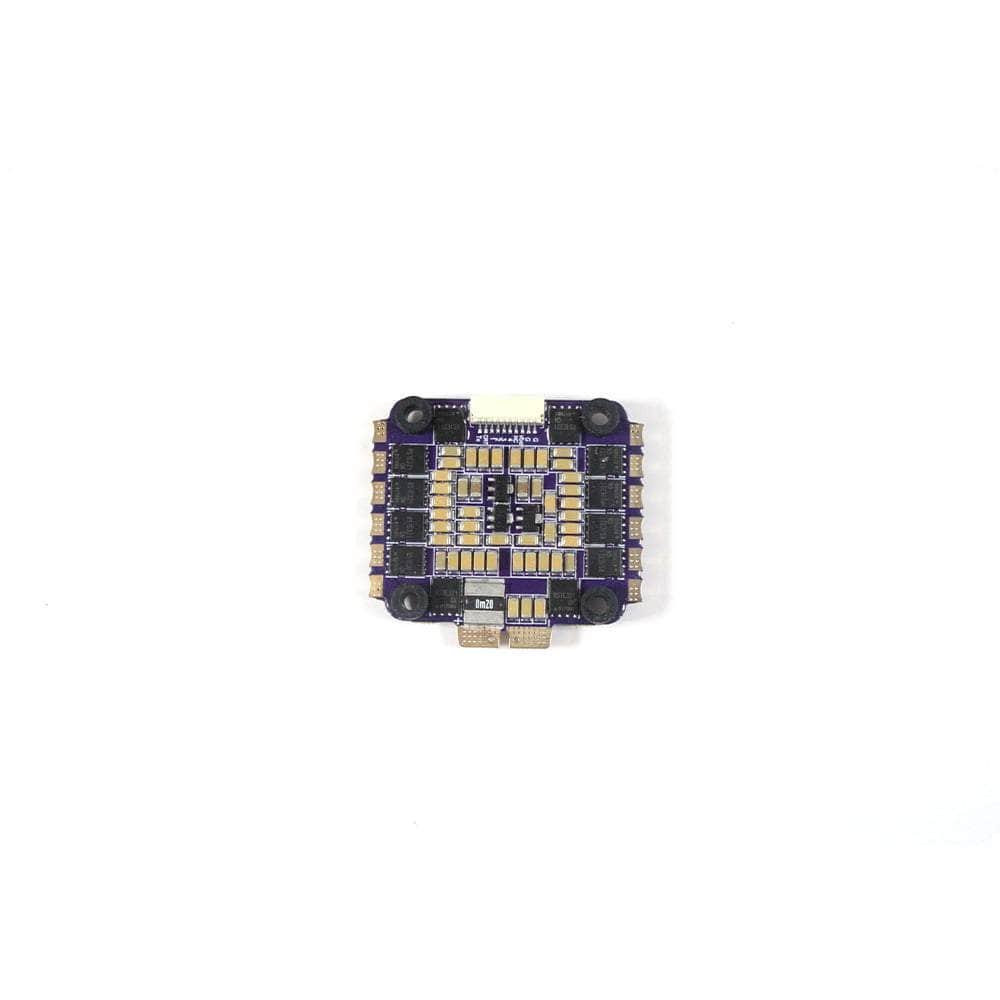

Check out the Flycolor Trinx G5 45A 4-in-1 ESC, as the Flycolor X-Cross Series ESC’s are on a fast rise to the top. With 45A of continuous current support, you will have plenty of headroom to push your rig to the limit. When you see this Trinx G5, you should think about dependability and power. Let this be your next choice for your 30x30 spot on your next big build. With the high powered MCU and Raptor 5 firmware, this is path towards the next level for your builds!

Check out all our 4in1 ESCs, all our 30x30 ESCs, and all our Flycolor Products!

Features

• ARM 32-bit Cortex MCU STM32G071, with a frequency up to 64 MHZ, where that's 25% higher than the previous generation of MCU.
• PWM frequency up to 128K, high frequency for higher throttle makes running smoother.
• Multiple Protocols, where all Dshot and Proshot signals are supported
  Supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and Multshot.
• 4in1 ESC built-in current sensor and VBAT output.
• Aluminum heat sink, with a large surface area of aluminum heat sink can effectively slow down the temperature rise, hence giving longer and better performance when pushing your quad.
• Damping design, hence reducing the effect of vibration on the flight controller.
  Supports higher power load, more suitable for violent flight or racing drone.



Specifications

• MCU:STM32G071

• LiPo Power input: 3-6S
• Cont.Current: 45A
• Burst Current: 55(10s)
• BEC: No
• Weight: 19.6g (with heat sink)

• Dimensions: 45x41x8.3mm
• Mounting holes: 30.5x30.5mm (M3)
• Throttle Calibration: Supported
• ESC Programming: BLHeliSuite32
• Application: 170-450 Multi
• Firmware: Flycolor_Raptor_5

Includes

• Flycolor Trinx G5 32bit 45A 3-6S 30x30 4in1 ESC
• 4x Silicone Vibration absorber
• 5x O-Ring
• 1x Power Cable with XT60
• 1x FC/ESC connector wire
• 1x Low ESR Capacitor
• 1x Heat sink
• User Manual
