Description

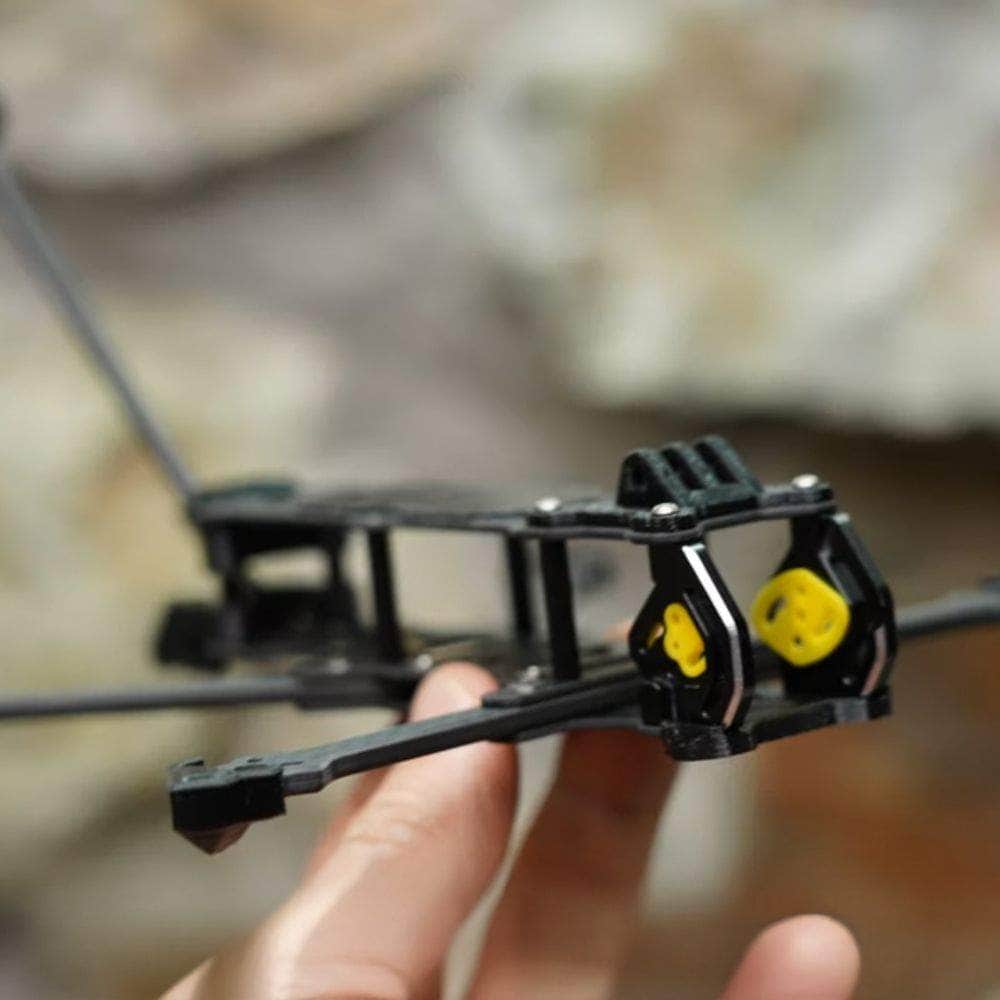

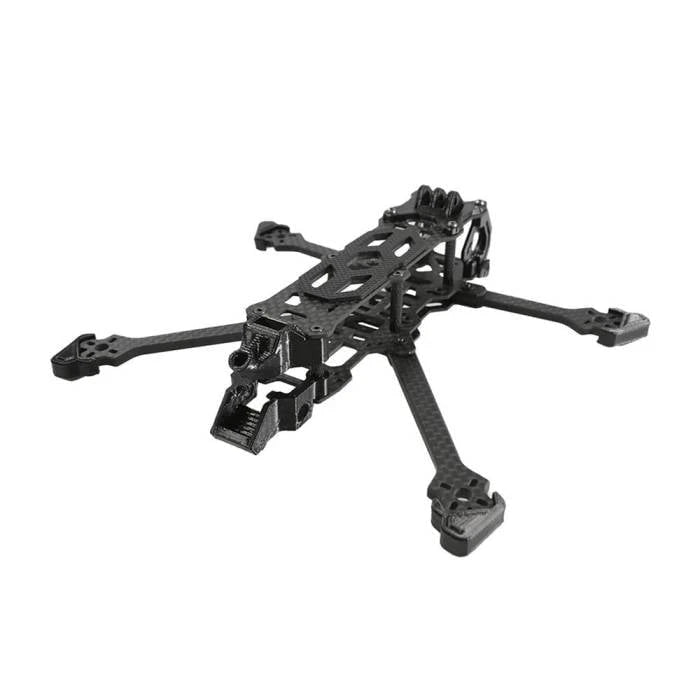

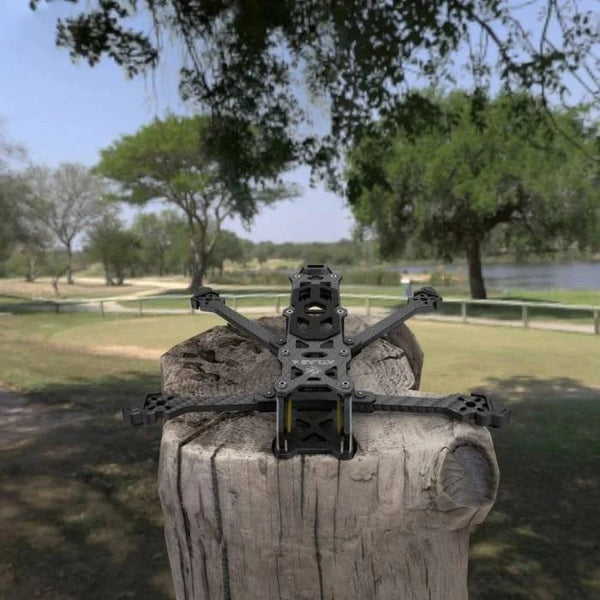

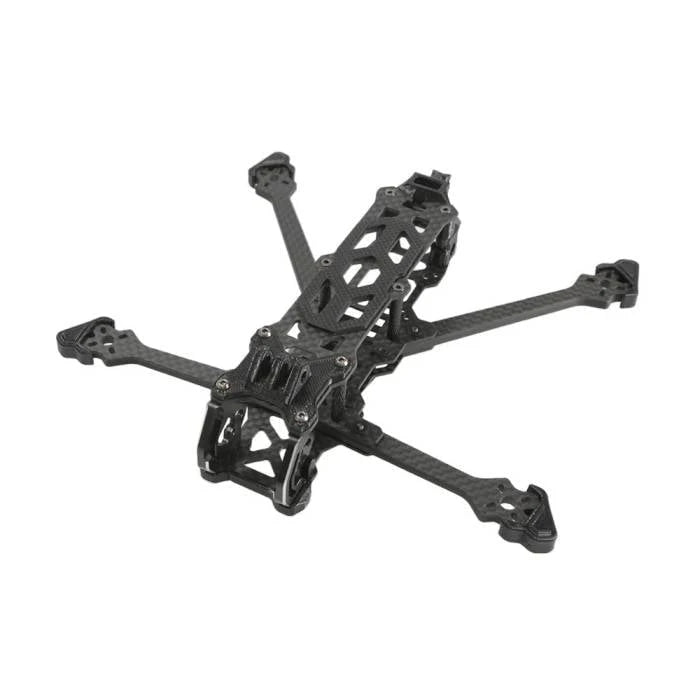

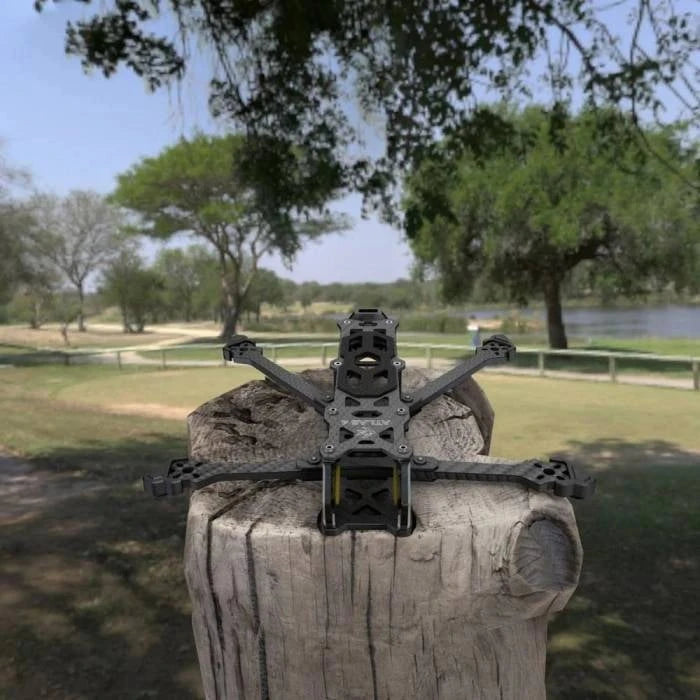

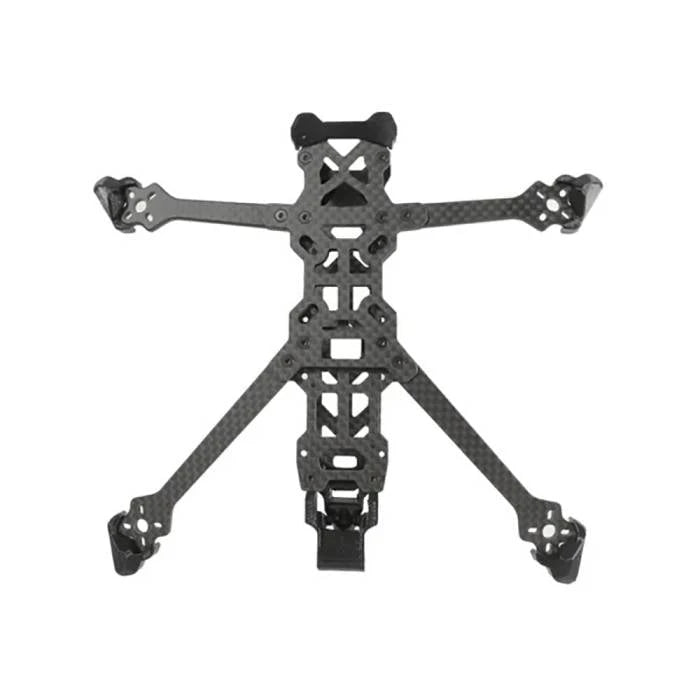

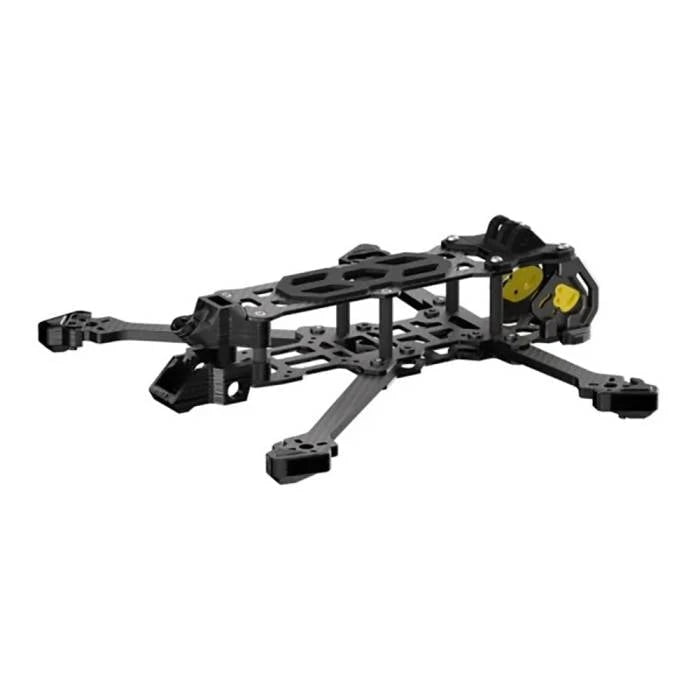

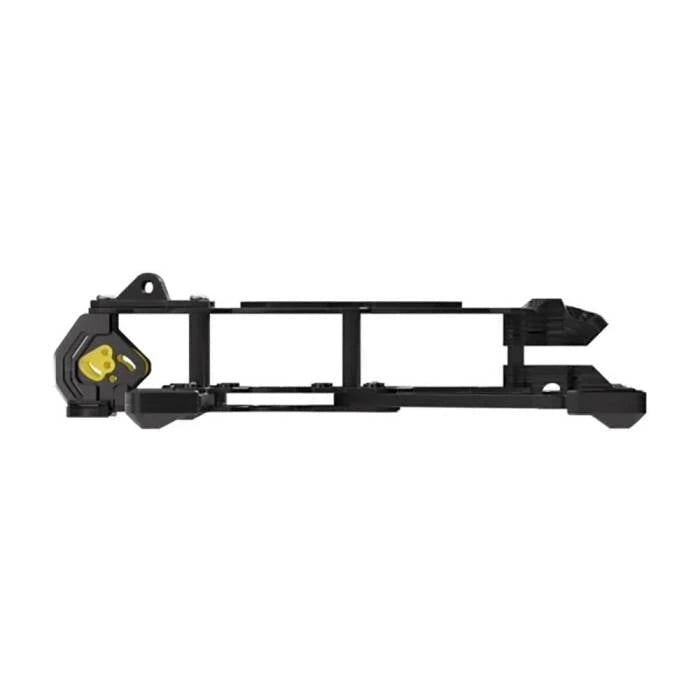

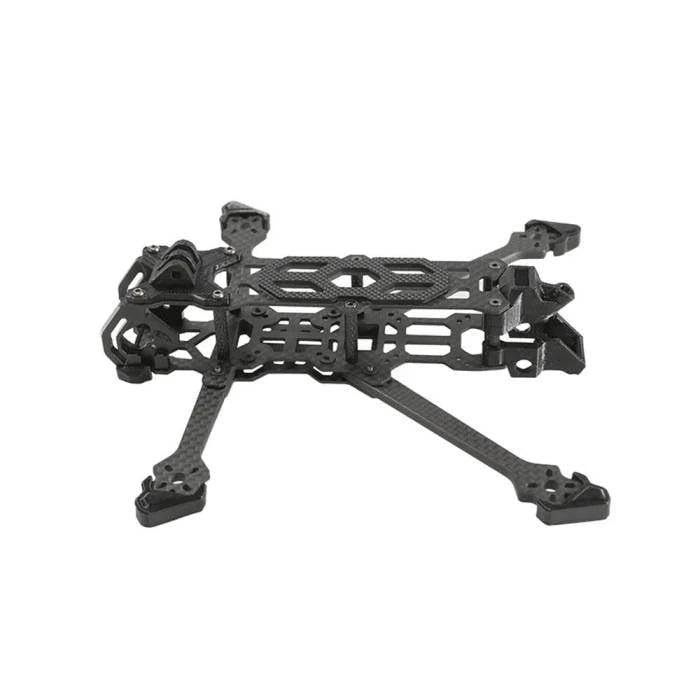

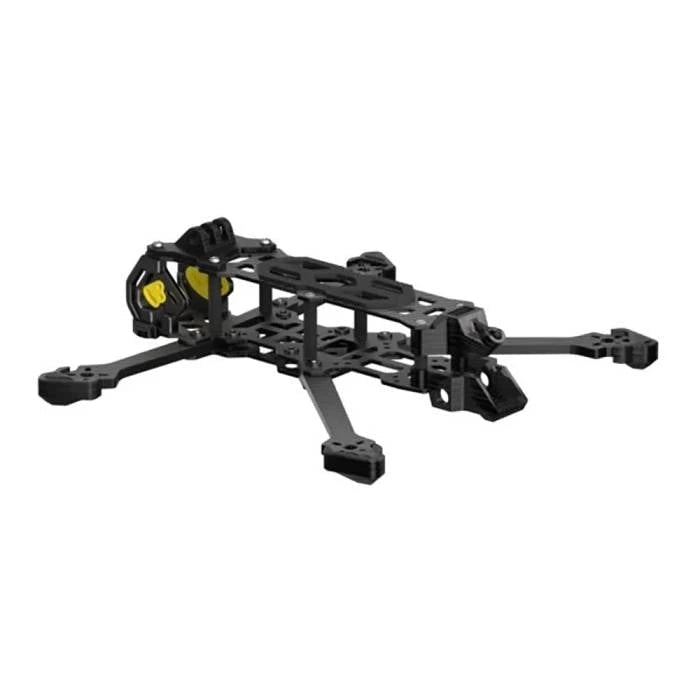

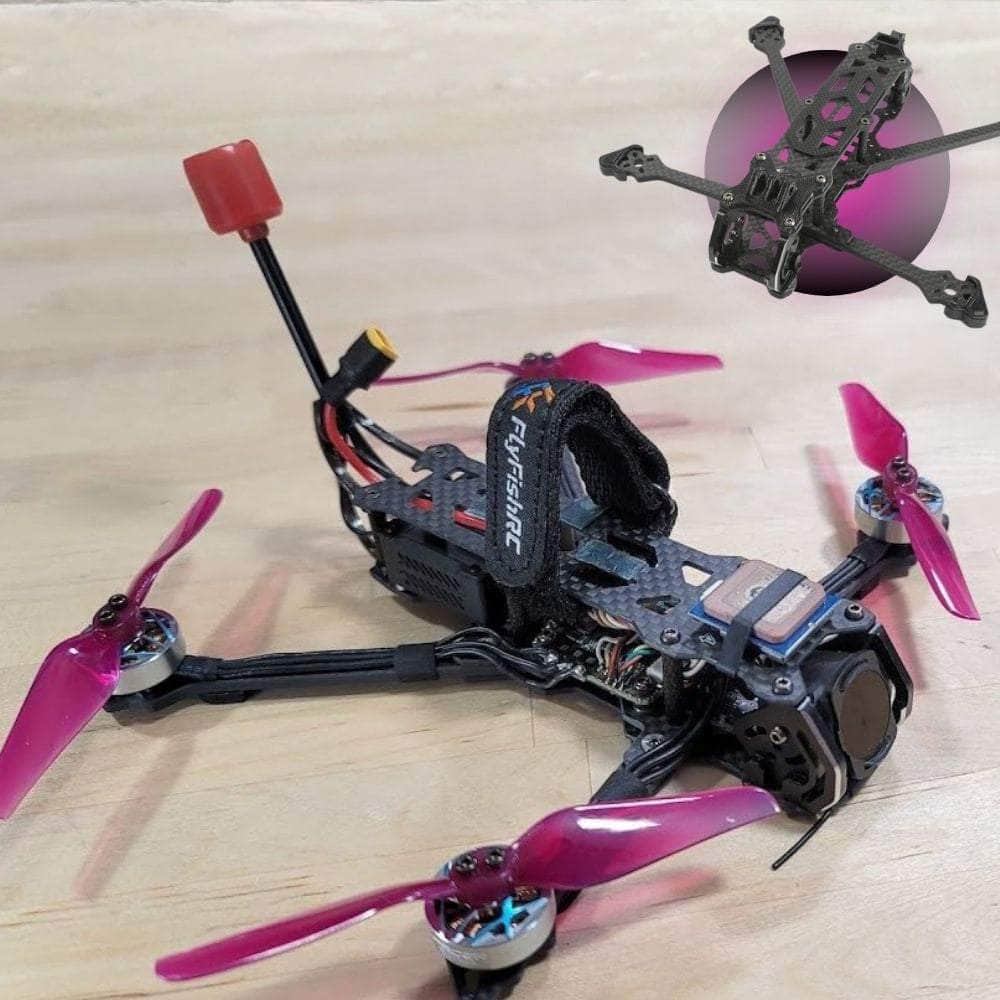

FlyFishRC Atlas 4" LR Frame Kit - O4 Pro is a new 4″ ultralight frame for FPV drones with DJI O4 Air Unit Pro! This frame is ideal for builds under 250 grams. Weighing only 55g (with TPU accessories) offers an excellent combination of light weight, durability, and variability during construction. It is suitable for both freestyle in the park and longer flight endurance.

Check out our other 3" frames, as well as the rest of our FlyFishRC products selection!

Features

• High-quality TPU components
• High-strength materials
• Tight structural design
• Deadcat layout

Specifications

• Frame Material: T700 carbon
• Camera Holder Material: CNC milled duralumin
• Geometry: Deadcat (without propellers in engagement)
• Wheelbase: 173 mm
• Shoulder thickness: 3.5 mm
• Upper/middle/lower plate thickness: 1.5 mm
• Thickness of CNC holders: 4 mm
• Weight: 55.6 g (including TPU parts)
• Dimensions: 108 × 139 × 28 mm
• For propellers: 4″ (inches)
• For FPV camera: pitch 19‒20 mm
• Engine mounting holes: 9×9 /12×12 mm (M2)
• Stack attachment/VTX: 20×20 mm/25.5×25.5 mm (M2)

Includes

• 1x FlyFishRC Atlas 4" LR Frame Kit - O4 Pro
