FlyFishRC M10QMC-5883L GPS Module

FlyFishRC M10QMC-5883L GPS Module

$37.49
$37.49
Add To Wishlist
View full details

Details

Description

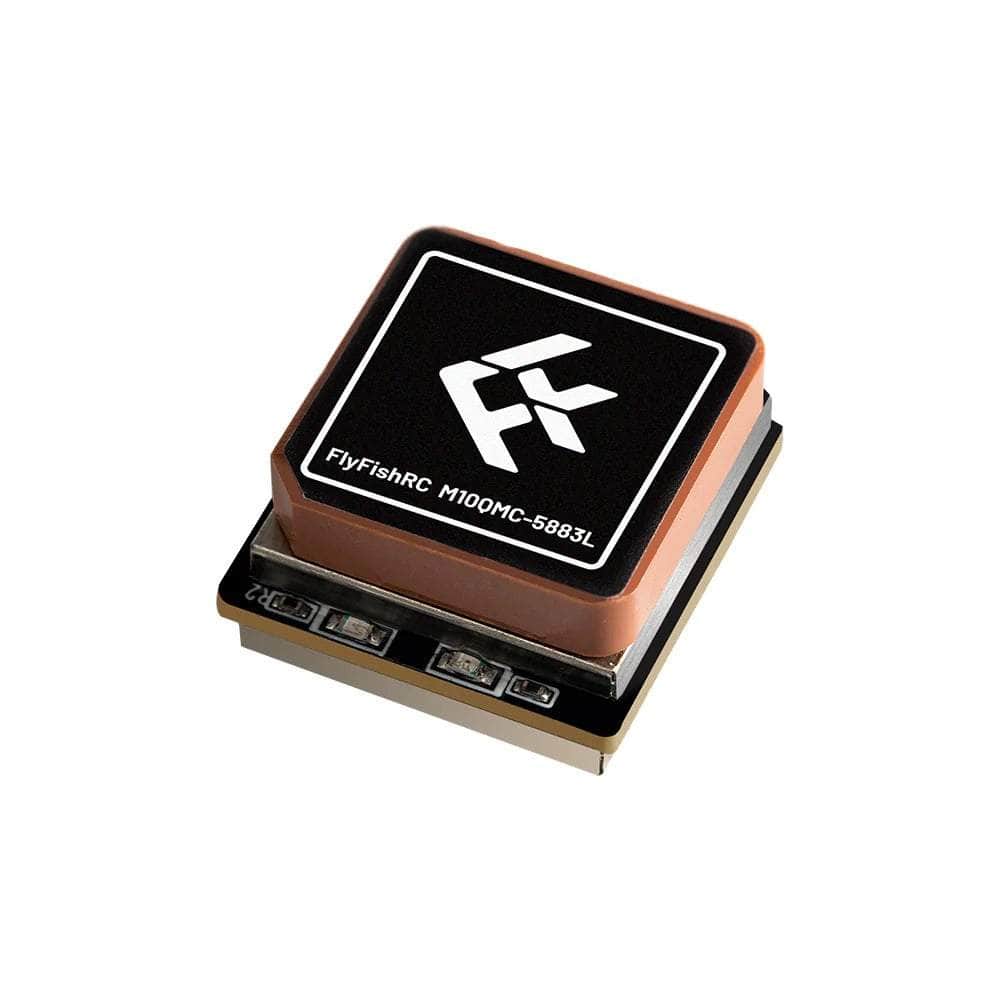

The FlyfishRC-M10QMC is a small size, fast positioning, easy-to-use GPS. It adopts 18x18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing, and the u-blox10 generation chip allows subtle altitude changes to be skipped for more stability. Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.

Check out our other GPS and our FlyFishRC product selection!

Features

  • 72 channel 10 Hz Refresh rate
  • Built-in TCXO crystal and farad capacitor for faster hot start
  • High sensitivity 18x18mm GPS patch antenna
  • SH1.0-6Pin terminal design, no soldering required
  • QMC5883L Magnetometer chip, Precise pointing

FlyFishRC M10QMC-5883L GPS Module

Specifications

  • GPS module: FlyFishRC M10QMC-5883L GPS Module
  • Frequencies: 72 channel
  • Refresh Rate: 10 Hz
  • Compass module: QMC5883L
  • Baud Rate：4800bps-115200bps (Default - 9600bps)
  • Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
  • Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
  • Cold start: <24s
  • Hot start: <2s
  • Maximum height: 50000m
  • Maximum speed: 500 m/s
  • Speed accuracy: 0.05 m/s
  • Maximum acceleration: ≦ 4G
  • Input Voltage: 3.3V-5V，current 25mA
  • Output Connector: SH1.0-6P

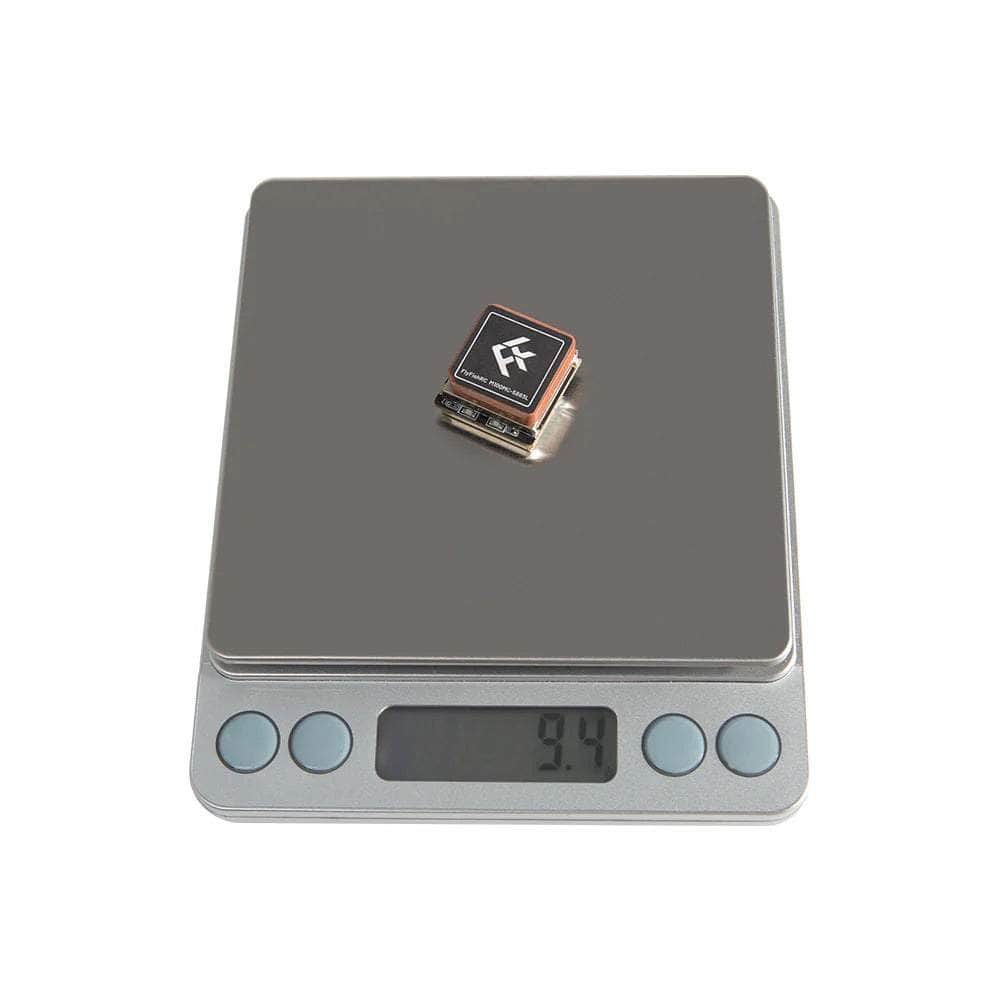

  • Weight: 8.8g

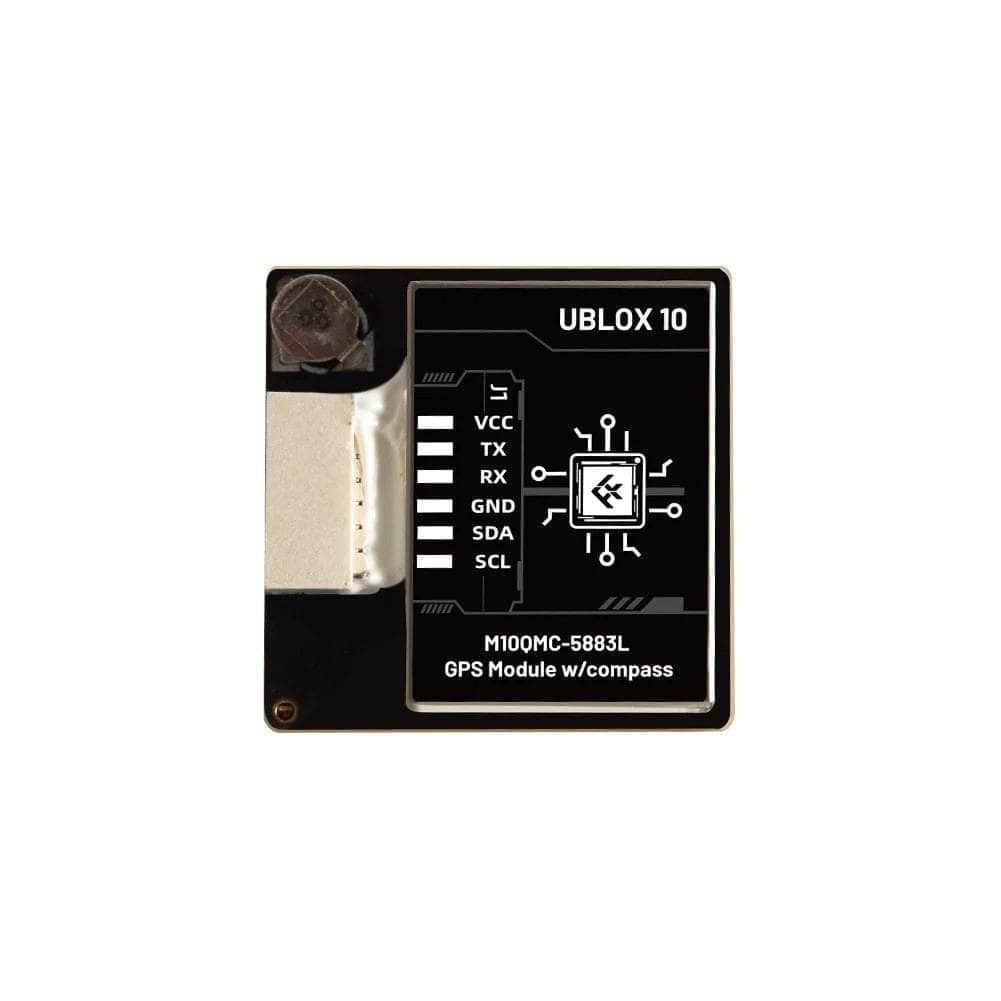

  • GPS pin definition: RX/TX UART
  • Compass pin definition: SDA/SLA
  • GPS patch antenna size: 18 x 18 mm

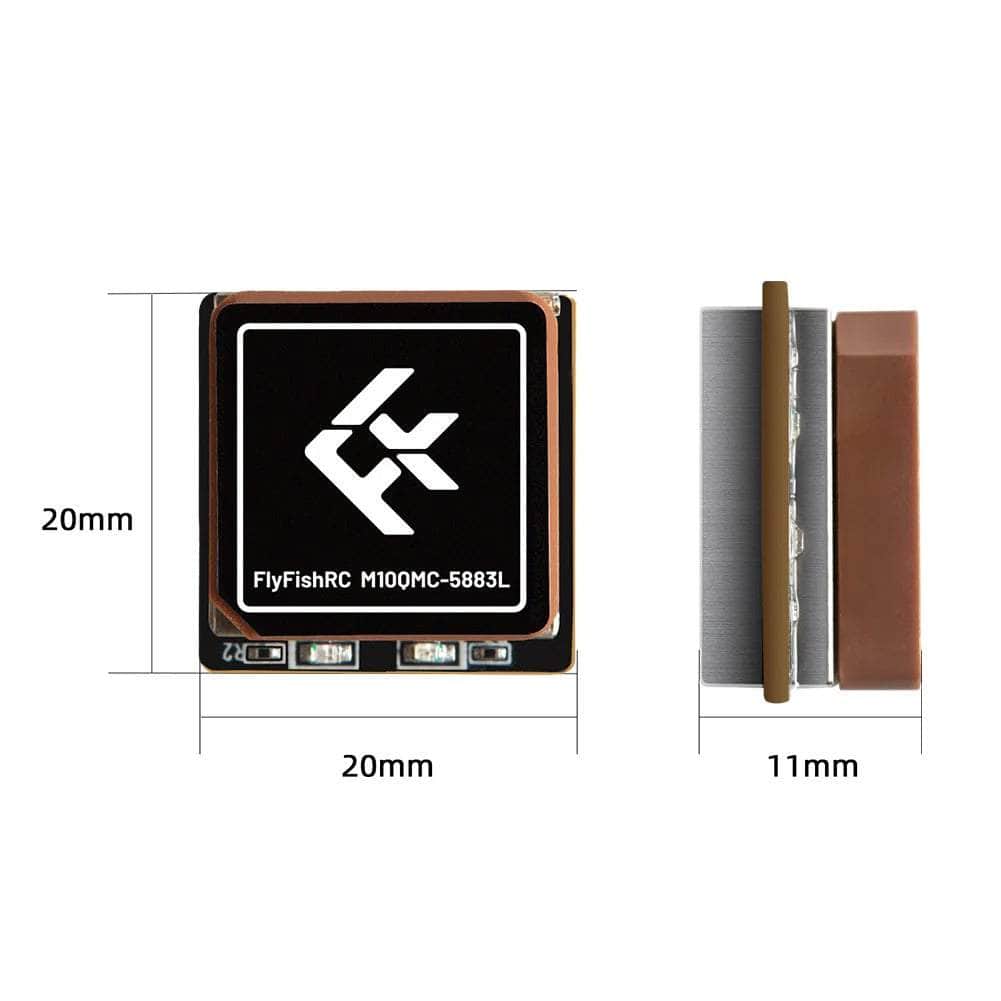

  • Total dimensions：20 x 20 x 11 mm

Includes

  • 1x FlyFishRC M10QMC GPS Module
  • 1x SH1.0-6Pin Cable
  • 1x SH1.0 Connector
  • 1x GPS Manual

More Info

  • SKU: FFSH-E001035
  • Barcode: 691023529632


Overall rating: 4.9 / 5 from 10 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["gps","module"].

Review highlights

Reviews

Quality GPS

"Its a great 10th gen GPS, get sats fast and I usually have 17-23 on any given flight."

— Mitchell A. (5/5)

It works

"Arrived quicly and in good condition. Hooked it up and set the fc and it works great."

— Timothy N. (5/5)

When it works, it's great

"Takes a while to get sats but it when it does it works well. I've had better experience with other GPS modules by HGLRC but it works. Still giving it 4 stars."

— Michael L. (4/5)

Great gps! This thing is

"Great gps! This thing is tiny, works great on those small builds."

— Jared C. (5/5)

Sweet!

"Running this under the TPU gopro mount on the Axis Manta 3.6 - gets and holds at least 9 sats.. would be more if it weren't under the tpu. If there's a downside it's that there's no connector plug and so the wires have to be soldered to very tiny pads."

— Mike L. (5/5)

Great little GPS

"Works great, as good or better than my full size M10 GPSs"

— Oliver W. (5/5)

Tiny!

"This GPS module is so small, way smaller than I expected it to be. The size of my thumbnail. But it still gets a position fix very fast, and keeps them even with a 2.4Ghz transmitter close by."

— Chris B. (5/5)

FlyFishRC M10 Mini GPS Module

"This mini gps from Flyfish is a great little gps module. Connects to sattelites really quick and i get 12 sattelites in doors on the bench. Its a great buy."

— Manuel M. (5/5)

30 Sats locked, how is that possible

"Yes! that's right, I'm frequently seeing 25 to 30+ Sats locked with this GPS unit. I'm Absolutely amazed at how well this tiny GPS works vs. some of my super expensive brand-named GPS units. I'll be purchasing a few more of these to replace some of my older GPS units. For the price you can't go wrong."

— Joseph S. (5/5)

Great gps for the $

"Great gps for the $"

— Miguel S. (5/5)

Q&A

Does this fit into the 3d printed gps mount for the Volador D5 dead cat II frame? I figure yes, but It looks like Flyfish sells a couple gps modules. Not sure which fits or if both do?
It should fit yes.
