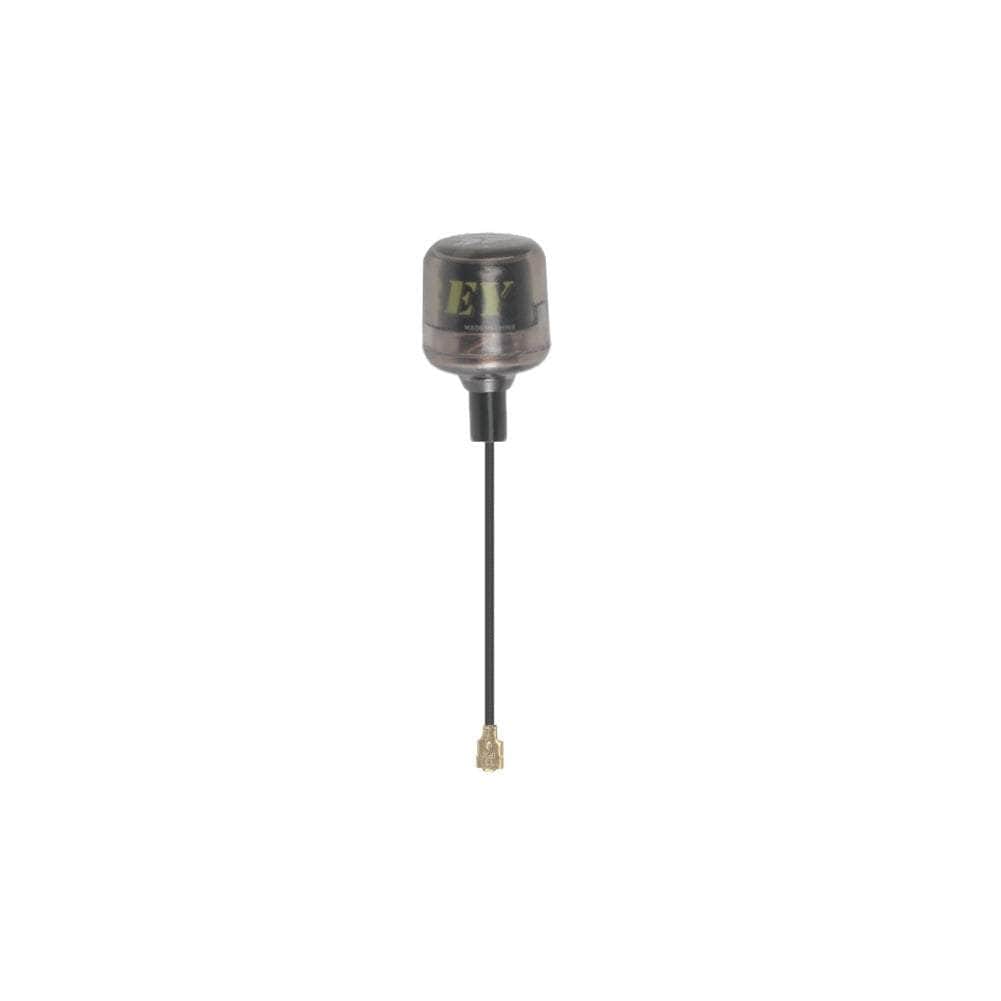

FlyFishRC Osprey 5.8Ghz 40mm U.FL Antenna - RHCP- Black

FlyFishRC Osprey 5.8Ghz 40mm U.FL Antenna - RHCP- Black

$6.99
$6.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

The FlyFishRC Osprey Antenna boasts superb penetration, signal strength, and clarity, all while being lightweight. Features include a 4-leaf construction, transparent casing, hybrid network, and 2.8dBi/99% efficiency. Measuring 14.1mm diameter x 14mm height, the antenna offers 5.6GHz-6.0GHz bandwidth for clear, strong signals. Hermetically sealed to protect its elements, the Osprey is made of impact-resistant polycarbonate material. Get all this at an attractive price.

Check out our ever-expanding selection of VTX antennas and check out our FlyFishRC products selection!

Features

  • New 4-Leaf Construction
  • Attractive price
  • Strong penetration
  • Strong signal strength
  • Strong clarity

Specifications

  • Gain: 2.82dBi
  • Frequency: 5.8GHz
  • V.S.W.R: ≤1.2:1
  • Radiation Efficiency: 99%
  • Polarization: RHCP
  • Connector: IEPX 4/UFL
  • Dimensions(head): 14.1mm dia. X 14mm height.

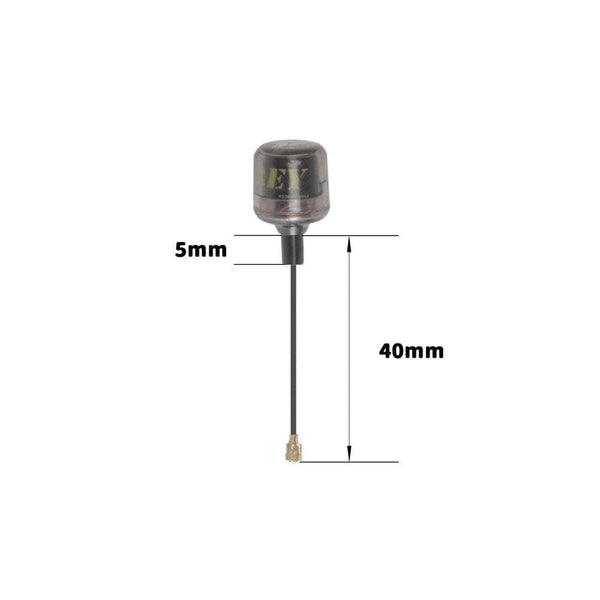

  • Length: 40mm
  • Cable: Resilient RG141 coax.
  • Colors: Transparent Black

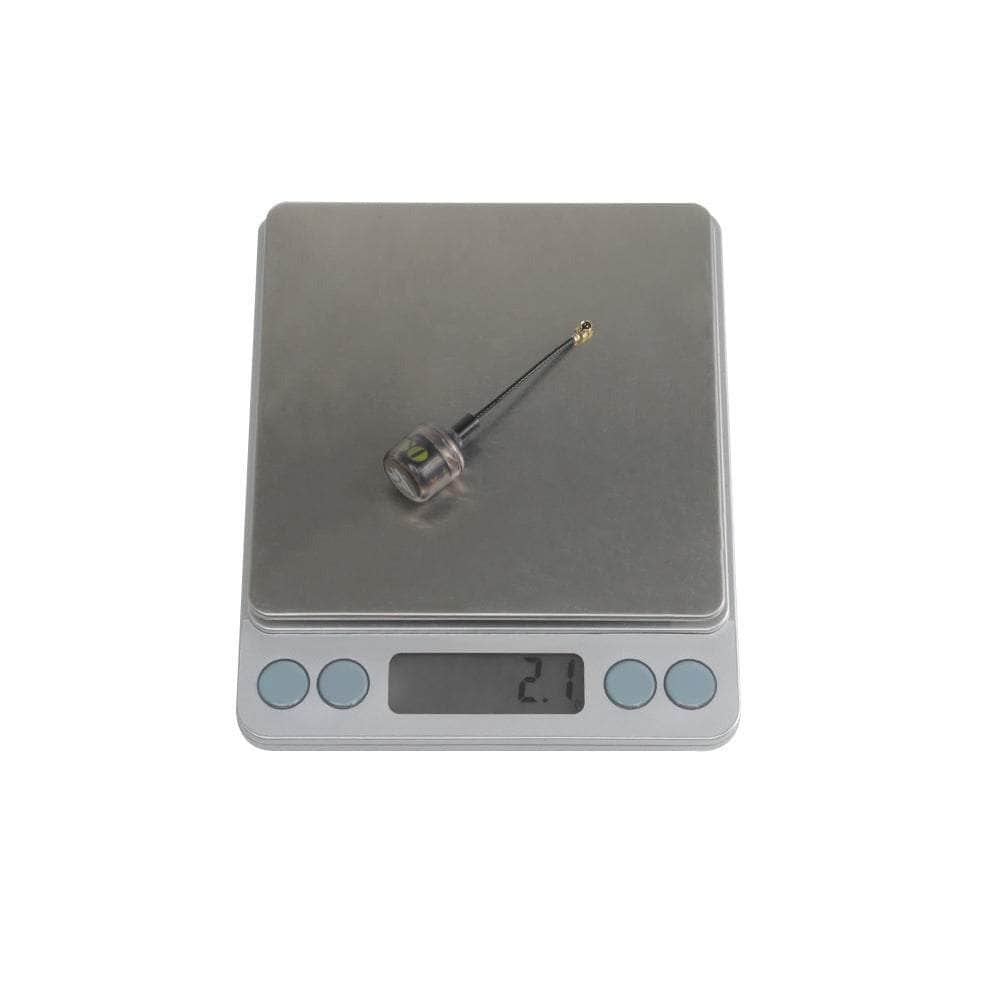

  • Weight: 2.1g

Includes

  • FlyFishRC Osprey 5.8Ghz 40mm U.FL Antenna - RHCP- Black

More Info

  • SKU: FFSH-A000504
  • Barcode: 691023513907


Overall rating: 4.7 / 5 from 10 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["range","antenna"].

Review highlights

Reviews

"Great antenna, i recommend printing a holder for it on a 75mm quad."

— Emanuel (5/5)

so so

"Have'nt found great increase in range yet vs stock linear."

— Johnson H. (4/5)

"Good"

— elijah (5/5)

Good range but the warrior

"Good range but the warrior came from U.FL pigtail connector on the first fly without any crashes and I had to Fix and glue it"

— Hassan A. (3/5)

Light and great signal. Range

"Light and great signal. Range is way better on my hdzero."

— Scott P. (5/5)

Big Performance in a Small Form Factor

"The title says it all!"

— Gerel M. (5/5)

Good antenna

"It is nice antenna, I tried it and it worked but I am still trying to decide whether I want to use U.FL or MMCX. At this time I am still using MMCX."

— Bob P. (5/5)

A shorty that works well!

"Great little antenna! Just be mindful of how delicate the u.fl connectors are and it'll work good for you."

— John M. (5/5)

Good antenna for hdzero race

"Good antenna for hdzero race"

— Christopher N. (5/5)

Good Antenna

"I used this one on an Odonata Ironclad build. Great little antenna. Even hooked up to an OVX300 I'm getting better than expected range and penetration. Will definitely use this one again."

— joey w. (5/5)
