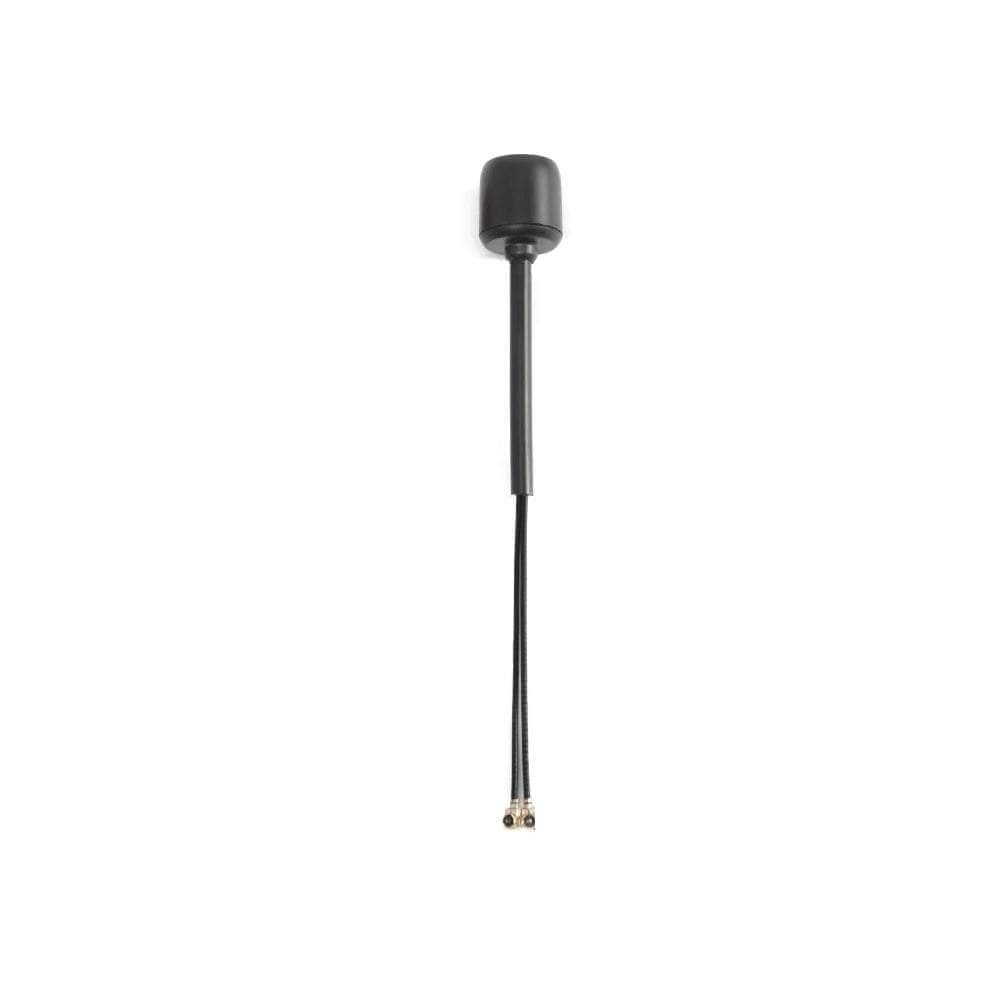

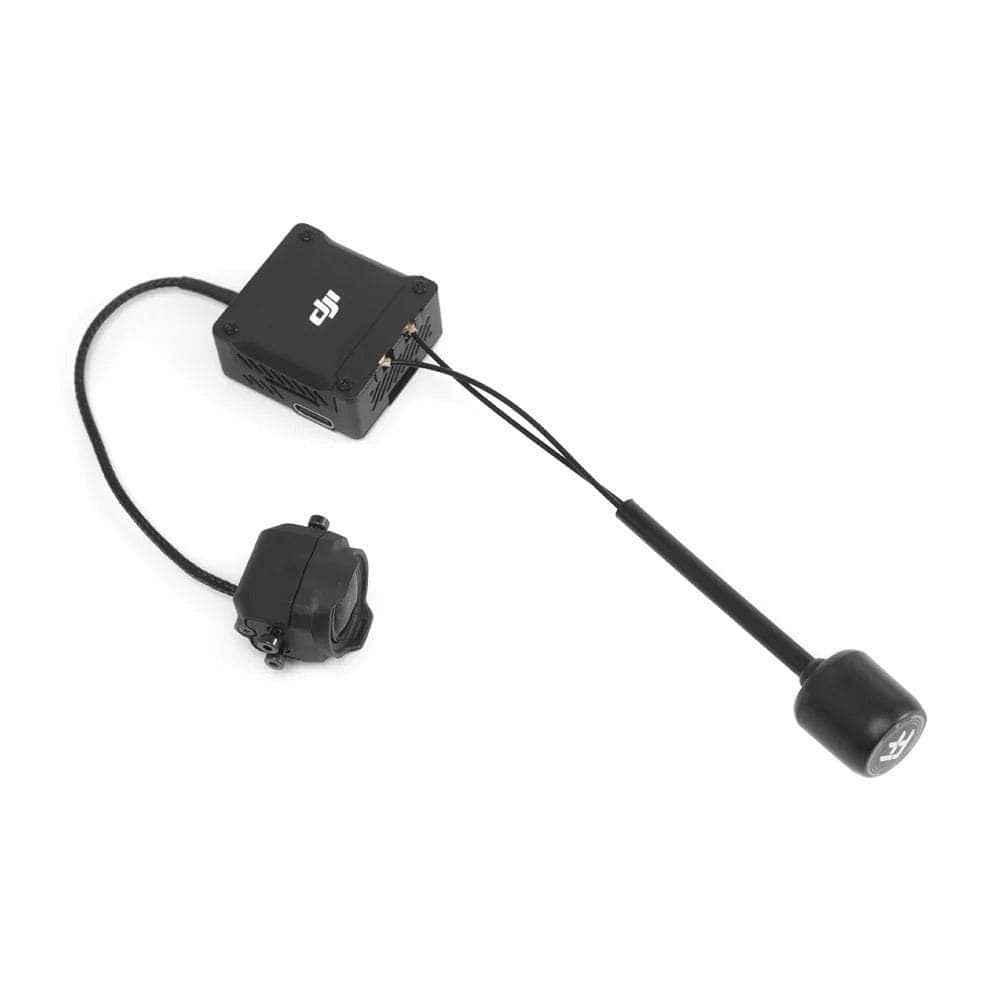

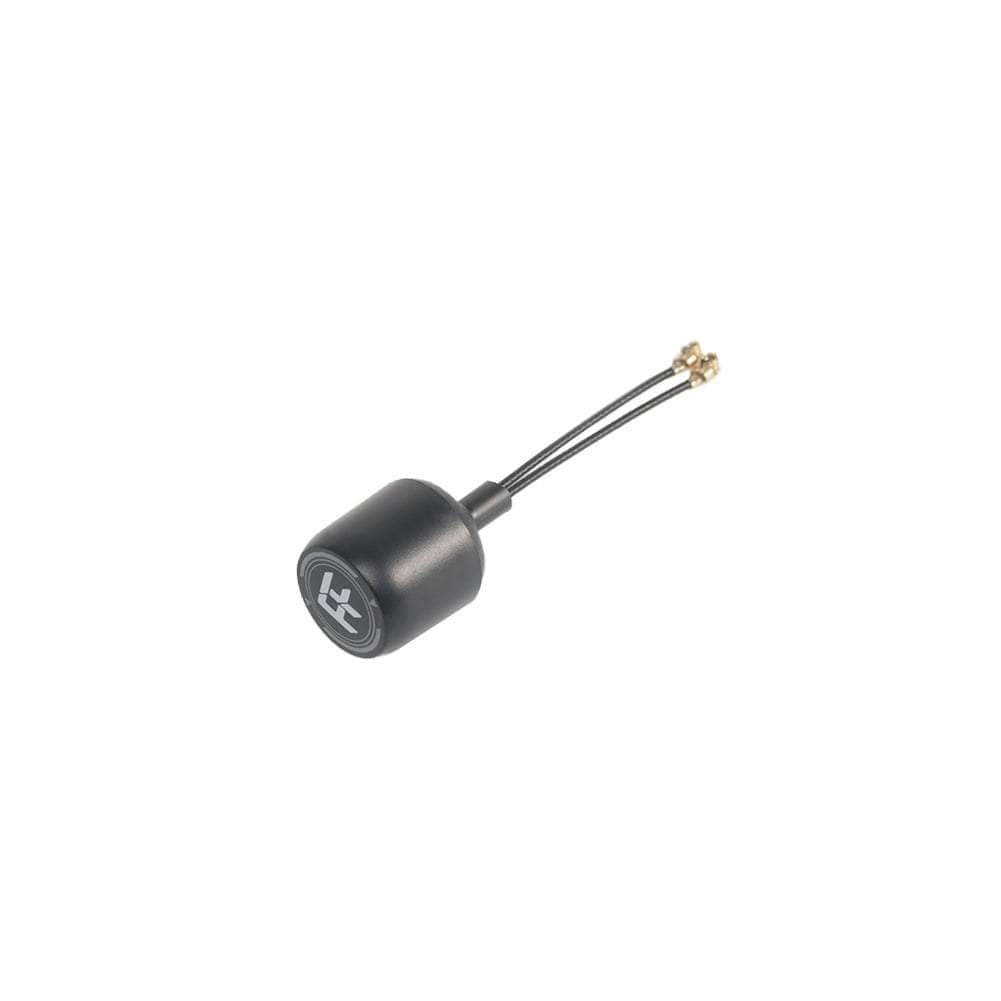

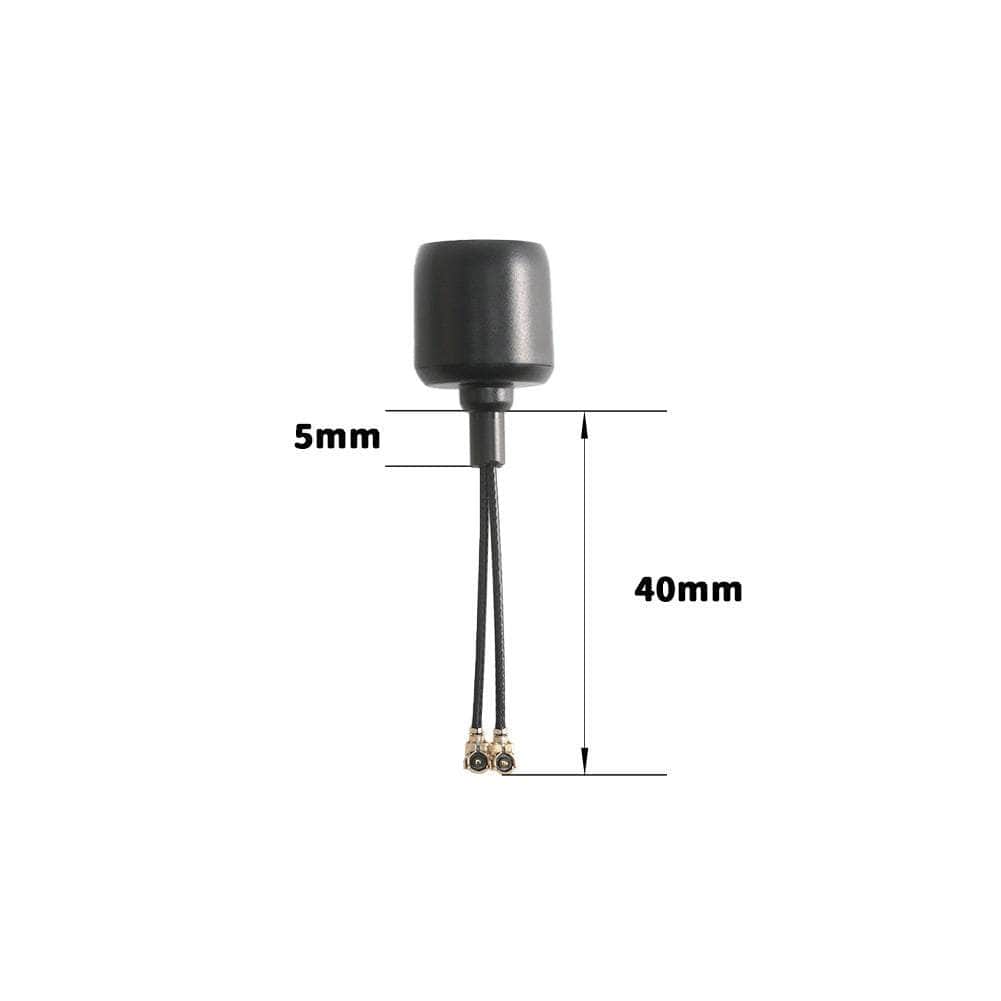

FlyFishRC offers a dual-band dual-polarized omni-directional antenna for the DJI O3 Air Unit that features internal integration of 2.4G and 5.8G dual-band dual-polarized technology to provide comparable compatibility and performance to the original device. It has a strong anti-interference capability for long-distance transmission and is equipped with a dual U.FL connector (IPEX1), making it small and lightweight. The antenna comes black with 95mm or 40mm length. It's housing is made of impact-resistant polycarbonate material, providing a smooth surface and durability.
We only are selling the 95mm Antenna in Red.
Check out all our DJI O3 Antennas and our FlyFishRC product selection!
Specifications
- Frequency Range: 2400-2500MHz/5700-5900MHz
- Gain: 2.5dBi/3.8dBi
- VSWR≤1.6
- Polarization: Linear
- Impedance: 50Ω

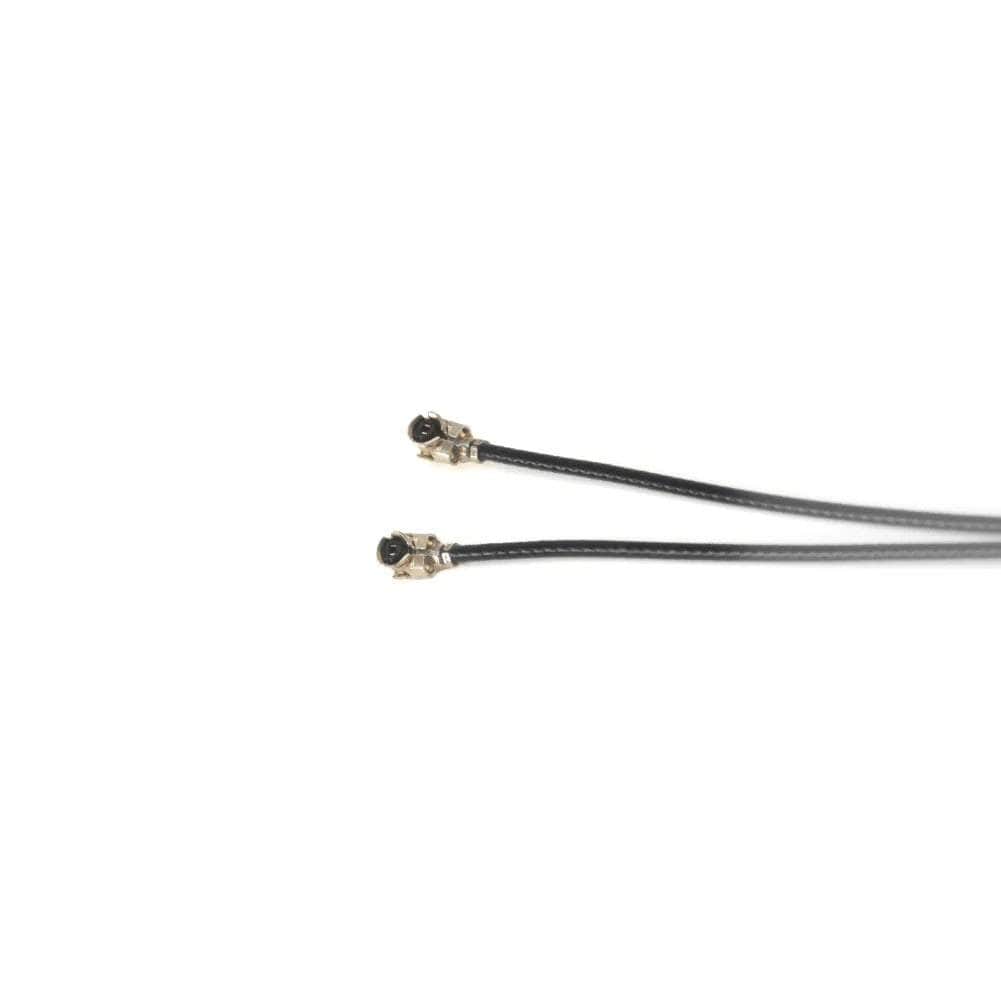

- Connector: 2x U.FL (2x IPEX1)
- Cable: RF1.13
- Weight: 3.2g
- Size: Φ16x17mm
Includes
- 1x FlyFishRC Osprey Dual Band Antenna 5.8GHz / 2.4GHz U.FL Antenna for DJI O3 Air Unit - Black - Choose Version
More Info
- SKU: FFSH-A000466
- Barcode: 6971360354895
