Description

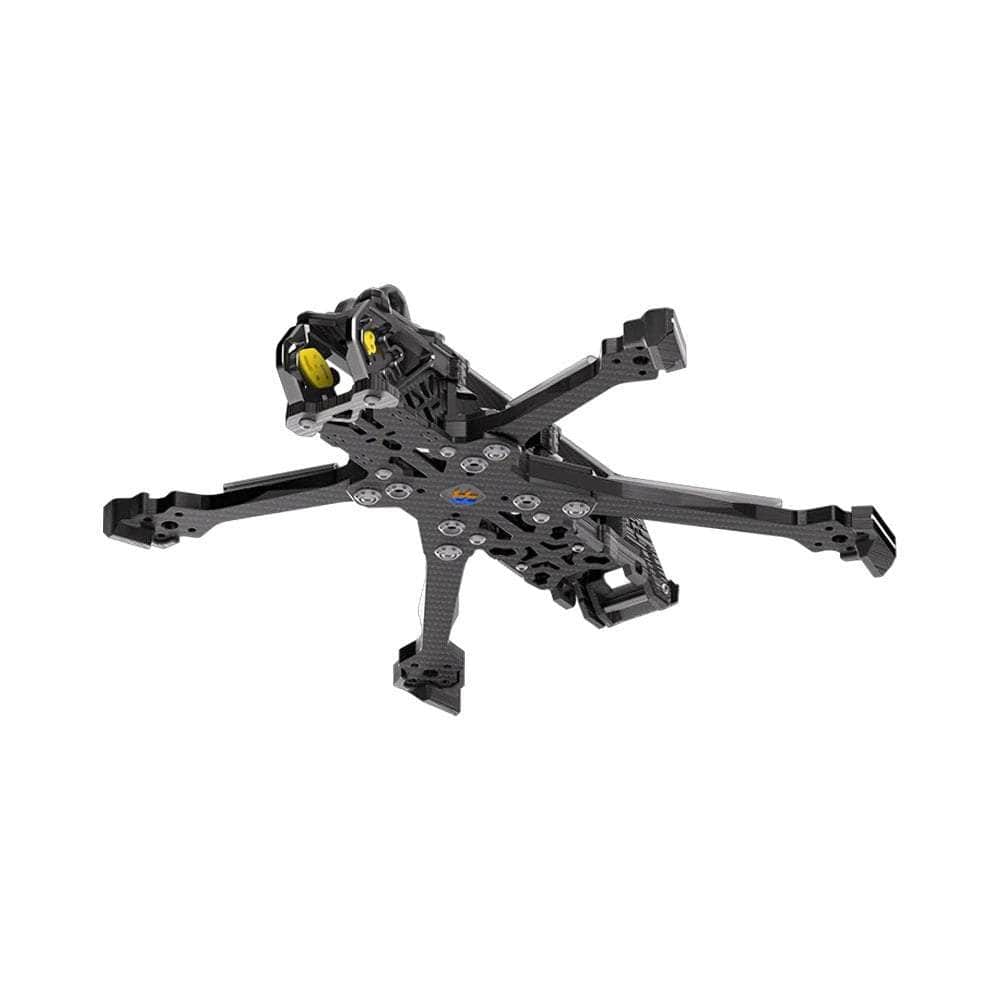

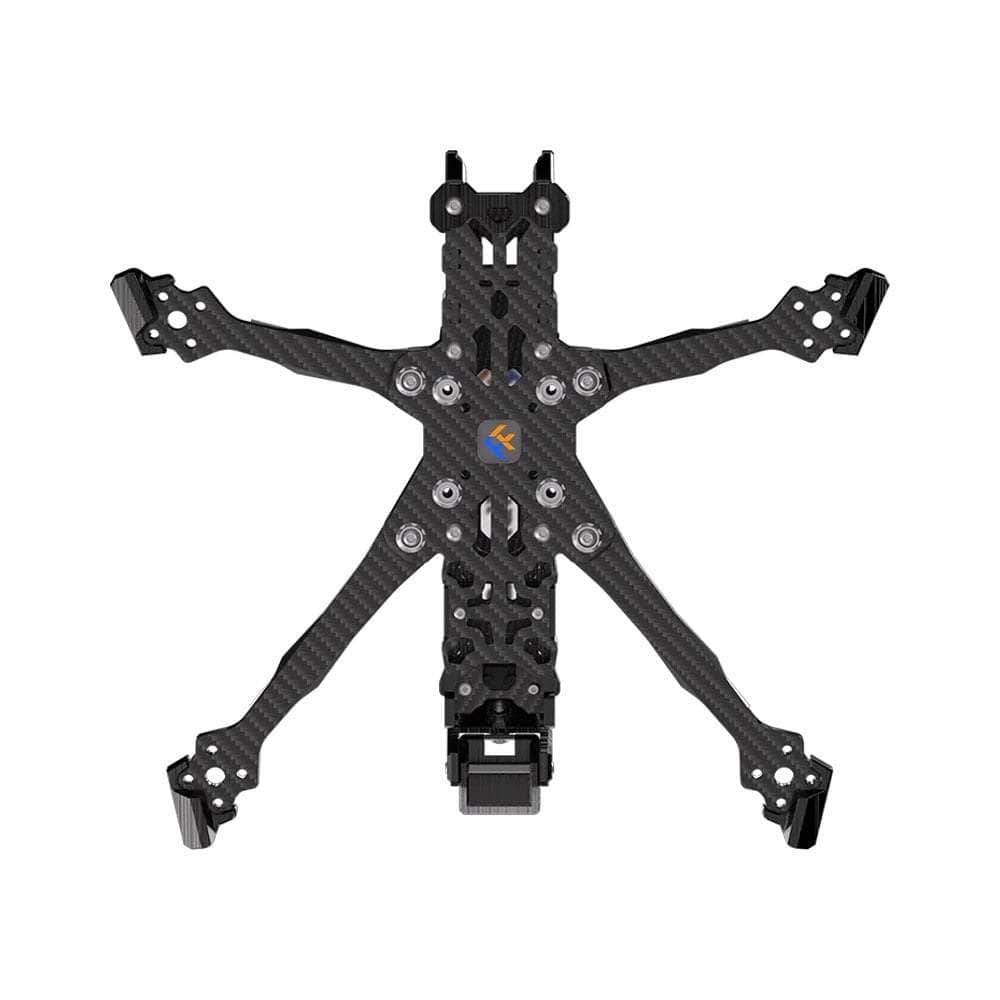

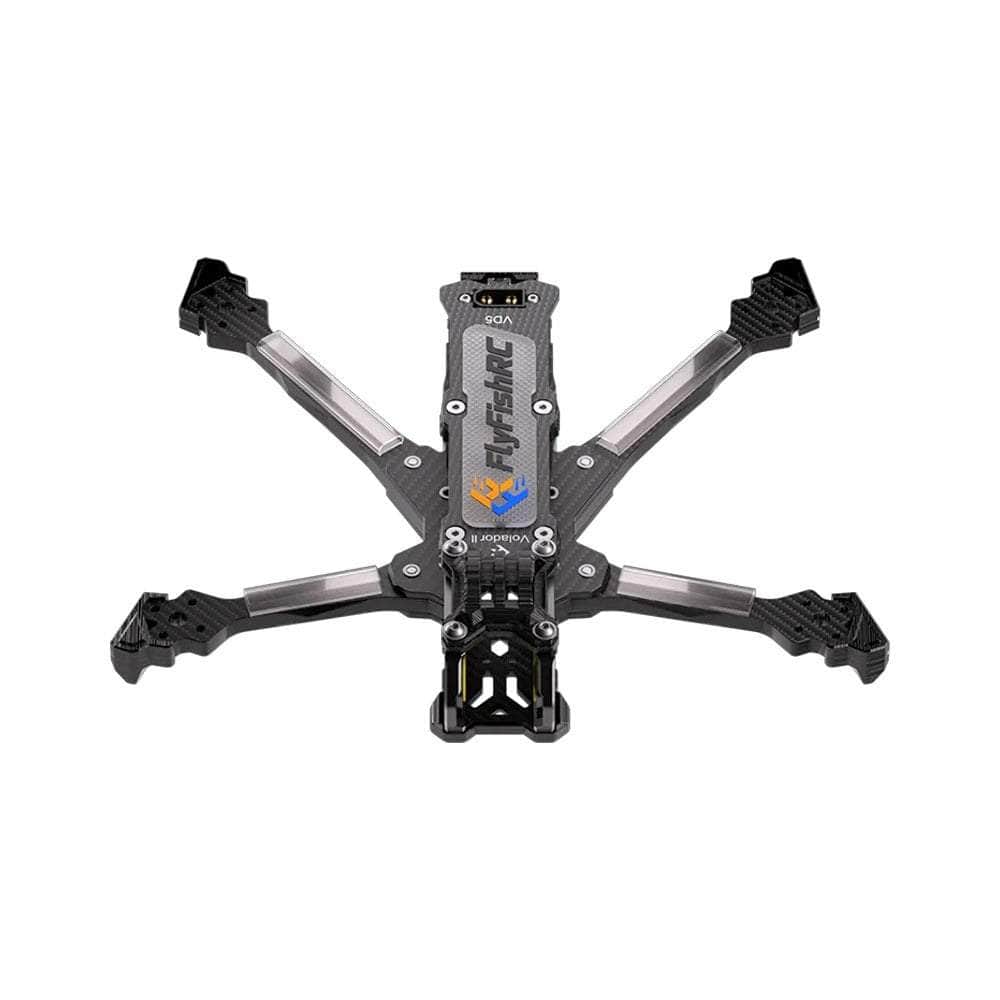

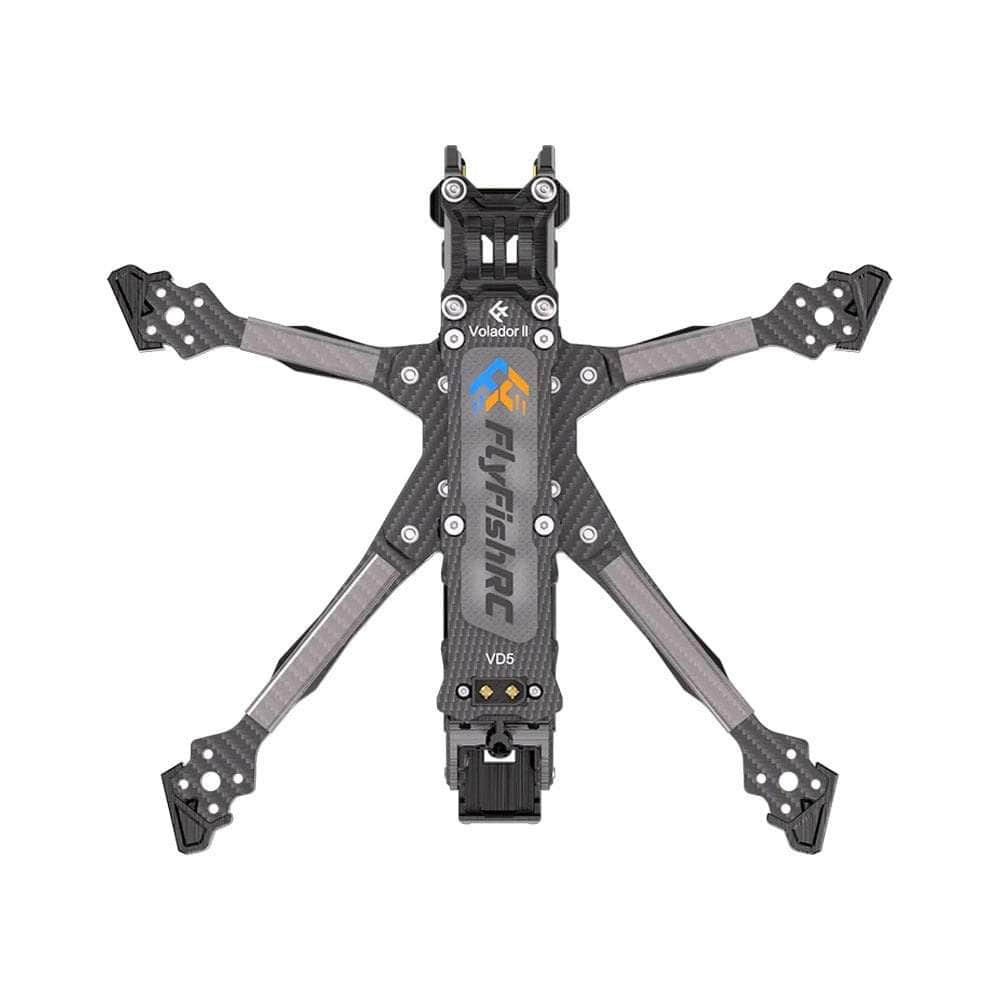

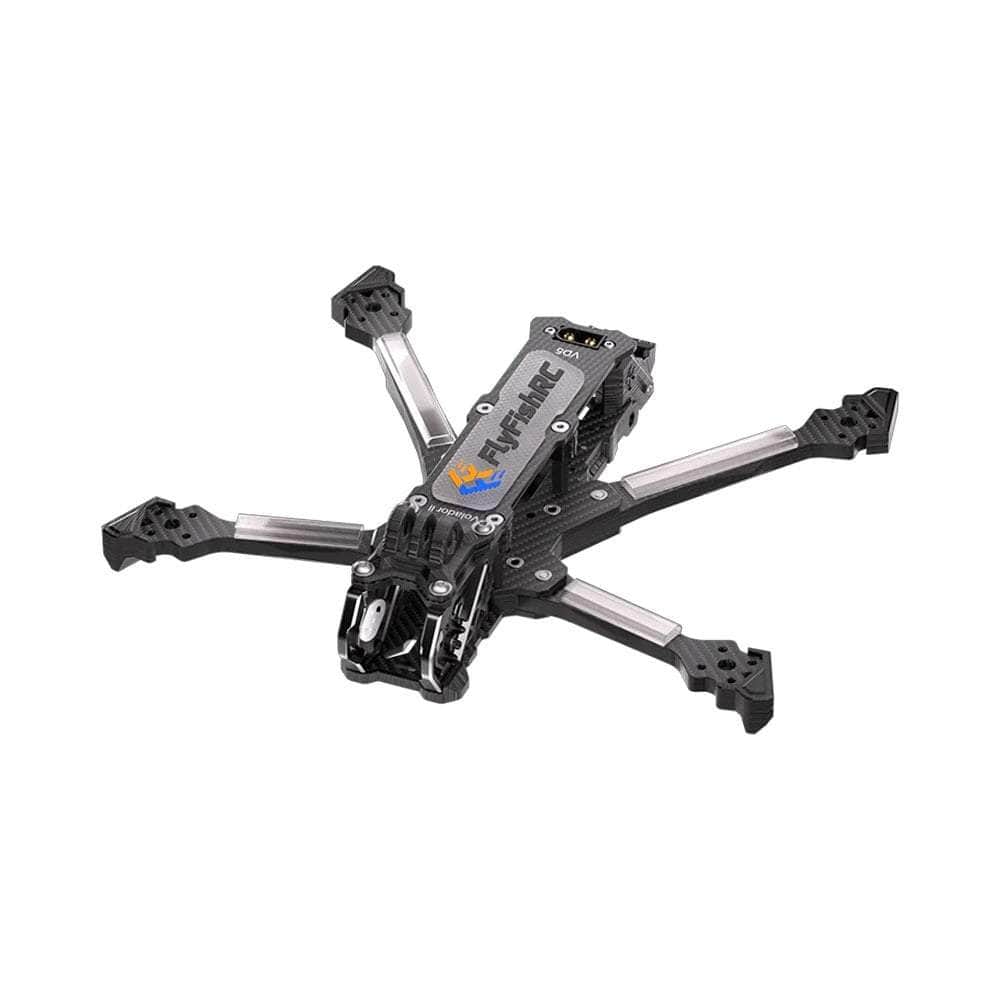

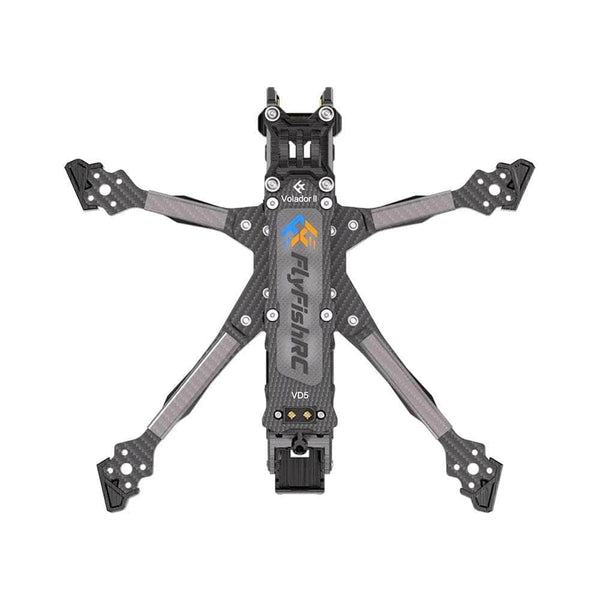

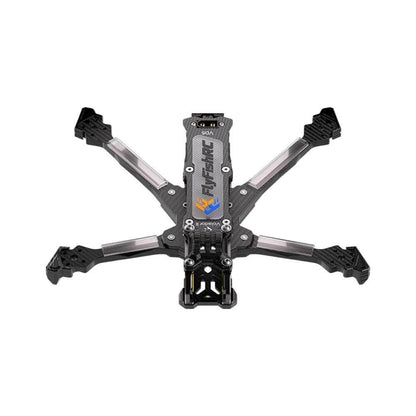

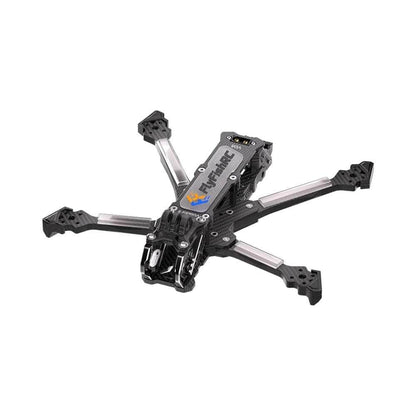

The FlyFishRC Volador II VD5 O4 Pro Frame Kit is a refined 5-inch Deadcat frame designed for ultra-clean HD footage with no props in view. Based on pilot feedback, it’s been upgraded for easier builds, better durability, and a sleeker look. Using smart design features like an anti-vibration camera mount for the DJI O4, high-quality materials, and neatly integrated parts, the VD5 offers a smooth, stable flying experience and a super tidy setup.

Check out our other 5" frames as well as the rest of our FlyFishRC products selection!

Features

• CNC aluminum camera plates
• Strong hardware with Loctite
• Low-resonance frame design
• Fits 19mm & 20mm cameras
• Anti-jello O4 camera mount
• Durable TPU components
• Wide electronics support
• Built-in XT60 connector
• Ready for analog & HD
• Motor wire protectors
• Anti-slip battery pad
• T700 carbon fiber

Specifications

• Stack mounting holes: 20mm x 20mm / 30.5mm x 30.5mm (M3)
• VTX mounting holes: 20mm x 20mm / 25.5mm x 25.5mm (M2)
• Total Dimensions: 190 mm x 136 mm
• Wheelbase: 225mm
• Weight: 186.4g (with TPU parts)
• FPV cam spacing: 19mm / 20mm
• Bottom plate thickness: 2.5mm
• CNC Side plate thickness: 5mm
• Middle plate thickness: 2.5mm
• Material: T700 carbon plate
• Top plate thickness: 2.5mm
• Side plate thickness: 2mm
• Keystone thickness: 5mm
• Propeller size: 5~5.1 inch
• Arm Thickness: 6mm
• Color: Black

Includes

• 1x FlyFishRC Volador II VD5 O4 Pro Frame Kit - Black
