Description

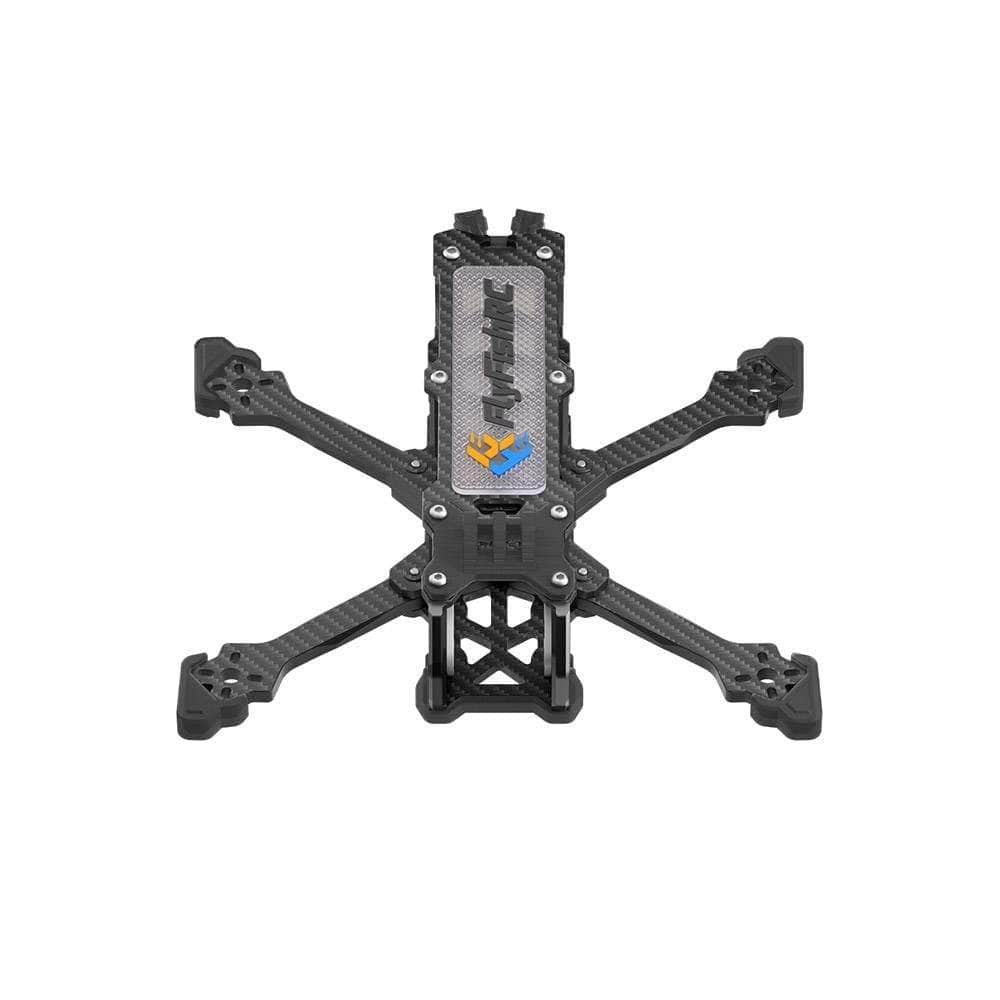

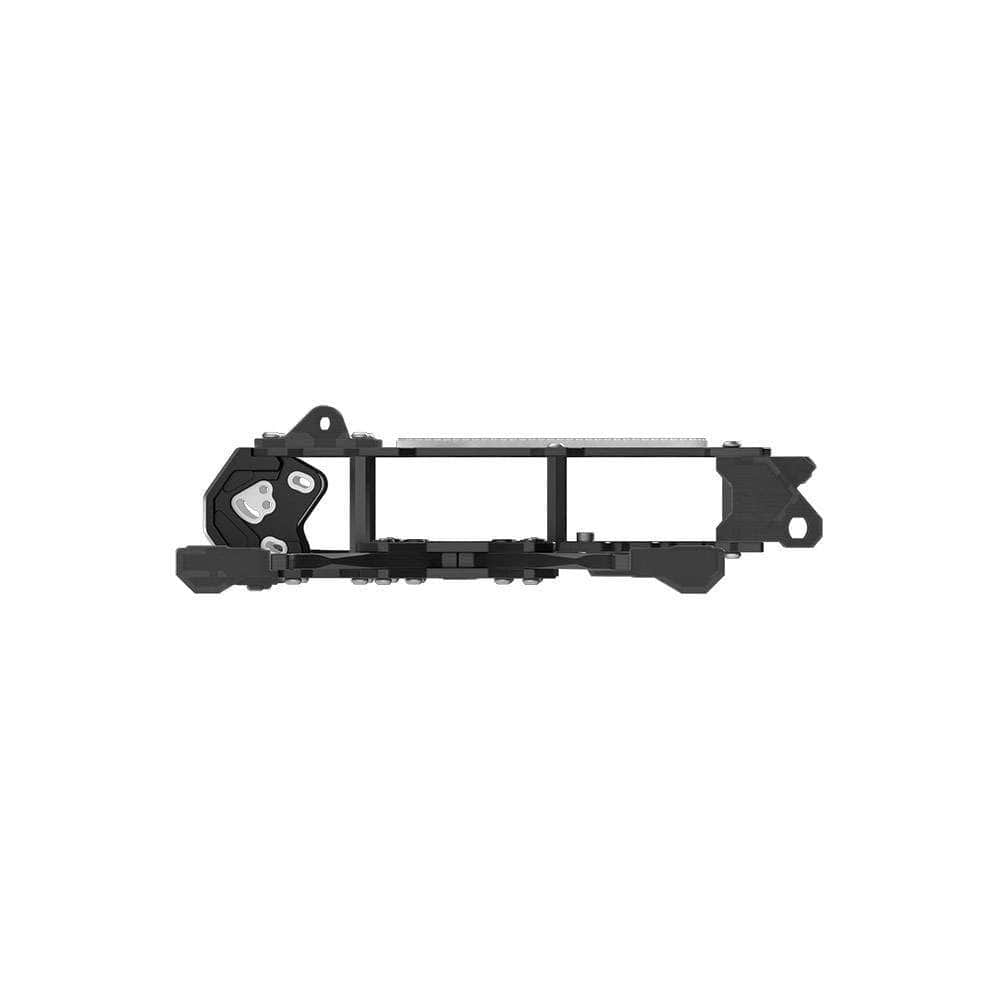

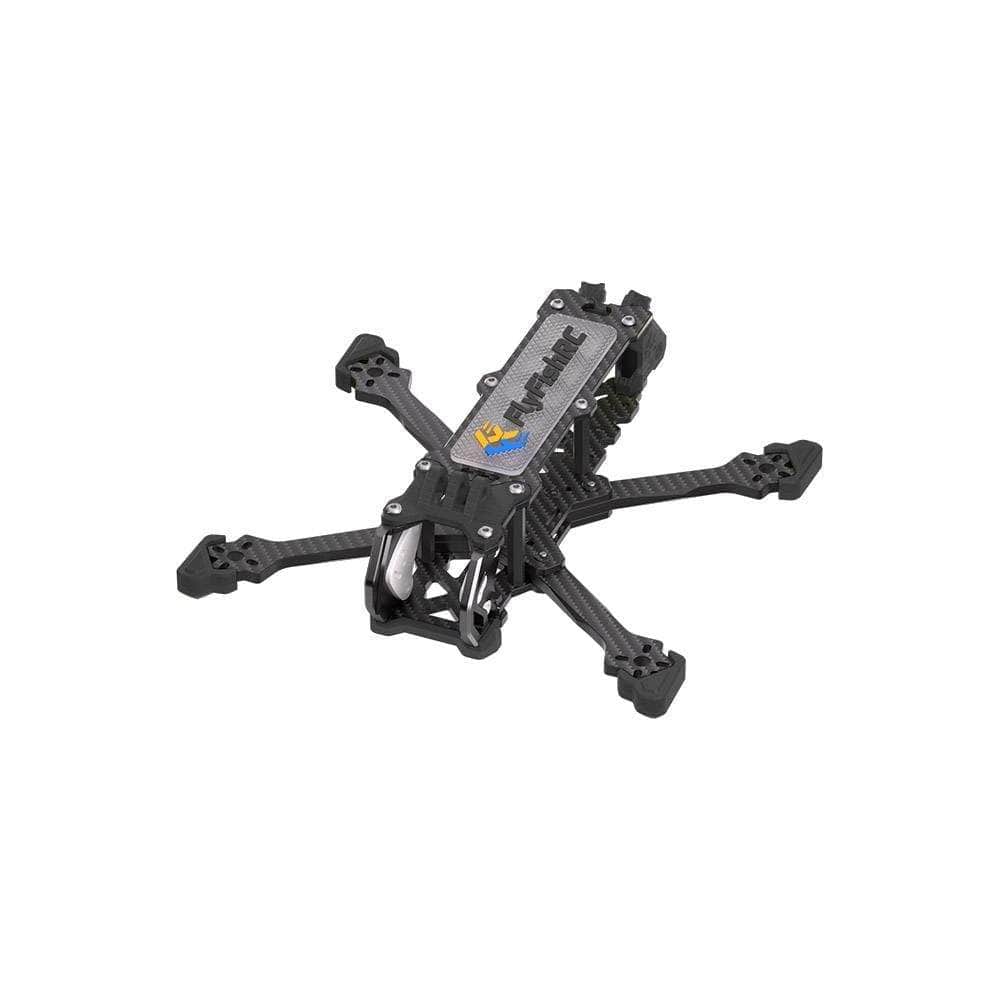

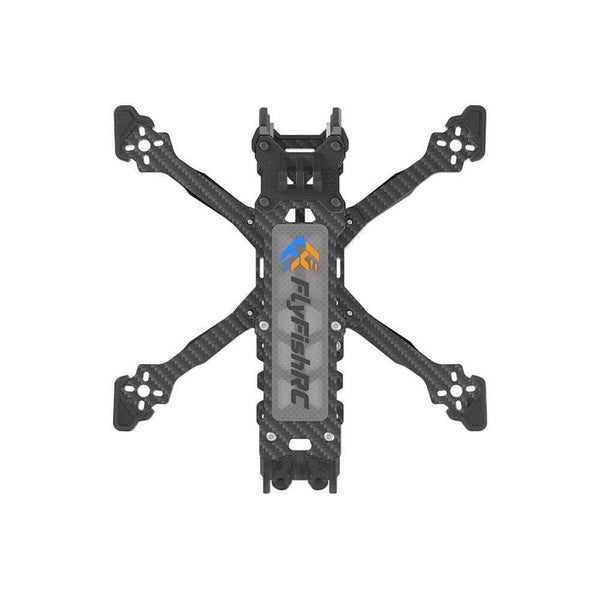

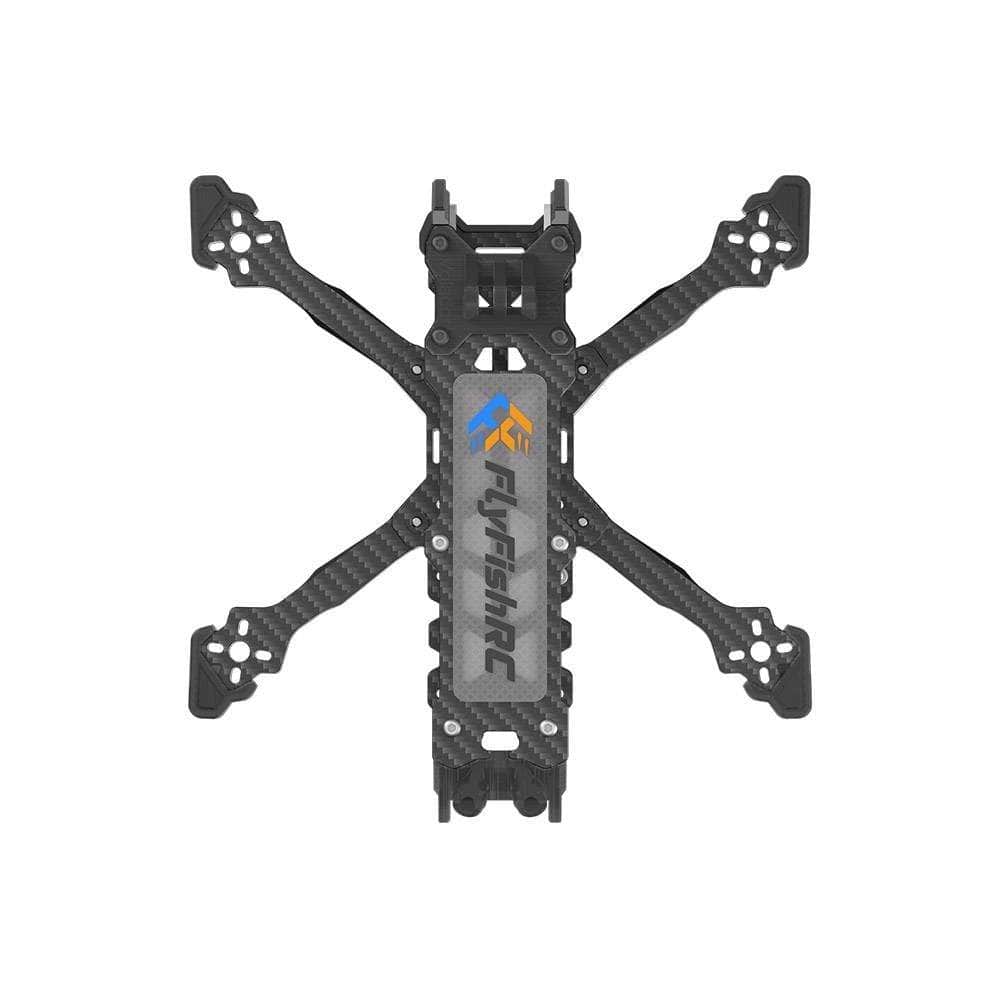

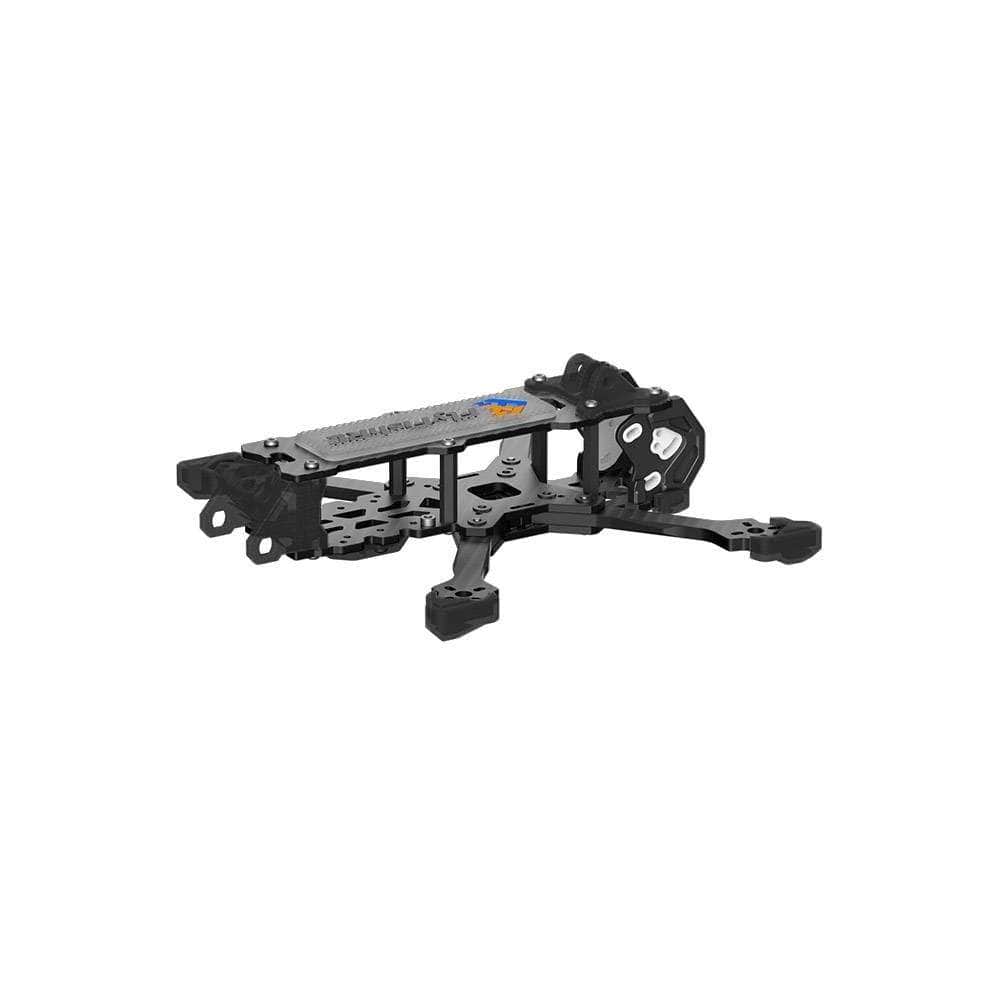

Introducing the FlyfishRC Volador VX3 frame Kit—Compact yet powerful design that delivers a true 5-inch flight experience in a smaller footprint. Featuring a Squashed X layout for precise control and wide system compatibility (analog and HD, including DJI O3/O4), these frames are built with premium T700 carbon fiber and CNC aluminum for durability and sleek aesthetics.

Check out our other 3" frames, as well as the rest of our FlyFishRC products selection!

Features

• Supports DJI O3/O4 Air Unit, Caddx Vista, Runcam Link Wasp, Avatar HD, and more
• Reinforced, thickened arm design for improved impact resistance
• Grade 12.9 hardware pre-coated with Loctite for extra reliability
• Precision-molded TPU components for a clean, integrated build
• Premium T700 carbon fiber plates for strength and durability
• 7075 aluminum alloy camera mounts for added protection
• Custom anti-slip battery pad for secure battery placement

Specifications

• Arm Thickness: 3.5mm
• Top plate thickness: 2mm
• Middle plate thickness: 2.4mm
• Bottom plate thickness: 2.4mm
• Keystone thickness: 3.5mm
• CNC Side plate thickness: 5mm
• Propeller size: 3.5 inch
• Material: T700 carbon plate
• FPV cam spacing: 19mm/20mm
• VX3 Weight: 68.3g(with TPU parts)
• Color: Black
• VX3 Total Dimensions:118mm x 135mm
• Wheelbase: 144mm
• Stack mounting holes: 20mm x 20mm / 25.5mm x 25.5mm(M2)
• VTX mounting holes: 20mm x 20mm / 25.5mm x 25.5mm(M2)

Includes

• 1x FlyFishRC Volador VX3 3.5" O4 Frame Kit - Black
