Details
Description

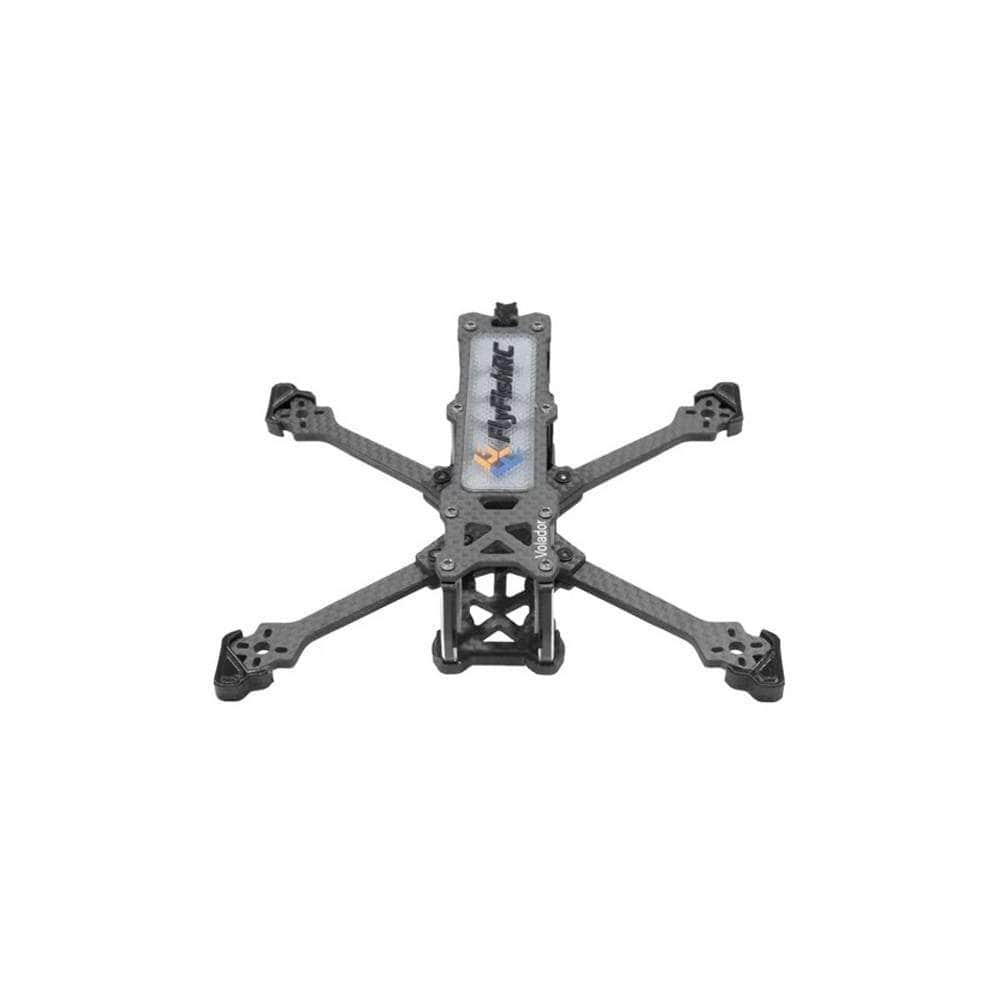

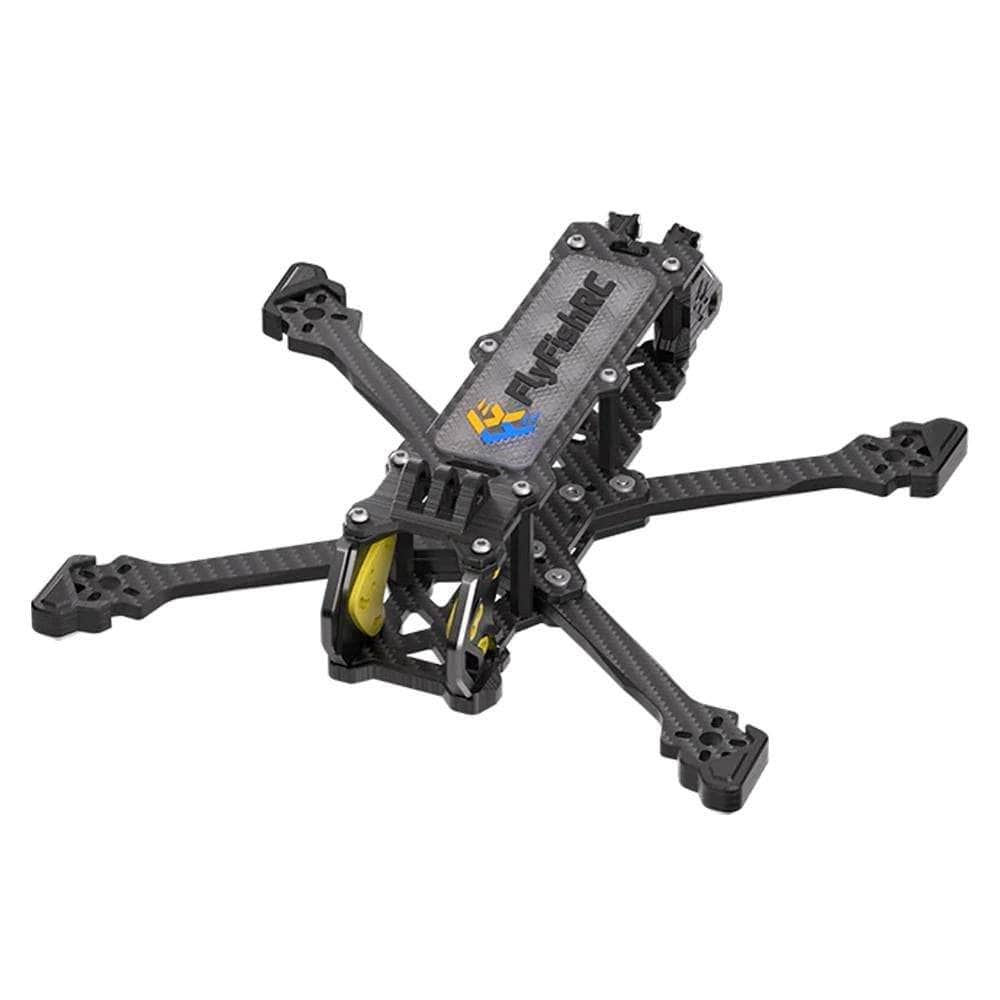

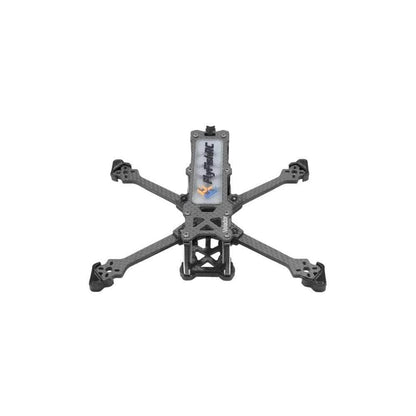

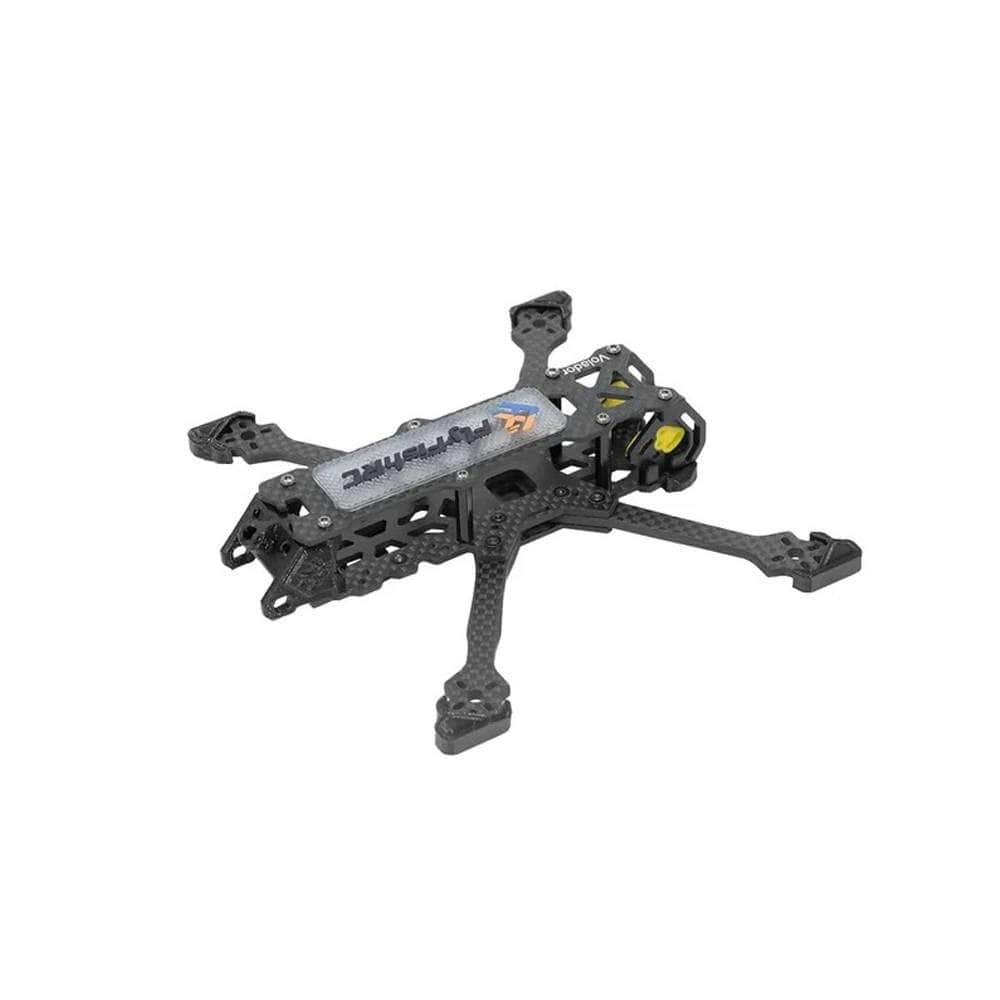

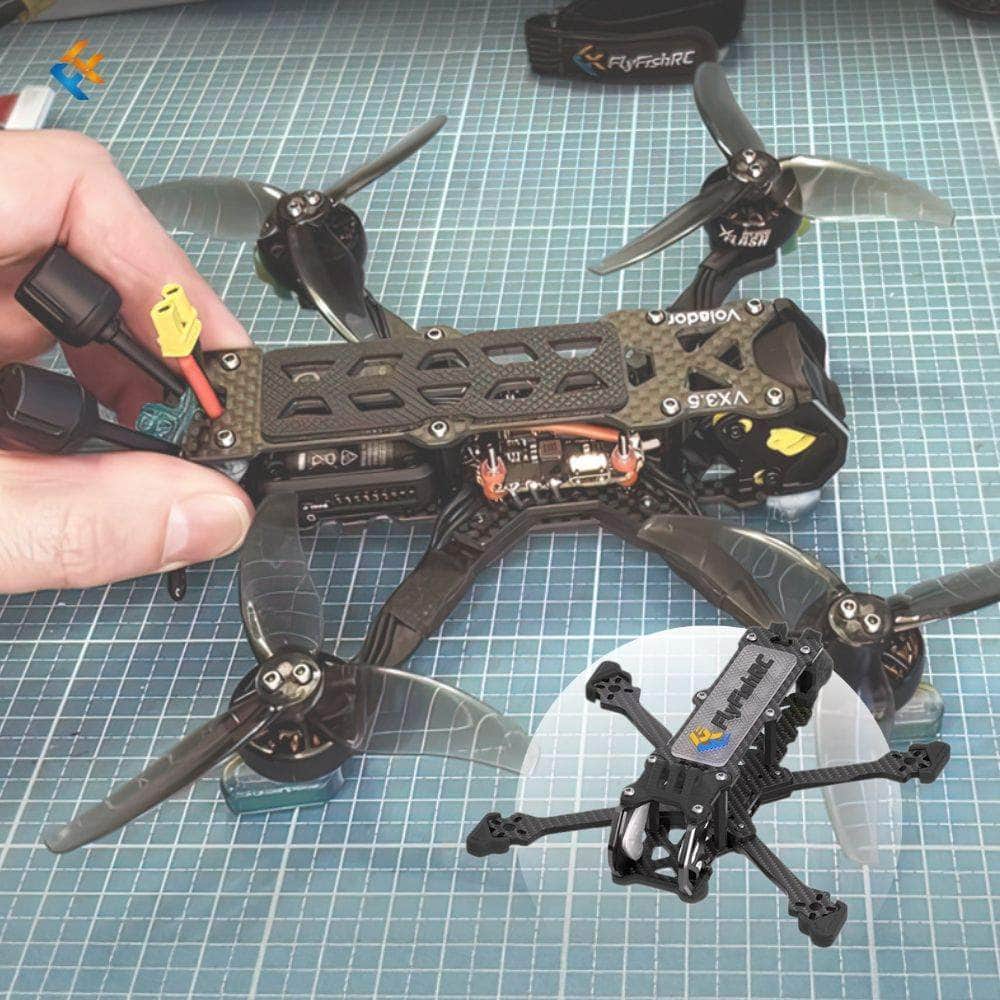

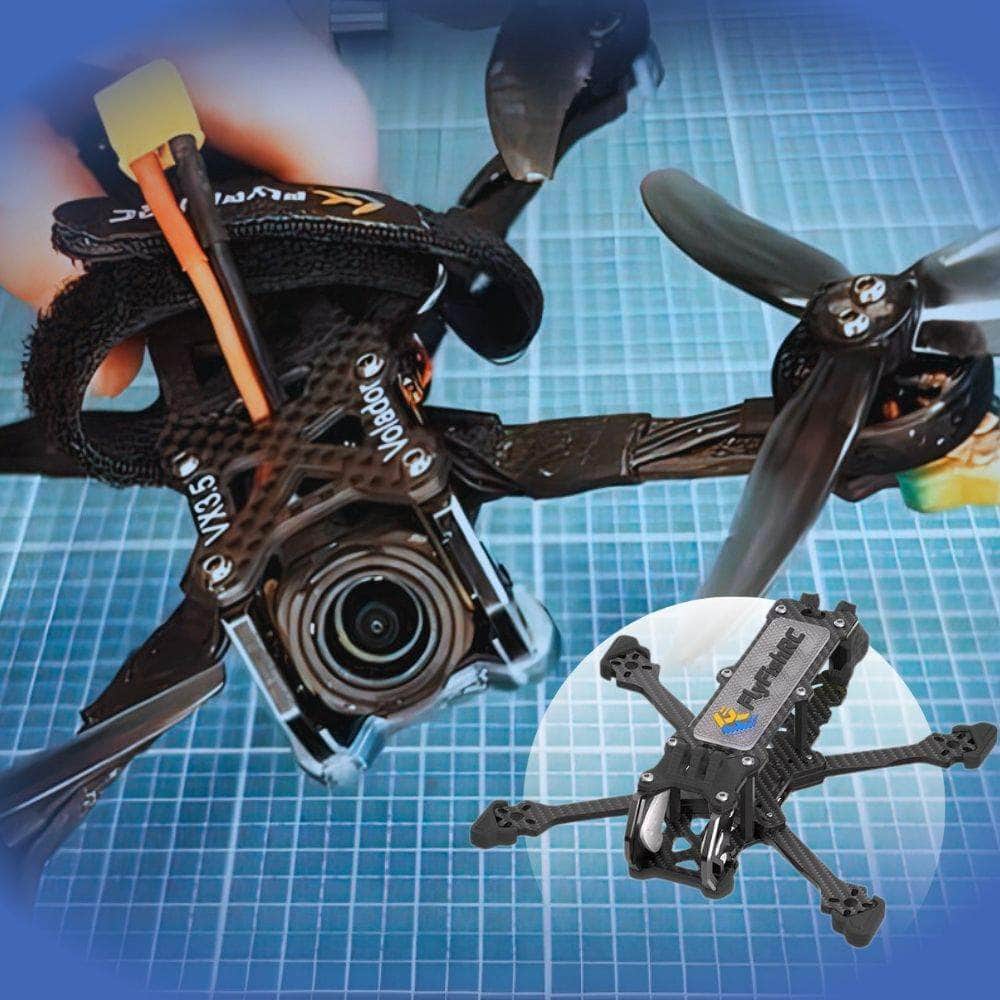

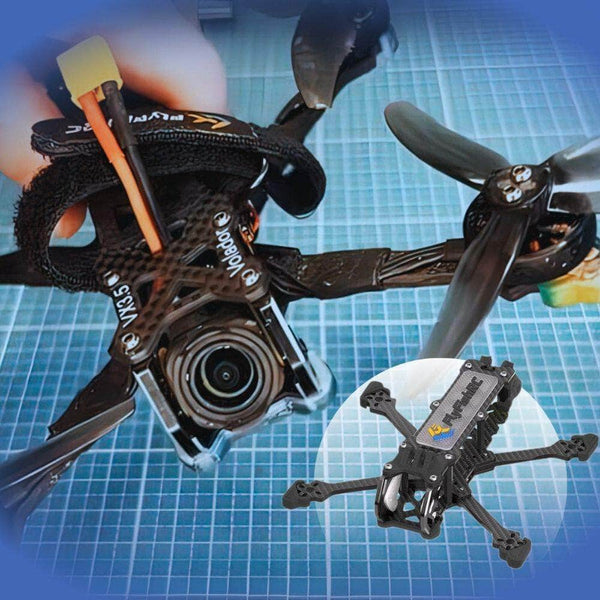

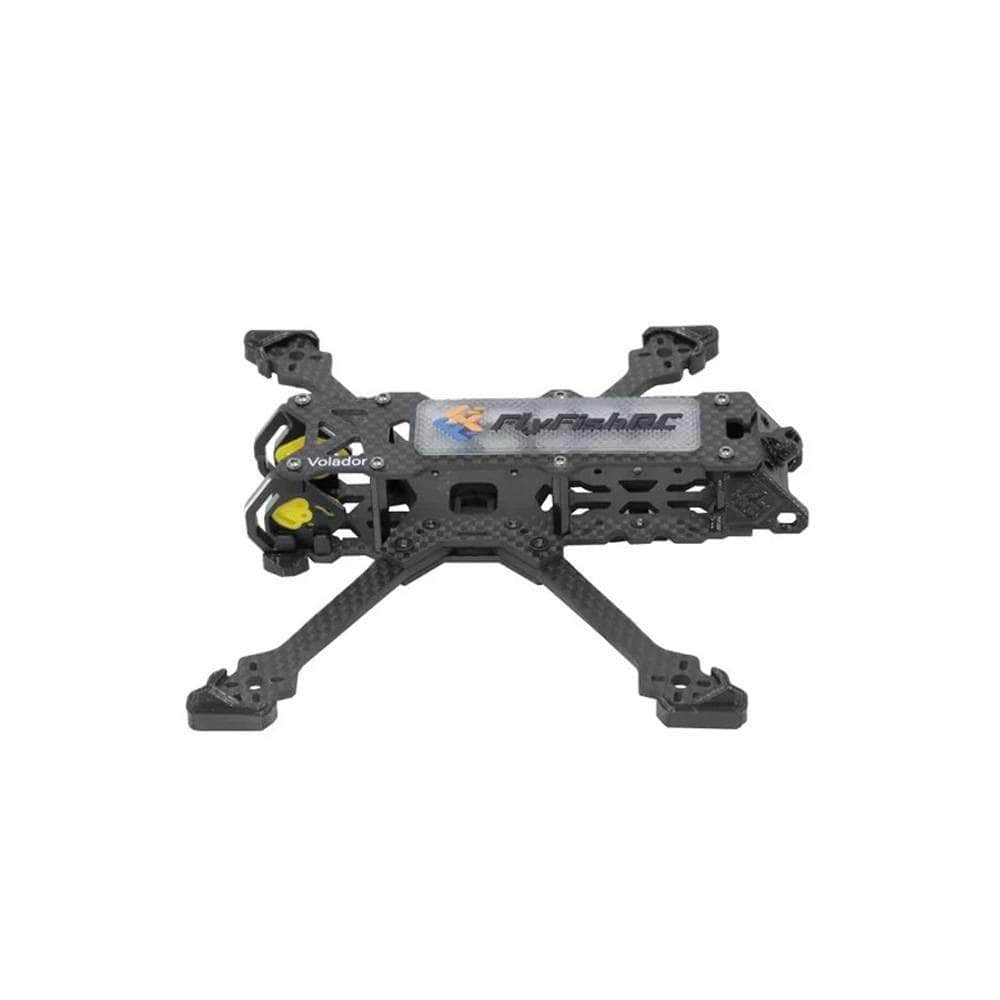

The FlyFishRC Volador VX3.5 3.5" O4 Pro Freestyle Frame Kit is designed with a Squashed X configuration, allowing for maximum control and compatibility with DJI O4 Pro. The high-quality TPU components are cleverly designed to facilitate a more integrated and neat installation, ensuring that even pilots with a degree of OCD will be satisfied with the cleanest possible appearance. The frame comes equipped with TPU set and Ā hardware with Loctite thread-locking adhesive is provided to increase reliability. The tight structural design minimizes resonance.
Check out our other 3" frames, as well as the rest of ourĀ FlyFishRC products selection!
Features
- 5" Flying experience in a 3.5" package
- Squashed X Configuration
- Designed for neat electronic integration
- CNC Aluminum alloy
- T700 Carbon fiber
Specifications
- Stack mounting holes: 20mm x 20mm / 25.5mm x 25.5mm(M2)
- VTX mounting holes: 20mm x 20mm / 25.5mm x 25.5mm(M2)
- VX3.5 Total Dimensions: 127.5mm x 148mmĀ
- Arm Thickness: 3.5mm
- Top plate thickness: 2mm
- Middle plate thickness: 2.5mm
- Bottom plate thickness: 2.5mm
- Keystone thickness: 3.5mm
- CNC Side plate thickness: 5mm
- Propeller size: 3~3.5 inch
- Material: T700 carbon plate
- FPV cam spacing: 19mm/20mm
- VX3.5 Weight: 70.5g (with TPU parts)
- TPU Color: Black
- Wheelbase: 160mm
Includes
- 1x FlyFishRC Volador VX3.5 3.5" O4 Pro Freestyle Frame Kit
- 1x Black TPU Frame Parts
- 1x Hardware set
More Info
- SKU: 23301
- Barcode: 723326374678
