Description

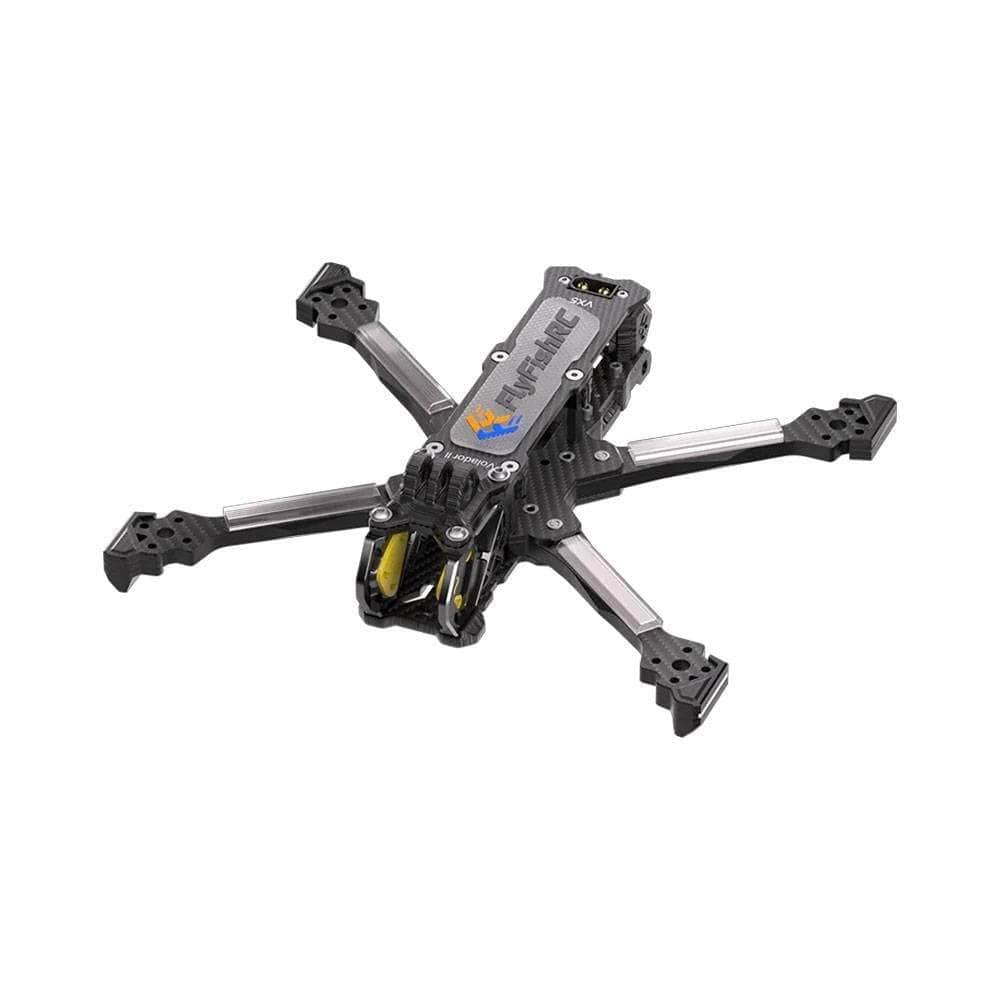

The FlyFishRC Volador II VX5 O4 Pro Freestyle Frame Kit is a refined 5” Squashed X frame built for top-tier performance and ultra-clean builds. Now optimized through community feedback, it features high-strength T700 carbon fiber, CNC aluminum parts, and tightly integrated TPU components for enhanced durability and aesthetics.

Check out our other 5" frames as well as the rest of our FlyFishRC products selection!

Features

• The new CNC aluminum camera plates effectively protect the camera
• 12.9-grade strength hardware with Loctite threadlocker pre-applied
• Equipped with all accessories needed for analog and HD builds
• The silicone shock-absorbers for the O4 AU eliminate jello
• Integrated XT60 connector for safety and reliability
• Tight structure design minimizes resonance
• Compatible with both 19/20mm cameras
• New motor wire protection tubes
• Innovative anti-slip battery pads
• High electronics compatibility
• High-end T700 carbon fiber
• High-quality TPU parts

Specifications

• Arm Thickness: 6mm
• Top plate thickness: 2.5mm
• Middle plate thickness: 2.5mm
• Bottom plate thickness: 2.5mm
• Keystone thickness: 5mm
• Side plate thickness: 2mm
• CNC Side plate thickness: 5mm
• Propeller size: 5~5.1 inch
• Material: T700 carbon plate
• FPV cam spacing: 19mm/20mm
• Weight: 177.4g (with TPU parts)
• Total Dimensions: 177mm x 165mm
• Wheelbase: 225mm
• Stack mounting holes: 20mm x 20mm / 30.5mm x 30.5mm(M3)
• VTX mounting holes: 20mm x 20mm / 25.5mm x 25.5mm(M2)
• Color: Black

Includes

• 1x FlyFishRC Volador Ⅱ VX5 O4 Pro Freestyle Frame Kit - Black
