Description

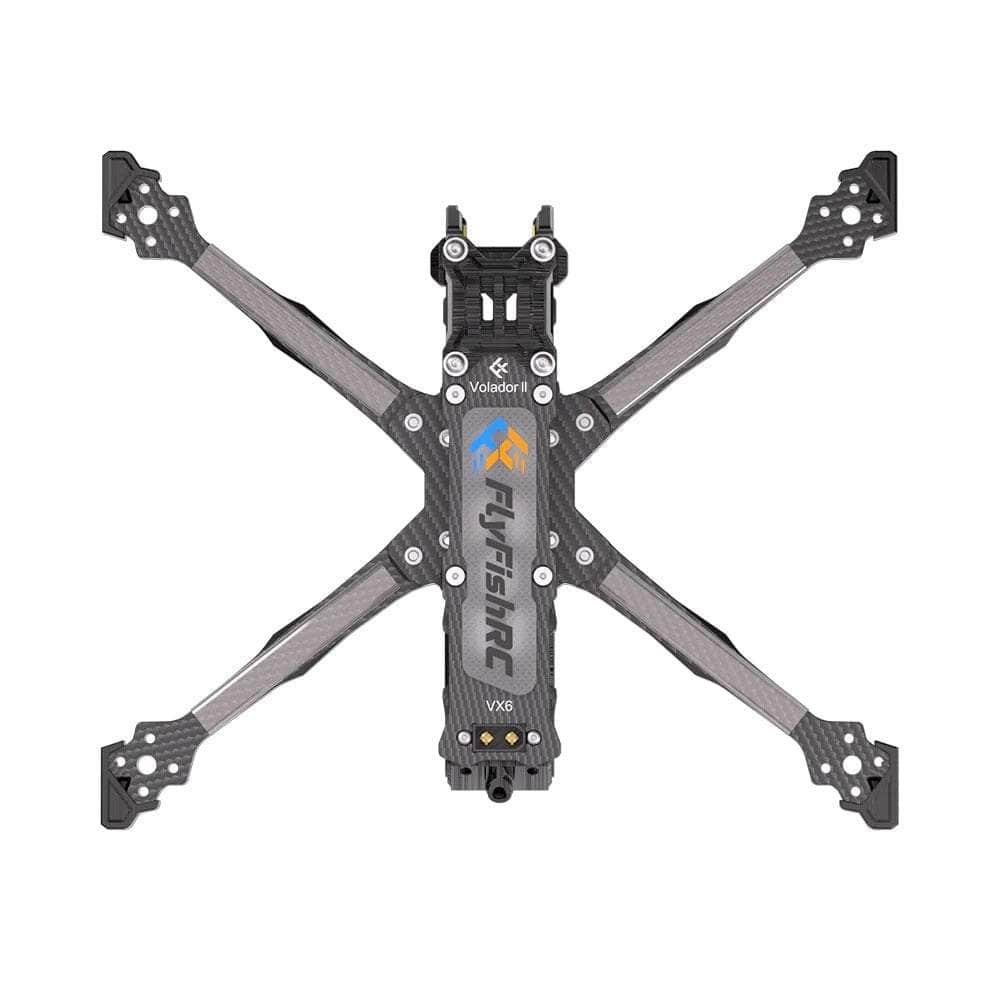

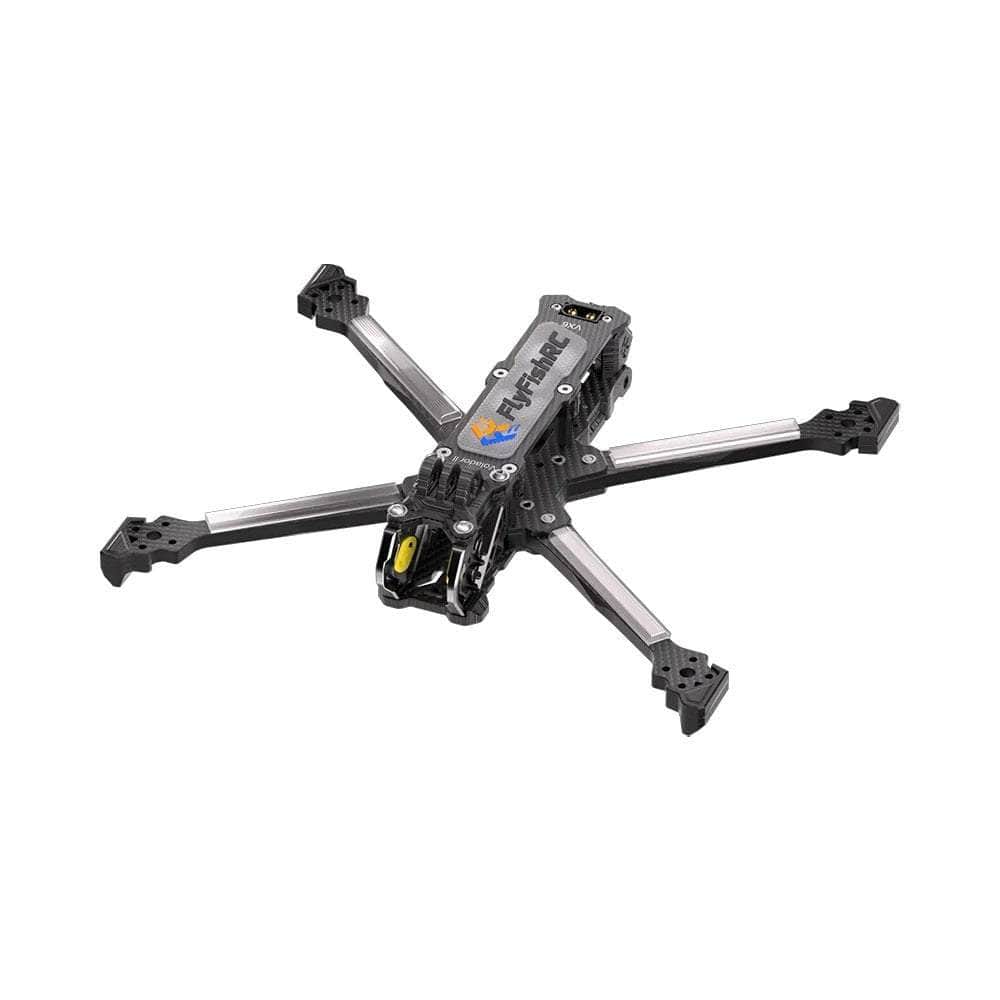

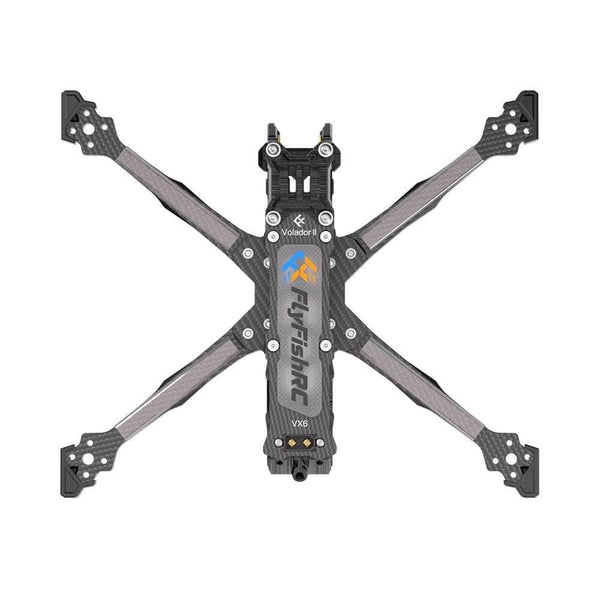

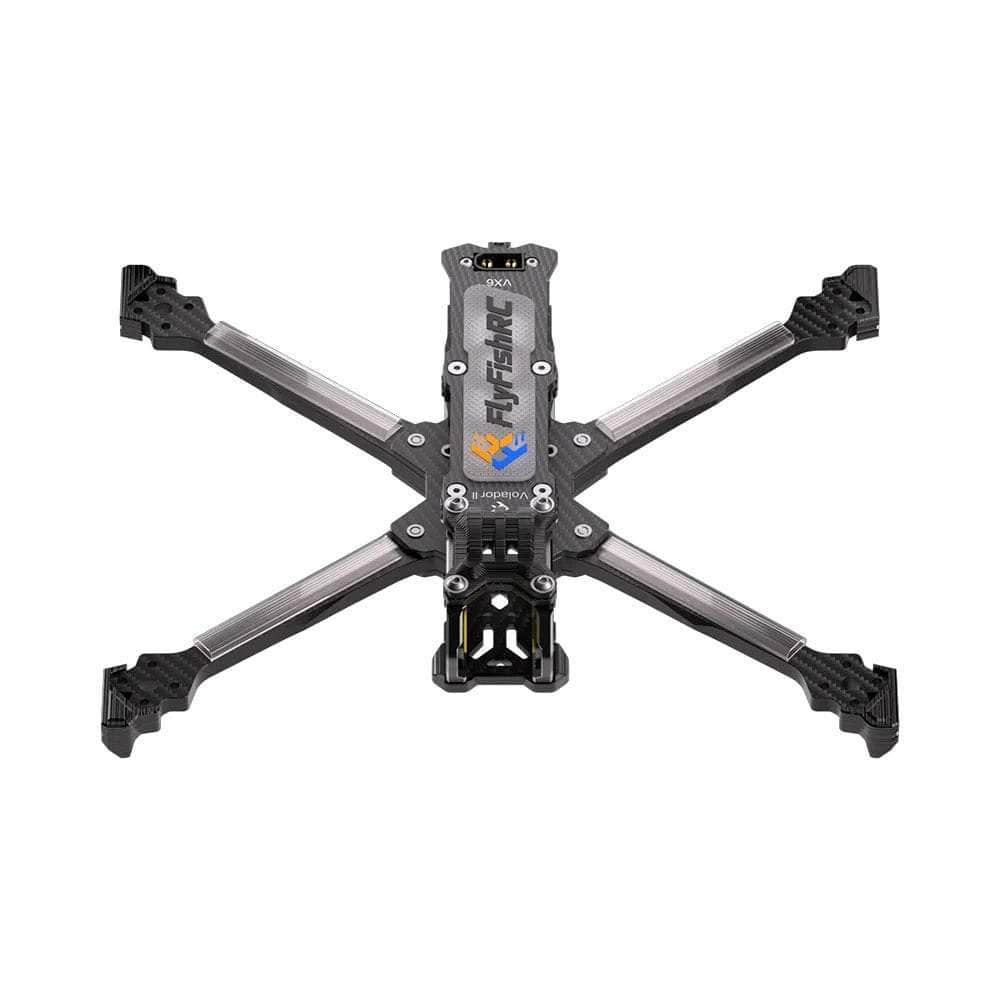

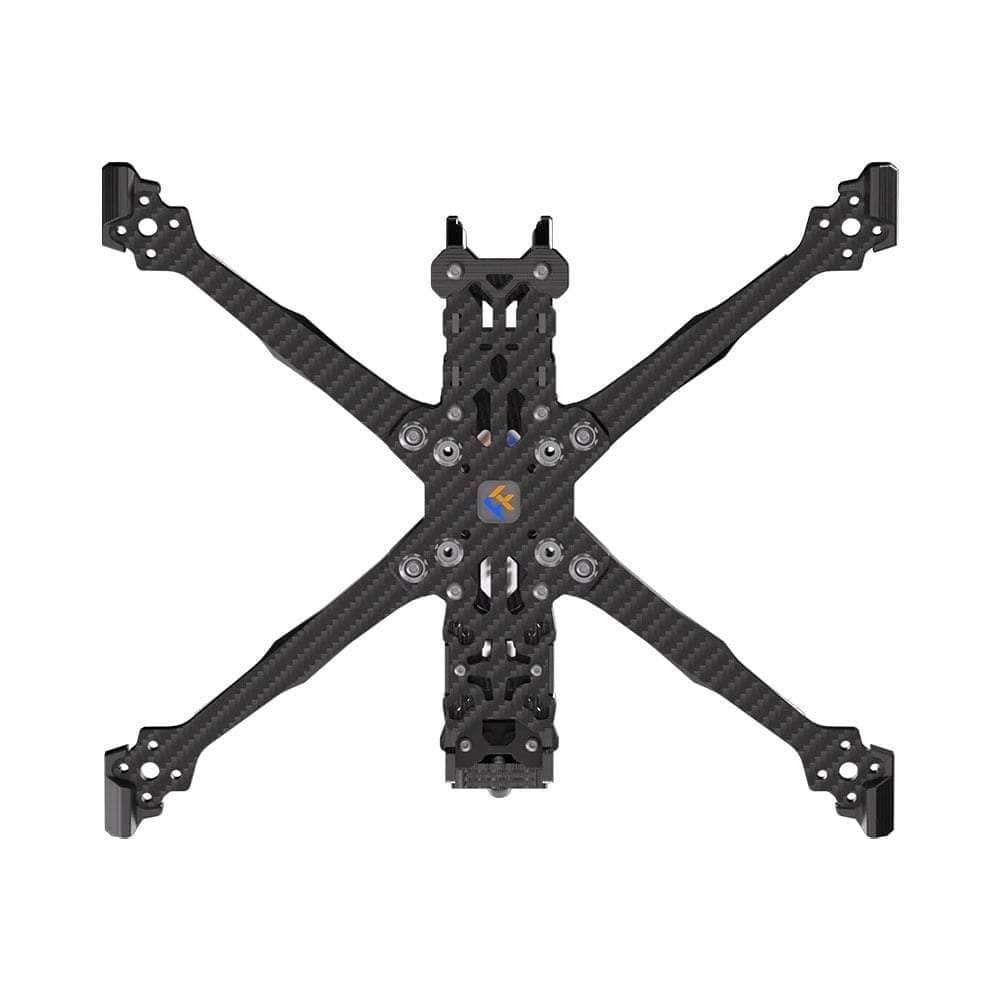

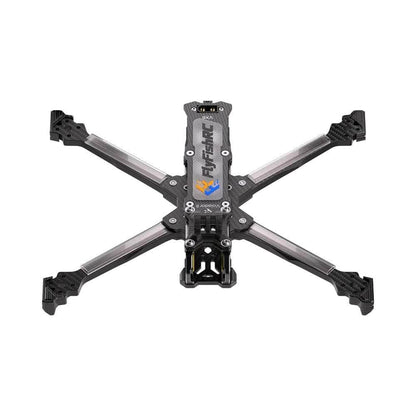

The FlyFishRC Volador II VX6 O4 Pro Frame kit is the refined second version of FlyFishRC's 6-inch freestyle frame, developed with valuable pilot feedback to enhance performance, durability, and build simplicity. Designed in a Squashed X layout for optimal control, it features high-quality T700 carbon fiber, CNC aluminum components, and precision-cut TPU parts for a clean, organized setup.

Check out our other 5" frames as well as the rest of our FlyFishRC products selection!

Features

• Loctite-treated 12.9 hardware
• Wide electronics compatibility
• CNC aluminum camera plates
• Low-resonance frame design
• Fits 19mm & 20mm cameras
• Integrated XT60 connector
• O4 AU anti-jello mounts
• Precision-fit TPU parts
• Motor wire protectors
• Anti-slip battery pad
• Analog & HD ready
• T700 carbon fiber

Specifications

• Stack mounting holes: 20mm x 20mm / 30.5mm x 30.5mm (M3)
• VTX mounting holes: 20mm x 20mm / 25.5mm x 25.5mm (M2)
• Total Dimensions: 209mm x 159mm
• Weight: 188.2g (with TPU parts)
• FPV cam spacing: 19mm / 20mm
• Bottom plate thickness: 2.5mm
• CNC Side plate thickness: 5mm
• Middle plate thickness: 2.5mm
• Material: T700 carbon plate
• Top plate thickness: 2.5mm
• Keystone thickness: 5mm

• Propeller size: 6~6.1 inch
• Arm Thickness: 6mm
• Wheelbase: 268mm
• Color: Black

Includes

• 1x FlyFishRC Volador II VX6 O4 Pro Frame kit
