Description

You have seen the CineRace20 before, but now coming back stronger than ever with the DJI O3 Air Unit. Inspired by RaceWhoop designed by Free Zillion, this is an elegant blending of CineWhoop and RaceWhoop! The CineRace20 O3 edition is currently the smallest cinewhoop of Flywoo that is equipped with the DJI O3 Air unit module, with a wheelbase of 93mm motor-to-motor. With the use of the soft TPU material to mount the camera to prevent the jello effect, by reducing the over all vibrations in the quad.

The CineRace is a double duct design, not a simple guard anymore. It can fly as flexibly as a racing drone, and as stable as Cinewhoop. All in all, this is a  drone that can not only race but also capture stable videos and at the same time achieve a super long flight time! A specially designed GM10 Nano V3 GPS module is tailored to fit the CineRace20, providing minimal weight but the ability to search up to 30 satellites.

Come see our Cinewhoop Collection and other great products from Flywoo!

Features

• Almost all parts are injection molded for a more sturdy and durable quad.
• Very easy to disassemble, only fixed by two aluminum columns
• Customizable with LEDs
• GPS up to 30 satellites
• Built-in SanDisk Extreme microSD card 128GB
• Innovative duct design
• Support 4K\60fps recording
• Sub250 (even with battery)

Specifications

• Input Voltage: 4S
• Model: CineRace20 HD DJI O3 2inch
• Brand: FLYWOO
• Frame: CineRace20 O3 (Different fromCineRace20 V1.2\V2 frame )
• Charge connector: XT30
• Motor: NIN V2 1203PRO 4850Kv
• Propeller: D51-5 51mm
• Buzzer : 5PCS Active Alarm Buzzer
• GPS: GOKU GM10 Nano V3 GPS
• Weight: 139g (without battery)
• Betaflight Firmware target: FLWO/FLYWOOF405S_AIO(SMT32F405)

• Recommended Battery:
  Explorer 450mah 4S ( flight time  5mins )
  Explorer 750mah 4S ( flight time  6mins )

GOKU GN F405S 20A AIO

• Input Voltage: 2-6S Lipo
• MCU: STM32F405 BGA
• IMU: ICM42688
• OSD: BetaFlight OSD
• Blackbox: 16Mb Flash
• Baro: BMP280
• BEC: 5V
• 6 hardware UARTS (UART1,2,3,4,5,6)

• Onboard LED：4x WS2812
• Support BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

FPV System

• VTX: DJI O3 Air Unit (Requires DJI Goggles 2 or DJI FPV Goggles V2)
• Channels: : Auto mode support Manual mode support: 40 MHz: 1 channel; 20MHz: 3 channels; 10MHz: 3channels
• Camera: DJI O3 Air Unit Camera
• VTX Antenna: DJI O3 Air Unit Antenna
• BNF Variant Receiver: ExpressLRS 2.4GHz V2.2
• PNP Variant: Built-in DJI receiver

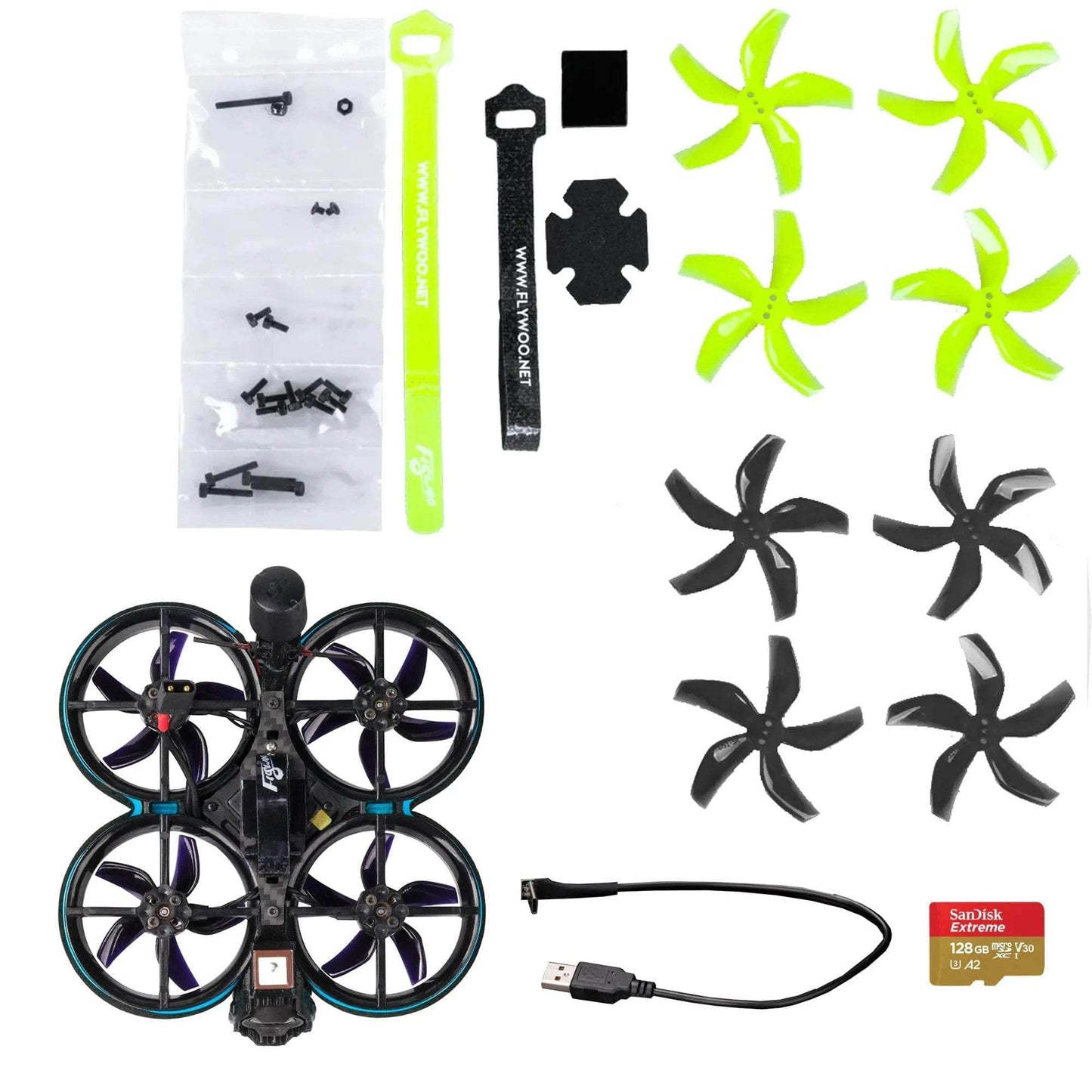

Includes

• 1x CineRace20 HD DJI O3
• 8x D51-5 props
• 2x Battery strap  9x150mm \ 9x200mm
• 1x Set of screws
• 1x SanDisk Extreme microSD Card 128GB
• 1x 90° USB Type-C
