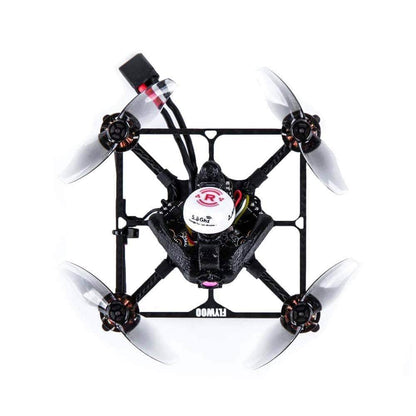

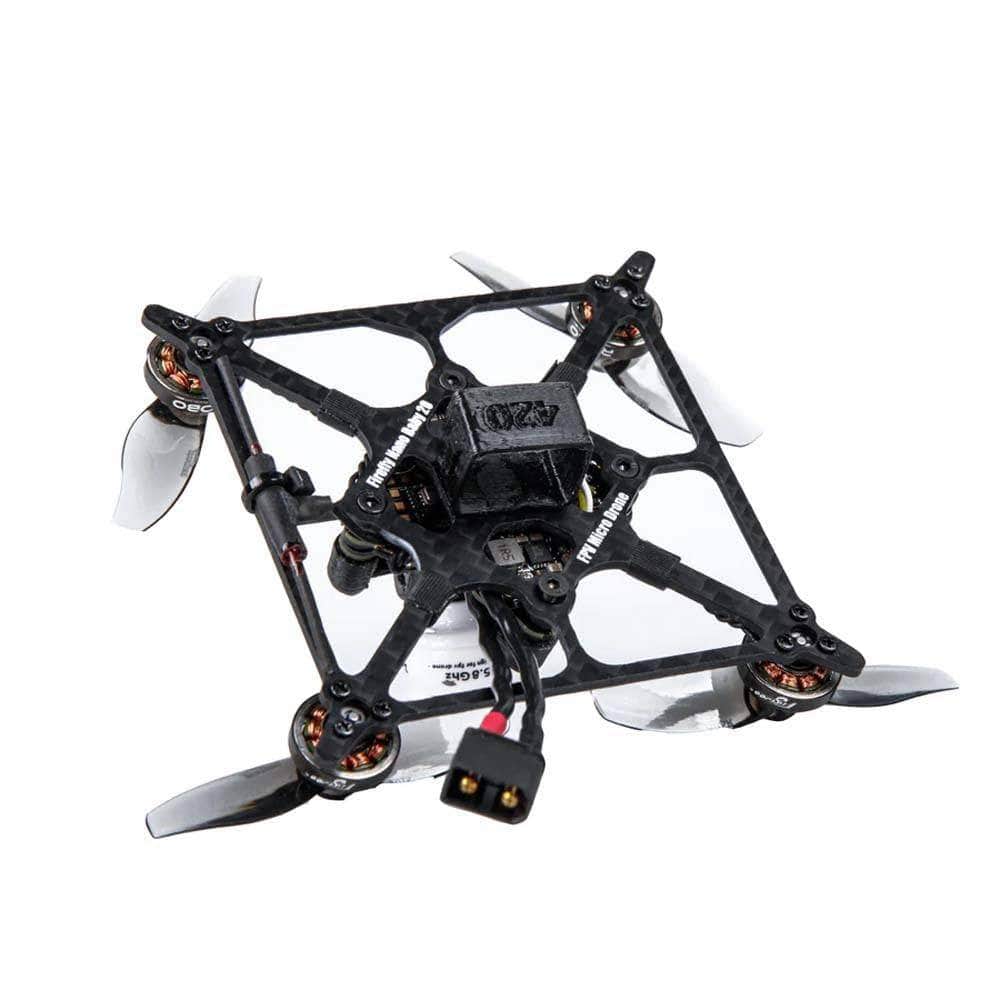

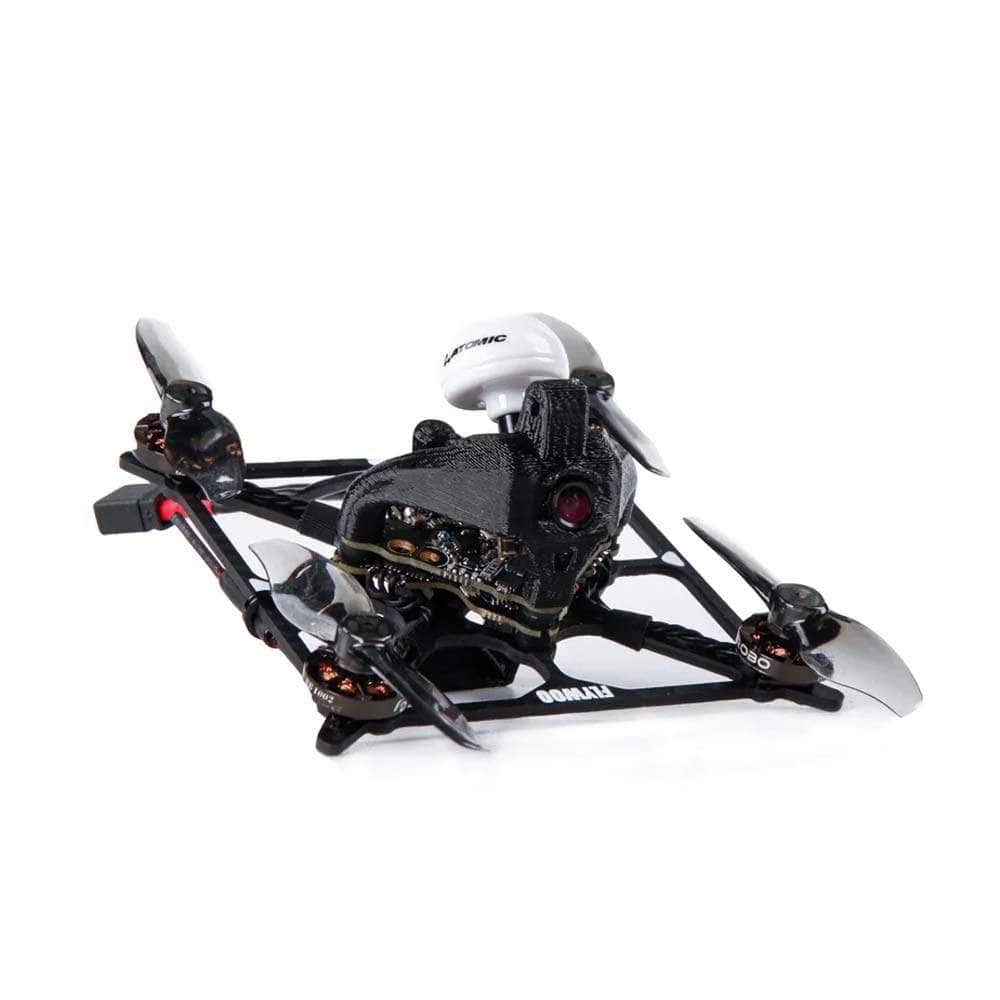

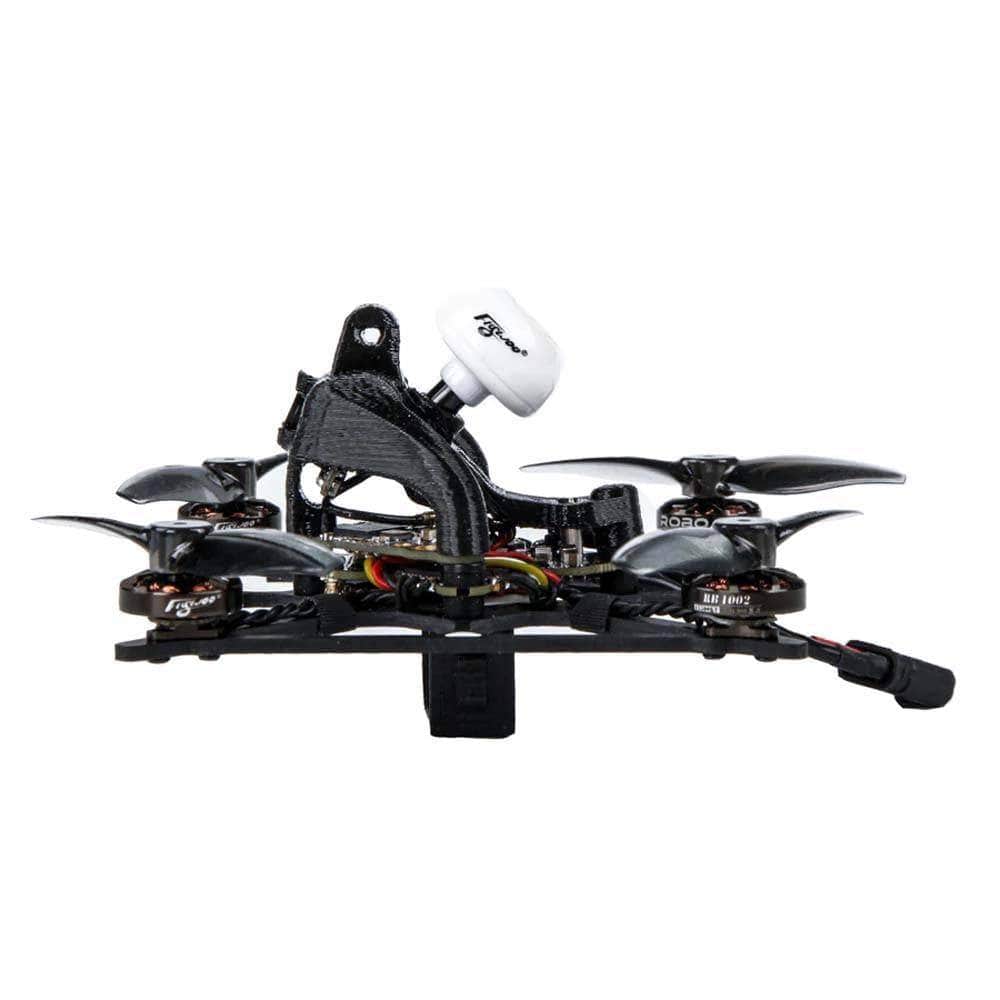

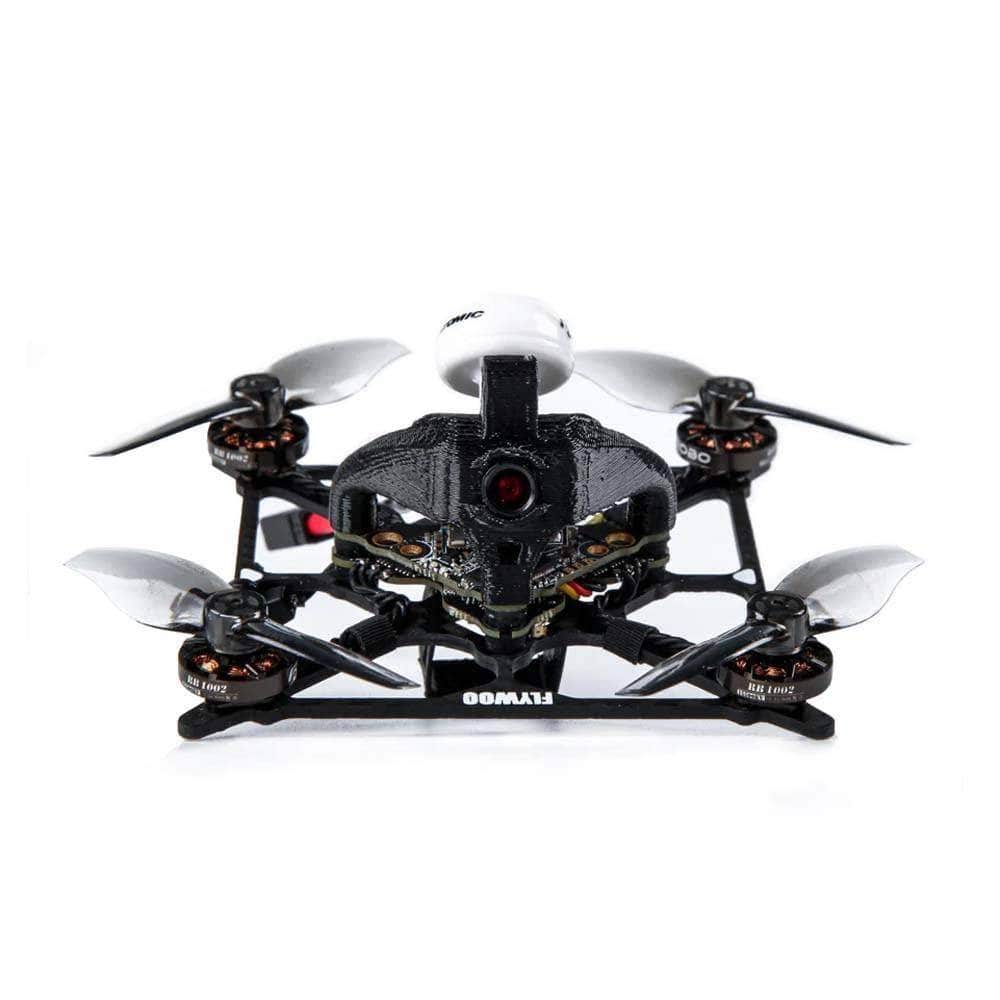

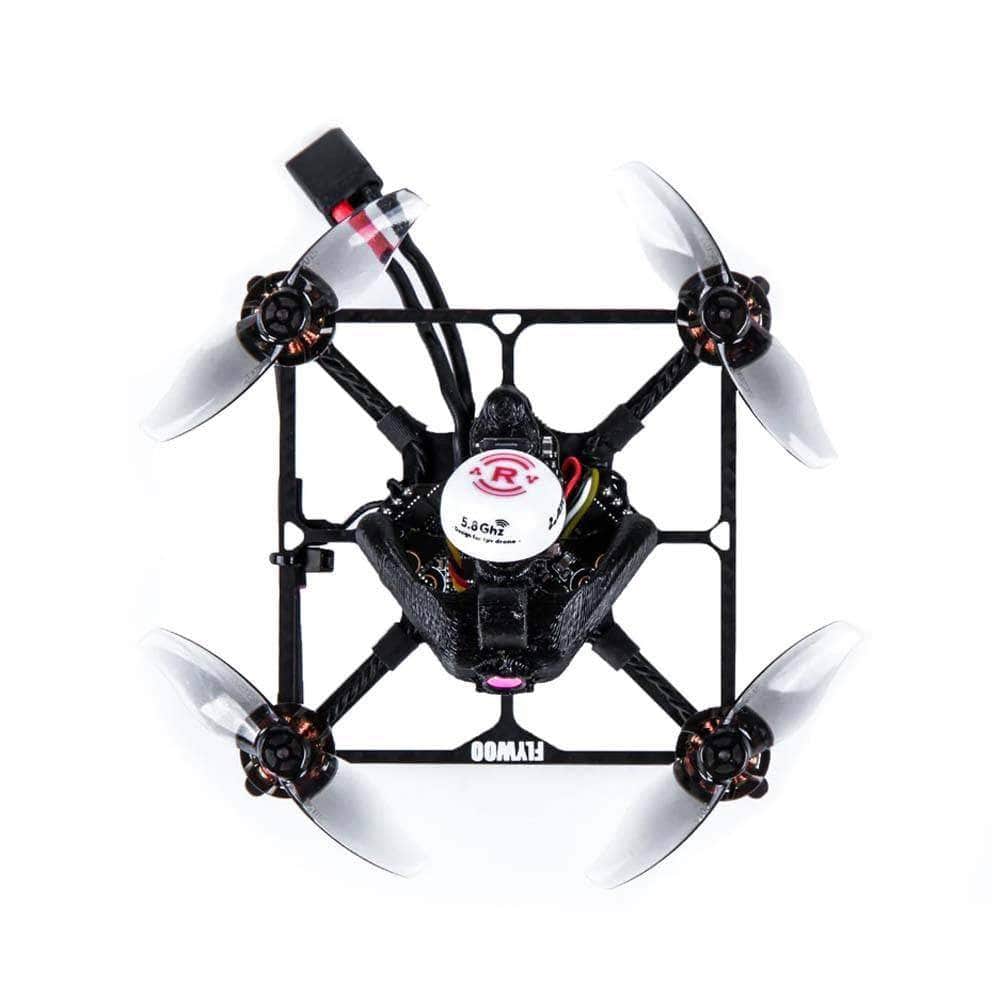

Flywoo BNF Firefly 2S Nano Baby 20 2" Analog Quad - ELRS 2.4GHz

Flywoo BNF Firefly 2S Nano Baby 20 2" Analog Quad - ELRS 2.4GHz

$215.99
$215.99
Add To Wishlist
View full details

Details

Description

The Flywoo Firefly Nano Baby 20 2S Micro Quadcopter BNF Analog comes with Flywoo's Nano Camera V2 and is equipped with the most efficient micromotor and the top AIO flight controller on the market! This micro quadcopter will bring you an unprecedented flying experience; the Firefly Nano Baby 20 can do crazy acro and keep up with all the tricks up your sleeve.

Check out the rest of our pre-built quads, as well as the rest of our Flywoo selection!

Features

  • Comes with 1002 15500KV motors and Gemfan 2015 - 2 blade propellers, which provide the best balance of performance and flight time.
  • Versatile and highly integrated circuit board - GOKU Versatile F405 2S 12A AIO. Built-in ELRS 2.4g RX. Have multiple sets of serial external devices.
  • Easy switch battery mount design. Explorer 2S 420mAh for Racing, Explorer 2S 750mAh for long flight time.
  • Great mount compatibility for cameras like the Thumb Pro, Peanut, GO2, Thumb, and related

Specifications

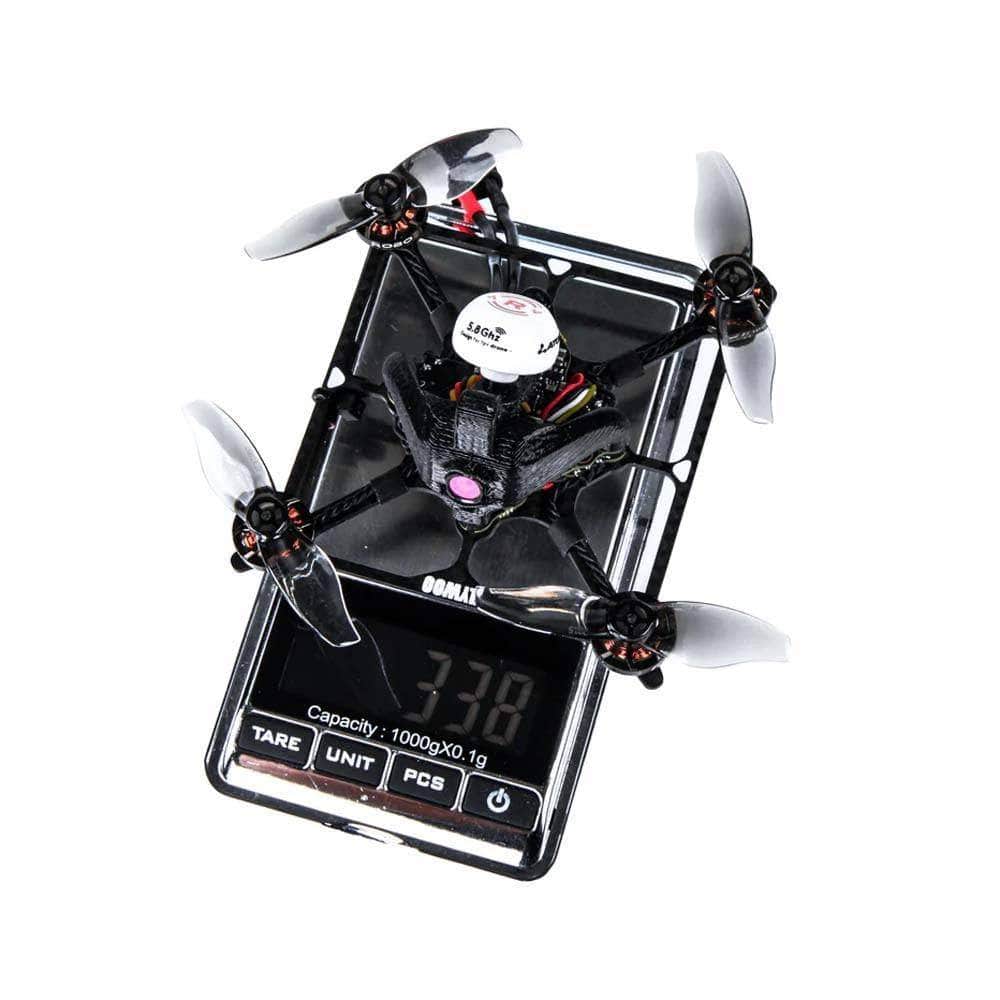

  • Weight: 33.8g (without battery)
  • FC & ESC: GOKU Versatile F405 2S 12A AIO
  • Frame: Firefly 2S Nano Baby 20 Analog Frame kit
  • Motors: Flywoo ROBO 1002 15500KV
  • Props: Gemfan 2015-2 blade
  • VTX: GOKU VTX625 V2 450mW Nano VTX
  • Camera: Flywoo 1.2g 1S Nano camera V2

    GOKU Versatile F4 5-IN-1 1S AIO FC

    • Size: 30x30mm
    • Weight: 4.1g
    • Hole: 25.5x25.5-3mm
    • MCU: STM32F405
    • UARTS: 1,2,3,4,5,6
    • MOTOR: M1-M4 OUTPUT I2C: SCL/SDA
    • GYRO: ICM42688
    • Barometer: BMP280
    • LED: 2x WS2812
    • Flash: 8M
    • BEC: 5V 2A
    • Firmware: FLYWOOF405S_AIO

    Onboard 4in1 ESC

    • Built-in 1S/2S 12A BL_S 4in1 ESC
    • Support Oneshot125, Oneshot42, Multishot,
    • Dshot150, Dshot300, Dshot600
    • Input Voltage: 1-2S Lipo
    • Firmware: BLHELI_S
    • Firmware: Z_H_30_REV16.7

    Flywoo ROBO 1002 15500Kv Motor

    • Kv: 15500Kv
    • Input Voltage: 2S LiPo
    • Stator Dimensions: Φ10mmx2mm
    • Shaft Diameter: Φ 1.5mm
    • Wire Dimensions: 30AWGx40mm
    • Weight (w/ wires): 2.4g

    Flywoo 1S Nano Camera V2

    • Image Sensor: 1/3" CMOS Sensor
    • Horizontal Resolution: 1200 TVL
    • TV System: NTSC and PAL(switchable)
    • MENU: Support
    • IMAGE: 4:3
    • Synchronization: Internal
    • Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
    • S/N Ratio: >52dB (AGC OFF)
    • Video Output: CVBS
    • Lens: 1.8mm/F2.5
    • Min. illumination: 0.001Lux
    • Auto Gain Control: YES
    • BLC: YES
    • WDR: Global WDR
    • DNR: 3D DNR
    • Dimensions: 14x14mm
    • Wide Power Input: DC 5-25V
    • Work Temperature: -20°C~+60C
    • Work Humidity: 20%~80%
    • Weight: 1.2g (N.W.)

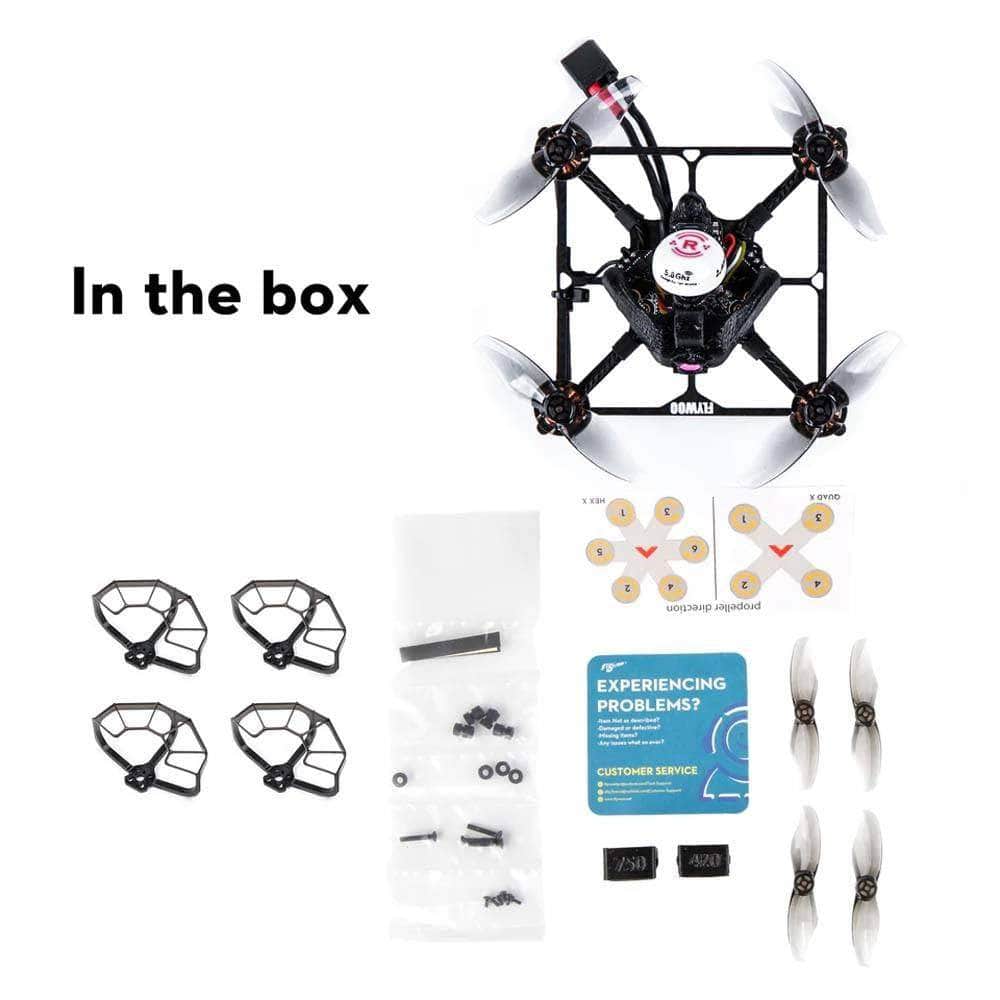

            Includes

            • 1 x Flywoo BNF Firefly 2S Nano Baby 20 2" Quad Analog w/ GOKU VTX625 V2 & Nano Camera V2 - ELRS 2.4GHz
            • 2 x Sets of 2015-2 props
            • 1 x Screw spare packs
            • 2 x Battery holder
            • 4 x Prop guards

            More Info

            • SKU: 19543
            • Barcode: 691023494275


            Overall rating: 2.6666667 / 5 from 3 reviews.

            AI Generated Review Summary

            Summary topics

            Review topics: ["frame"].

            Review highlights

            Reviews

            We’ll build quad.

            "This micro is not flimsy, very ridged frame for its size. I have only done line of sight with this because when plugging in all my video settings raceband 8 wouldn’t work at first. I realized I needed to unlock the vtx. The button is easily accessed nothing needs to be moved to get to it. Going to take it out today but so far with line of sight I can notice that this thing wants to be throttled."

            — Clifford C. (5/5)

            Updated review

            "My vtx was DOA when I received it. Once fixed I realized I hated these press on props. Every crash props eject. Then after a light crash onto pavement the motor ejected from the frame wires ripped from the motor. This thing is junk outside of the AIO. Going to take all this and throw it into a better frame with better motors."

            — MonkeyDFPV (1/5)

            Fun analog quad, if your camera doesn't die too fast.

            "The quad flew well and was a ton of fun for a little while. Unfortunately, the camera is very fragile and broke fairly quick. Soldered on a replacement camera from Flywoo and it worked great for about 8 seconds before dying again. I may try another because of how well it flew when it actually did work. This would be 5 stars if the camera wasn't so fragile."

            — JL (2/5)

            Q&A

            Do you have a known stock date? When will they be ready to ship
            We do not have an exact date. usually 3-5 weeks for restocks.
