Description

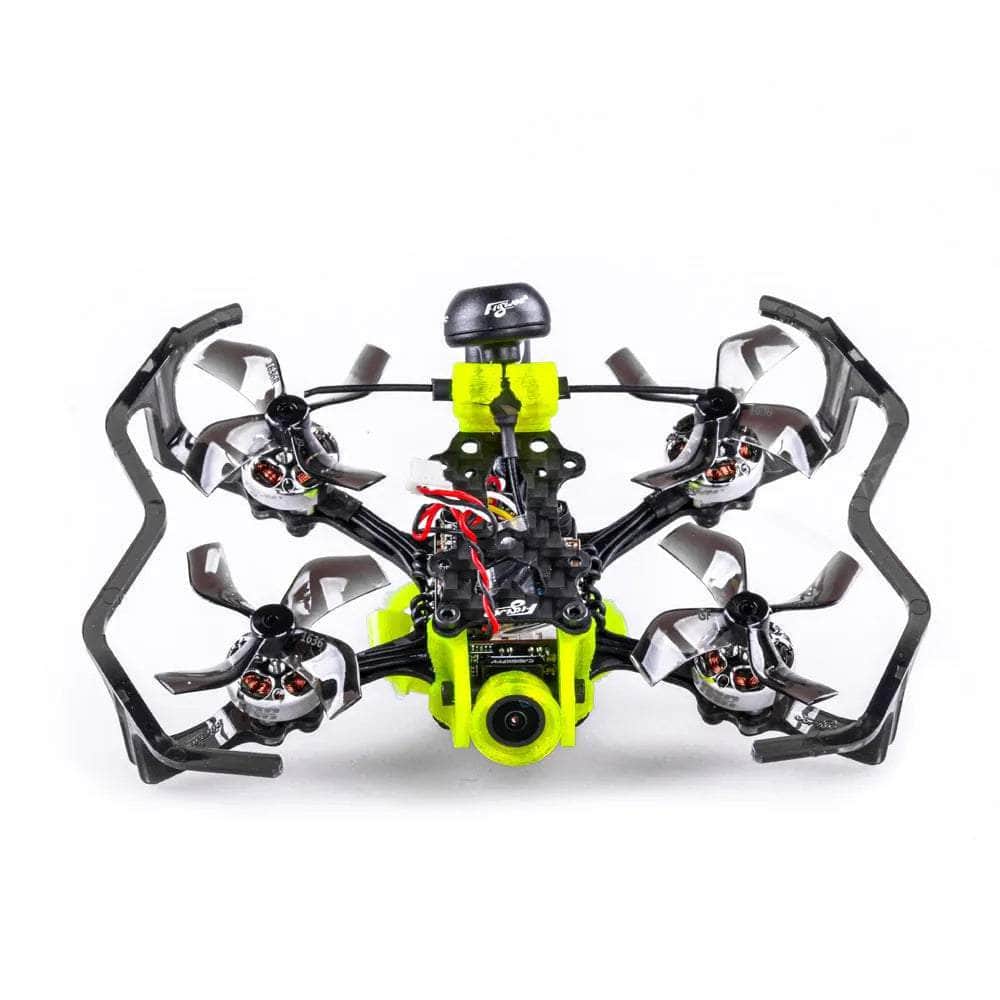

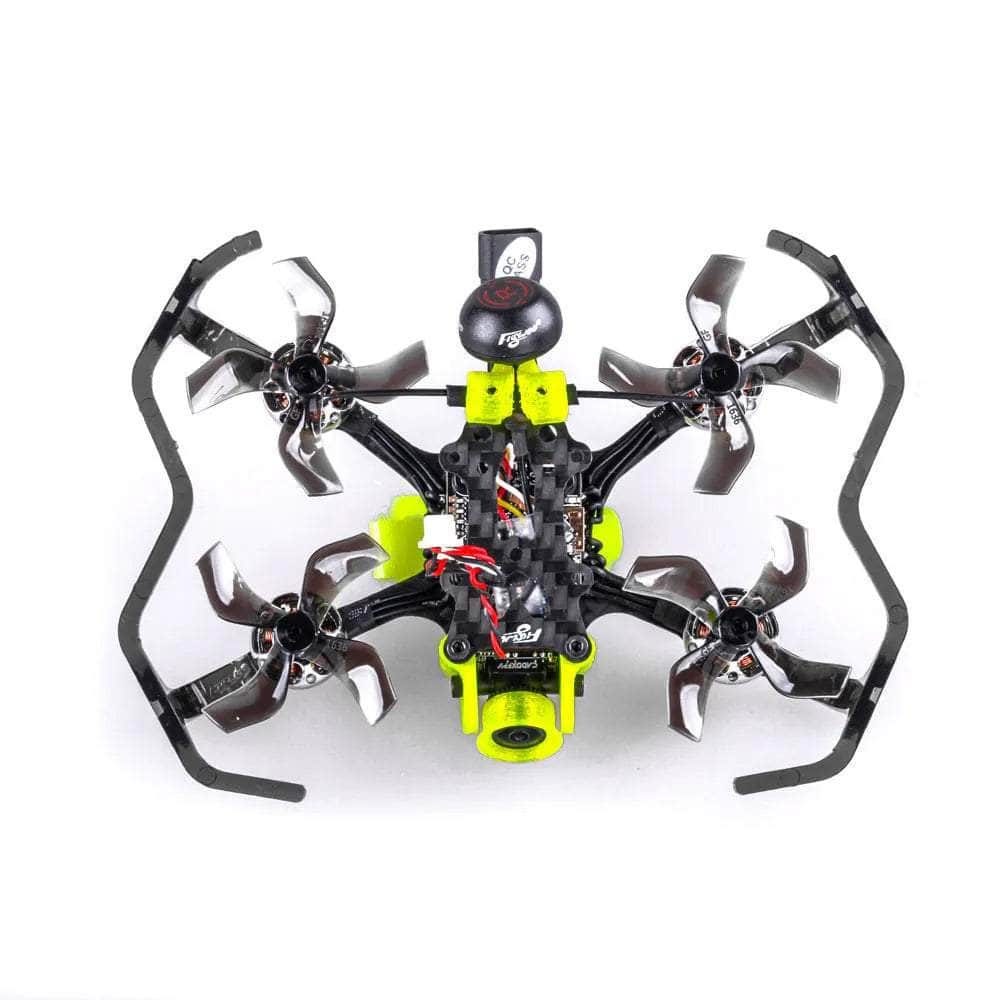

In an effort to push the boundaries of carrying the camera on the smallest platform, Flywoo designed the smallest quadcopter possible in their history. The Firefly Baby Quad is a nano-sized FPV drone designed to carry an Insta360 Go, or SMO 4K cameras for some action flying.  Weighing in at just 47g, the Firefly Baby Quad is small, flexible, and stable. It's full of power and offers unmatched control. Pilots can quietly enjoy the fun of shooting a video without jello. Perfect for the indoor and outdoor recording of every beautiful flying moment!

Check out our other pre-built quads, as well as other great products from Flywoo!

Specifications

• Weight: 47g

• Wheelbase: 80mm

• FC & ESC : GOKU GN405 Nano 13A STACK ( 16x16 )

• Frame: Firefly Baby Quad Frame (Analog Verison)

• Motors: Nin V2 1203Pro 5500KV

• Props: Gemfan 1636 40mm-4 V2.0

• VTX: Goku VTX625 450mw

• Antenna: Atomic 5.8GHz Antenna Length 30mm (RHCP)

• Battery: 4S 450mAh / 4S 300mAh battery (Not including)

Flywoo GOKU GN405 NanoFlight Controller

• MCU: STM32F405 BGA
• IMU: ICM42688
• UARTS: 6
• Soft Serial Ports: 2
• I2C: Yes
• Onboard LED：WS2812x8(FCx4/ESCx4)
• Supports: SBUS, iBus, Spektrum, Crossfire
• BlackBox: 16Mb Flash
• BEC: 5V Power Out: 2.0A max, 3.3V Power Out: 0.5A max
• Dimensions: 22x22mm
• Mounting Holes: 16x16mm
• Weight: 2.3g

Flywoo GOKU BS13A 4in1 ESC

• Support: Oneshot, Multishot, Dshot150, Dshot300, Dshot600
• Input Voltage: 2-4S Lipo
• Continuous Current: 13A
• Firmware: BLHELI_S
• Mounting Pattern: 16x16mm, M3 Hole
• Weight: 2.5g

Nin V2 Motor

• Stator Size: 1203
• KV: 5500

Goku VTX625 450mw

• Raceband: 5362-5945 MHZ

• Power: PIT/25/50/100/200/450mW switchable

• Input Voltage: 5V

• Control Mode: IRC Tramp(RX) & Button

• Video System: NTSC/PAL

• Antenna: IPEX (U.FL)

• Size: 30mmx30mmx4mm

• Weight: 1.3g

Includes

• 1x Flywoo BNF Firefly Baby V1.3 4S 1.6" Analog Micro Quad - Choose Receiver
