Flywoo firefly Hex-nano analog
"Hi guys, I am so glad that I received a V2, I been having a blast"
Details
Description

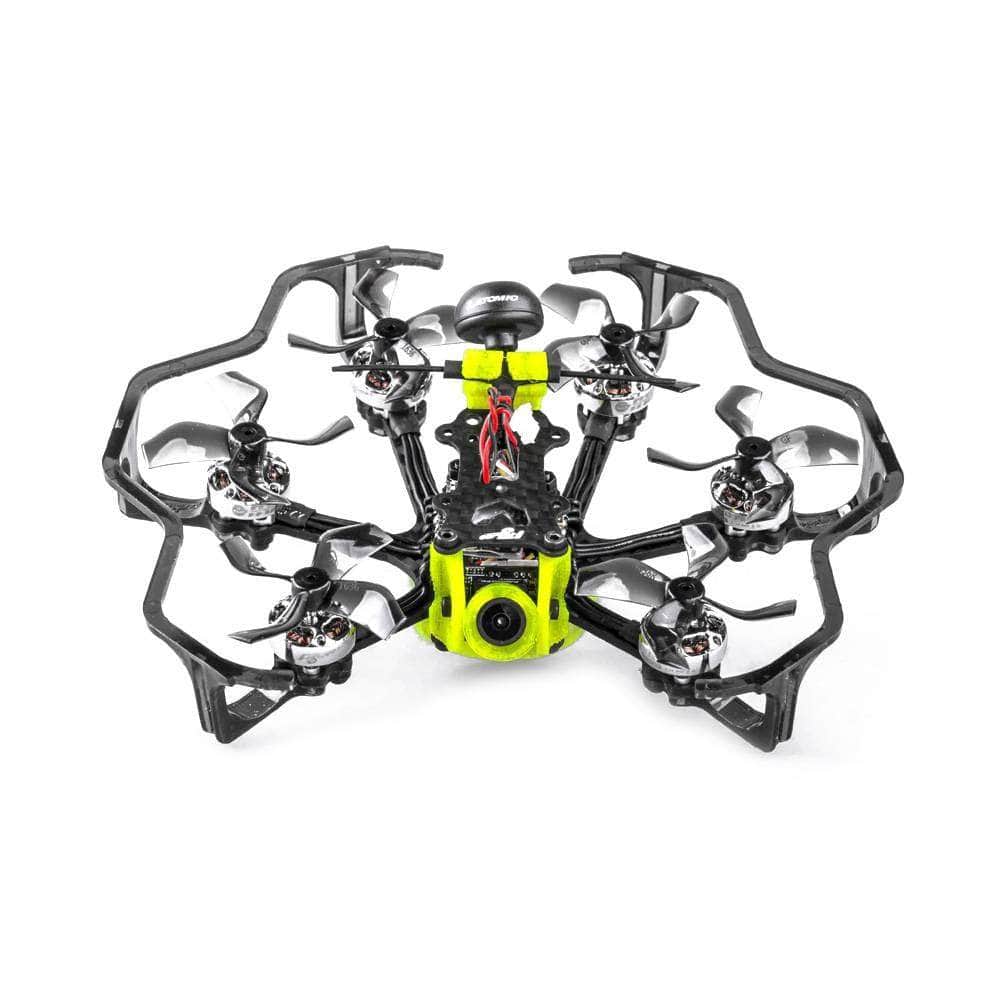

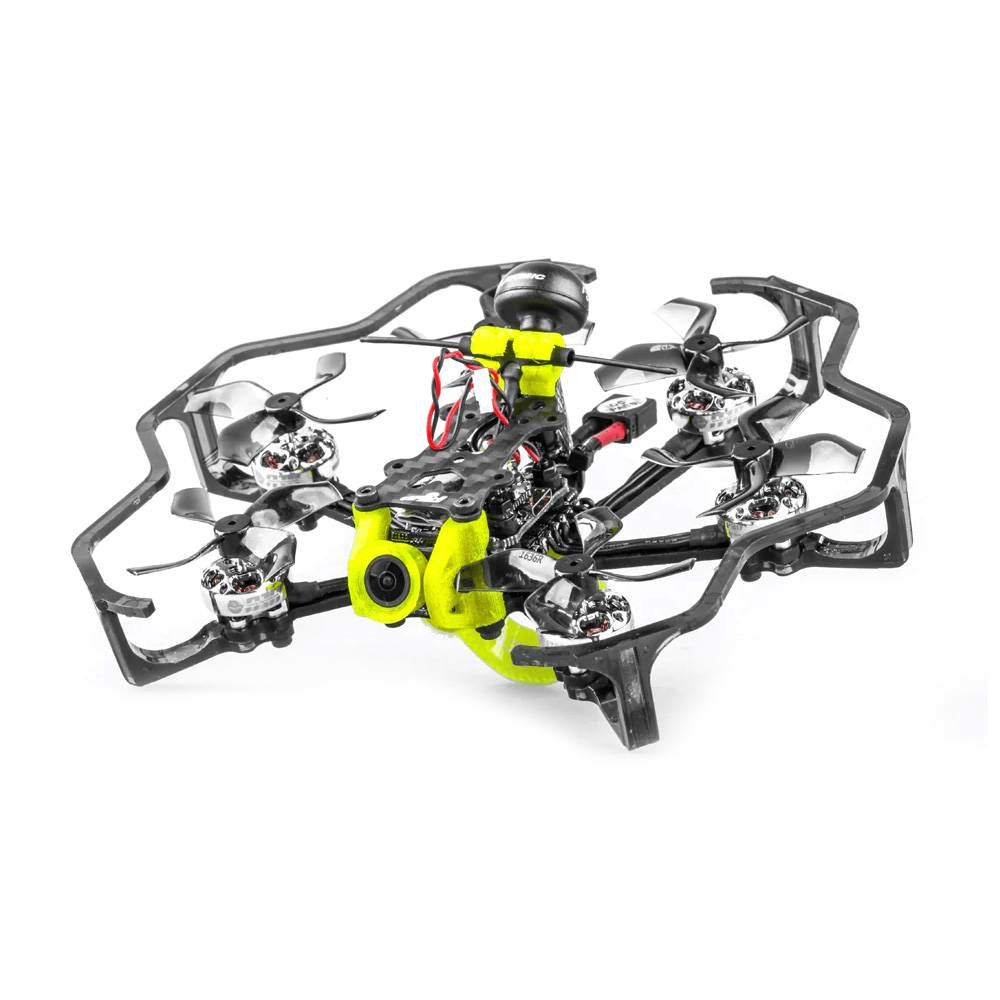

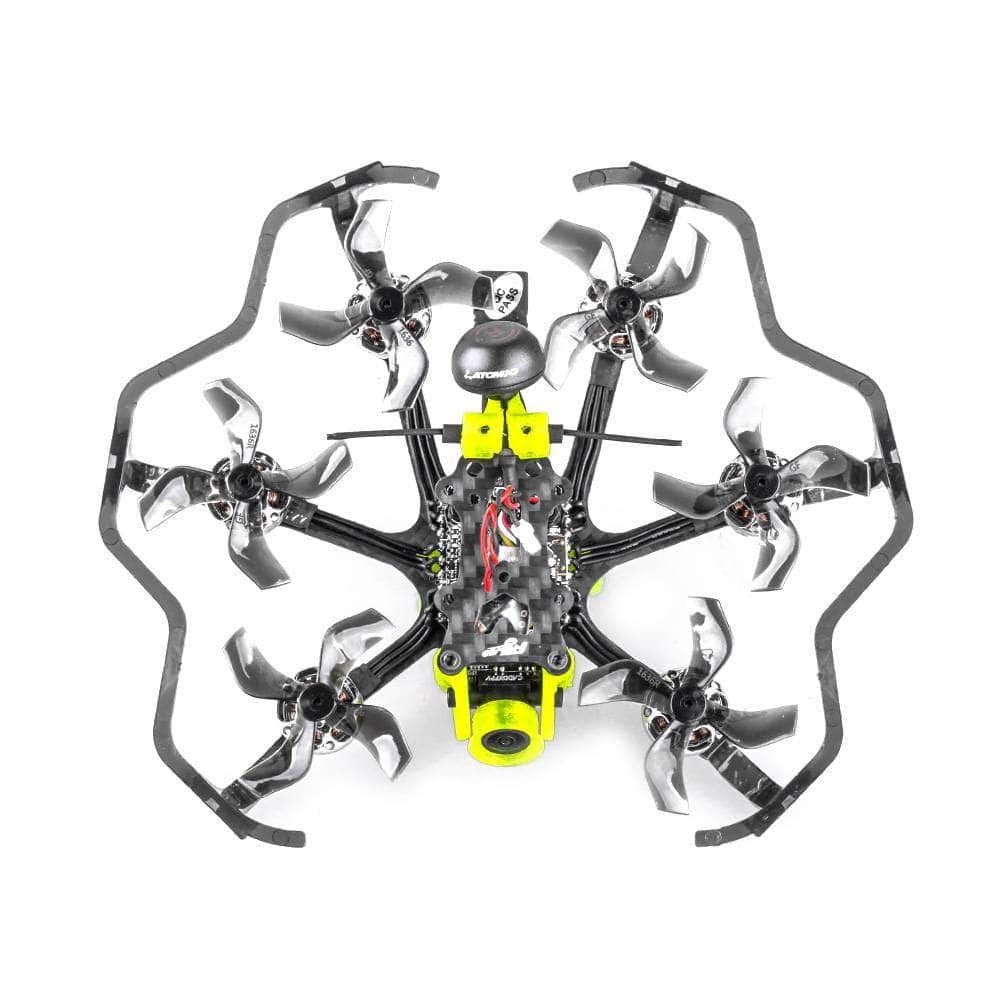

Flywoo's Firefly Hex Nano is the smallest hexacopter ever designed by Flywoo, weighing in at 74g. It powerfully and stably carries Insta 360go and SMO 4K cameras, allowing pilots to capture videos without jello. The Firefly hex nano is small, flexible, stable, and is full of power and offers unmatched control.
Check out our other pre-built quads, as well as other great products from Flywoo!
Specifications
- Weight: 58g
- Wheelbase: 90mm
- FC & ESC : GOKU HEX GN405 Nano 13A stack: 16x16
- Frame: Firefly Baby Quad Frame Analog Verison
- Motors: Nin V2 1203 Pro 5500Kv
- Props: Gemfan 1636 40mm-4 V2.0
- VTX: Goku VTX625 450mw
- Antenna: Atomic 5.8GHz Antenna Length 30mm (RHCP)
- Battery (Recommended): 4S 450mAh / 4S 300mAh battery (Not including)
GOKU HEX GN405 Nano16X16 FC
- MCU: STM32F405 BGA
- IMU: ICM42688P
- Barometer: DPS310
- input voltage ： 2-6S
- Onboard LED：WS2812x4
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onbord 16Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 22x22mm
- Mounting Holes: 16x16mm
- Weight: 2.3g
- Firrmware : FLYWOOF405NANO
BS13A BLheli_S 2-4S 4in1
-
lBS20/35A BLheli_S 2-6S 4in1
-
Weight: 2.5g
- Mounting Hole: 16x16mm (M3)
- Support Oneshot, Multishot,
- DShot150/300/600
Nin V2 Motor
- Stator Size: 1203
- Motor Bolt Pattern: 9x9mm
- KV: 5500
Goku VTX625 450mw
- Raceband: 5362-5945 MHZ
- Power: PIT/25/50/100/200/450mW switchable
- Input Voltage: 5V
- Control Mode: IRC Tramp(RX) & Button
- Video System: NTSC/PAL
- Antenna: IPEX (U.FL)
- Size: 30mmx30mmx4mm
- Weight: 1.3g
Includes
- 1x Flywoo BNF Firefly Hex Nano V1.2 1.6" 4S Analog Micro Quad - Choose Receiver
More Info
- SKU: 17948
- Barcode: 6970173129454
