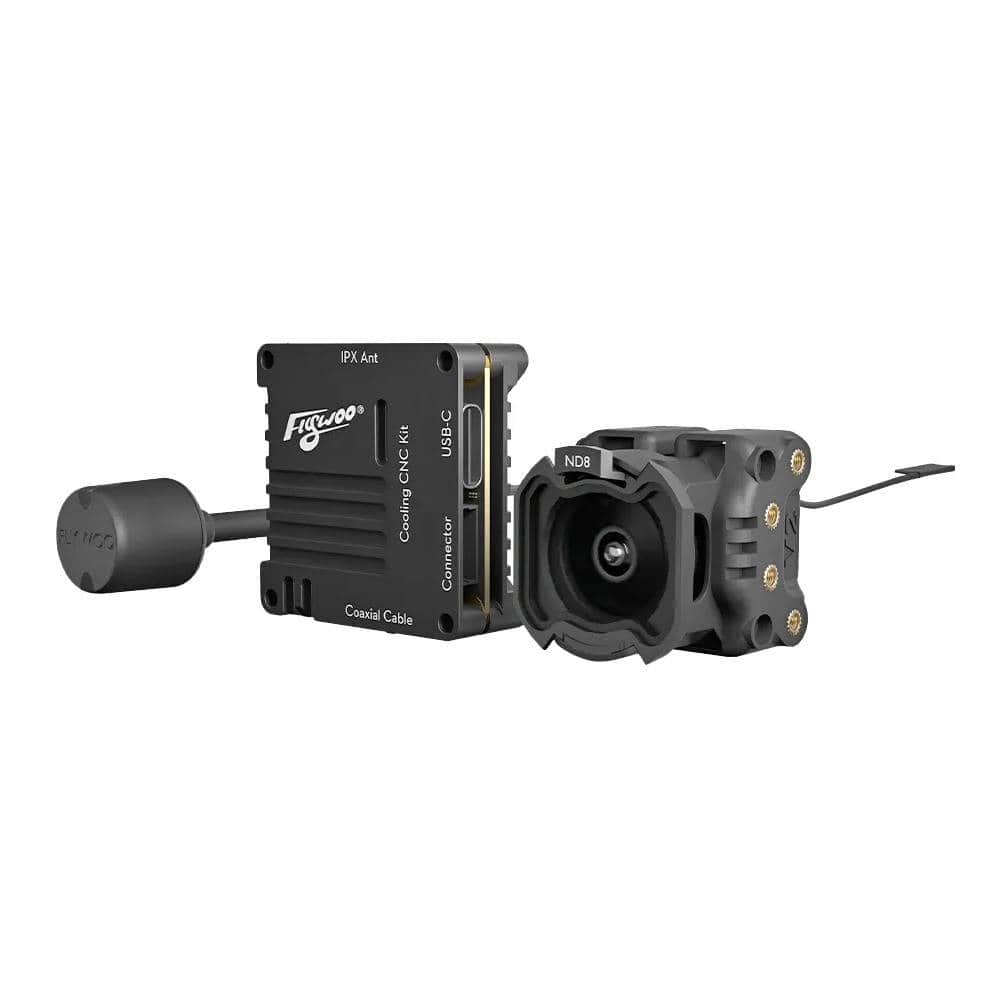

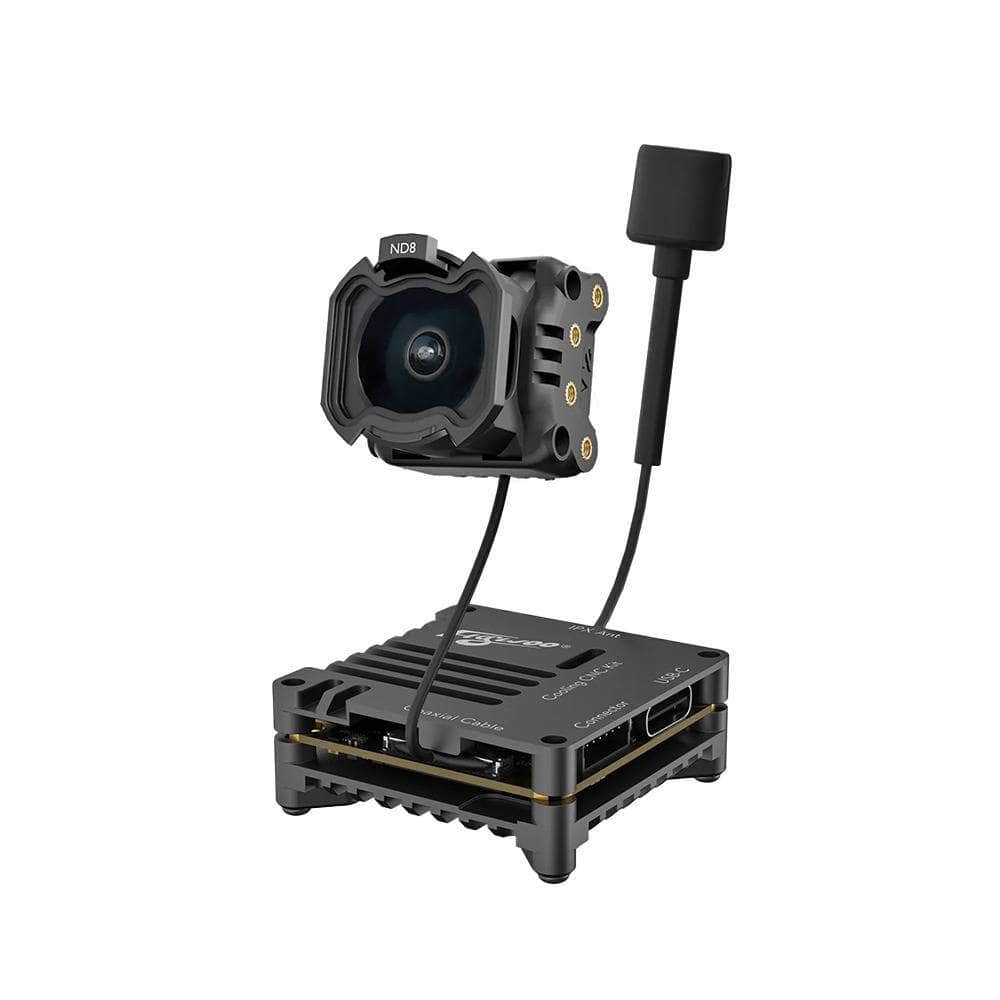

Description

The Flywoo DJI O4 Wide Air Unit Pro Set features the upgraded 159-degree ultra-wide FOV lens, along with 18mm and 20mm camera shells, UV filter, and other accessories. At just 19g including the camera, it is built for 2-inch and smaller micro FPV drones. The 1/2-inch CMOS sensor records up to 4K/60fps, and the ultra-wide field of view helps reduce blind spots in tight indoor spaces, gap flying, and close-range freestyle.

Check out all of our HD VTX options and the rest of our DJI products!

Features

• Up to 10km stable range under FCC standards and H.265 encoding for smooth 1080p/100fps live view
• 20ms Low-Latency Racing Mode supports up to 8 aircraft racing simultaneously for responsive stick input
• 1/2-inch CMOS sensor records 4K/60fps video, while the 159-degree ultra-wide FOV reduces blind spots for indoor gaps and close-range freestyle
• 13g total weight including camera, made for 2-inch and smaller micro frames
• 23GB onboard storage and no extra SD card required
• Canvas Mode and Betaflight OSD support let pilots arrange flight data freely on the goggles display

Specifications

• Product Name: Flywoo DJI O4 Wide Air Unit Pro
• Gyroscope: I469D
• Imaging:

  • 1/2-inch CMOS sensor
  • 4K/60fps video recording
  • 159 degree ultra-wide FOV
• Video Transmission:

  • O4 HD digital transmission
  • Single-antenna design
  • 1080p/100fps live view
  • Minimum 20ms latency
  • Up to 10km range under FCC standards
  • Maximum 60Mbps bitrate
• Antenna: FLYWOO LDS UFL LHCP Antenna - 115mm
• Cooling Shell: FLYWOO Custom Heat Dissipation Shell
• Coaxial Cable: 150mm coaxial cable
• Storage:

  • 23GB built-in storage
  • microSD card expansion not supported
• Weight: 19g (including 150mm coaxial cable)
• Dimensions: 30 x 30 x 10.7 mm
• Mounting Hole Spacing: 20mm/25.5mm x 25.5mm

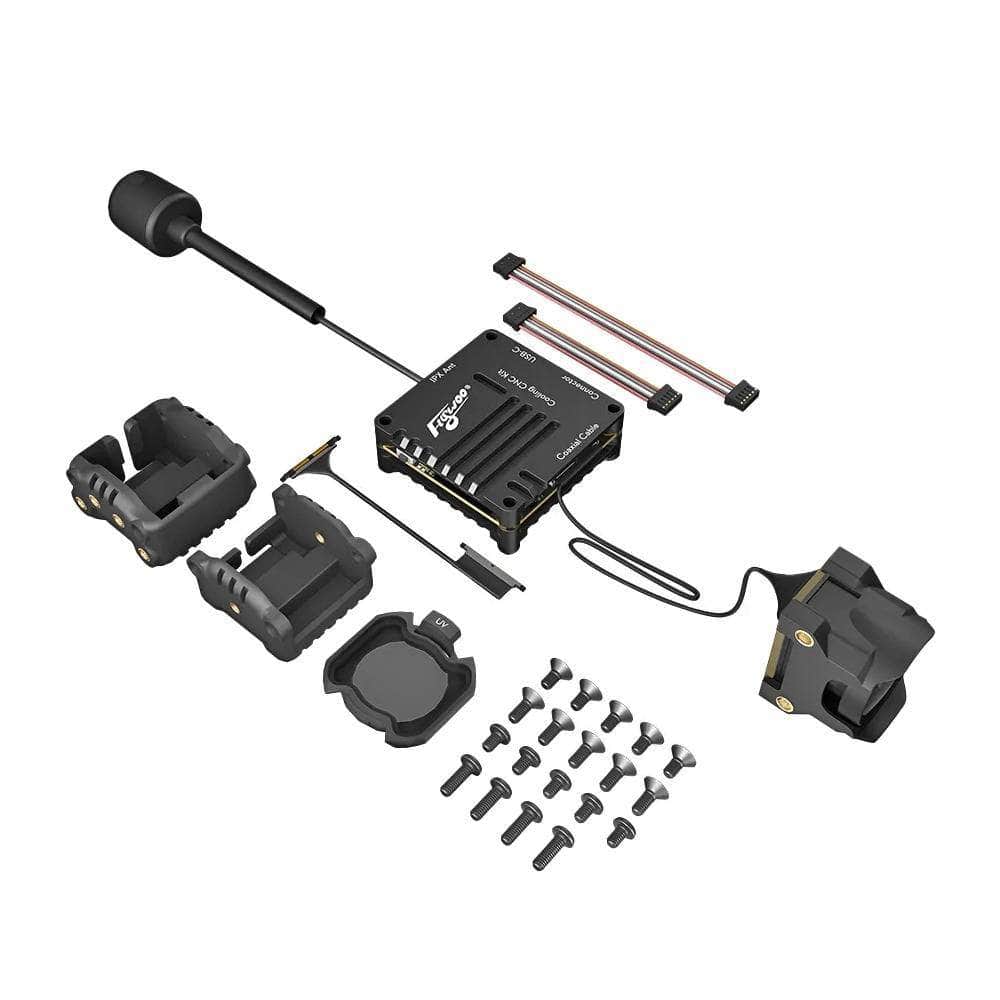

Includes

• 1× O4 Wide Air Unit Pro
• 1× O4 Wide UV V2 Filter
• 1× 18mm Camera Shell
• 1× 20mm Camera Shell
• 1× 50mm Coaxial Cable
• 1× 150mm Coaxial Cable
• 1× Flywoo LDS UFL Antenna
• 1× 6-Pin Wire Harness 5cm
• 1× 6-Pin Wire Harness 10cm
• 5× M2×3 Cross Head Screws
• 5× M2×4 Cross Head Screws
• 5× M2×3 Round Head Screws
• 4× M2×7 Round Head Screws
