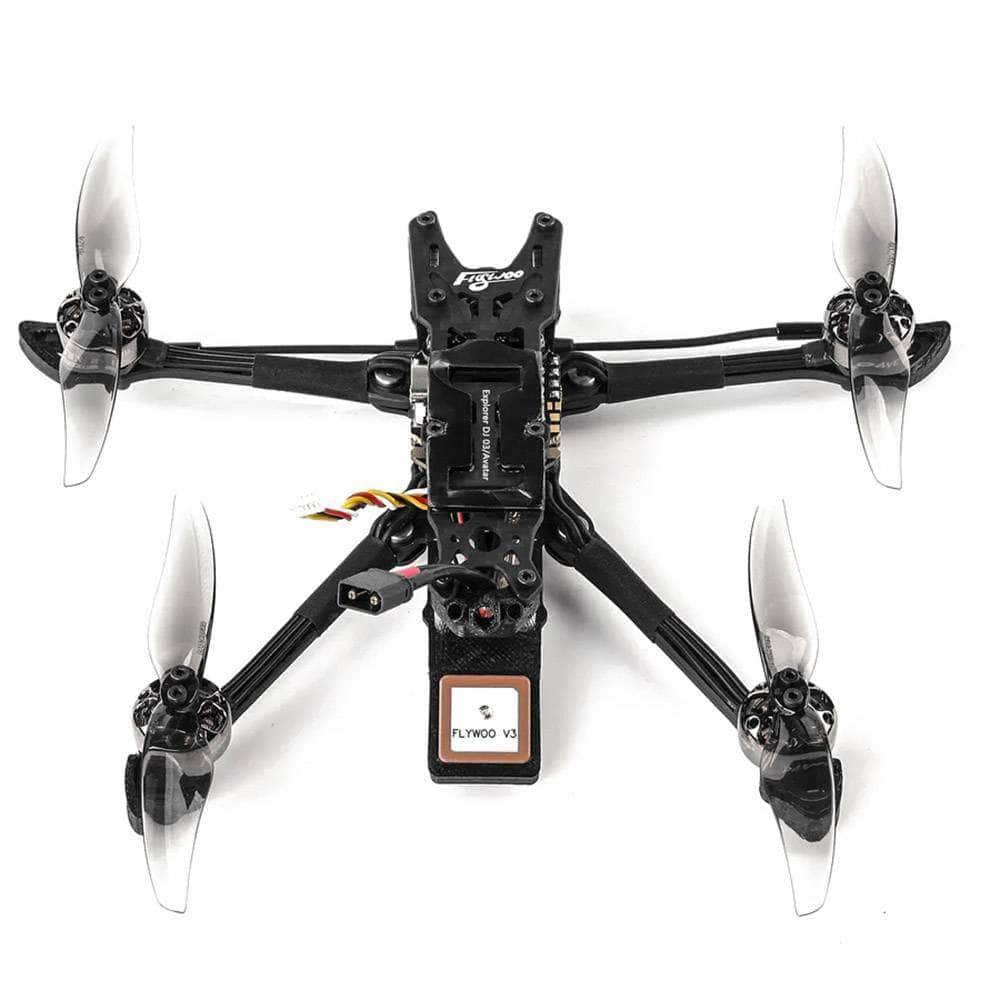

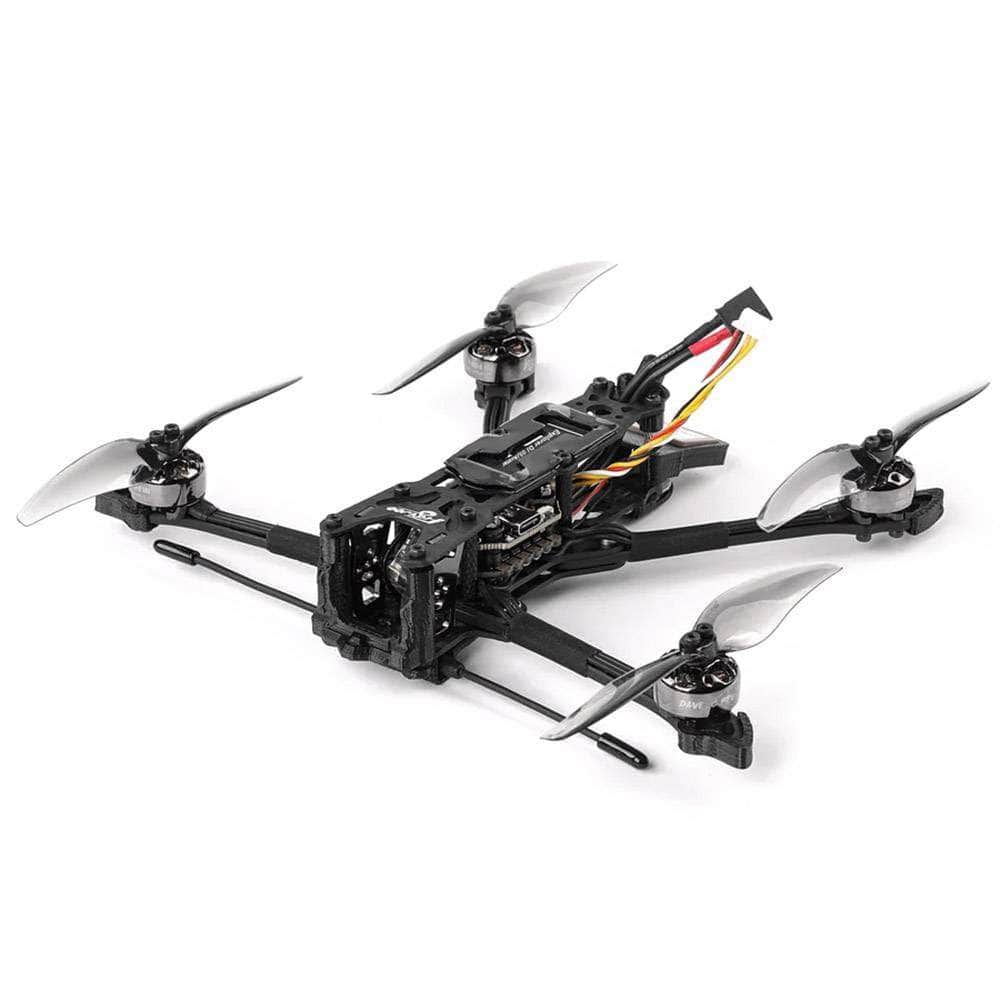

Flywoo BNF Explorer LR 4" Deadcat HD 4S Quad (without O3 Unit) - PNP

Flywoo BNF Explorer LR 4" Deadcat HD 4S Quad (without O3 Unit) - PNP

$289.49
$289.49
Add To Wishlist
View full details

Details

Description

Please note that this version is a kit and does NOT come with an O3 air unit, O3 camera and SanDisk Card.

From the creator of the classic dead cat design for micro long-range, Dave_C FPV. As well as the collaboration with Flywoo, we at RaceDayQuads present you the Flywoo Explorer LR HD. This quad features the GOKU Versatile F405 Pro Mini Stack, NIN 1404 V2 2750KV Motors, and V3.0 GPS.

Want a guide for this drone, well here you go: Drone Guide

Check out our other DJI O3 Compatible Quads, and also see our other great products from Flywoo!

Features

  • Long-range capabilities up to 10KM (FCC)
  • Newest GOKU MINI GPS V3 for Explorer O3
  • GPS search up to 30 satellites
  • Plug&Play plug O3 Air unit. Hence there is no need to solder
  • 4K/60fps recording for high-quality footage
  • Latest GOKU MINI GPS V3 for greater accuracy
  • Compact and lightweight design, weighing less than 250g even with the battery
  • Long flight time of up to 30 minutes
  • User-friendly controls for easy operation

DJI O3 FPV AIR UNIT

The DJI O3 Air Unit integrates DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight, compact design. See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity and enjoy even more sky-high travels!

GOKU GM10 MINI GPS V3.0

The V3.0 GPS allows for up to 30 satellites to be searched, making the rescue function more reliable. Safeguard your cruise flight with a built-in buzzer and up to 5 hours of standby.


Specifications

  • FC and ESC : Goku Versatile F405 Pro Mini Stack ( F405 FC+ 40A ESC ) 8Bit 2-6S 20 x20 Plug&Play plug O3 Air unit
  • Recommended Battery: Explorer 18650 4S \ Exploer 900mah 4S \ Explorer 750mah 4S
  • Frame: Explorer LR 4 O3 (Different from OG Explorer LR frame )
  • Motor: Nin V2 1404 2750kv
  • Propeller: 4024-2
  • Antenna: NO
  • Camera: NO
  • VTX: NO

GOKU GN F405 Pro Mini 40A 20x20 Stack

GOKU Versatile F405 PRO FC

  • Input Voltage: 2-6S LipoMCU: STM32F405BGA
  • GYRO: ICM42688P
  • UARTS: 1/2/3/4/5/6
  • I2C: SCL/SDA
  • Barometer: BMP280
  • BEC: 5V 2A / 10V 2A
  • Blackbox: 16M
  • Input Voltage: 2-6S
  • Firmware: FLYWOOF405PRO
  • Mounting: 20x20mm M3 / 30x30mm M4
  • ESC Soft: Dshot300/600
  • ESC Telemetry: Yes
  • LED Controller: BF LED
  • F.Port: Yes
  • RSSI: Yes
  • Buzz: Yes
  • Input: 2~6S Lipo (8.4~25.2V)
  • TVS Protection: Yes

GOKU 406S 8bit 40A ESC

  • Con. Current: 40A
  • Burst Current: 45A
  • Input Voltage: 2-6S
  • Support DShot300/600
  • Current Sensor: YES
  • BEC Output: NO
  • Size: 42×42×4mm
  • Mounting Hole: 20x20mm (M3)

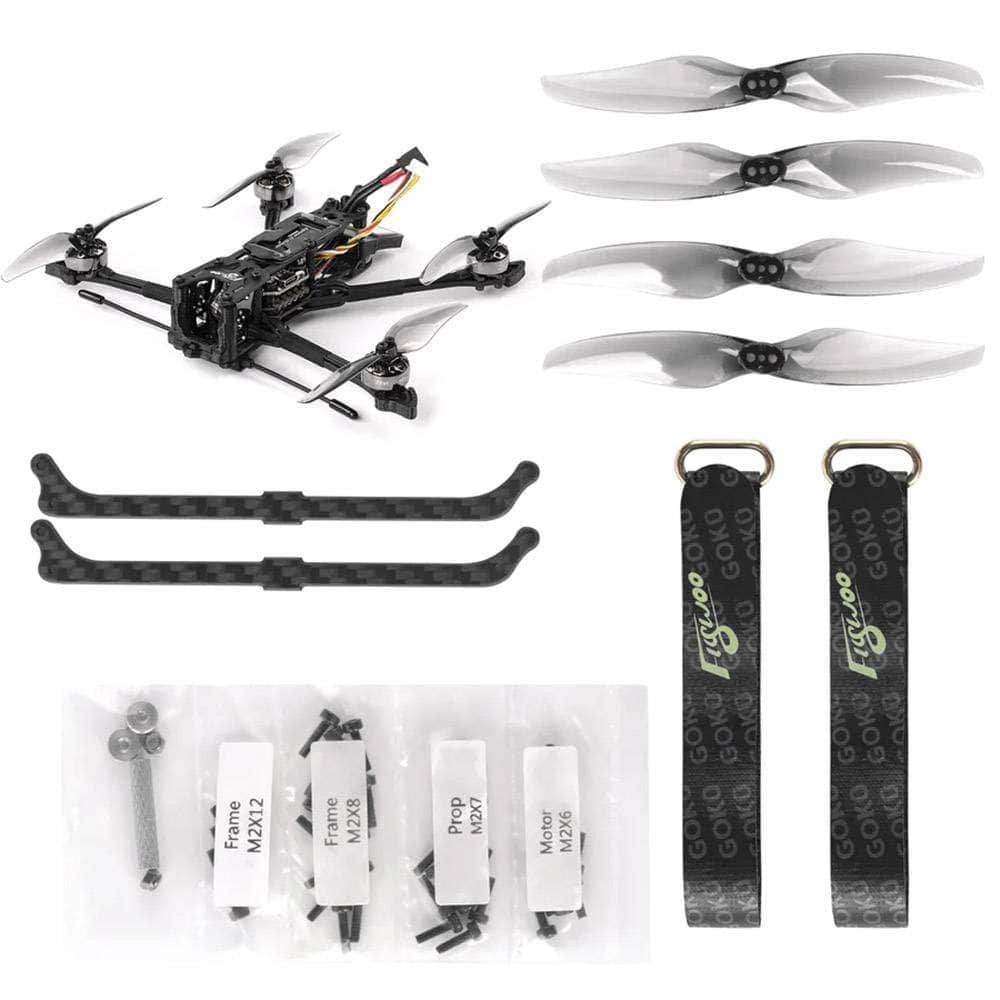

Includes

  • 1x Flywoo BNF Explorer LR 4" Deadcat HD 4S Quad (without O3 Unit) - PNP
  • 2x Gemfan Hurricane 4024 20 Blade Propellers (Set of 4)
  • 1x Side Carbon Plate (Set of 2)
  • 1x 3D Printed Part
  • 1x Hardware Set
  • 1x Battery Pad
  • 1x Lens Cover
  • 1x LiPo Strap

More Info

  • SKU: 19949
  • Barcode: 691023533966


Overall rating: 4.571429 / 5 from 7 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["range","quad"].

Review highlights

Reviews

I like it.

"Bought two of these. Put 03s in both of em. They are my sub250g solution to the FAAs all too stupid regs. No RID. And I no longer even need to register. They fly fine. They're not as good in the high winds above the treetops as my heavier more powerful 5" quads were. But - that's life. Under and through the trees and close the the ground - it's a joy to fly FPV."

— Tim (5/5)

awesome

"great quad.. easy to install and really quiet compared to my other drone.."

— Jimmy M. (5/5)

Perfect long range micro

"Chills but can rip decently on a smaller pack. Put the braces on."

— Sidsadee B. (5/5)

lightweight 03 platform

"Enjoying this. Been flying 5" 03 quads. This is more relaxing to fly through the trees. It is just barely under 250g though. Just. On the plus side - I smacked a tree trunk head on - and - nothing broke. I did have the arm supports on, BTW. I do not put hero cams on my 03 quads. That's the whole point of 03, to me."

— Tim G. (5/5)

Sweet quad.

"I love the flight time. Handles great. Durability would be my only question."

— Hugh L. (4/5)

This is a Sweet Quad that I Haven't Flown Yet

"Just got the Walksnail Pro today, that I plan on putting on this quad, so I haven't flown it yet. I dig Flywoos electronics and they do a REALLY nice job on the soldering too. Looking forward to getting this one in the air. Not too many 4inch long rangers out there. I REALLY liked that about this BNF."

— Timothy F. (5/5)

Flew great until first hard landing.

"It flew great until the first hard landing. Now it shakes when at 3/4 throttle going forward. If I level it the shaking stops. I replace all the props, and also 2 motors after testing them and seeing a little more vibration in them then the other 2. Reset and reprogrammed the FC, then worked 10 minutes after I did it and now the next day it does the same shake only worse. Tech support has been no help..."

— Bruce k. (3/5)

Q&A

Does it come with ELRS?
no.. you have to install your preferred radio link..
