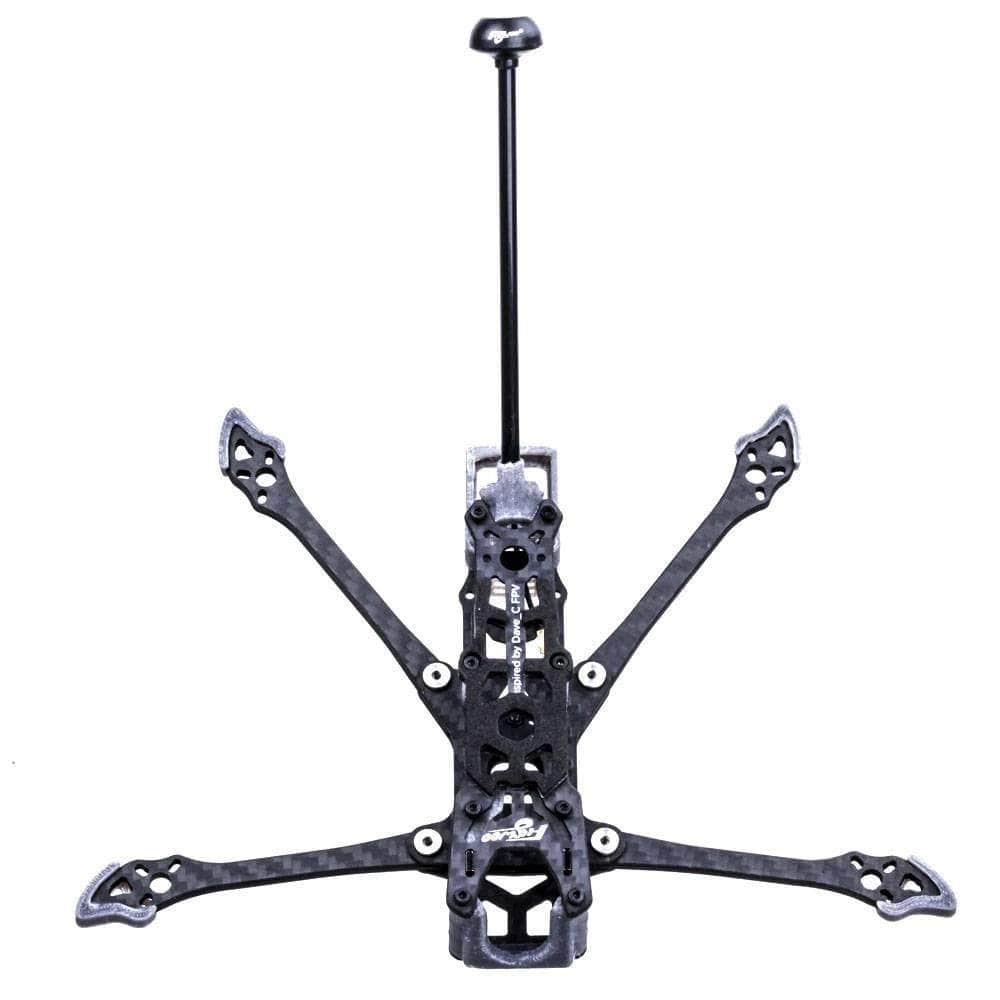

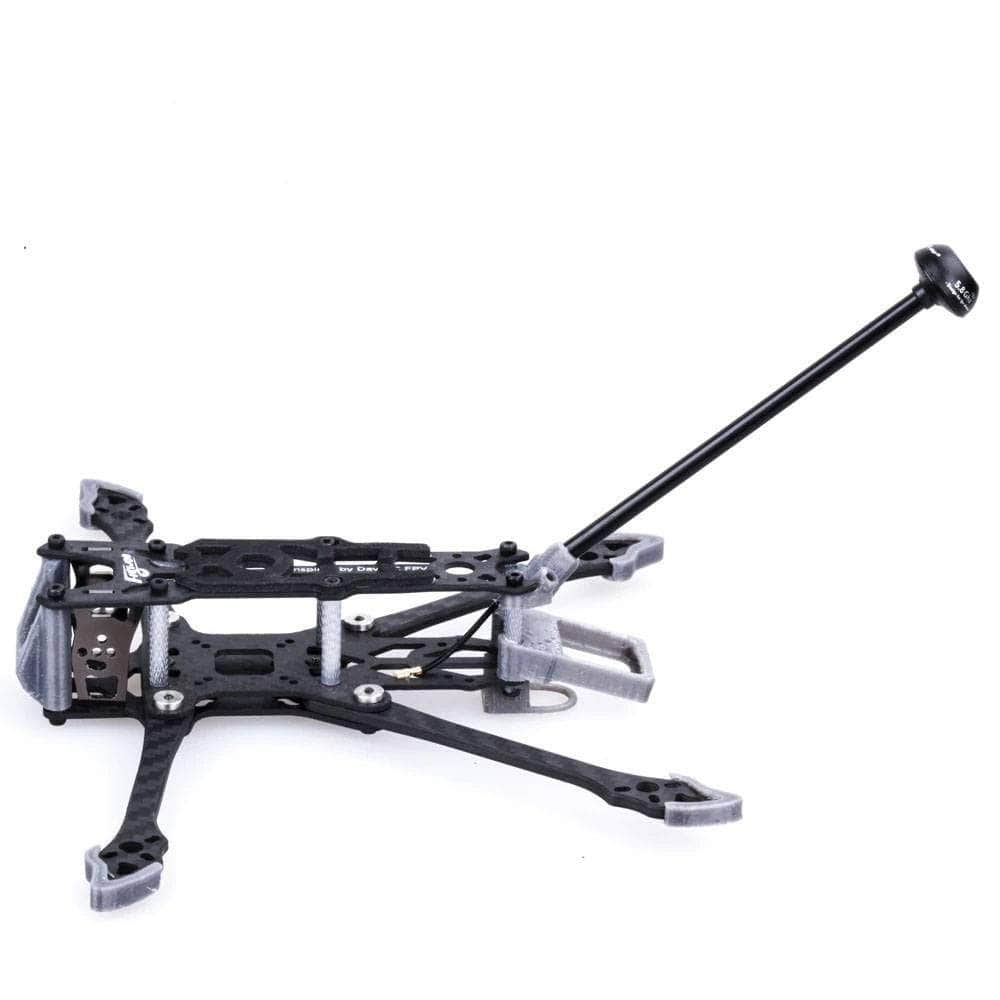

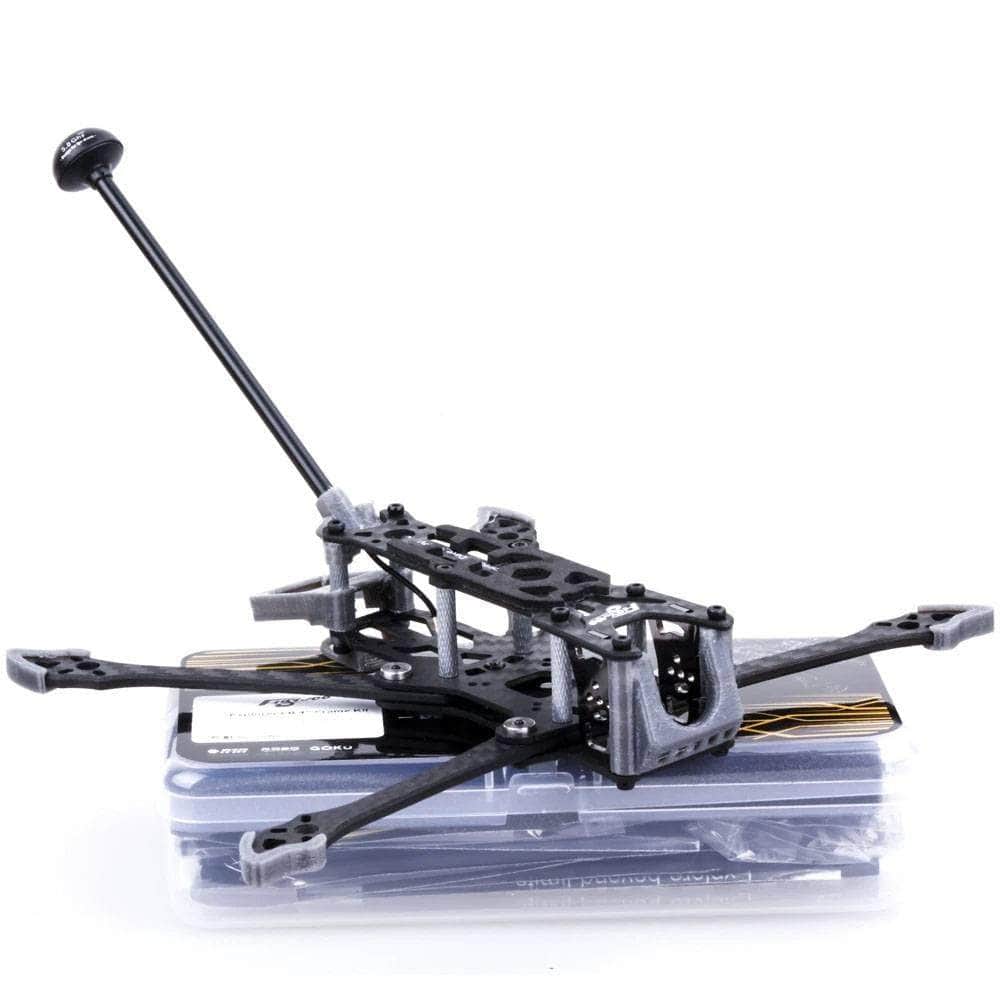

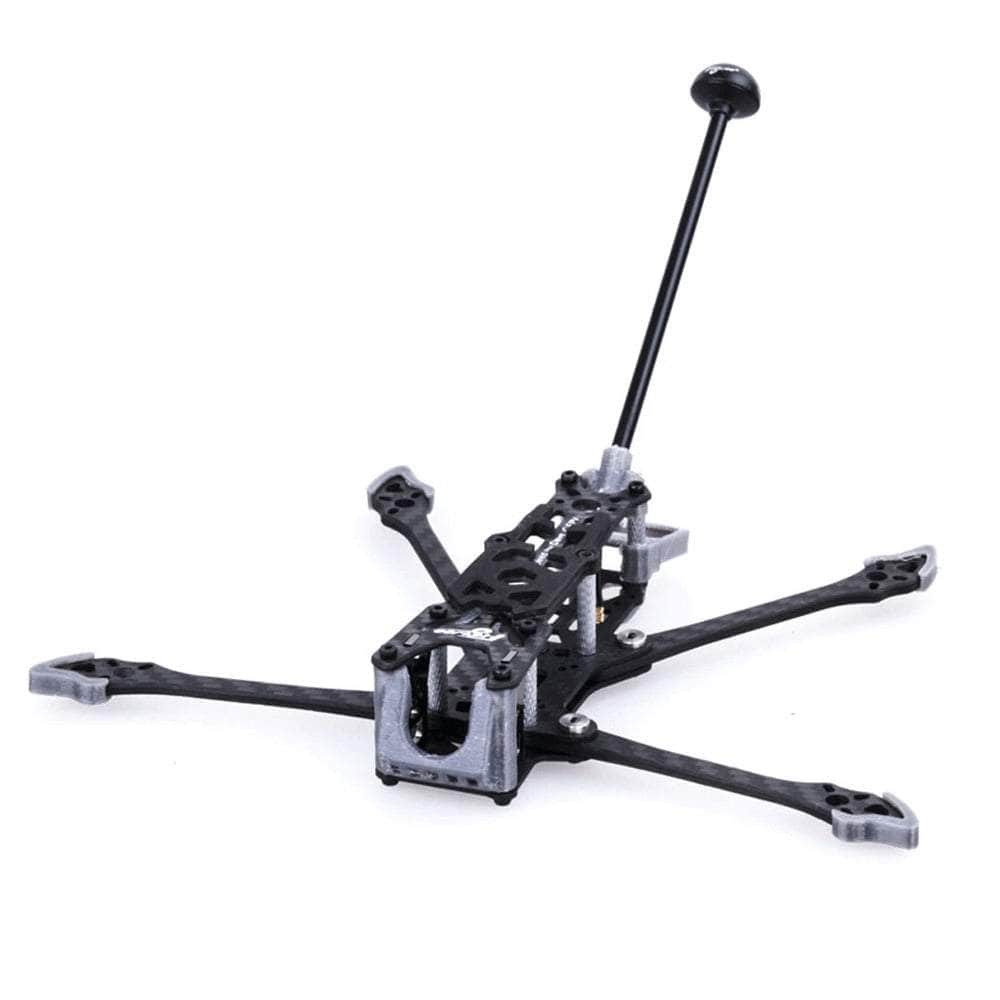

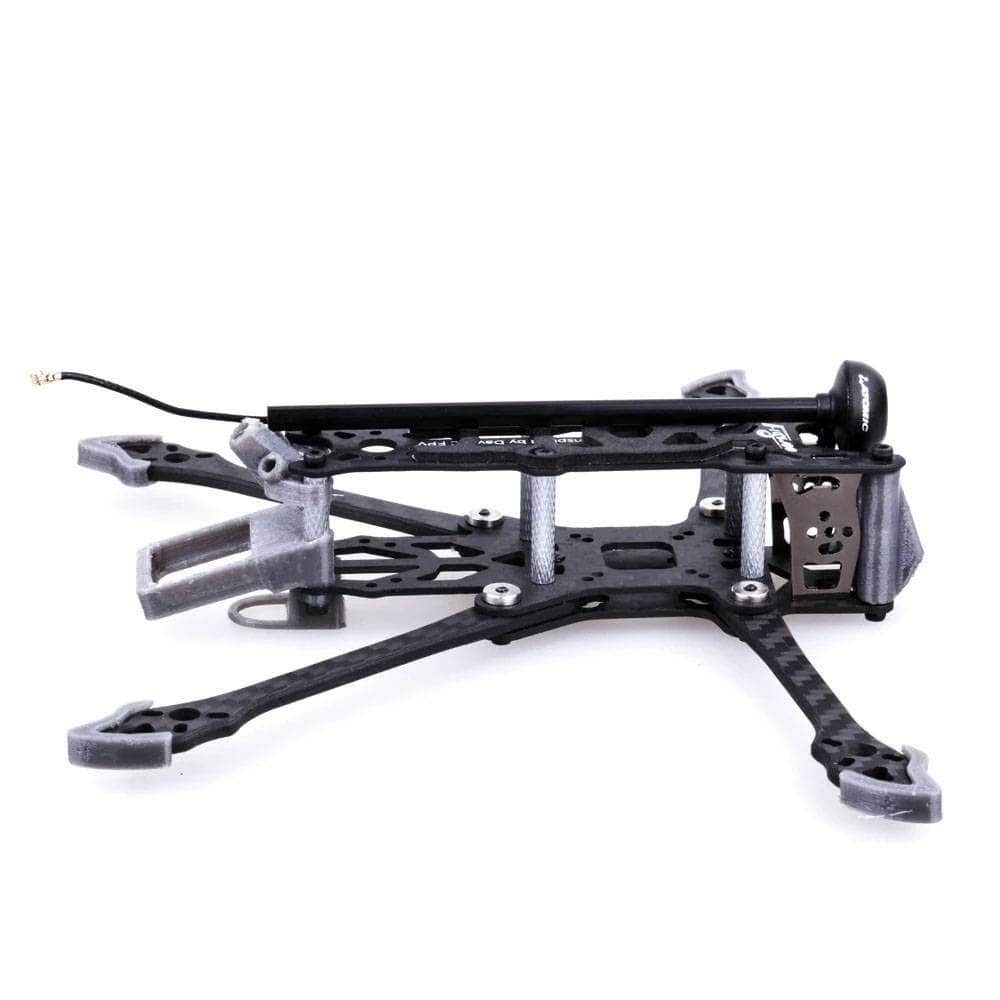

Flywoo Explorer LR Analog 4" Frame Kit V2 w/ Atomic RHCP Antenna

Flywoo Explorer LR Analog 4" Frame Kit V2 w/ Atomic RHCP Antenna

$34.99
$34.99
Add To Wishlist
View full details

Details

Description

Experience long-range cruising with the Flywoo Explorer LR Analog Frame Kit, a collaboration between Flywoo and Dave_C FPV, this ultra-light 4" frame is designed to help you push your FPV skills to the max, without compromising on noise and portability. Made with 100% 3K carbon fiber and 7075 aluminum alloy, the Explorer LR lets you take off and enjoy the thrill of a long-range FPV adventure.

Check out the rest of our 4" frames, as well as other great products from Flywoo!

Specifications

  • Thickness of arms: 3mm
  • Thickness of top plate: 1.5mm
  • Thickness of bottom plate: 1.5mm
  • Weight: 41g
  • Electronic Mounting: 16x16mm, 20x20mm
  • VTX Mounting: 16x16mm, 20x20, 25.5x25.5mm
  • Motor Bolt Pattern: 9x9mm, 12x12mm
  • Material: 100% 3K carbon fiber, 7075 aluminium alloy

Message from Dave_C FPV:

"For me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7" long-range quad produces.

So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7" long-range quad until it is below 250g take-off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!

This tiny quad is equipped with GPS, Crossfire, and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analog video transmission. The powertrain with its GOKU 16x16 stack and the all-new 2700kV 1404 motors spinning 4" props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 miles) round trips easily. And the best thing about it: It's incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”

                                                                        ----- Dave_C FPV

Includes

  • 1x Flywoo Explorer LR 4" Walksnail Long Range Frame kit
  • 1x Black TPU 3D Printed Parts
  • 1x M2x5: 8pcs
  • 1x M2x7: 8pcs
  • 1x M2x8: 6pcs
  • 1x M2x12:12pcs
  • 1x Aluminum Standoffs M2*20: 4pcs
  • 1x Aluminum Standoffs M2*25: 2pcs
  • 1x TPU 3D Printed Parts :1 package
  • 1x Flywoo Atomic 5.8G UFL Ant  1 ( RHCP )

More Info

  • SKU: 14858
  • Barcode: 691023508088


Overall rating: 4.857143 / 5 from 7 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Buy before the Crash

"I highly recommend the Flywoo Explorer LR 4 frame kit for anyone searching for a top-notch, long-lasting frame for their drone. The frame's carbon fiber build and X shape provide exceptional stability and agility in flight. Let's be honest, if you're anything like me, you've had your fair share of drone crashes on beautiful days. Thankfully, the Flywoo Explorer LR 4's modular design simplifies the process of fixing or replacing any damaged parts. This means you can quickly get your drone back in the air and ready to fly once again. Of course, I hope your flying adventures are more successful this time around - no more crashing!"

— Jeremy T. (5/5)

Go long

"Nice long range frame"

— Brian I. (5/5)

Good Stuff

"Good Stuff"

— BRIAN C. (5/5)

As always fast shipping great

"As always fast shipping great company to deal with"

— charles c. (5/5)

Excellent little frame

"Bought this to convert a 3 inch build into a 4 inch build and I am glad I did. This frame flies incredibly well and with a 4S 1100mah (97g) bat I am getting 15 min flight time cruising and it flies very smooth. I am running EMAX 1306B 2700kv motors (not even warm) with a 20x20 stack (F4 FC/13-15A ESC), 600mw VTX, Runcam Split 3 Mini, GPS, R9 rec/T antenna, HQ 4025 props - all up weight 243g. I have also built a spec version of this that closer matched the original Flywoo ver with 1404 2750kv motors (no beeper) and I actually think the 1306B motors build fly better/smoother. And all this time I thought, who needs another (4 inch) quad!?! Guess I do cause this is my fav right now, recommended."

— STEPHEN S. (5/5)

excelent

"this little frame is great, getfpv have top notch customer service."

— Renzo d. (5/5)

Awesome little frame

"Awesome frame. I'm doing a custom build which is a little different than the prebuilt version. The only thing I wish was different was that I wish it could fit a whoop board without having to print an adapter. Other than that it's awesome. Nice that it comes with all the printed stuff too."

— Calvin N. (4/5)

Q&A

I see other holes besides the 16x16. What are the stack holes in front and back sizes?
Hi Greg, Front and back slots both have holes for 16x16 & 20x20 stacks. It’s a great flying quad! Enjoy, Sean
