Details
Description

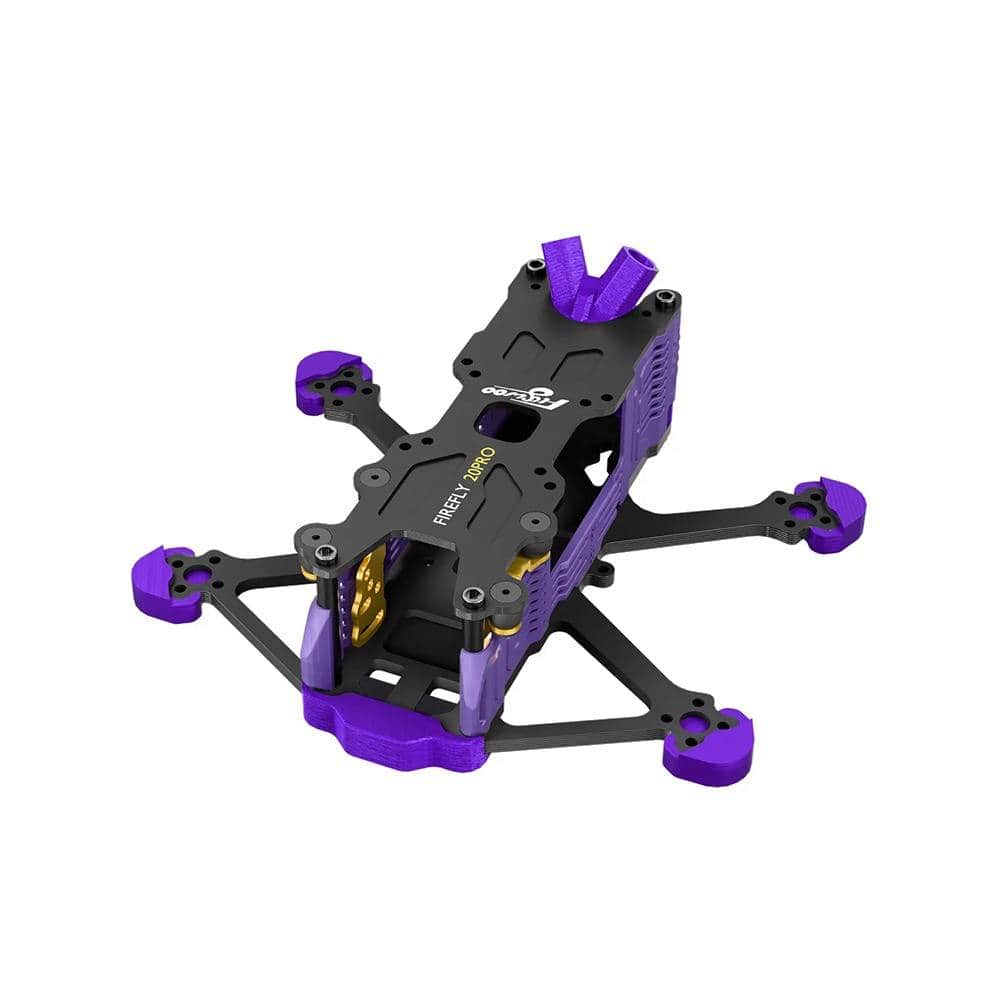

The Flywoo Firefly 20 Pro features a high-strength carbon fiber frame and unibody front arm structure for improved crash resistance. Quick-release side panels offer greater protection and the top plate is designed to house the entire digital VTX for easy installation and swapping with the Firefly 25 Mini frame.
Check out our Flywoo Frames & Accessories, as well as other great products from Flywoo!
Features
-
Shared dual-frame platform for 2-inch high-speed racing and 2.5-inch long-endurance freestyle
-
Fully compatible with DJI O4/O4 PRO, Walksnail, and HDzero digital FPV systems
- Unibody structure reinforces arm strength and flexibility
-
4-point shock-isolating camera mount eliminates image jello
-
0°-25° adjustable camera tilt
-
Tool-free quick-release side guards for easy installation and removal
- Fully enclosed wire protection tubes
Specifications
- Product Name: Firefly 20PRO Frame Kit
- Dimensions: 110mm x 105mm x 33mm
- Wheelbase: 105mm
- FC Mount Hole: 20 x 20mm
- VTX Mount Hole: 20 x 20mm / 25.5 x 25.5mm
- Motor Mount Hole: 4-M2-φ9mm
- HD System: O4 Wide Air Unit/Walksnail Avatar Pro Kit/O4 PRO Air Unit/HDZero Whoop Lite w/ Runcam Micro
- Weight: 26g
- Recommended Battery: Flywoo 4S 450mAh LiHV/4S 750mAh LiHV

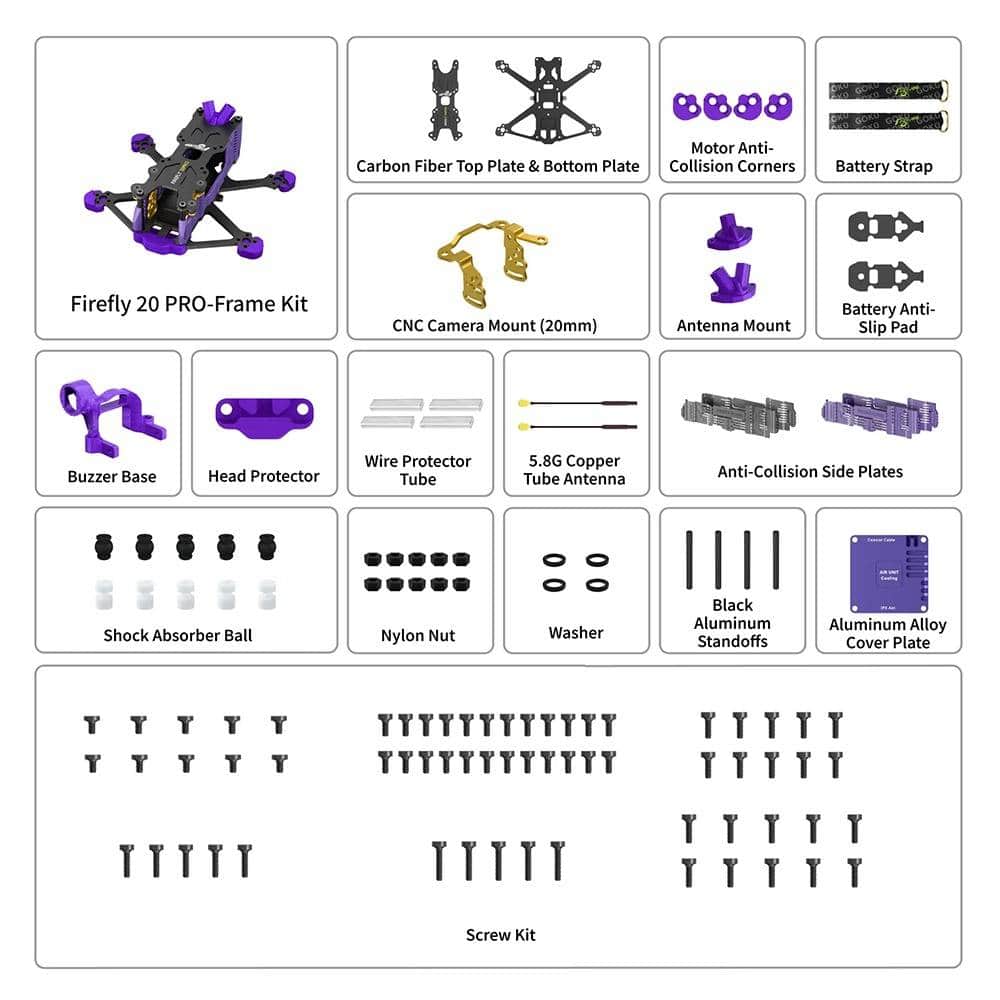

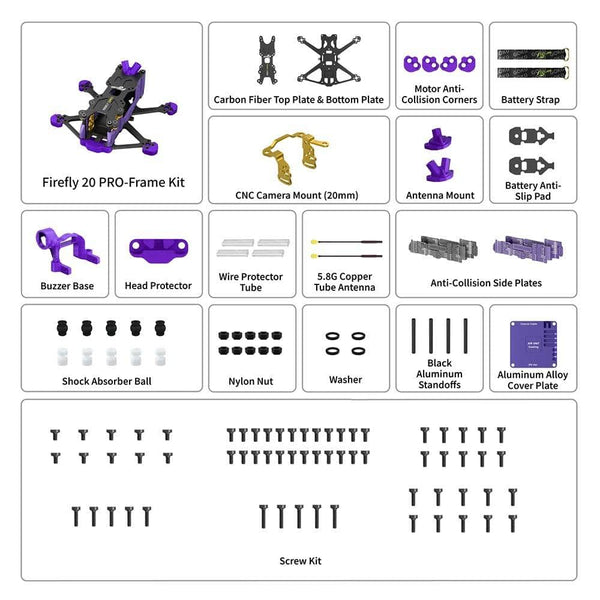

Includes
- 1x Carbon Fiber Top Plate
- 1x Carbon Fiber Bottom Plate
- 2x Battery Anti-Slip Pad
- 1x CNC Camera Mount
- 1x Antenna Mount
- 1x Buzzer Base
- 1x Head Protector
- 4x Wire Protector Tube
- 2x 10 x 130mm Battery Strap
- 2x 5.8GHz Copper Tube Antenna
- 2x Anti-Collision Side Plate (Purple)
- 2x Anti-Collision Side Plate (Black)
- 10x Shock Absorber Ball
- 10x M2 Nylon Nuts
- 4x Washers
- 4x Black Aluminum Standoffs
- 1x Aluminum Alloy Cover Plate
- 1x Screw Kit
More Info
- SKU: G24597CN1Z
- Barcode: 723326380402
