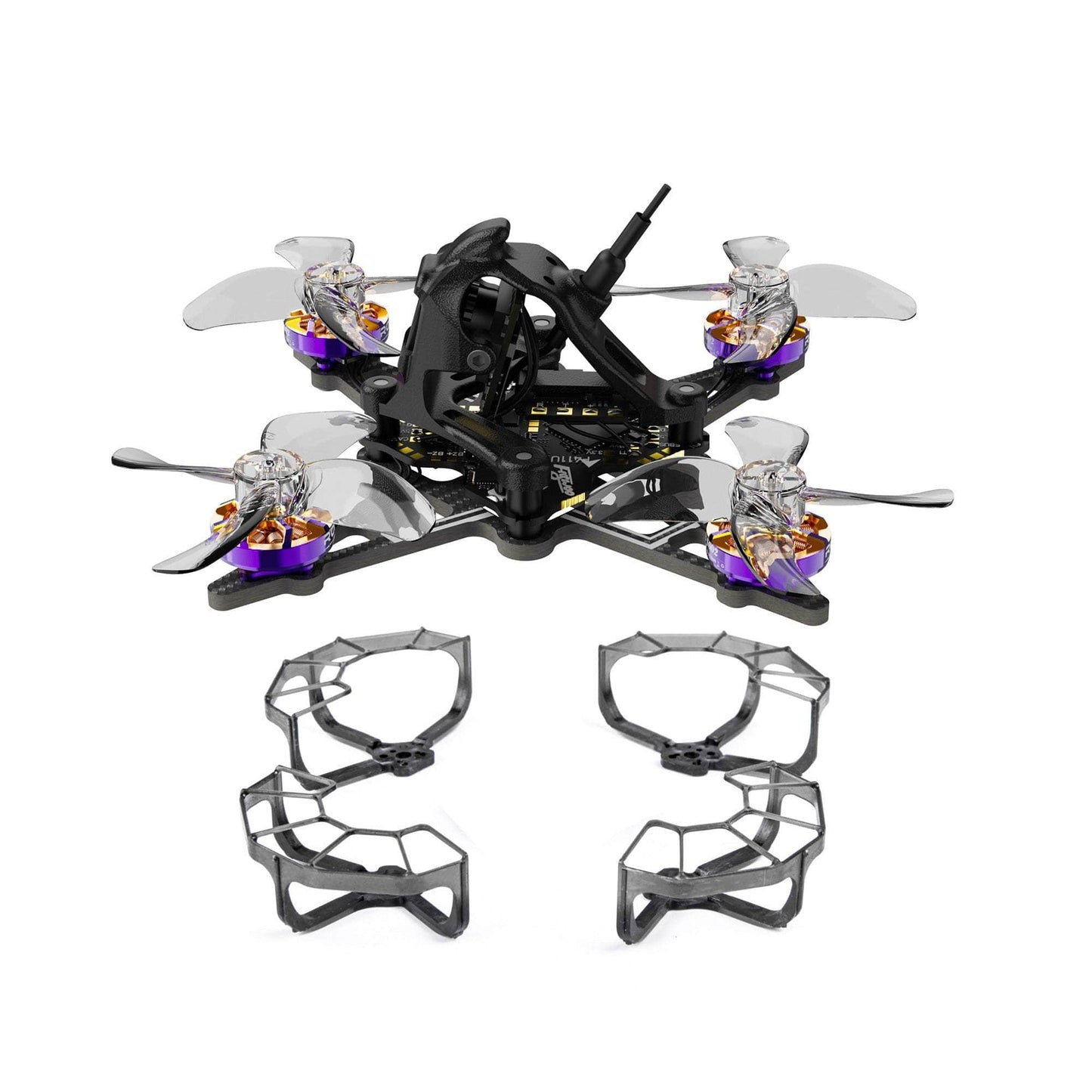

Flywoo BNF Firefly FR16 Nano Baby Analog V2.0 1.6" 1S Micro Quad - ELRS 2.4 GHz

Flywoo BNF Firefly FR16 Nano Baby Analog V2.0 1.6" 1S Micro Quad - ELRS 2.4 GHz

Regular price $203.99
Sale price $203.99 Regular price
Add To Wishlist
View full details

Details

Description

The FR16 Nano Baby V2 is a meticulously crafted microdrone with improved appearance, flight time, and power compared to its predecessor. Power has increased by 30%, with flexible flight, exceptional maneuverability, and higher speeds. A new canopy reinforces camera protection, while a new bottom plate adds sturdiness and crash resistance. The drone is equipped with a special gold-purple edition ROBO 1002 23,500KV motor and GOKU Versatile F411 VTX 1S AIO V2 with 250mW video transmitter. The Flywoo 1S Nano camera V3 delivers clearer and better image quality on this quad.

Check out our other pre-built quads, as well as other great products from Flywoo!

Features

  • Redesigned canopy with enhanced aesthetics and reinforced camera protection.
  • The bottom plate is thicker and has extended motor protection corners, resulting in a more stable and durable quadcopter.
  • Equipped with ROBO 1002 23,500KV motor and 1609 4-bladed 40mm propellers, delivering a 30% increase in power, reduced noise, and enhanced flight stability.
  • Ultra-light GOKU Versatile F411 1S VTX AIO V2 with upgraded circuit board stability and a 250mw video transmitter, enabling an extended flight range.
  • A30 plug supports a continuous current of 15A, providing greater power and longer flight times compared to the PH2.0 connector.
  • Upgraded Flywoo 1S Nano camera V3 delivers clearer and better image quality.
  • New battery compartment design allows for easy replacement of batteries of different models.

Specification

  • Motor:  ROBO 1002 23500KV
  • Electronics:  GOKU Versatile F411 VTX 1S 5A AIO V2.0 w/250mW VTX
  • Props:  1609 - 4 blade 40mm 1.5mm Shaft
  • Camera:  Flywoo 1S Nano Camera V3
  • Receiver:  ExpressLRS 2.4GHz
  • Weight:  26g
  • Flight Time:  Explorer 1S 450mAh HV V2: 4m - Explorer 1s 750mAh HV V2: 6m (approximate)
  • Speed:  80km/h (approximate)

GOKU Versatile F411 VTX 1S 5A AIO V2.0 w/ 250mw VTX

Flight Controller

  • MCU: STM32F411CEU6
  • GYRO: ICM42688
  • UARTS: 1/2
  • Soft serial port:1
  • I2C: SCL/SDA
  • BEC: 5V
  • Input Voltage: 1S (<4.35v)
  • Firmware: FLYWOOF411_5IN1_AIO
  • Mounting:  25x25mm, M2

Onboard 4in1 ESC

  • MCU: EFM8BB21
  • Power supply: 1S LiPo/LiPo HV Current: 5A
  • Firmware: BLHeli_S
  • Factory firmware: O_H_5_REV16_8.HEX
  • Default protocol: DSHOT 150/300/600

Onboard 5.8g VTX

  • Output power: 25mw~250mw switchable
  • Frequency: 40CH
  • Frequency: 5.8GHz 5 bands 40 channels(include Race band) IRC ready
Flywoo ROBO 1002 23500KV Fpv Motor:
  • Configuration: 9N12P
  • Stator Diameter: 10mm
  • Stator Length: 2mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension(Dia.xLen): Φ13.5x7.75mm
  • Weight(g): 2.5(5cm wire)
  • Idle current(5)@5V(A): 1.5
  • No.of Cells(Lipo): 1S
  • Max Continuous Power(W)3S: 52
  • Internal Resistance: 75mΩ
  • Max Current(3S): 14A
  • Max Efficiency Current: (2-4A)>84%

Flywoo 1S Nano Camera V3

  • Model: Flywoo 1S Nano Camera V3
  • Image Sensor: 1/3" CMOS Sensor
  • Horizontal Resolution: 1200 TVL
  • TV System: NTSC and PAL(switchable)
  • MENU: Support
  • IMAGE: 4:3
  • Synchronization: Internal
  • Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
  • S/N Ratio: >52dB (AGC OFF)
  • Video Output: CVBS
  • Lens: 1.8mm/F2.5
  • Min. illumination: 0.001Lux
  • Auto Gain Control: YES
  • BLC: YES
  • WDR: Global WDR
  • DNR: 3D DNR
  • Dimensions: 14x14mm
  • Wide Power Input: DC 3.7-18V
  • Work Temperature: -20°C~+60C
  • Work Humidity: 20%~80%
  • Weight: 2.1g

Includes

  • 1x Flywoo BNF Firefly FR16 Nano Baby Analog V2.0 1.6" 1S Micro Quad - ELRS 2.4 GHz
  • 4x 1609 - 4 40mm 1.5mm shaft
  • 2x TPU Battery Mount
  • 1x Hardware Screw Set
  • 4x Prop guards

More Info

  • SKU: 20766
  • Barcode: 691023521858


Overall rating: 4.285714 / 5 from 7 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["drone"].

Review highlights

Reviews

"This is probably my favorite go to micro. Tons of power and handles very well. Only complaint would be the VTX is not very stable and flickers more than my other micro analogs. But it’s worth the trade off for the performance you get out of the drone."

Heather (5/5)

"Flies great it has alot of speed and is manerverable."

Frank (5/5)

Great drone for the price

"This is an absolutely stunning drone, the motors definitely make it apart from the rest of the boring whoops that seem to be on the market these days. . the video quality is pretty good for analog, especially for its size (UNLIKE WHOEVER THAT GUY IS WHO GAVE A TERRIBLE REVIEW BECAUSE OF THE VIDEO QUALITY) if you can’t seem to grasp that maybe you’re doing something wrong, rather than the drone. . get out of the hobby. . just saying. Anyways, back to the drone. It’s really powerful and I can skim the grass in my yard, thread needles, and do very tight maneuvers that I usually aren’t able to do with my 3 inch quads. Definitely worth it if you want some fast paced aerobatics in your yard or at some playground with structures."

Will (5/5)

Love this lil quad

"Awesome lil ripper… my only issue is the l min and max startup power needed some adjusting right out of the box because if using a 450 mah battery and it’s not 100% charged you’ll have issues getting all 4 motors to spin up. Hope in blheli and lower min by 15 and raise max by 15 and you’ll be good to go!!! Ordering another one soon as a backup because I acutely love it. Wife already ordered her one!!"

shane h. (4/5)

cheap thrills

"best micro ever! since the last nano baby. ay, could y'all order a few more of these?"

Jason (5/5)

Fun lil ripper!

"Got this to rip around my yard and the parks. Its perfect for that. Some of the components that came on this kwad are different than in the listing. Has a serial elrs rx and t style antenna. Not on board elrs with a ceramic antenna. Also has a 400mw vtx not 200. Cane with 4 blade and 3 blade props which was really nice. For the money spent i feel like you get way more in this kwad."

DJ D. (5/5)

Worst Video

"I purchased the analog version and it is by far the worst video quality of any quad that I have ever owned. I have another Flypoo hex quad and it was also a quad with the worst video, and never flew due to the fact that the video was so bad. This unit also overheats if left for even a short time. If you can manage to get it in the air quickly, the video is washed out and absolutely horrible. I tried a different antenna and also switched it to 100mah from the 200mah that it shipped with. For some reason, Flywoo ships every quad set to maximum output. When I contacted them on the hex, They told me to turn down the power and not use it with the 600mah that they set it at in the factory. Unless you use the digital version, I would steer clear of this one. I would suggest that Flywoo needs ti step up their game when it comes to the video department. Also the camera is solder connections and not a plug which makes changing cameras difficult. I am waiting for RDQ to make this right and issue an RMA. I suspect that they will squirm and try everything to get out of it. We will see!"

Ray P. (1/5)

Q&A

Can i turn off elrs in the reciver page in betaflight and put on a frsky rx ???
If the FC has Uarts to utilize than yes.
