Details
Description

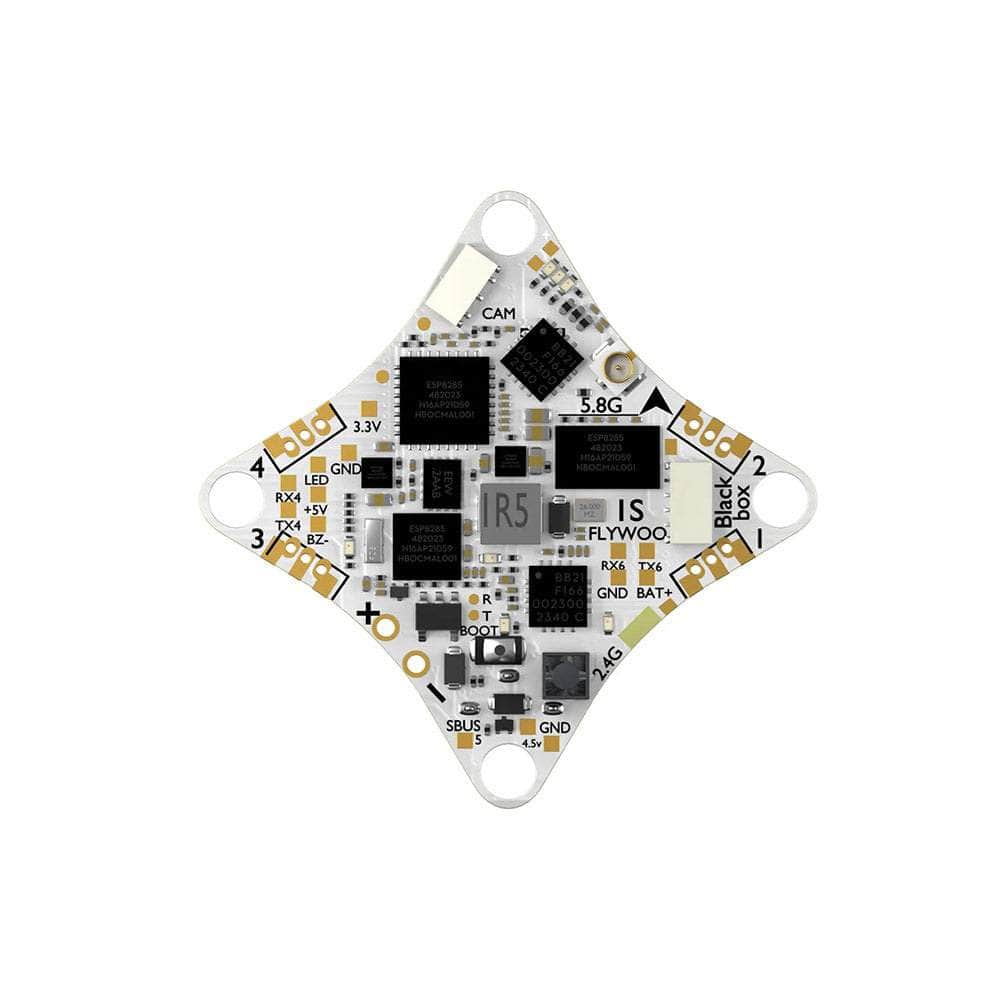

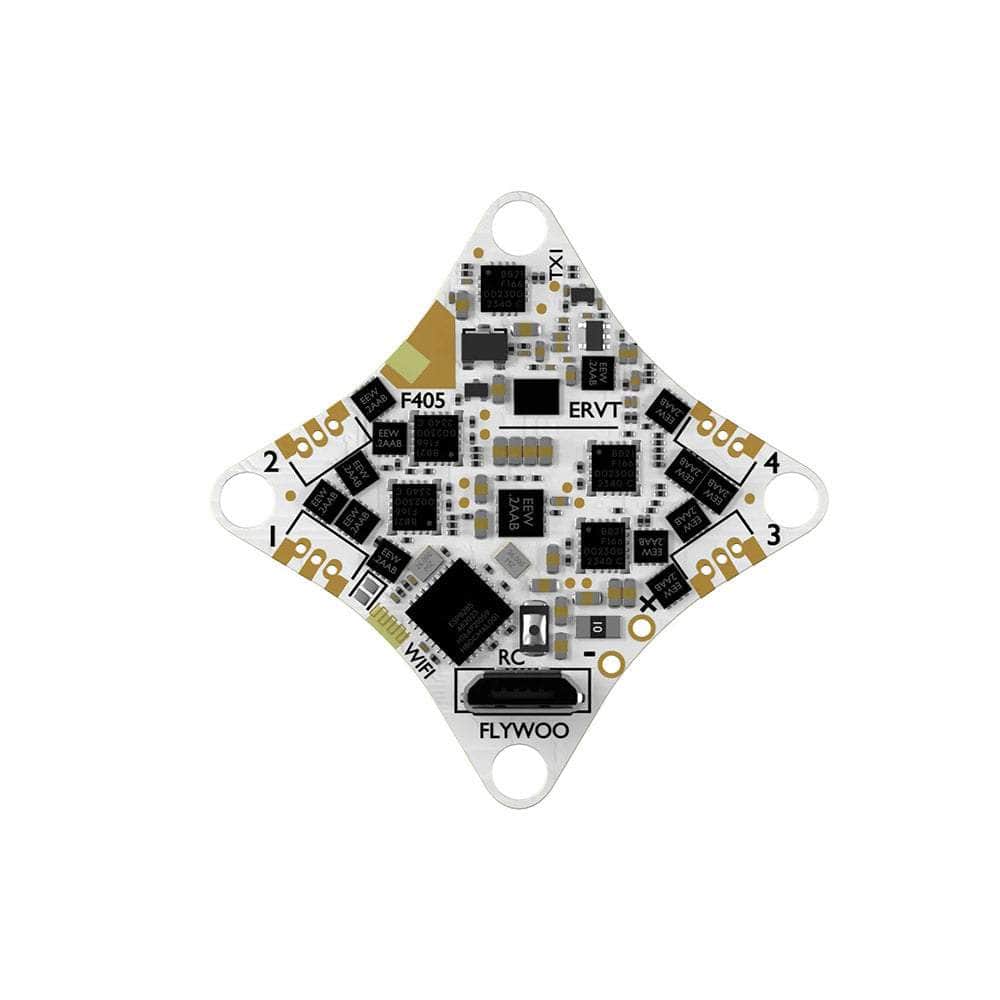

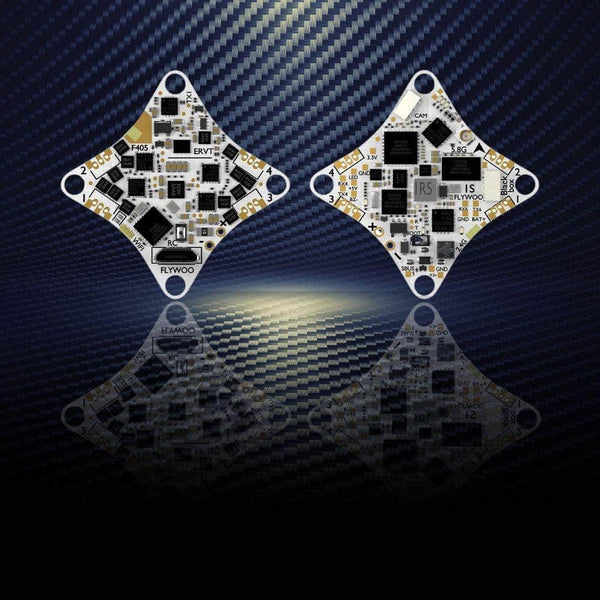

Flywoo GOKU ERVT 5-in-1 AIO - F405 FC + 1S 5A ESC + 400mw VTX + ELRS RX + OSD – A revolutionary all-in-one solution. Powered by an F405BGA MCU, it delivers 68% higher processing power than traditional F411 chips, enabling ultra-low latency for competitive racing and acrobatic maneuvers.
Check out all our Whoop/AIO Flight Controllers and our other great products from Flywoo!
Features
- Integrated Design with plug-and-play interfaces for solder-free installation of motors, cameras, and blackbox
- Unmatched Processing, F405BGA chipset with 68% faster clock speed
- Video Transmission Switch
- Pagoda-style integrated antenna delivering ≥1.5km range
- 1S-optimized circuitry for sub-50ms video latency
- Fully compatible with Betaflight, INAV, and other mainstream firmware
Specifications
GOKU F405 ERVT
- MCU: STM32F405BGA
- IMU: ICM42688P
- Barometer: No
- Black Box: No (Up to 512M external)
- OSD Support: AT7456E (LGA16)
- UART: UART1 (VTX IRC), UART2 (Blackbox), UART3 (ELRS RX), UART4, UART5 (SBUS), UART6
- Supported Protocols: CRSF, SBUS, iBus, Spektrum
- BEC: 5V 2.0A max
- RX: Flywoo EL24E 2400 RX 3.0.0
- FC Firmware: FLYWOOF405S_AIO
- Dimensions: 30.5 x 30.5mm
- Mounting Holes: Standard 25.5/25.5mm square to center of holes

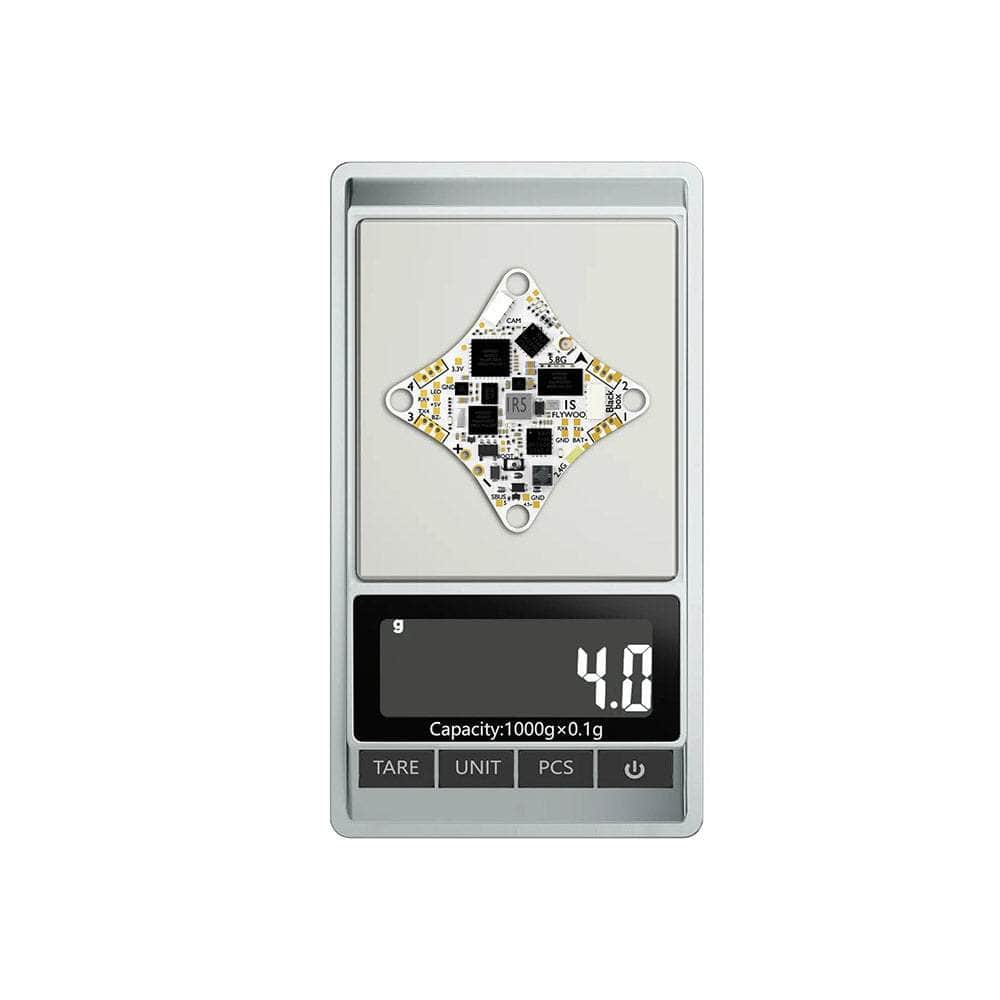

- Weight: 4g
4in1 ESC
- Power input: 1S Only
- Current: 5A continuous, 8A peak
- ESC firmware: O_H_5_48KHz_V0.19.hex Bluejay firmware
- Digital signal protocol: DShot300, DShot600
- Motor Connector: JST1.25
- Battery connector: A30
Analog VTX
- Built-in VTX: 25/50/100/200/400/0mw
- VTX Protocol: IRC Tramp
- Frequency: 5.8GHz 40 channels
- Raceband: 5658-5917MHz
- Operating temperature: -15°~+80°
Includes
- 1x Flywoo GOKU ERVT 5-in-1 AIO - F405 FC + 1S 5A ESC + 400mw VTX + ELRS RX + OSD
- 1x A30 power cable
- 1x JST-0.8 3pin 50mm camera cable
- 1x Flywoo Black box connector cable
- 4x 1.25mm 3-Pin Vertical Straight Socket
- 4x M2x6.6 Shock-Absorbing Ball
More Info
- SKU: 23508
- Barcode: 723326376009
